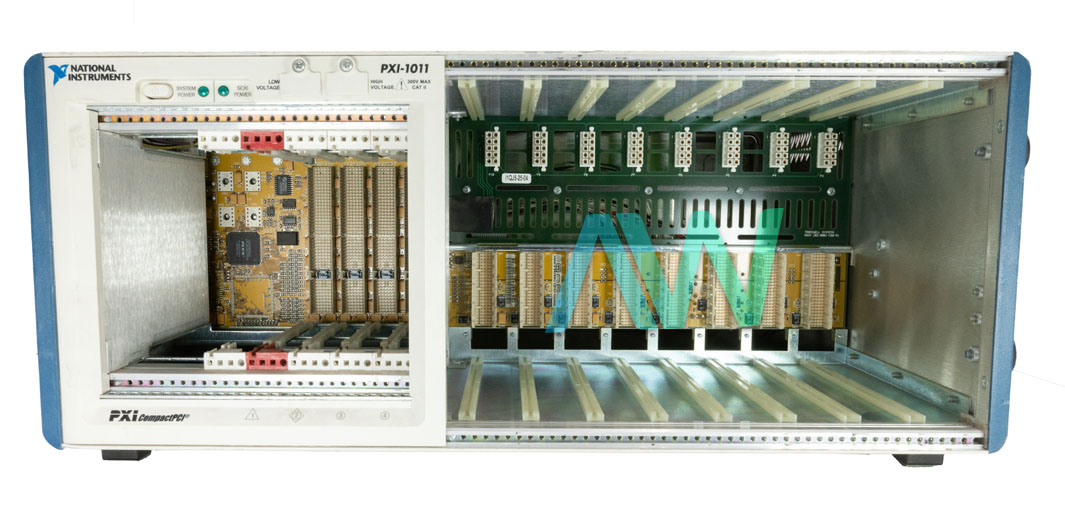

PXI-1011 National Instruments PXI Chassis | Apex Waves | Image

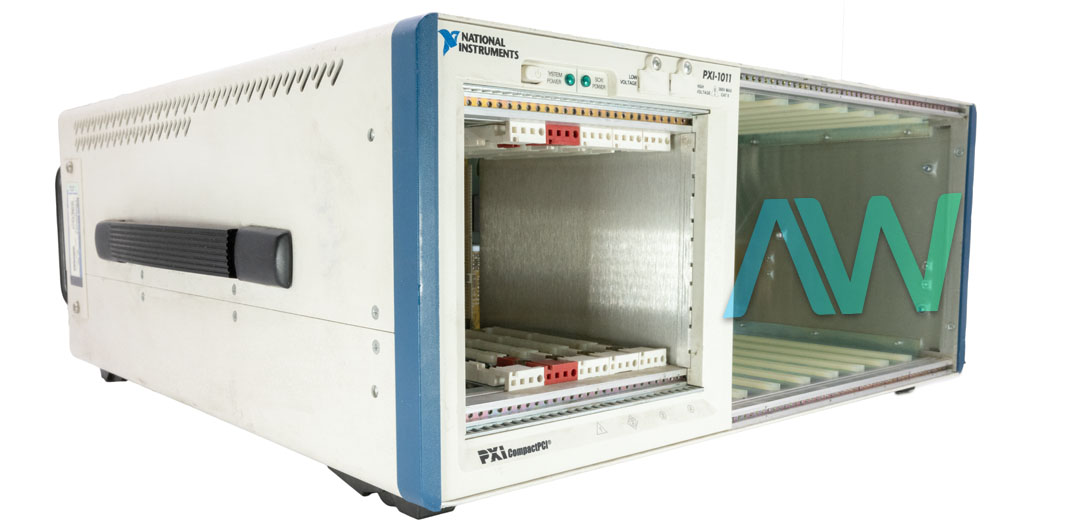

PXI-1011 National Instruments PXI Chassis | Apex Waves | Image
PXI-1011 New
PXI-1011 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-1011 National Instruments PXI Chassis | Apex Waves | Image
PXI-1011 National Instruments PXI Chassis | Apex Waves | Image
PXI-1011 New
PXI-1011 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-1011 PXI Chassis

The National Instruments PXI-1011 Chassis (Part Number: 777965-01) is a smart integration of an 8-slot SCXI subsystem with a high-performance 4-slot PXI subsystem to offer a comprehensive solution for signal switching and conditioning applications. The PXI section of this chassis is designed to accept an MXI-3 interface, an embedded controller, or a wide range of modules, such as digital I/O (DIO), multifunction I/O (MIO), and computer-based instrument modules. With this chassis, the user can utilize the 8 SCXI slots for the integration of multiple signal conditioning modules into the PXI infrastructure. These modules can provide digital and analog input conditioning, isolation, and a variety of other functions. The device has a maximum sampling rate of 333 KS/s.

The National Instruments PXI-1011 Chassis also allows the user to daisy-chain an additional SCXI chassis to achieve the addition of even more signal-conditioning channels. This chassis has a structural design and can be considered a viable solution for a broad range of applications. The NI PXI 1011 supports advanced synchronization and timing features. The PXI 1011 also has integrated overcurrent and overvoltage protection features.

This chassis comes equipped with an integrated interconnection between the SCXI and PXI subsystems that allows the installation of a DAQ/DMM module in the 4th PXI slot. This arrangement enables the user to control an SCXI subsystem without any additional cabling. This PXI chassis can be operated over a broad input voltage range of 100 to 240 VAC and offers 140 watts of PXI maximum usable power. The NI PXI-1011 can be utilized in an instrument rack or on a bench, allowing the user flexibility with the chassis for their specific application requirements. The device has an AC input voltage range of 100 to 240 VAC and an AC input frequency range of 47 to 440 Hz. The device weighs 20 lbs. and measures 17.6 x 17.3 x 7.0 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C and a storage temperature range of –20 to 70 °C.

PXI-1011's obsolete status has been announced by National Instruments, but it will still be available for purchase and repairs by Apex Waves.

ModelPXI-1011
Part Number777965-01
ManufacturerNational Instruments
TypePXI Chassis
PXI Slots4
SCXI Slots8
Maximum Sampling Rate333 kS/s
AC Input Voltage100 to 240 VAC
AC Input Frequency47 to 440 Hz
Operating Temperature0°C to 50°C
Storage Temperature–20°C to 70°C.
Dimensions17.6 x 17.3 x 7 in.
Weight20 lb.
Warranty2-3 Year Warranty
PXI-1011 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today

Associated part numbers for PXI-1011:

National Instruments PXI-1011 Frequently Asked Questions



Question: What is the overcurrent protection for the PXI-1011?

Answer: The chassis has a 5 A circuit breaker overcurrent protection.



Question: What is the input voltage range?

Answer: The NI PXI-1011 has an input voltage range from 100 to 240 VAC.



Question: What is the PXI maximum usable DC output power on the PXI 1011?

Answer: The PXI maximum usable DC output power is 140 W.
