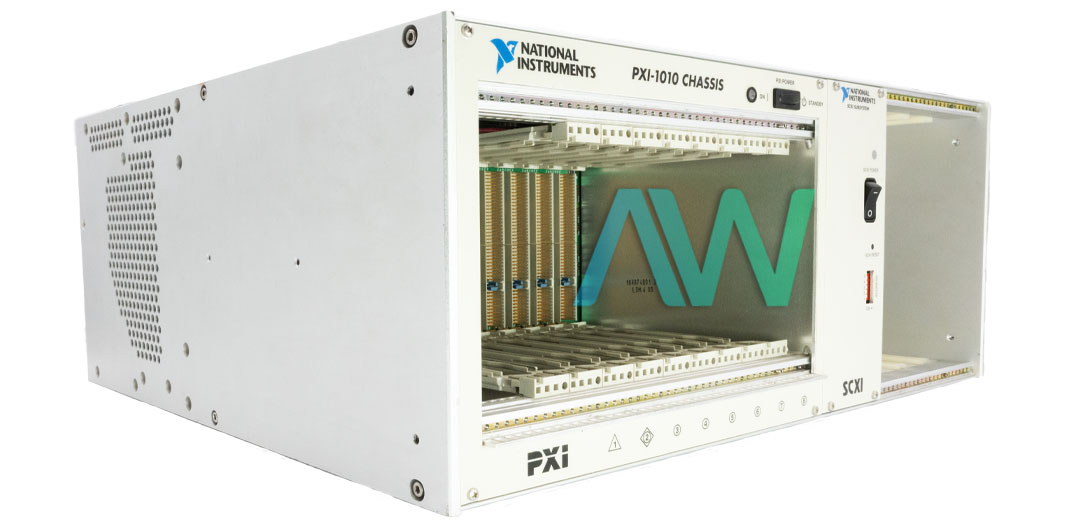

PXI-1010 National Instruments Chassis | Apex Waves | Image

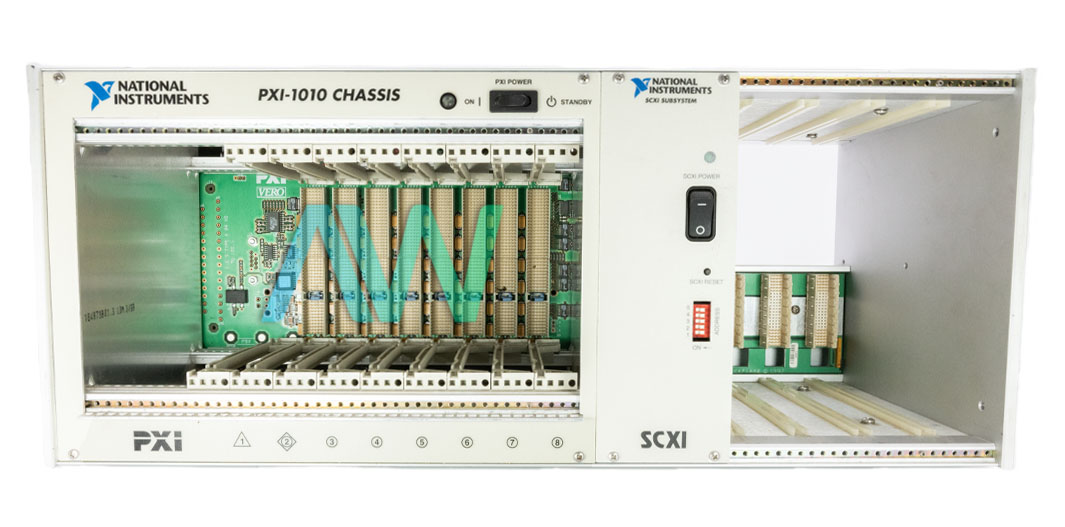

PXI-1010 National Instruments Chassis | Apex Waves | Image
PXI-1010 New
PXI-1010 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-1010 National Instruments Chassis | Apex Waves | Image
PXI-1010 National Instruments Chassis | Apex Waves | Image
PXI-1010 New
PXI-1010 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-1010 PXI Chassis

The PXI-1010 Chassis (Part Numbers: 777570-01, 777570-02, 777570-03, 777570-04, 777570-05, 777570-06, 777570-07, and 184826D-16) by National Instruments has 8 PXI slots and 4 SCXI slots and can be operated in both parallel and multiplexed SCXI modes. This chassis is a combination of a PXI backplane with an SCXI backplane, acting as a full solution for challenging data acquisition and switching applications with a combined total of 12 slots. The NI PXI-1010 allows the user to choose from many types of instrumentation, switching, data acquisition, image acquisition, motion control PXI modules, RTDs, thermocouples, and more. In addition, modules can be added for digital I/O, programmatic filtering, and isolated current or voltage output. Input channels can be multiplexed over the SCXI backplane for more channels in a system. Furthermore, more SCXI chassis can be daisy-chained to result in systems with an even larger number of channels.

The NI PXI-1010 is well-suited for benchtop applications because it has rubber feet that can easily be taken off. This model is also simple to utilize for embedded applications since there are mounting points on both sides of the PXI-1010 chassis. The mounting points can additionally be used to attach an optional rack-mount kit or to recess the PXI-1010 in an instrument cabinet. These different configurations can be accomplished without needing to access the inside of the chassis. The device has an output power of up to 300 W, an input voltage range of 100 to 240 VAC, and an operating voltage range of 90 to 264 VAC.

There are three different types of software to choose from for the NI PXI-1010 chassis, including NI-DAQ, National Instruments application software, or register-level programming. By utilizing the National Instruments application software (LabVIEW, LabWindows/CVI, ComponentWorks, and VirtualBench), the user will experience a considerable decrease in their development time for information acquisition and control applications. The NI device weighs 4.5 kg (10 lb) and measures 17.25 x 6.97 x 9.825 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50°C and a storage temperature range of -20 to 70°C.

PXI-1010's obsolete status has been announced by National Instruments but will still be available for purchase and repairs by Apex Waves.

ModelPXI-1010
ManufacturerNational Instruments
Part Numbers777570-01, 777570-02, 777570-03, 777570-04,
777570-05, 777570-06, 777570-07, 184826D-16
TypePXI Chassis
PXI Slots8
SCXI Slots4
Maximum Output Power300 W
Input Voltage100, 120, 220, or 240 VAC
Operating Voltage90 to 264 VAC
Operating Temp Range0°C to 50°C
Storage Temp Range–20°C to 70°C
Dimensions17.25 x 6.97 x 9.825 in.
Weight4.5 kg (10 lb)
Warranty2-3 Year Warranty
PXI-1010 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today

Associated part numbers for PXI-1010:

National Instruments PXI-1010 Frequently Asked Questions



Question: Can I temporarily turn off the fan of my NI PXI-1010?

Answer: The fan on the chassis should never be turned off since this can result in its overheating and becoming damaged or even irreparable.



Question: What is the memory on the PXI Chassis?

Answer: Since the PXI-1010 is a chassis, it does not have memory. Memory will be on the controller when it is used in a PXI system.



Question: Why does the NI PXI-1010 have different part numbers? What is the difference between the part numbers?

Answer: The NI PXI-1010 has different part numbers for different input voltages and power cords, specific to different countries. The 777570-01 is U.S. 120 VAC, 777570-02 is Swiss 220 VAC, 777570-03 is Australian 240 VAC, 777570-04 is Universal Euro 240 VAC, 777570-05 is North American 240 VAC, 777570-06 is United Kingdom 240 VAC, and 777570-07 is Japanese 100 VAC.



Question: Where can I find the manual for the PXI-1010?

Answer: Official manuals and documentation from the manufacturer can be found under the "Manuals & PDFs" tab.



Question: Can the PXI chassis be rackmounted?

Answer: Yes, the PXI-1010 can be rackmounted with part number 776577-70.
