PXIe-4322, Channel-to-Channel, 16-Bit DAC Resolution, PXI Analog Output Module

Rated 4.9/5 | 18 ratings

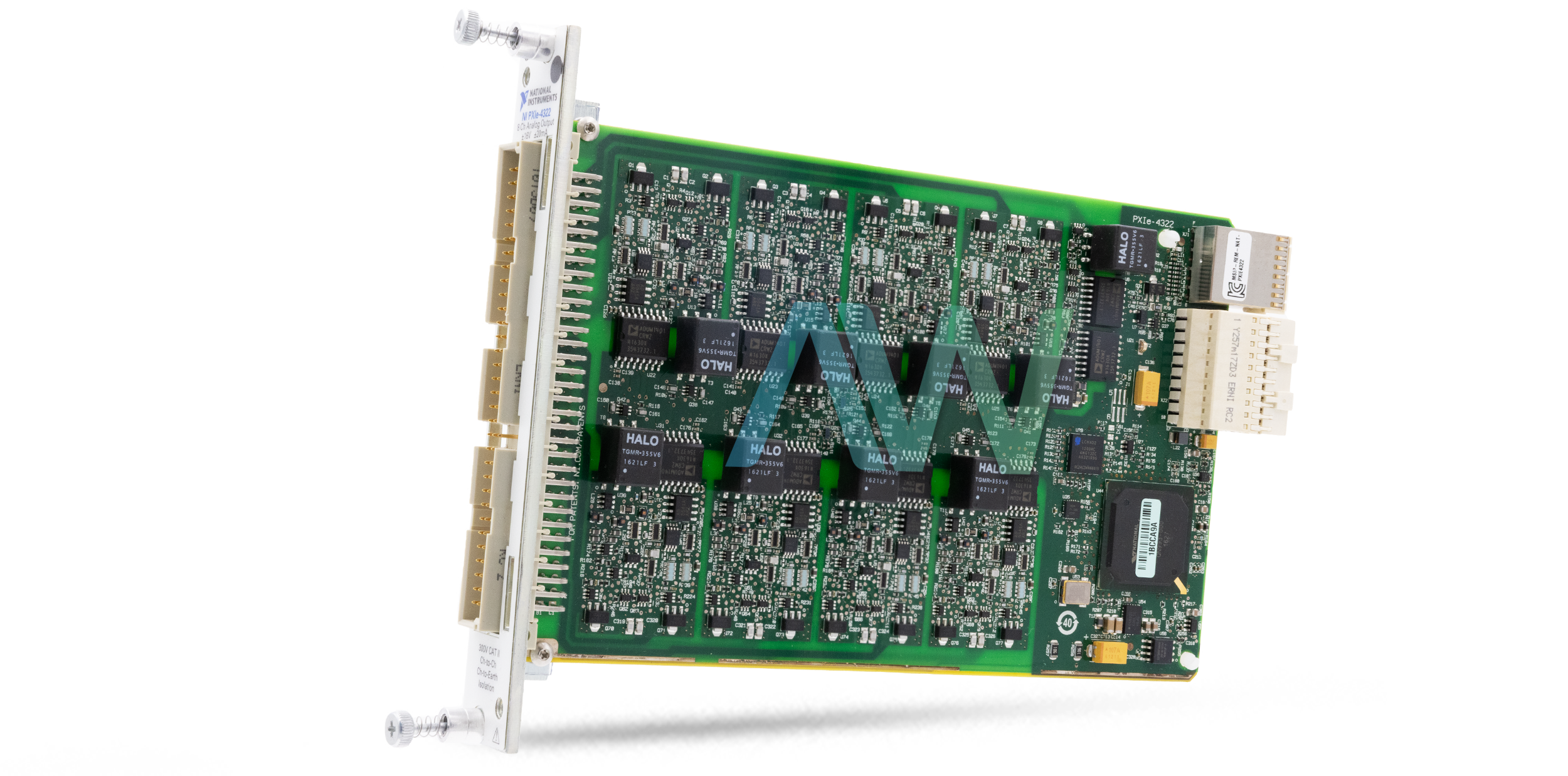

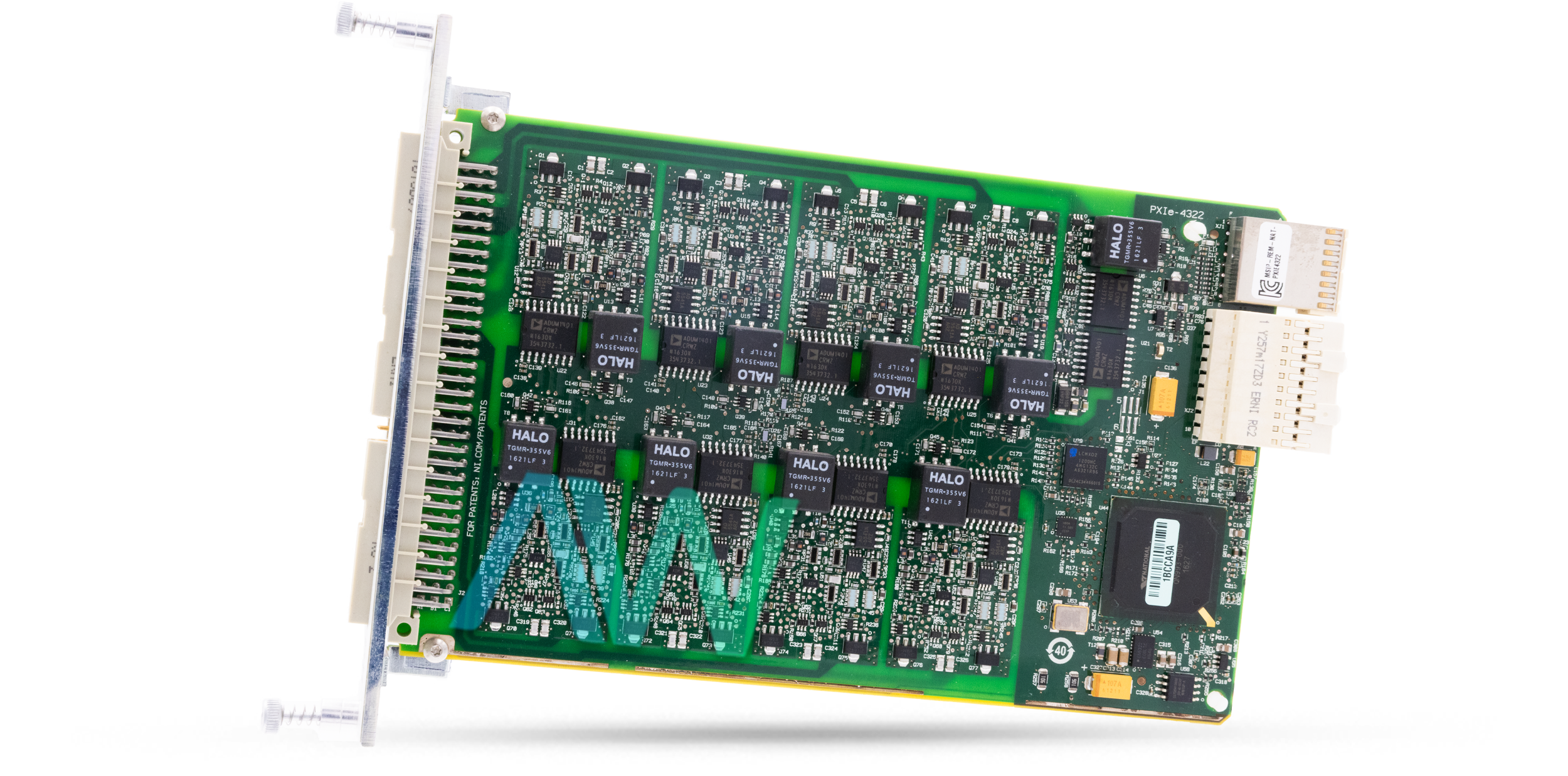

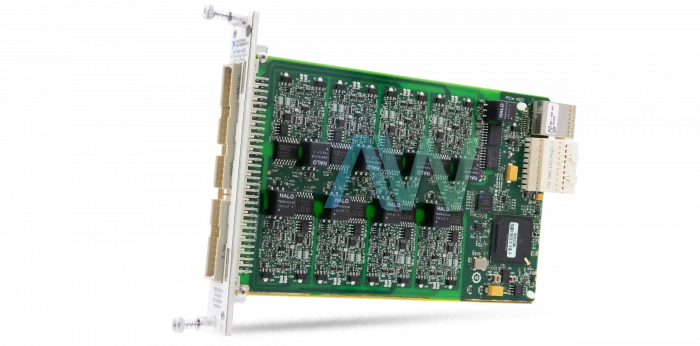

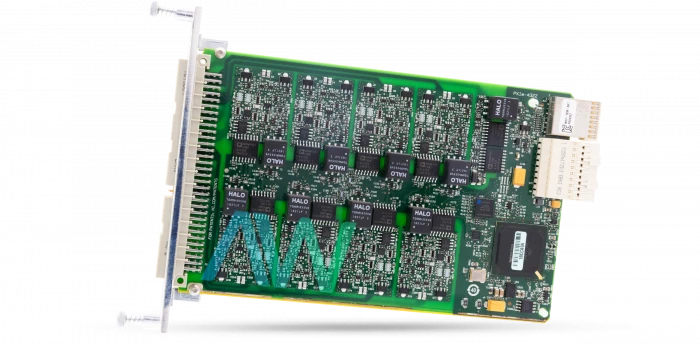

PXIe-4322 National Instruments PXI Analog Output Module | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Expert Insights for the PXIe-4322

"The PXIe-4322 is an excellent choice for an isolated analog output module. It has a moderate amount of channels and 16-bit resolution. With the ability to source and sink current, this device has a small footprint and is reasonably cost effective for your testing and measurement needs. It is a smart choice for automotive and other mid voltage applications."

- Chris B.

LabVIEW Trained

In-House Technician

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Expert Insights for the PXIe-4322

- Chris B.

LabVIEW Trained

In-House Technician

National Instruments PXIe-4322 PXI Analog Output Module

The PXIe-4322 (Part Numbers: 782878-01) by National Instruments is a channel-to-channel isolated analog output module designed for precise, simultaneous voltage and current outputs. It integrates signal conditioning and 16-bit digital-to-analog converters (DACs) on a single device, optimizing space and enhancing measurement accuracy.

With its 16-bit R-2R DACs installed in each of its 8 analog output channels, the PXIe-4322 provides high-resolution output with a maximum DNL of ±1 LSB and INL of ±4 LSBs. It is capable of delivering +/-16 V at 20 mA in voltage mode or +/-20 mA in current mode, operating at up to 250 kS/s per channel. It is noteworthy that it can both sink and source current, depending on the needs for the application. The PXIe-4322 guarantees safety and dependability in measurement setups with its 300 Vrms CAT II channel-to-channel and channel-to-earth isolation.

The voltage channels can be stacked up to 128 V per module. In order to obtain greater current outputs, channels can also be connected in series (unless they are in current mode), which increases application versatility. The NI-DAQmx driver makes it simple to program the module, which can be used for hardware-timed single-point operations and multidevice tasks. It enables smooth integration into current systems because it closely synchronizes with PXI I/O instruments as part of the PXI platform.

The PXIe-4322 ensures high-speed data transmission by offering a maximum update rate of 250 kS/s per channel through the use of PXI Express technology. It provides differential signaling (PXIe_DSTAR) and a 100 MHz differential system clock (PXIe_CLK100), among other sophisticated timing and synchronization features. The module offers versatility in system setup as it may be used with both x1 and x4 PXI Express or PXI Express hybrid slots. It further simplifies data transfer procedures by including a single DMA channel.

The PXIe-4322, which offers screw-terminal connectivity for simple rewiring and connecting channels in parallel, pairs with the NI TB-4322 front-mount terminal block in order to facilitate easy connectivity. The ability to have terminal blocks recognized immediately by software makes maintenance and troubleshooting even easier.

Model	PXIe-4322
Part Number	782878-01
Manufacturer	National Instruments
Type	PXI Analog Output Module
Analog Output Channels	8
Maximum Update Rate	250 kS/s
Analog Output Resolution	16 Bits
DAC Type	R-2R
Overvoltage Protection	±120 VDC
DMA Channels	One Analog Input
I/O Connector	Male 96-Pin DIN 41612/IEC 60603-2
Operating Temp Range	0 °C to 55 °C
Storage Temp Range	-40 °C to 71 °C
Dimensions	6.3 x 3.9 in.
Weight	5.7 oz.
Warranty	Three Year Warranty
PXIe-4322 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote for Pricing!
