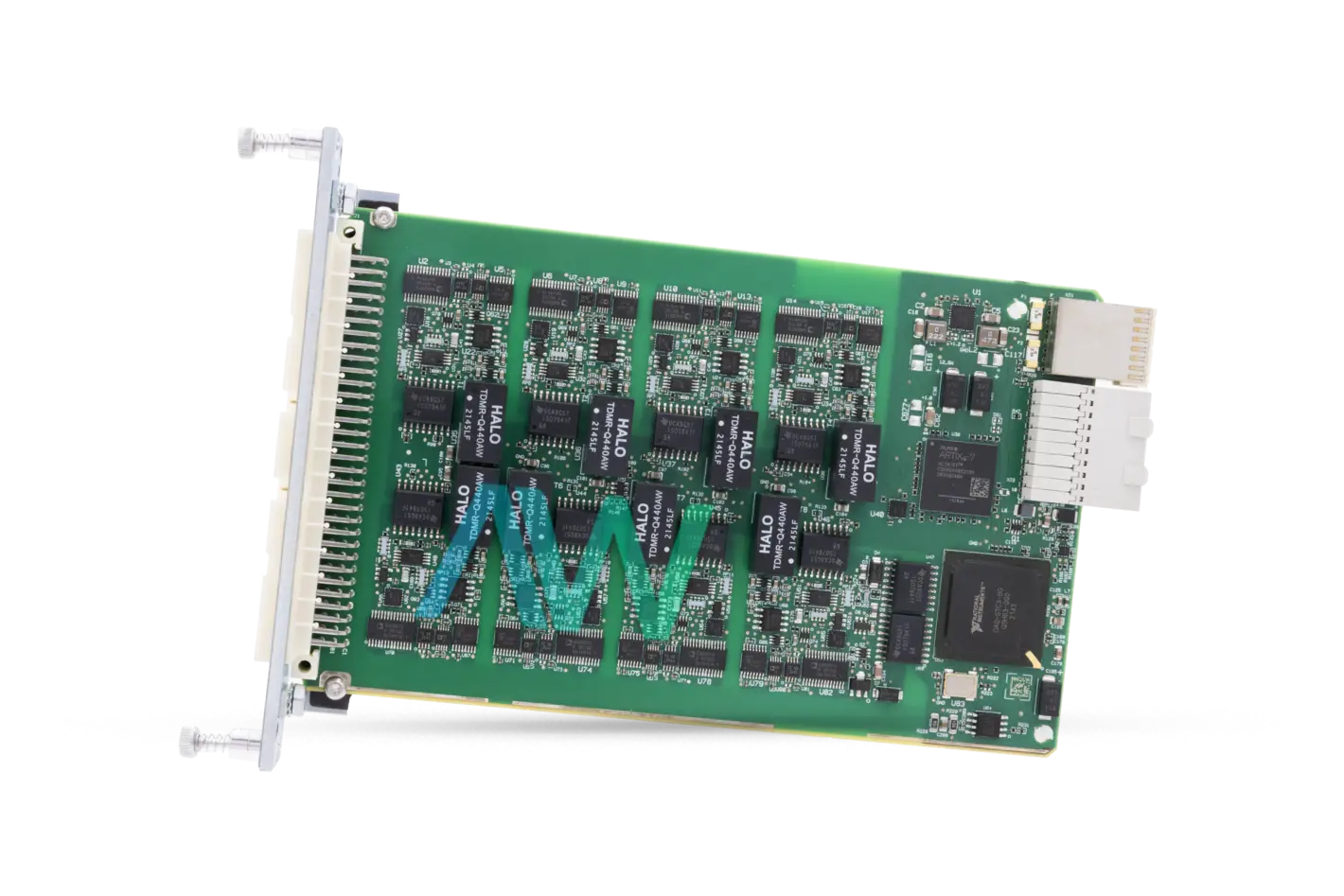

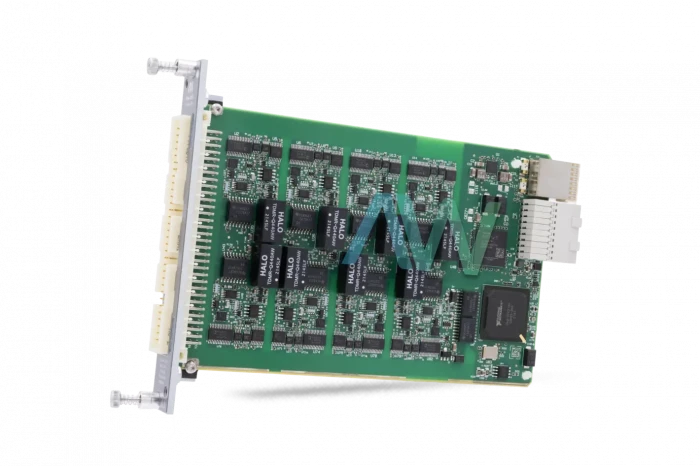

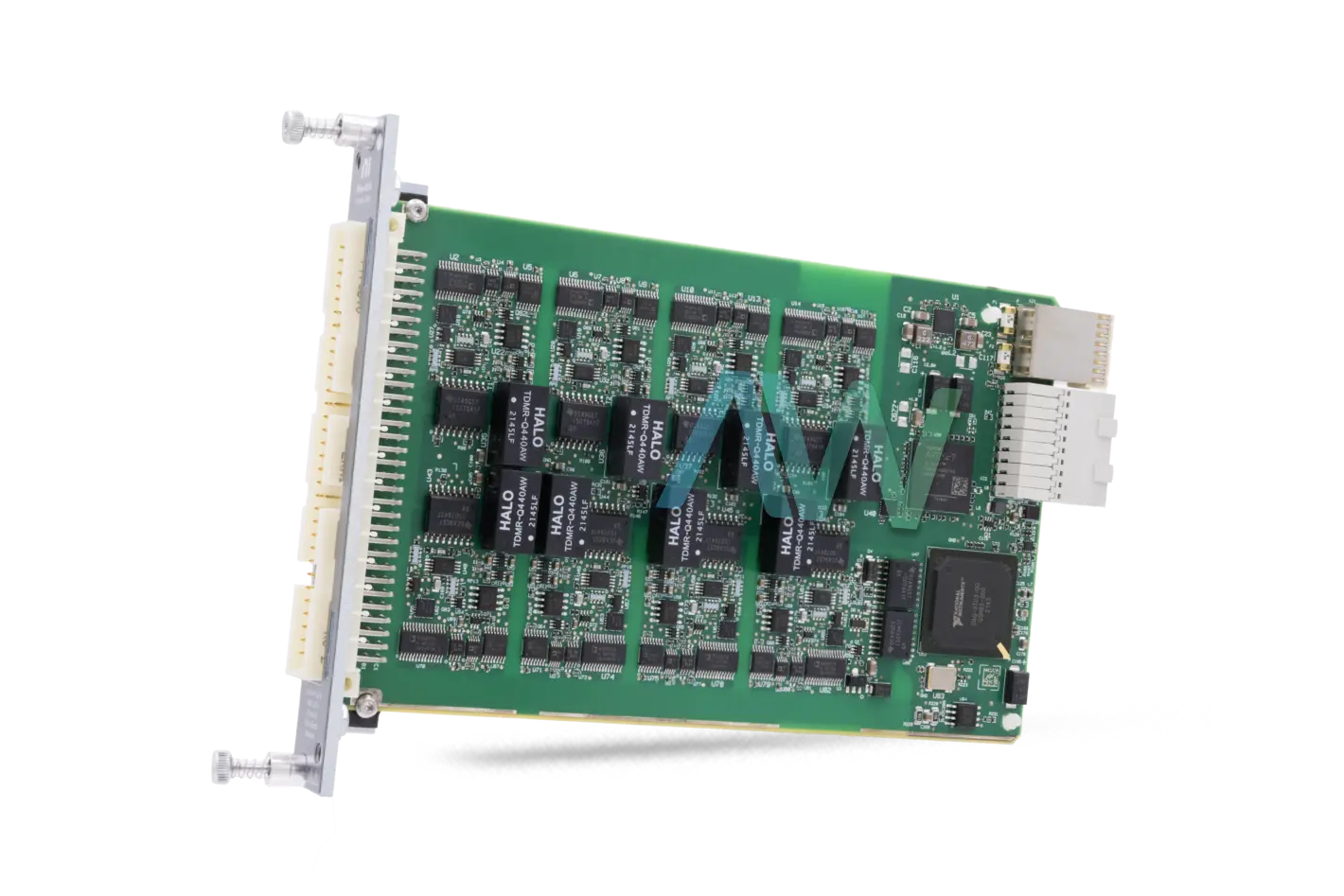

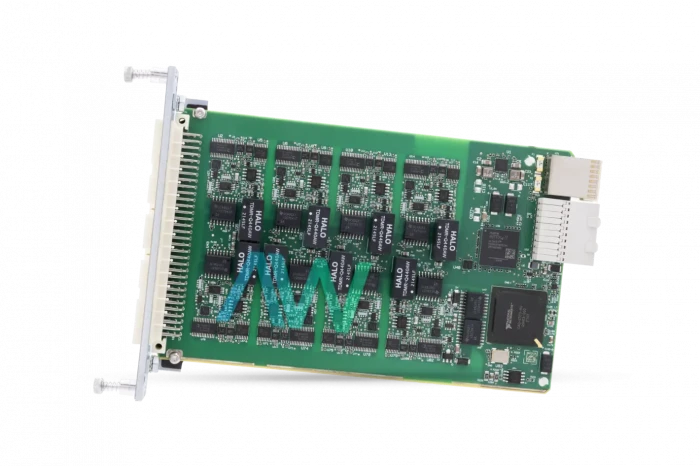

National Instruments PXIe-4310 PXI Analog Input Module
The PXIe-4310 (Part Number: 784813-01) is an advanced Analog Input Module from National Instruments with 8 Analog Input Channels. The NI PXIe-4310 module offers a maximum sample rate up to 400ks/s per channel. This module can create four different input ranges, which enables the PXIe 4310 to trigger configurations simultaneously at the output. The PXIe-4310 Analog Input Module also has the ability to choose an analog filter per channel. It improves the performance and measurement accuracy of the module.
The NI PXIe-4310 is structured with eight simultaneously sampled analog input channels. All these channels have channel-to-earth and channel-to-channel isolation. The maximum Analog Input Isolation is ranged up to 600 V channel to channel. A driver NI-DAQmx can be used for measurement and simplifies hardware configuration. The range of the PXIe-4310 can be enhanced up to 10 V maximum with the assistance of TB-4310 (10V). It can be further expanded to 600 V with the assistance of TB-4310 (600V). Triggering/clocking is executed by using two inputs PFI lines. One of the key features of the NI PXIe-4310 Analog Input Module is self-calibration, which measures the onboard reference voltage of the module and prevents any errors caused by short-term fluctuations in the environment.
The National Instruments PXIe-4310 PXI Analog Input Module's dimensions are 6.3 x 3.9 inches. The instrument weighs 6.0 oz. The power requirement of the device is +3.3 volts at 2.9 watts and +12 volts at 7.1 Watts. The NI PXIe-4310 Analog Input Module also complies to industrial safety standards.
| Model | PXIe-4310 |
|---|---|
| Part Number | 784813-01 |
| Manufacturer | National Instruments |
| Type | PXI Analog Input Module |
| Differential Analog Input Channels | 8 |
| Maximum Sample Rate | 400 kS/s |
| Analog Input Resolution | 16 bits |
| Dimensions | 6.3 x 3.9 in. |
| Weight | 6.0 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-4310 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-4310:
National Instruments PXIe-4310 Frequently Asked Questions
Question: What is the analog input isolation of the PXIe-4310 module?
Answer: The analog input isolation of the PXIe-4310 module is 600 V Ch-Ch Isolation.
Question: What is the minimum sampling rate for the NI PXIe-4310?
Answer: There is not a minimum sampling rate for the NI PXIe-4310.
Question: Which terminal blocks can be utilized with the PXIe-4310?
Answer: The TB-4310 (10V) and TB-4310 (600V) can be utilized with the PXIe-4310.
Question: What lowpass filter settings are available for the NI PXIe-4310?
Answer: The NI PXIe-4310 has three lowpass filter settings: 10 kHz, 100 kHz, and Disable.
