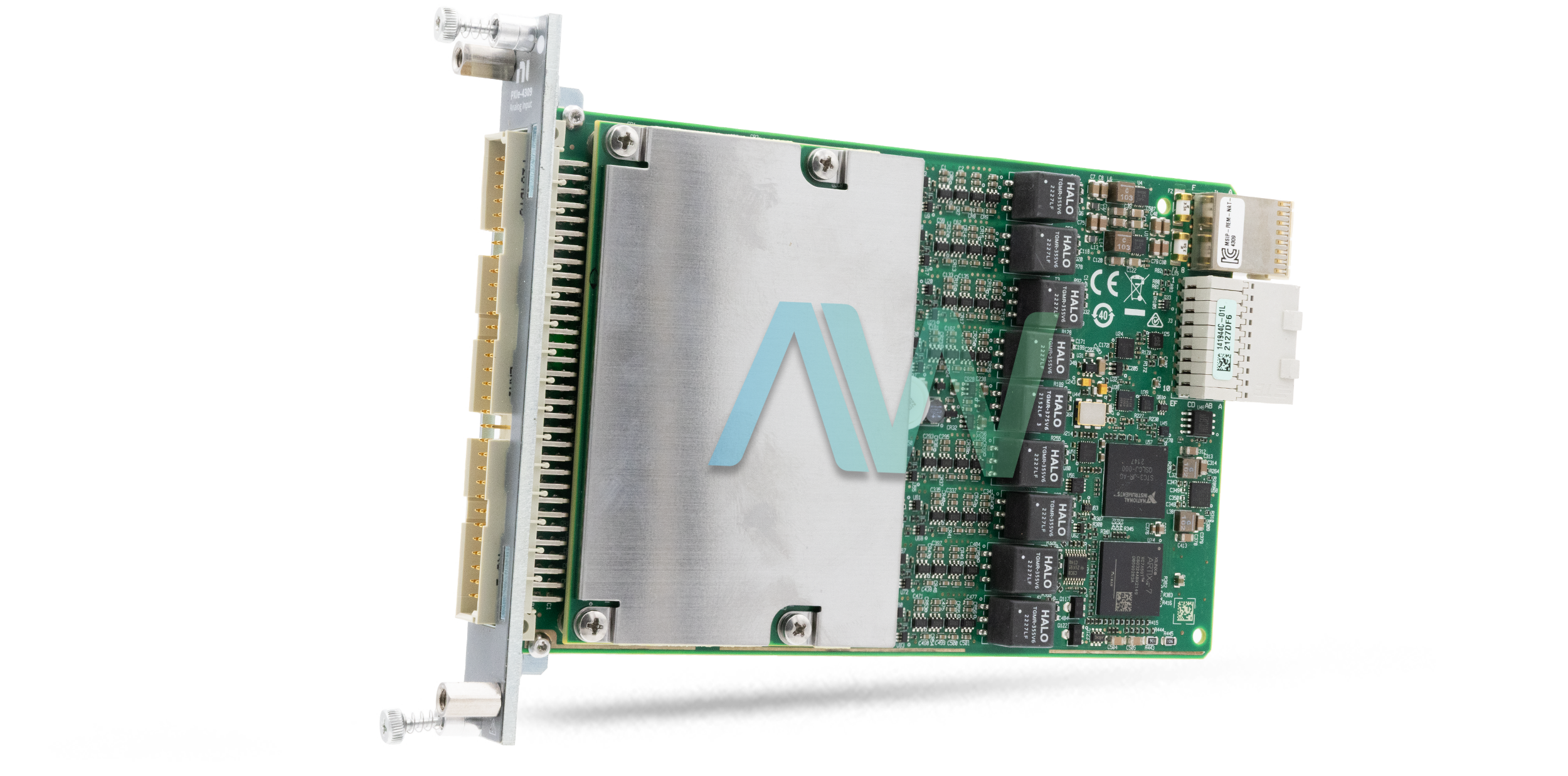

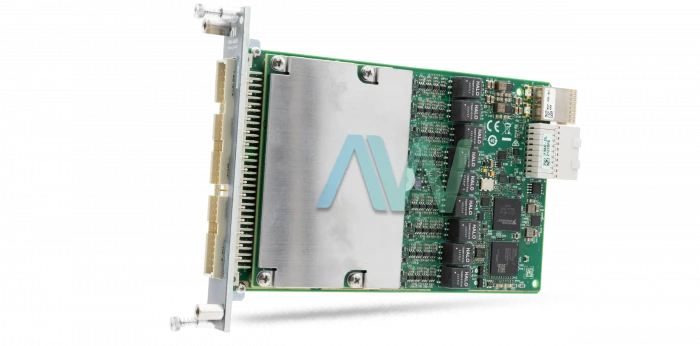

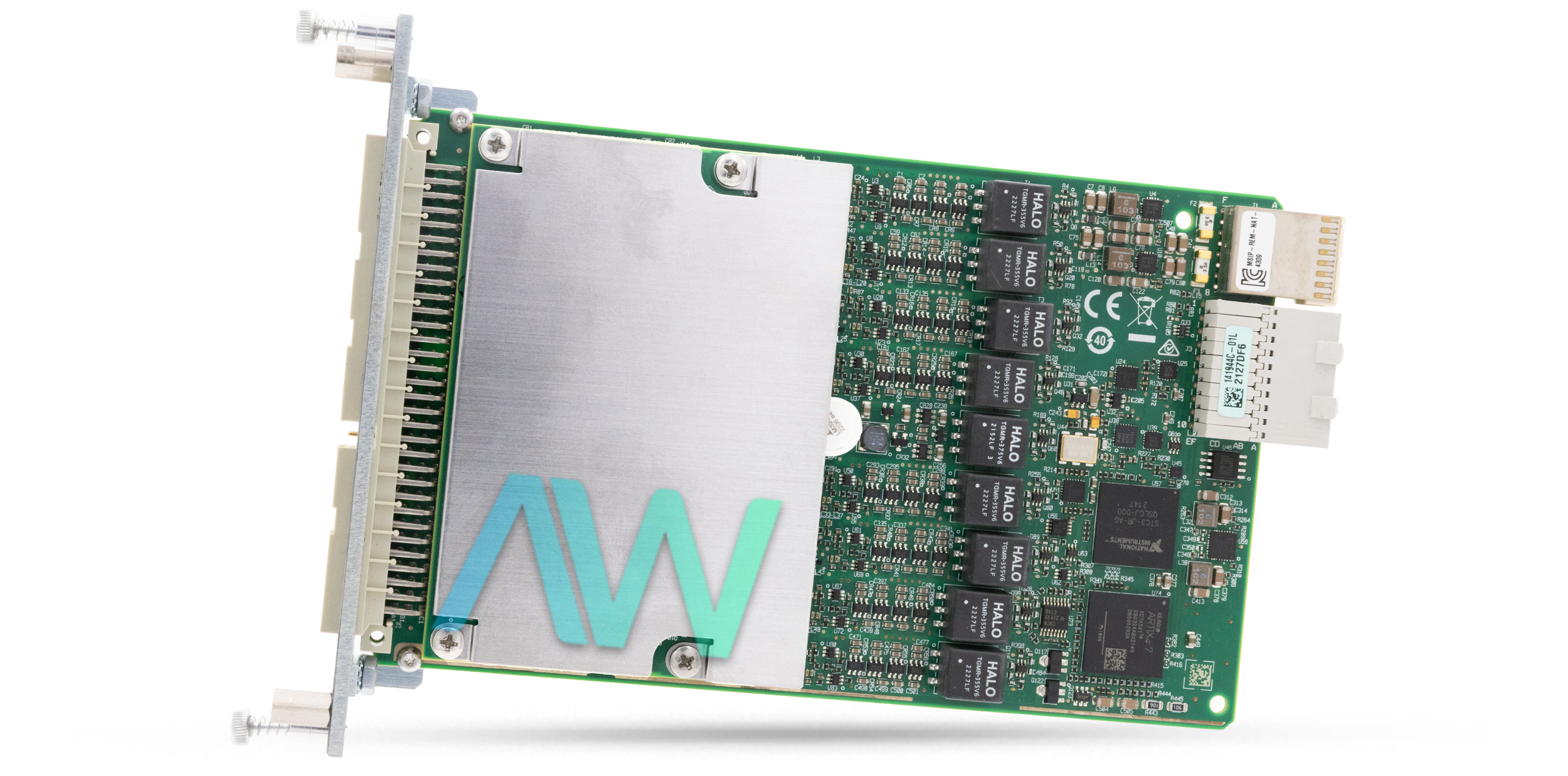

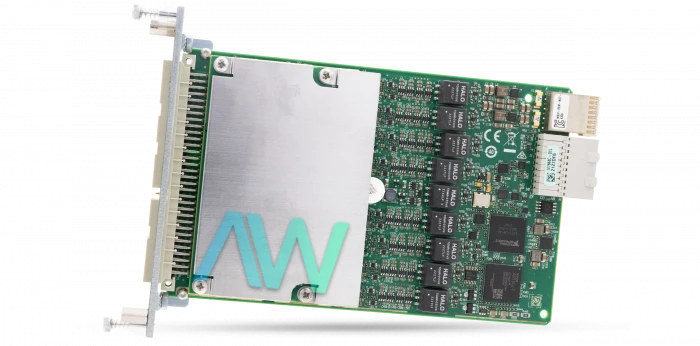

National Instruments PXIe-4309 PXI Analog Input Module

The PXIe-4309 (Part Number: 784471-01) is a flexible resolution Analog Input Module presented by National Instruments. This module supports up to 32 differential channels. The module multiplexes its analog input channels across eight simultaneously sampling ADCs. The NI PXIe-4309 can sample eight input channels up to 2 MS/s/channel. Each channel has an Analog to Digital Converter. This module also has 32 input channels up to 400 kS/s total (up to 4 channels per ADC). The module's flexible resolution ranges from 18 bits at 2 MS/s/channel to 28 bits at 2 S/s/channel.

This module uses a pair of channels to provide high levels of noise rejection and enables accurate and repeatable Nano-volt measurements. The PXIe-4309 Analog Input Module has two sampling modes: “averaging” and “single sample”. The sampling mode selection is based on the timing mode. The NI PXIe-4309 module supports averaging in hardware, which takes a single convert per channel and returns that as a sample.

The National Instruments PXIe-4309 Analog Input Module can operate in four timing modes. These timing modes fall into two groups called “software-timed” and “hardware-timed”. The acquisition rate is controlled through the software. The software sends a discrete command to the hardware to get each sample. In NI-DAQmx, software-timed acquisitions are stated as having on-demand timing. Software-timed acquisitions are also referred to as static acquisitions. These acquisitions are used for reading a single sample of data. The acquisition rate is controlled through a digital hardware signal (AI Sample Clock). The NI PXIe-4309 can generate this signal internally. It can also export this signal. Hardware-timed acquisitions are more efficient over software-timed acquisitions. The time between samples can be much shorter.

ModelPXIe-4309
Part Number784471-01
ManufacturerNational Instruments
TypePXI Analog Input Module
Differential Analog Input Channels32
Maximum Sample Rate2 MS/s
Analog Input Resolution28 bits
Dimensions6.3 x 3.9 in.
Weight8.4 oz.
Warranty2-3 Year Warranty
PXIe-4309 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-4309:

National Instruments PXIe-4309 Frequently Asked Questions



Question: What is the analog input voltage range for the PXIe-4309 module?



Answer: The analog input voltage range for the PXIe-4309 module is -0.1 V to 0.1 V, -1 V to 1 V, -10 V to 10 V, or -15 V to 15 V.



Question: What type of ADC does the NI PXIe-4309 have?



Answer: The NI PXIe-4309 has a SAR ADC.



Question: Which drivers are supported by the PXIe-4309?



Answer: NI-DAQmx 17.1 and later are supported by the PXIe-4309.



Question: Can the NI PXIe-4309 measure voltage signals?



Answer: Yes, the NI PXIe-4309 can measure voltage signals with the use of the TB-4309 (ST) or TB-4309 (MT) terminal block.
