PXIe-4305, 32-Channel, 24-Bit, PXI Analog Input Module

Rated 4.6/5 | 5 ratings

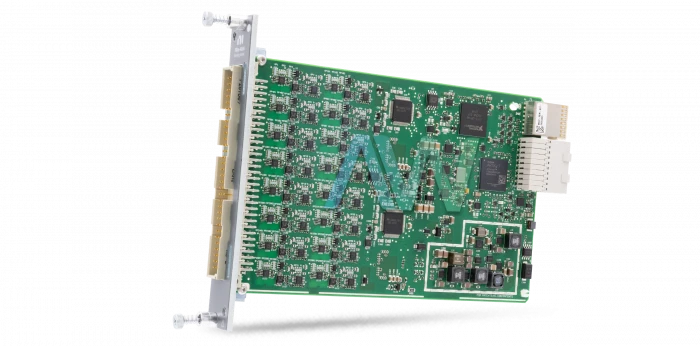

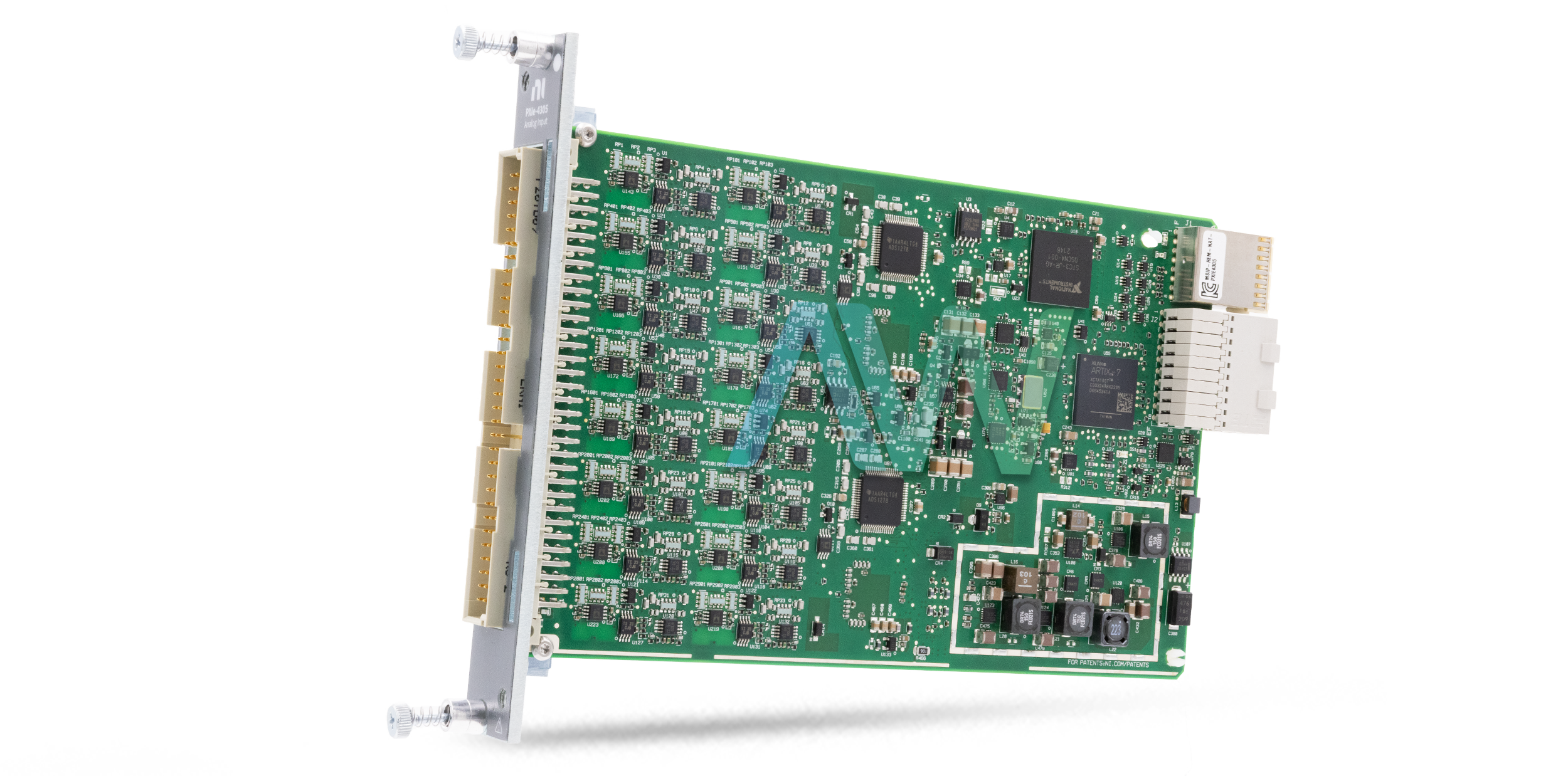

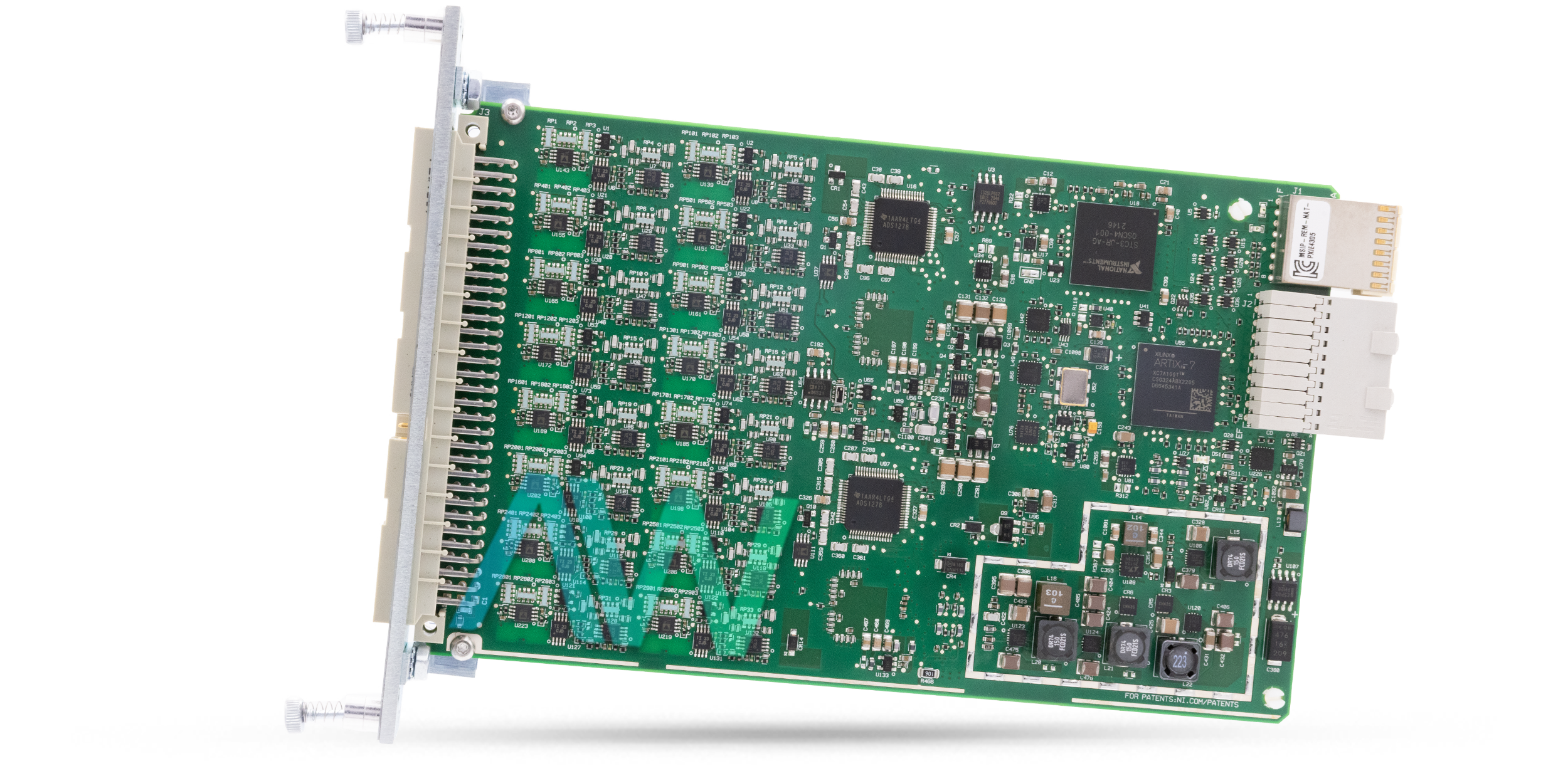

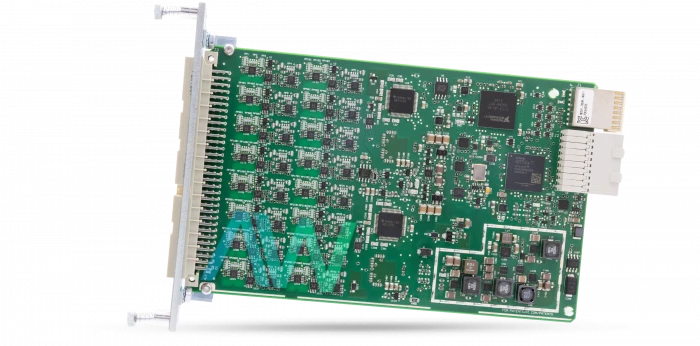

PXIe-4305 National Instruments PXI Analog Input Module | Apex Waves | Image
PXIe-4305 National Instruments PXI Analog Input Module | Apex Waves | Image
PXIe-4305 New
PXIe-4305 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXIe-4305 National Instruments PXI Analog Input Module | Apex Waves | Image
PXIe-4305 National Instruments PXI Analog Input Module | Apex Waves | Image
PXIe-4305 New
PXIe-4305 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXIe-4305 PXI Analog Input Module

The PXIe-4305 (Part Number: 783868-01) is a 32-Channel Analog Input Module from National Instruments. This module comes with a built-in analog to digital converter. The resolution of the ADC is 24-bit. The range for sample rate frequency is from 1 S/s to 51.2 kS/s. The NI PXIe-4305 module offers gain error and offset errors of 0.027% and 2.2 mV respectively. These values are given for the typical temperature of 23℃ ± 5℃. The PXIe 4305 also exhibits an exceptional temperature stability.

The National Instruments PXIe-4305 Analog Input Module has a built-in reference clock source, which enables the synchronization mechanism. The frequency of the clock is 106.25 MHz. It is a highly accurate clock; the accuracy value for the clock is ±50 ppm. This module also offers task resources, which allow the user to make use of four timing engines simultaneously. These task resources are independent of each other. It also allows utilizing four buffered mode streams and hardware-timed single point streams. The maximum channels allowed per stream are eight.

The NI PXIe-4305 PXI Analog Input Module offers various BUS interfaces, which includes one PXI Express peripheral module. This module complies to the rev 1.0 specifications. The slots on the module are PXI Express or PXI Express hybrid compatible. This module incorporates four analog inputs for DMA channels. The PXIe 4305 module additionally has a standard calibration interval of one year. The recommended warm-up time for the module is approximately fifteen minutes.

ModelPXIe-4305
Part Number783868-01
ManufacturerNational Instruments
TypePXI Analog Input Module
Differential Analog Input Channels32
Maximum Sample Rate51.2 kS/s
Analog Input Resolution24 bits
Dimensions6.3 x 3.9 in.
Weight5.5 oz.
Warranty2-3 Year Warranty
PXIe-4305 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-4305:

National Instruments PXIe-4305 Frequently Asked Questions



Question: What is the input FIFO buffer size of the PXIe-4305 module?



Answer: The input FIFO buffer size of the PXIe-4305 module is 1,023 samples.



Question: What is the minimum acquisition rate for the NI PXIe-4305?



Answer: The NI PXIe-4305 has a minimum acquisition rate of 1 S/s.



Question: Which trigger modes are available on the PXIe-4305?



Answer: The trigger modes available on the PXIe-4305 are leaving window, rising-edge, entering window, rising-edge with hysteresis, falling-edge with hysteresis, and falling edge.



Question: Which terminal block can be used with the NI PXIe-4305?



Answer: The TB-4304 terminal block can be used with the NI PXIe-4305.
