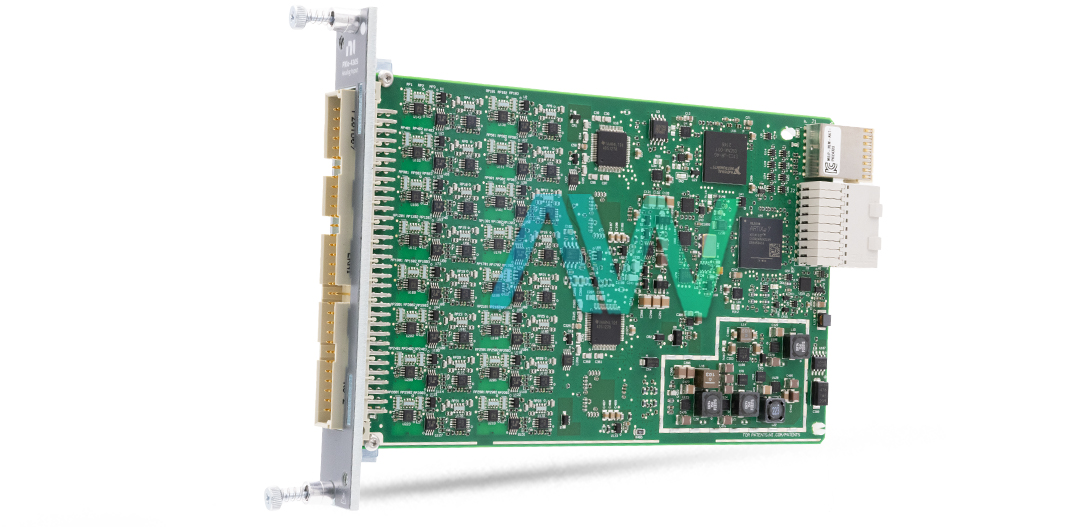

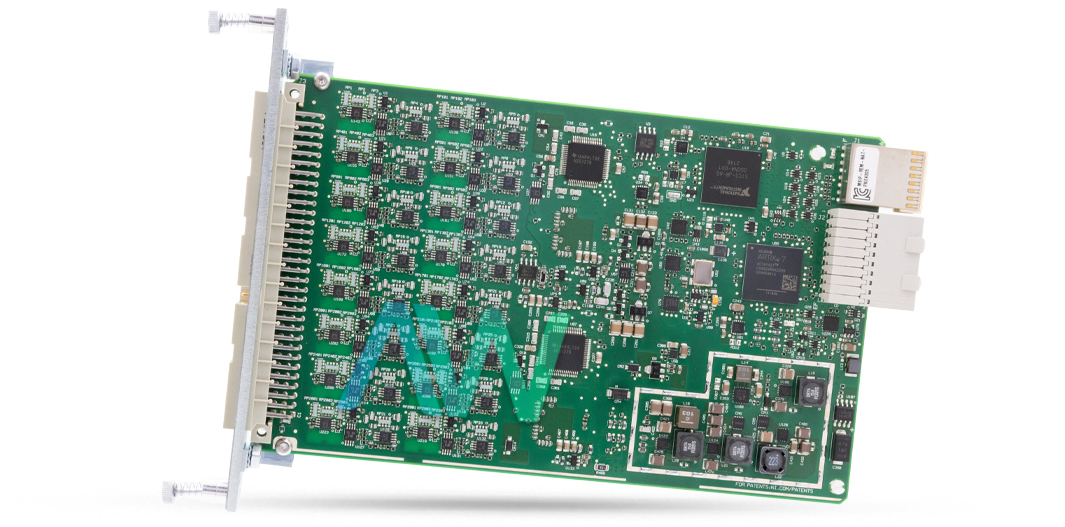

National Instruments 783868-01 PXI Analog Input Module.
The part number 783868-01 from National Instruments is the identifying part number for the PXIe-4305 PXI Analog Input Module. This PXI analog input module features 32 differential analog input channels with a delta sigma type ADC of resolution 24 bits. Its sample rate ranges from 1 S/s to 5 kS/s with a resolution less than 181.9 µS/s. Its input coupling is DC offering a variety of input voltage ranges of ±42 V nominal and maximum. It has a FIFO buffer memory size of 1,023 samples with a data transfer method of DMA and programmed I/O.
The 783868-01 PXI Analog Input Module has analog input triggers that is configurable through 0 to 31 and has modes of rising-edge, rising-edge with hysteresis, falling-edge, falling-edge with hysteresis, entering window, and leaving window. It also has digital triggers with a minimum pulse width of 100 ns for PXI trigger lines configurable through 0 to 7. To operate this module, its power requirements are 1.3 A at +12 V and 1.1 A at +3.3 V.
This analog input module has compact structure with dimensions of 16 cm × 10 cm (6.3 in. × 3.9 in.) and weighs 156 g (5.5 oz). It is compatible with Standard 3U PXIe form. It has 96-pin male DIN I/O connector that allows easy integrations into other digital devices. This module is made in such a way that it can be mounted at maximum altitude of 2000 meters and has pollution degree of 2.
This module is designed to be used in ambient temperature of 0 degrees Celsius to 55 degrees Celsius with operating relative humidity of 10% to 90%, noncondensing and storage temperature of -40 degrees Celsius to 71 degrees Celsius with storage relative humidity of 5% to 95%, noncondensing. It is designed to work under critical conditions with operating shocks of 30 g peak, half-sine, 11 ms pulse (Tested in accordance with IEC 60068-2-27) standard and random operating vibrations of 5 Hz to 500 Hz, 0.3 grms with nonoperating vibrations of 5 Hz to 500 Hz, 2.4 grms (Tested in accordance with IEC 60068-2-64) standard.
| Part Number | 783868-01 |
| Model Name | PXIe-4305 |
| Part Type | PXI Analog Input Module |
| Number of Input Channels | 32 differential analog input channels |
| ADC Resolution | 24 bits |
| Type of ADC | Delta-Sigma |
| Dimensions | 16 cm × 10 cm (6.3 in. × 3.9 in.) |
| Weight | 156 g (5.5 oz) |
| Maximum Altitude | 2000 m |
| Pollution Degree | 2 |
