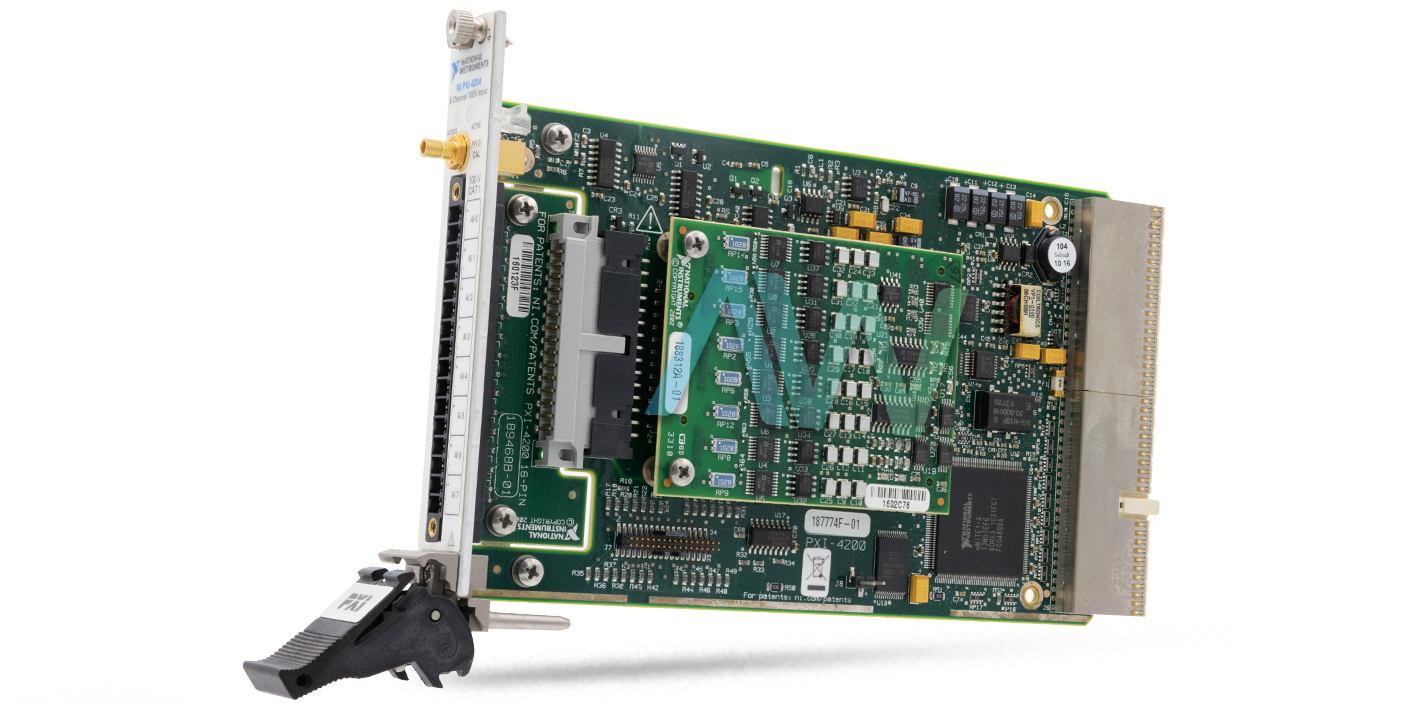

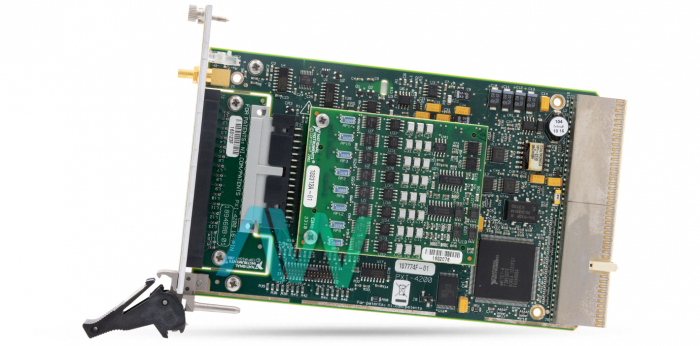

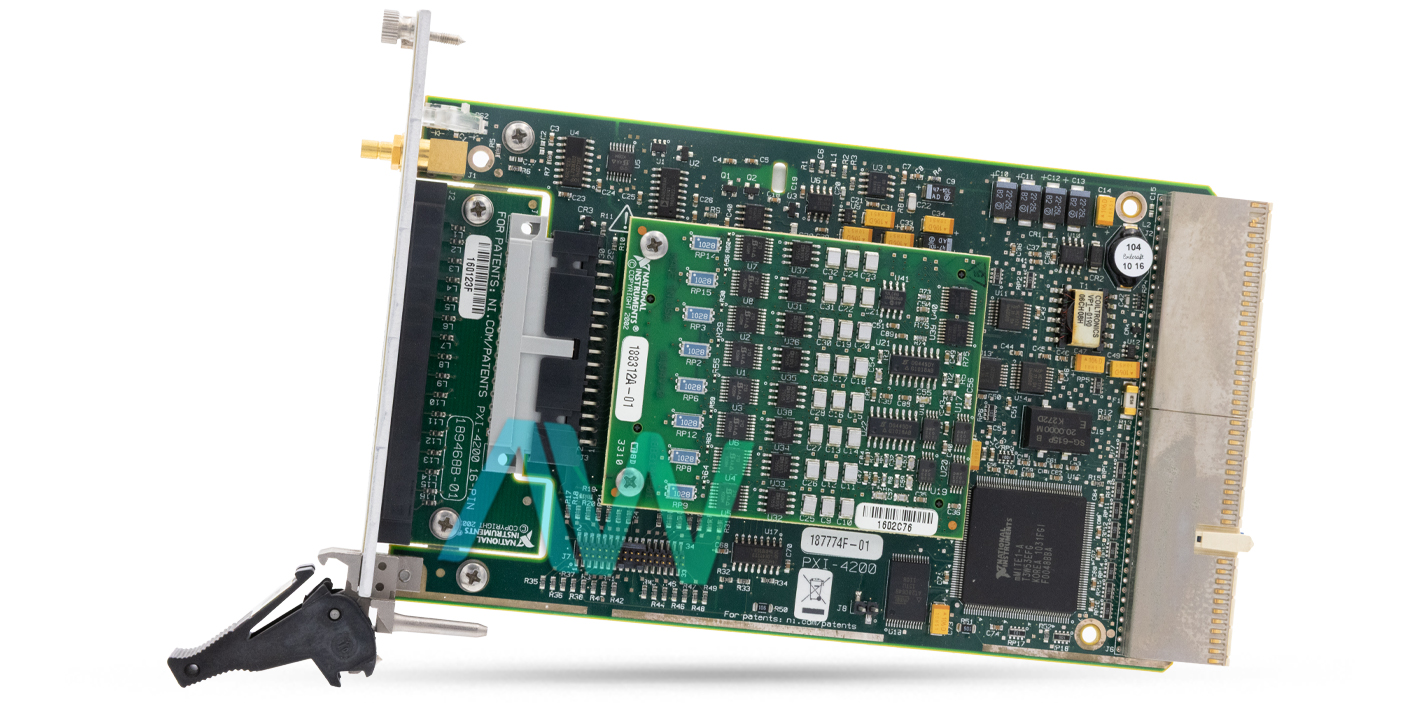

778745-4204 PXI-4204 Analog Input Module | Apex Waves | Image
778745-4204 PXI-4204 Analog Input Module | Apex Waves | Image
778745-4204 New
778745-4204 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

778745-4204 PXI-4204 Analog Input Module | Apex Waves | Image
778745-4204 PXI-4204 Analog Input Module | Apex Waves | Image
778745-4204 New
778745-4204 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments 778745-4204 PXI Analog Input Module

The 16-bit, 8-channel, 200 kS/s analog input module 778745-4204, often known as the PXI-4204, was designed by National Instruments specifically for use in PXI systems. This differential, simultaneous-sampling module has a broad input range of up to ±100 V and is designed for high-voltage applications, such 42 V automobile measurements. Maximum precision over the whole input range is ensured by the 778745-4204's programmable filter and gain settings, which are adjustable per channel. Measurement accuracy is improved by its simultaneous sample-and-hold capabilities, which removes phase delay between channels.

As part of the PXI-4200 series, the 778745-4204 simplifies measurement setup and configuration by integrating signal conditioning and data acquisition (DAQ) within the same device. This full-featured module features the National Instruments programmable gain instrumentation amplifier (PGIA), an instrumentation-class amplifier that ensures fast settling times at all gain settings. The instrument can accommodate a multitude of measurement requirements with its several input ranges, which include ±100 V, ±50 V, ±5 V, and ±0.5 V.

A total of eight differential analog input channels on the 778745-4204 can sample data at a rate of 200 kS/s when all channels are sampled concurrently, or 22 kS/s per channel. Additionally improving signal accuracy, it includes a two-pole software-programmable Butterworth filter with configurable values of 6 Hz and 10 kHz per channel. Phase disparities between channels can be eliminated thanks to the track-and-hold circuitry of the module, which offers simultaneous sample-and-hold capacity.

Measurement & Automation Explorer (MAX) and NI-DAQmx function calls are two examples of software solutions that allow users to customize most settings on a per-channel level. Custom installations that satisfy particular application needs are made possible by this flexibility. Completing intricate, multi-device measurement systems, the module additionally facilitates synchronization with additional DAQ devices via the PXI trigger bus.

The 778745-4204 delivers accurate and dependable measurements with an input coupling of DC and differential input impedance of 2 MΩ. Self-calibration reduces the offset and gain error temperature coefficients of the module and ensures accuracy in a range of environmental circumstances. Its 512 sample FIFO buffer, DMA capabilities, interrupt handling, and programmed input/output allow for even more efficient data transfers.

Part Number778745-4204
Model NamePXI-4204
Part TypePXI Analog Input Module
Analog Input Channels8 differential channels
Resolution16 bits
Maximum Sampling Rate200 kS/s aggregate, 22 kS/s per channel when sampling all channels
Input Range±100 V, ±50 V, ±5 V, ±0.5 V
Bandwidth6 Hz or 10 kHz 2-pole lowpass Butterworth filter
Differential Input Impedance2 MΩ
Simultaneous Sample-and-HoldYes
