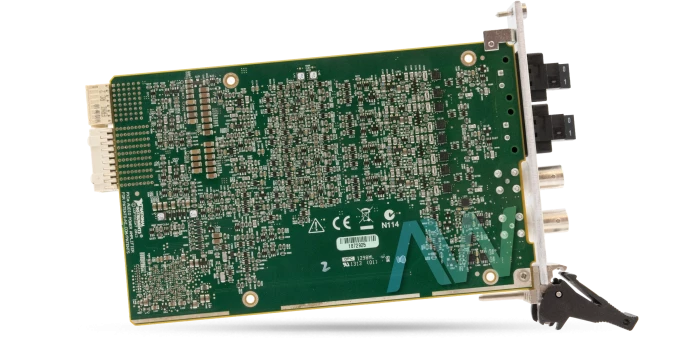

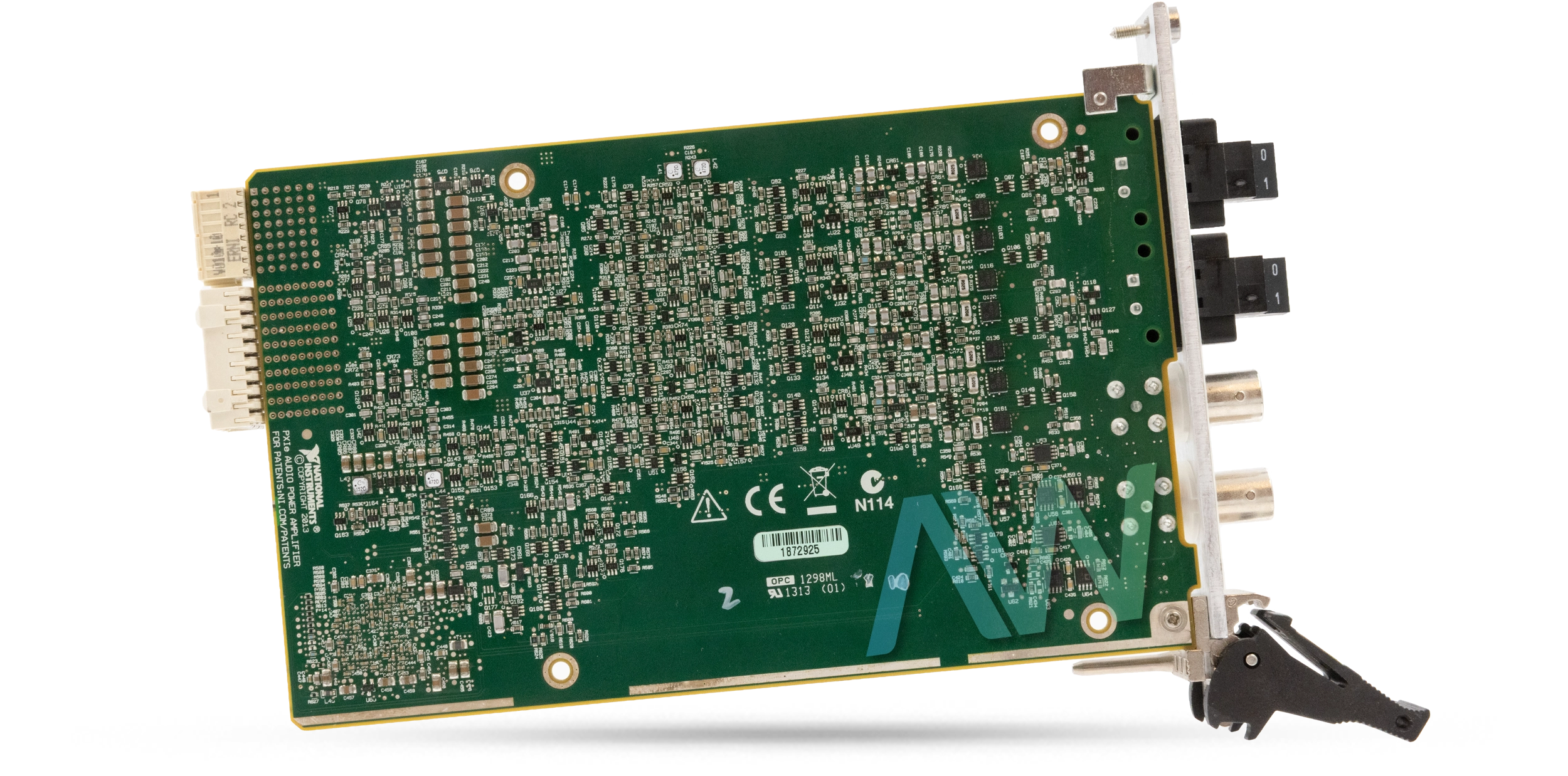

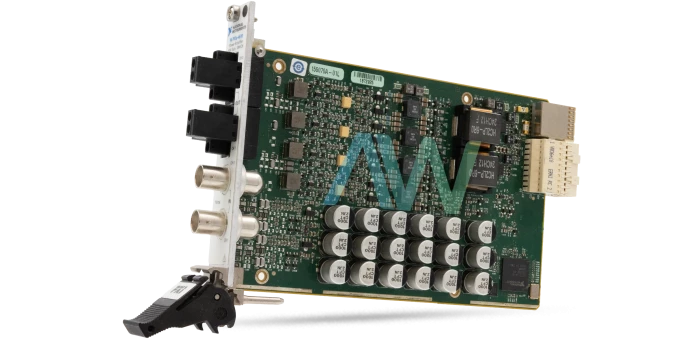

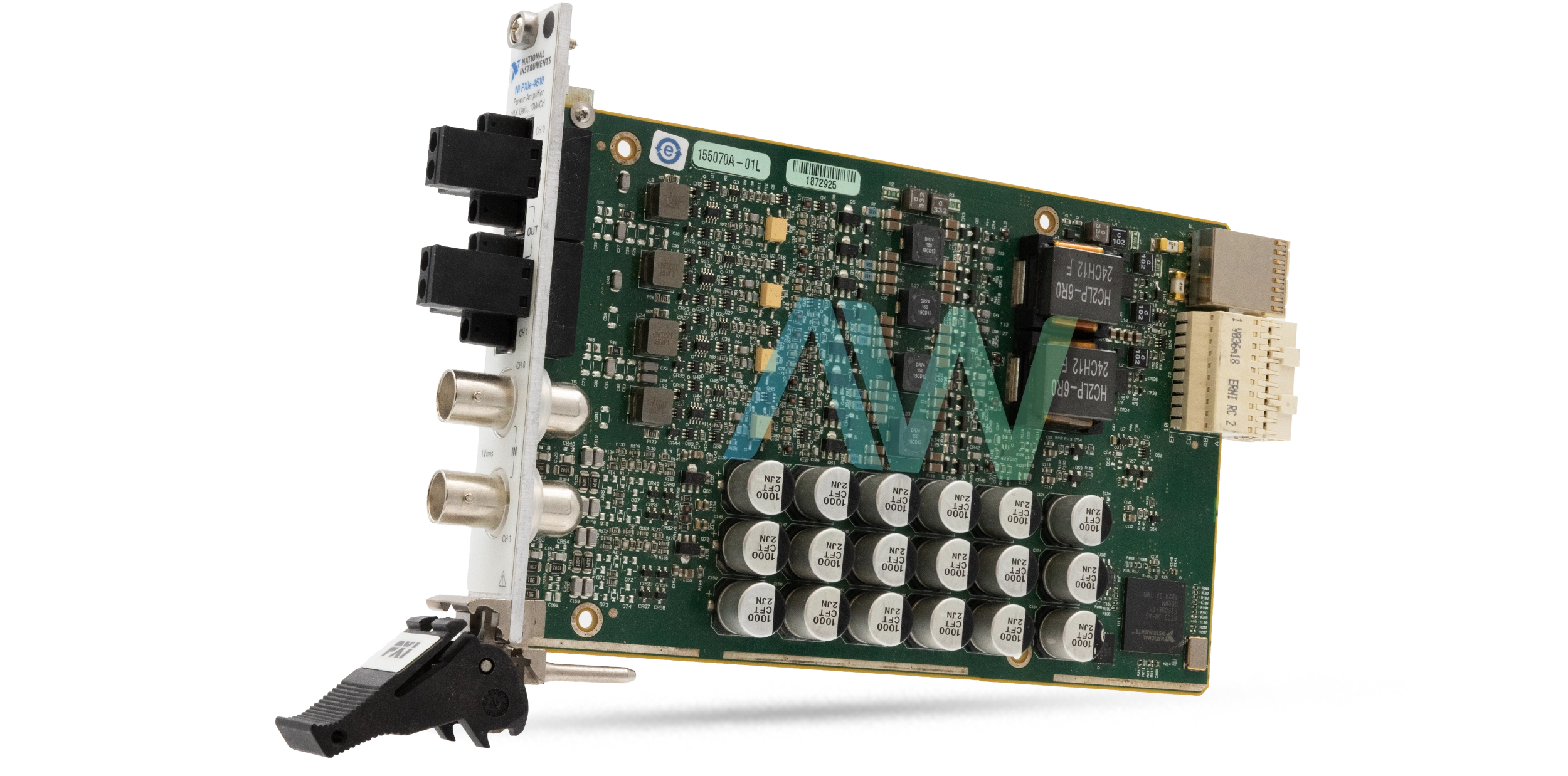

National Instruments PXIe-4610 PXI Amplifier Module
The PXIe‑4610 (Part Number: 782834-01) Power Amplifier Module is a low-distortion and low-noise amplifier that gives an adaptable output signal capable of driving both test frameworks and certifiable loads, such as speakers. The NI PXIe‑4610 produces the most reduced noise conceivable while amplifying the power from a single PXI Express slot. The PXIe‑4610 offers a simple to utilize option to interfacing dynamic signal sources to outside intensifiers. This intensifies little signals with the goal that they can be analyzed and processed by other input modules in the PXI framework or to consider driving of real world loads in test frameworks.
The National Instruments PXIe-4610 Amplifier Module gives distinctive sorts of amplification and signal conditioning. The user can choose from a guarding functionality that enables the module to make 6-wire resistance estimations, various input channels with integrated grounding, and a low-distortion and low-noise analog output. Associating a ground-referenced load or instrument to an NI PXIe-4610 output adequately short-circuits one output terminal to ground, which initiates the short circuit protection and causes the watched voltage spikes.
At low example rates, between the base rate for the DSA gadget and 25.6 kS/s, the counter associating channels of DSA gadget AI channels may not totally dismiss the full scale of band signals. The inward digital channel of the delta-sigma ADC cannot suppress signals with frequencies close to the multiples of the oversample rate (test rate increased by oversample factor).
| Model | PXIe-4610 |
|---|---|
| Part Number | 782834-01 |
| Manufacturer | National Instruments |
| Type | PXI Amplifier Module |
| Power Amplifier Channels | 2 |
| Input Coupling | AC |
| Output Coupling | DC |
| Input Connectors | BNC female |
| Weight | 7.1 oz. |
| Warranty | 2-3 Year Warranty |
| PXIe-4610 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-4610:
National Instruments PXIe-4610 Frequently Asked Questions
Question: What type of output connectors does the PXIe-4610 have?
Answer: The PXIe-4610 has 2-terminal detachable screw-terminal output connectors.
Question: What is the dynamic range of the NI PXIe-4610?
Answer: The dynamic range for the NI PXIe-4610 is 114 dB.
Question: What type of input configuration does the PXIe-4610 have?
Answer: The PXIe-4610 has differential inputs.
Question: What is the maximum output for the NI PXIe-4610?
Answer: The maximum output of the NI PXIe-4610 is 10 V RMS.
