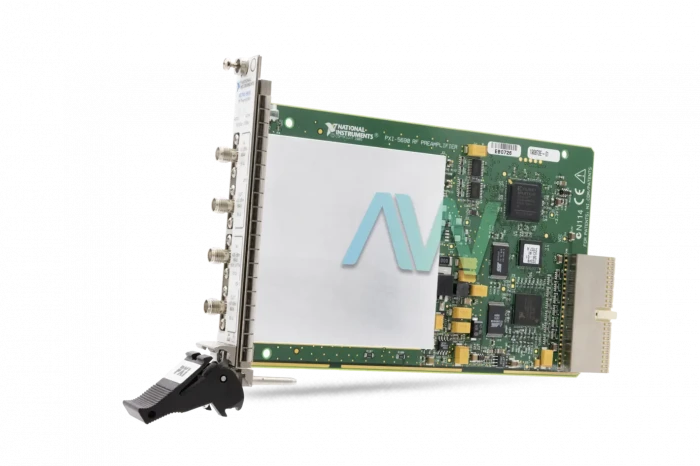

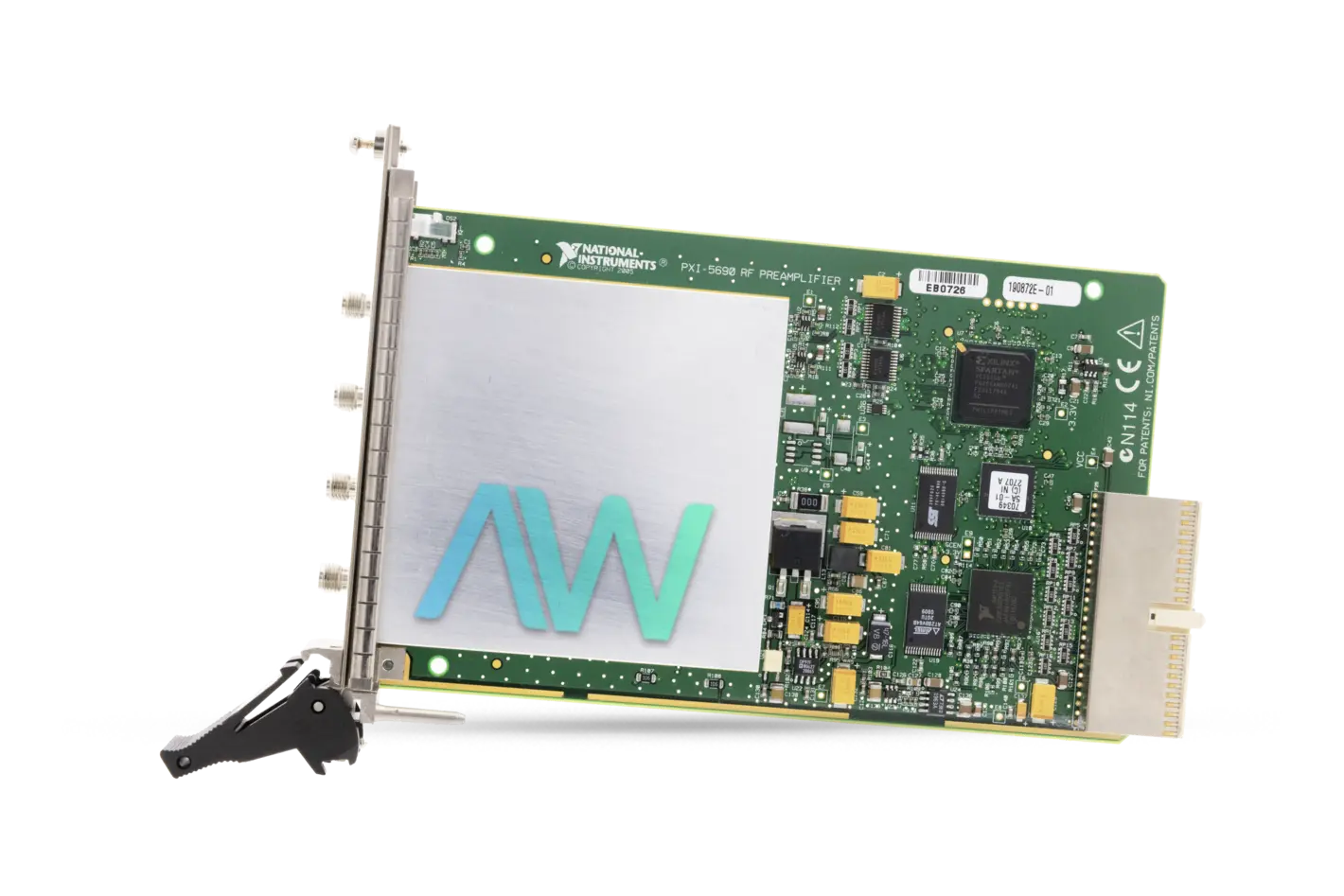

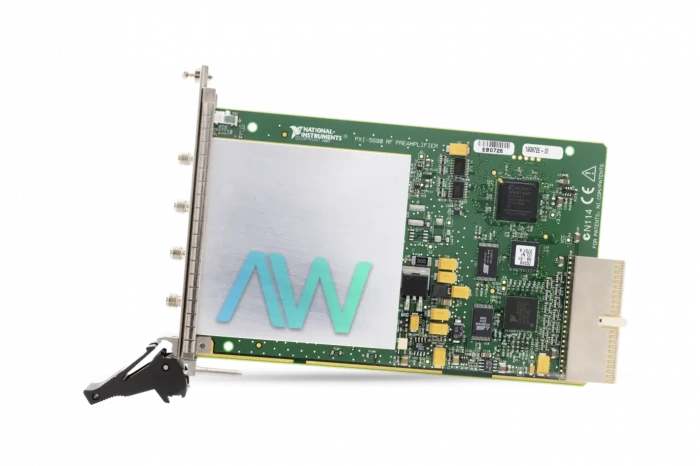

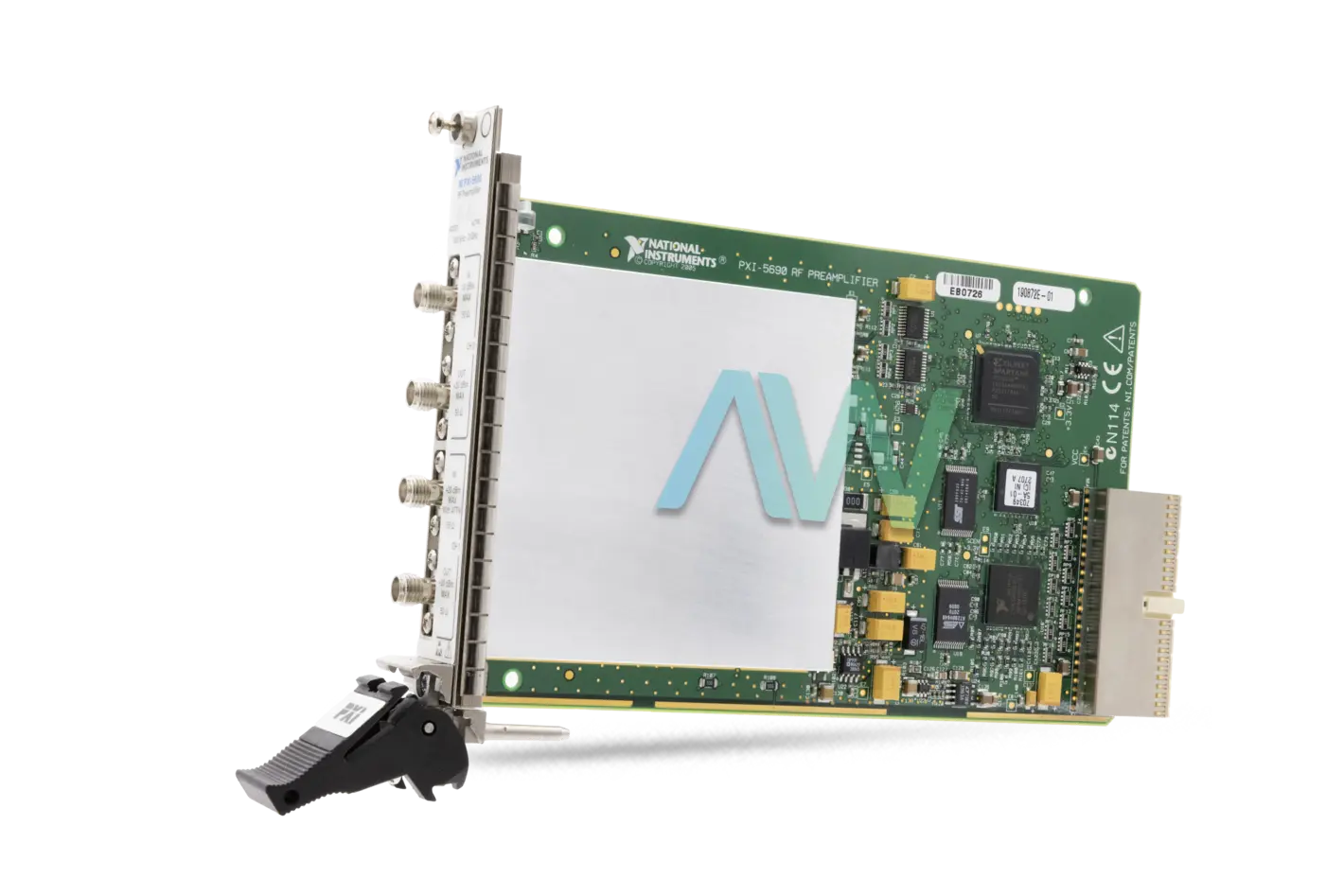

National Instruments PXI-5690 PXI RF Amplifier
The National Instruments PXI-5690 PXI RF Amplifier (Part Numbers: 779465-01, 190872E-01) is a 2-channel, 3 GHz programmable module that offers fixed gain and configurable gain in a 3U PXI single-slot module. The NI PXI-5690 has gain and noise qualities that upgrade the dynamic range and affectability of PXI RF signal vector analyzers. The PXI-5690 can automatically omit its gain by associating with a direct path. This usefulness enhances the testing and checking execution of the NI PXI-5690 PXI RF Signal Analyzer by changing the dynamic range to easily monitor extremely weak and strong signals.
The PXI-5690 is intended to be associated with RF vector signal analyzers, such as the NI PXI-5660. The National Instruments PXI-5690 is a simple gadget that enhances or constricts its input signal as indicated by the predetermined path and gain settings. No triggering plan is required.
In this model, CH 0 works as a settled gain preamplifier with a range gain of 30 dB. This channel offers a low noise figure and a level frequency reaction, so the user can utilize CH 0 as they would use a customary fixed-gain preamplifier. On the other hand, CH 1 works as a programmable preamplifier containing two client-selectable paths.
On the NI PXI-5690, the main path is the primary path and consists of fixed gain enhancement preceded by a step attenuator that is movable by programming in 1 dB nominal steps according to client-specified gain settings. The operating gain of the output is between -10 and +20 dB. The direct path, on the other hand, gives you the alternative of bypassing the attenuator-intensifier hardware. This path is valuable for taking care of higher-power inputs that may cause distortion in the RF preamplifier.
Apex Waves keeps end-of-life NI hardware in stock and ready to ship in perpetuity. While the PXI-5690 is no longer available from National Instruments, the RF amplifier will remain available for both purchase and repair services with us.
| Model | PXI-5690 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779465-01, 190872E-01 |
| Type | PXI RF Amplifier |
| Channels | 2 |
| Frequency Range | 100 kHz to 3.0 GHz |
| Maximum Output Power | +20 dBm |
| Front Panel Connectors | SMA Female |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | -40 °C to 70 °C |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 9.2 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-5690 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-5690:
National Instruments PXI-5690 Frequently Asked Questions
Question: What type of front panel connector does the PXI-5690 have?
Answer: The PXI-5690 has SMA female front panel connectors.
Question: What is the maximum output power of the NI PXI-5690?
Answer: The maximum output power of the NI PXI-5690 is +20 dBm.
Question: What is the warm-up time for the PXI-5690?
Answer: The PXI-5690 has a warm-up time of 15 minutes.
Question: What type of input coupling does the PXI-5690 have?
Answer: The PXI-5690 has AC input coupling.
