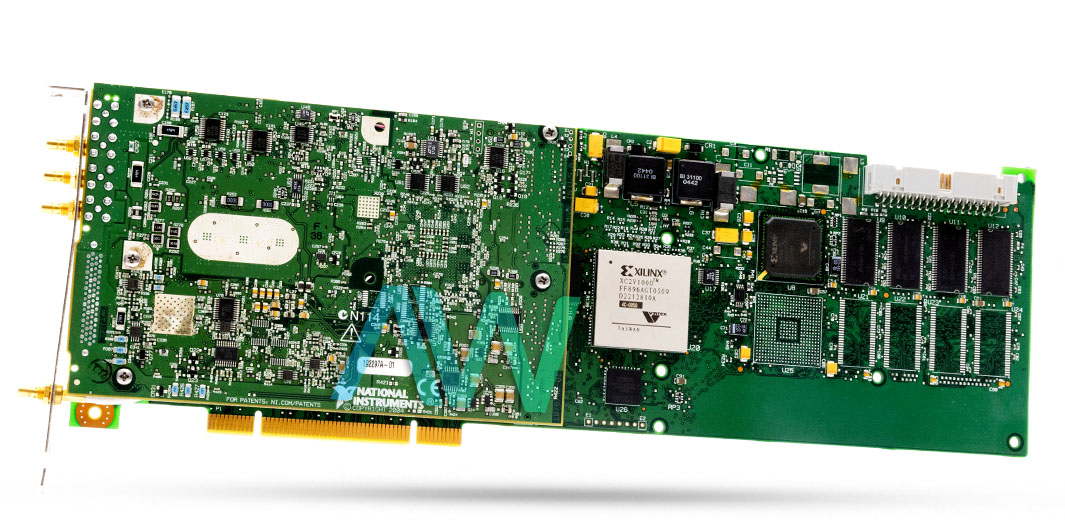

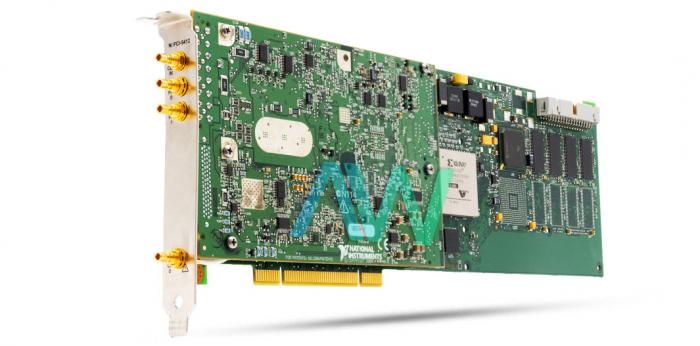

National Instruments PCI-5412 Waveform Generator Device
The PCI-5412 is an Arbitrary Waveform Generator Device manufactured by National Instruments. There are several variations of this device with different onboard memory sizes: part number 779177-01 with 8 MB onboard memory, part number 779177-02 with 32 MB onboard memory, and part number 779177-03 with 256 MB onboard memory. The NI PCI-5412 can produce mixed signal test systems by coordinating the device with a digital waveform generator and other digital processing units. It can also perform the same operation by synchronizing multiple arbitrary waveform generators. This forms a cohesive multichannel generator. The NI PCI 5412 can download waveform at 84 MB/s with a host computer. This speed is much faster than conventional GPIB based instruments.
The NI PCI-5412 has 16 bit resolution and a sampling rate up to 100 MS/s. The analog bandwidth is 20 MHz. The PCI-5412 device contains digital interpolation, which enhances the waveform quality of the signal at the output. The user can additionally disable various filters, such as analog and interpolation schemes of filtration for sharp waveforms. It contains video signals, beats, and square waves. As a result, there are low pulse deviation and fast fall/rise times. The NI PCI-5412 has 4 advanced trigger modes. This includes single mode, continuous mode, burst mode, and stepped mode.
The NI PCI-5412 is equipped with T-Clock synchronization technology. This feature enables 2 or more PCI-5412 devices to synchronize and is used for application with a large number of channels like component video generation. T-Clock can coordinate an NI PCI-5412 with an SMC built high speed digitizer. It can also sync with a digital waveform generator. The outcome is a tight connection of analog and digital inducement and retort.
PCI-5412 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-5412 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779177-01, 779177-02,779177-03 |
| Type | Arbitrary Waveform Generator |
| Channels | 1 |
| Channel Resolution | 14 bits |
| Memory | 8, 32, or 256 MB |
| Frequency Range | 0 - 20 MHz |
| Frequency Resolution | 1.06 µHz |
| Maximum Sample Rate | 100 MS/s |
| Output Voltage | 12 Vpp into 50 ohm |
| Driver Software | NI-FGEN, LabVIEW Express VIs, FGEN Soft Front Panel, NI Analog Waveform Editor |
| Power Dissipation | 22 W |
| Dimensions | 13.39 x 3.94 x 0.79 in. |
| Weight | 17 oz. |
| Warranty | 2-3 Year Warranty |
| PCI-5412 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-5412:
National Instruments PCI-5412 Frequently Asked Questions
Question: What is the difference between the three part numbers for the NI PCI-5412?
Answer: The first part number for the NI PCI-5412, 779177-01, has 8 MB onboard memory. Part number 779177-02 has 32 MB onboard memory. Lastly, part number 779177-03 has 256 MB onboard memory.
Question: Are any accessories necessary to operate the PCI-5412 device?
Answer: A SMB Female to BNC Male Cable or SMB Female to SMB Female Cable is necessary to operate the PCI-5412 device.
Question: Which type of front panel connectors does the NI PCI-5412 have?
Answer: The NI PCI-5412 has SMB (jack) front panel connectors.
Question: What is the total power for normal operation for the PCI-5412?
Answer: The total power for normal operation for the PCI-5412 is 22 W.
PCI-5412 PDF Manuals
MAINTAIN-FORCED-AIR-COOLING-NOTE-TO-USERS.PDF
NI-PXI-PCI-5412-SPECIFICATIONS.PDF
NI-SIGNAL-GENERATORS-GETTING-STARTED-GUIDE.PDF
