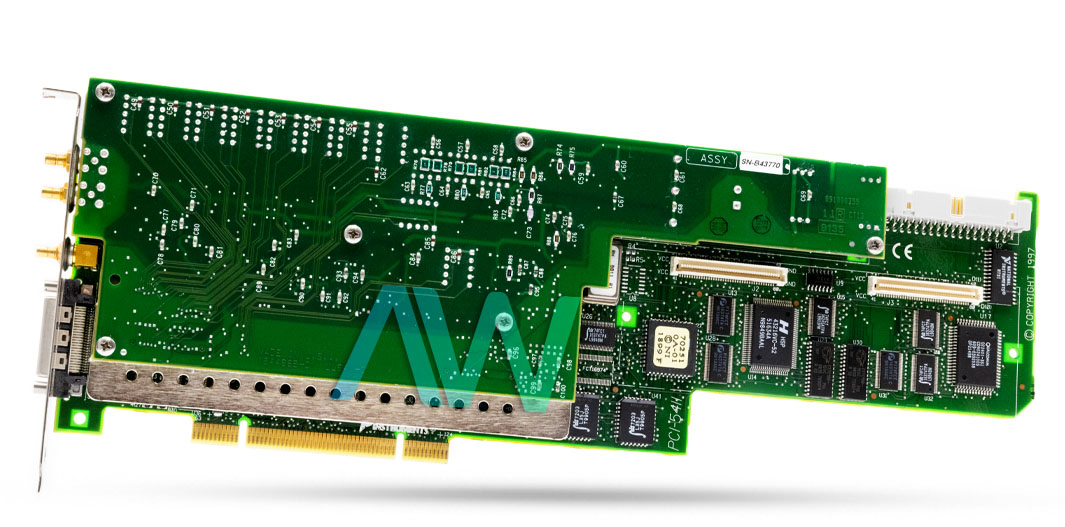

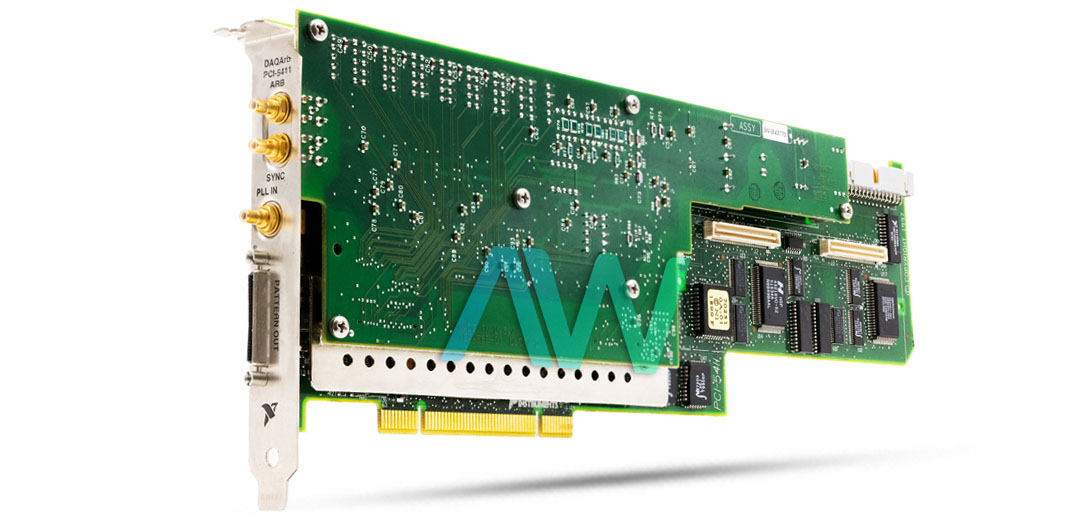

National Instruments PCI-5411 Waveform Generator Device
The PCI-5411 is a high-speed Waveform Generator Device developed by National Instruments. The PCI-5411 device works on the principle of the DDS method for signal generation. This device supports real-time system integration (RTSI). The PCI-5411 can be synchronized with external clocks through the PLL method. This device also features waveform linking and looping.
The PCI-5411 Waveform Generator Device has one 12-bit analog output channel. This output channel is DC-coupled. The maximum frequency of the PCI-5411 device is 16 MHz for TTL waveform output. The maximum frequency for square, ramp, and triangle signals is 1 MHz. The PCI-5411 Waveform Generator Device has a frequency resolution of 9.31 MHz in DDS mode. The resolution of the DDS accumulator is 32 bits. The sampling rate of the output channel is up to 40 MS/sec. The PCI-5411 has two selectable options for output impedance. These options are 50 Ω nominal or 75 Ω high impedance. The voltage output depends upon the selected impedance value. The voltage output of the PCI-5411 is +5V or +10V respectively.
The PCI-5411 Waveform Generator Device can generate both FM and AM waveforms. The FM waveform is created in a DLL. The AM waveform is created using a simple amplitude modulation equation. The PCI 5411 is controlled using the built-in software or the NI-FGEN driver software. The built-in software is VirtualBench-FG or VirtualBench-ARB soft front panel software. To use NI-FGEN, an application development environment is required. The NI PCI-5411 supports various ADEs, including: LabVIEW, VB, or any C/C++ environment.
PCI-5411 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-5411 |
|---|---|
| Manufacturer | National Instruments |
| Type | High-Speed Arbitrary Waveform Generator |
| Channels | 1 |
| Channel Resolution | 12 bits |
| Frequency Range | 16 MHz Sine Wave Generation 1 MHz Ramp, Square and Triangle Wave Generation |
| Frequency Resolution | 9.31 mHz |
| Maximum Sample Rate | 40 MS/s |
| Output Voltage | 10 Vpp into 50 ohm |
| Power Requirements | 5-12V, 3.5-125mA |
| Warranty | 2-3 Year Warranty |
| PCI-5411 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-5411:
National Instruments PCI-5411 Frequently Asked Questions
Question: Does the PCI-5412 have a Digital Data Connector (DDC) like the PCI-5411?
Answer: No, the PCI-5412 does not have a Digital Data Connector (DDC) like the PCI-5411. Although the PCI-5411 is now obsolete, Apex Waves sells obsolete and discontinued NI devices.
Question: How do I modify the update rate of the NI PCI-5411?
Answer: The update rate of the NI PCI-5411 can be modified by using the niFgen Set Sample Rate.vi (niFgen_ConfigureSampleRate).
Question: Which operating systems are the PCI 5411 compatible with?
Answer: The PCI 5411 is compatible with Windows XP.
Question: What are the voltage output ranges of the NI PCI-5411?
Answer: The voltage output ranges of the NI PCI-5411 are ±5 V into a 50 Ω load and ±10 V into a high-impedance load.
