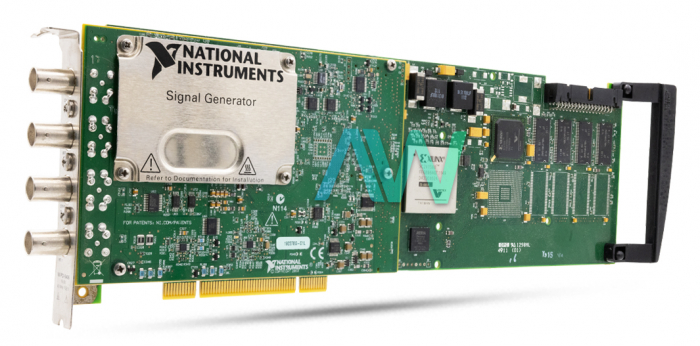

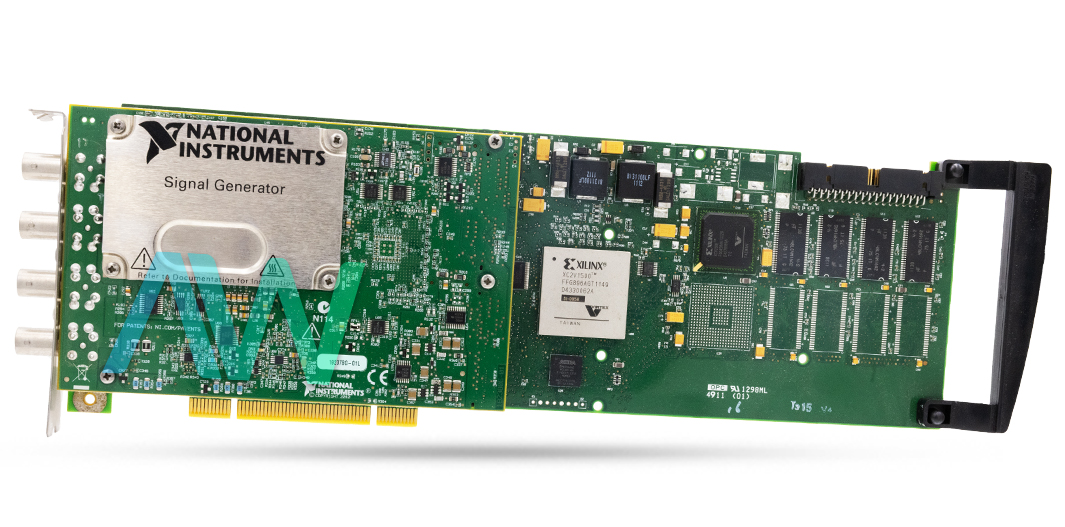

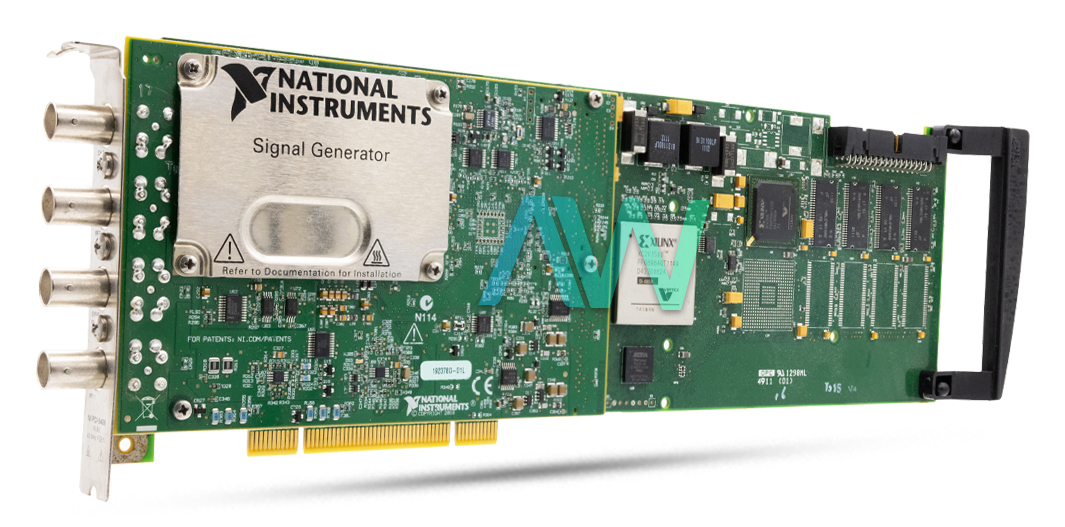

National Instruments PCI-5406 Waveform Generator Device
The PCI-5406 (Part number: 779658-01) is a Waveform Generator Device designed by National Instruments. This model is equipped with 40 MHz bandwidth and 16-Bit resolution. The voltage range is from -5 V to +5 V. The NI PCI-5406 device can operate at a sample rate of 100 MS/s. The sample rate can be chosen up to 4X digital interpolation and is adjustable based on the application and signal requirements. This model is structured with 20 and 40 MHz arbitrary function generators (AFGs). The AFGs have up to 16 bits resolution. It also has an onboard memory of 32kB.
The PCI 5406 Waveform Generator Device can perform unparalleled analog output performance. It also comes with an analog filter. The analog filter is elliptical and has seven poles. It is integrated to the output analog path. It overpowers high frequency signal images. This device uses direct digital synthesis (DDS). DDS helps to generate waveforms exactly. This device can generate signals to correctly create waveforms. The NI PCI‑5406 can produce standard functions, including: sine, square, triangle, and ramp signals. This device can also produce other signals, such as DC signals and pseudorandom noise.
Every NI PCI-5406 device is calibrated through NIST traceable standards. The NI PCI-5406 has built in correction orientations, which reduces the environmental effects on timing errors, offset, and DC gain. National Instruments offers support and services to fulfill the user requirements all over the world. NI service levels include research, design, validation, and developing to meet user requirements.
PCI-5406 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-5406 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779658-01 |
| Type | Arbitrary Function/Waveform Generator |
| Channels | 1 |
| Channel Resolution | 16 bit |
| Frequency Range | 40 MHz Sine and Square Wave Generation 5 MHz Ramp and Triangle Wave Generation |
| Frequency Resolution | 355 μHz |
| Maximum Sample Rate | 400 MS/s |
| Output Voltage | 10 Vpp into 50 ohm |
| Power Dissipation | 17.6 W |
| Driver Software | NI-FGEN, FGEN Soft Front Panel |
| Dimensions | 13.4 × 0.8 × 4.2 in |
| Weight | 0.93 lb. |
| Warranty | 2-3 Year Warranty |
| PCI-5406 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-5406:
National Instruments PCI-5406 Frequently Asked Questions
Question: Which accessories are required for the PCI-5406 device?
Answer: A BNC Male to BNC Male Cable (Part Number: 781887-01) is required for the PCI-5406 device.
Question: What is the analog output onboard memory size of the NI PCI-5406?
Answer: The analog output onboard memory size of the NI PCI-5406 is 32 kB.
Question: Can the PCI 5406 be externally calibrated?
Answer: Yes, the PCI 5406 has an external calibration interval of two years.
Question: What are the total power requirements of the NI PCI-5406?
Answer: The total power requirements of the NI PCI-5406 are 17.6 W.
