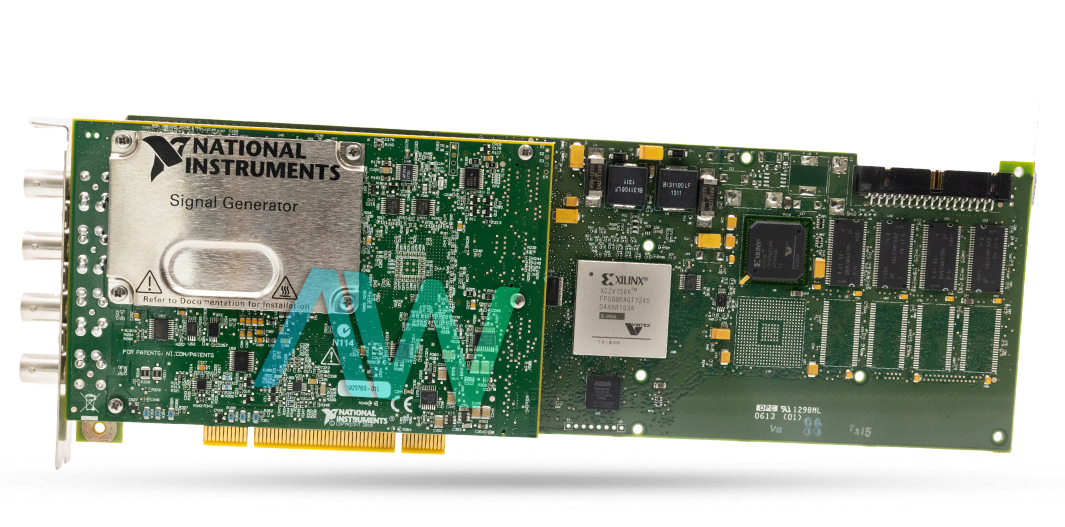

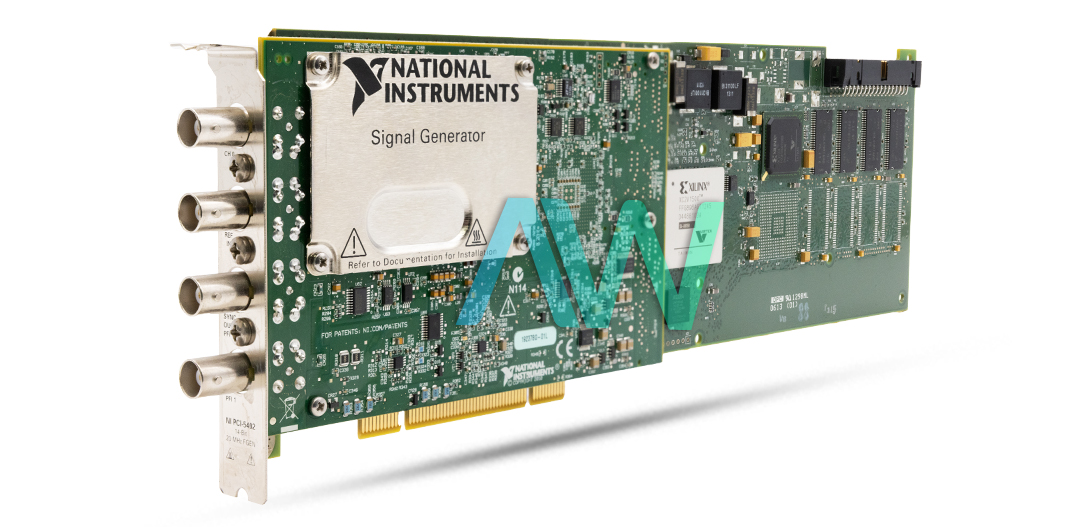

National Instruments PCI-5402 Waveform Generator Device
The PCI-5402 (Part number: 779656-01) is a Waveform Generator Device by National Instruments. In addition to standard signals, this device can also generate other signals, such as pseudorandom noise and DC signals. The PCI-5402 Waveform Generator Device generates signals with an amplitude range of up to ±5 V into high impedance or ±2.5 V into 50 Ω loads. The PCI-5402 features the direct digital synthesis (DDS) method for signal generation and is used in applications where fast analog signal generation is required.
The PCI-5402 Waveform Generator Device has one analog output channel. The connector type of the output channel is BNC and the analog output resolution is 14 bits. The channels are selectable as a trigger (input) or event (output). These channels can bear overload of -2 V to +7 V voltage without any damage to the generator device. The device has an amplitude resolution of 14 bits, which corresponds to approximately 0.006% of the full-scale range. The PCI-5402 has a selectable output impedance of 50 Ω or 75 Ω. The output channel is also selectable and can be disabled. In addition, the device has a selectable FIR filter, which can only be used if the sample clock rate is above 10 MS/s. The frequency resolution of this generator is 0.014 Hz. The PCI-5402 features a maximum update rate of 40 MS/s and an analog output bandwidth of approximately 13 MHz for sine waves; for complex waveforms like ramps and triangles, the bandwidth is typically around 1 MHz.. However, for ramp and triangle signals, the values reduce to 1 MHz and 100 MS/s.
The PCI-5402 Waveform Generator Device supports NI-FGEN driver software. NI-FGEN is used to configure and calibrate the PCI-5402. It is supported by various applications for the programming interface. MAX is also included in the NI-FGEN.
The product status of the PCI-5402 is Obsolete, meaning that it is no longer available from National Instruments. The Waveform Generator Device will still be available for purchase and repairs in perpetuity with Apex Waves.
| Model | PCI-5402 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779656-01 |
| Type | Arbitrary Function/Waveform Generator |
| Channels | 1 Analog Output |
| DAC Resolution | 14 Bits |
| Frequency Range | 20 MHz Sine and Square Wave Generation 1 MHz Ramp and Triangle Wave Generation |
| Frequency Resolution | 0.014 Hz |
| Maximum Sample Rate | 400 MS/s |
| Output Voltage | 10 Vpp into 50 ohm |
| Power Dissipation | 17.6 W |
| Driver Software | NI-FGEN, FGEN Soft Front Panel |
| Dimensions | 13.4 × 0.8 × 4.2 in |
| Weight | 0.93 lb, 14.8 oz |
| Warranty | 2-3 Year Warranty |
| PCI-5402 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today For Pricing |
Associated part numbers for PCI-5402:
National Instruments PCI-5402 Frequently Asked Questions
Question: Are any accessories required for the NI PCI-5402?
Answer: Yes, the generator requires a BNC Male to BNC Male Cable.
Question: How many BNC connectors are on the PCI-5402?
Answer: The device is equipped with a single BNC connector for its analog output.
Question: How often should the PCI-5402 be externally calibrated?
Answer: It is recommended to externally calibrate the Waveform Generator every two years.
Question: Does the NI PCI-5402 support arbitrary waveforms?
Answer: Yes, arbitrary waveform generation is supported using the NI-FGEN driver.
