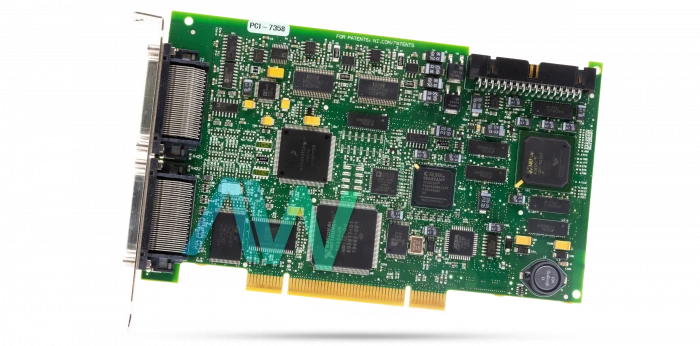

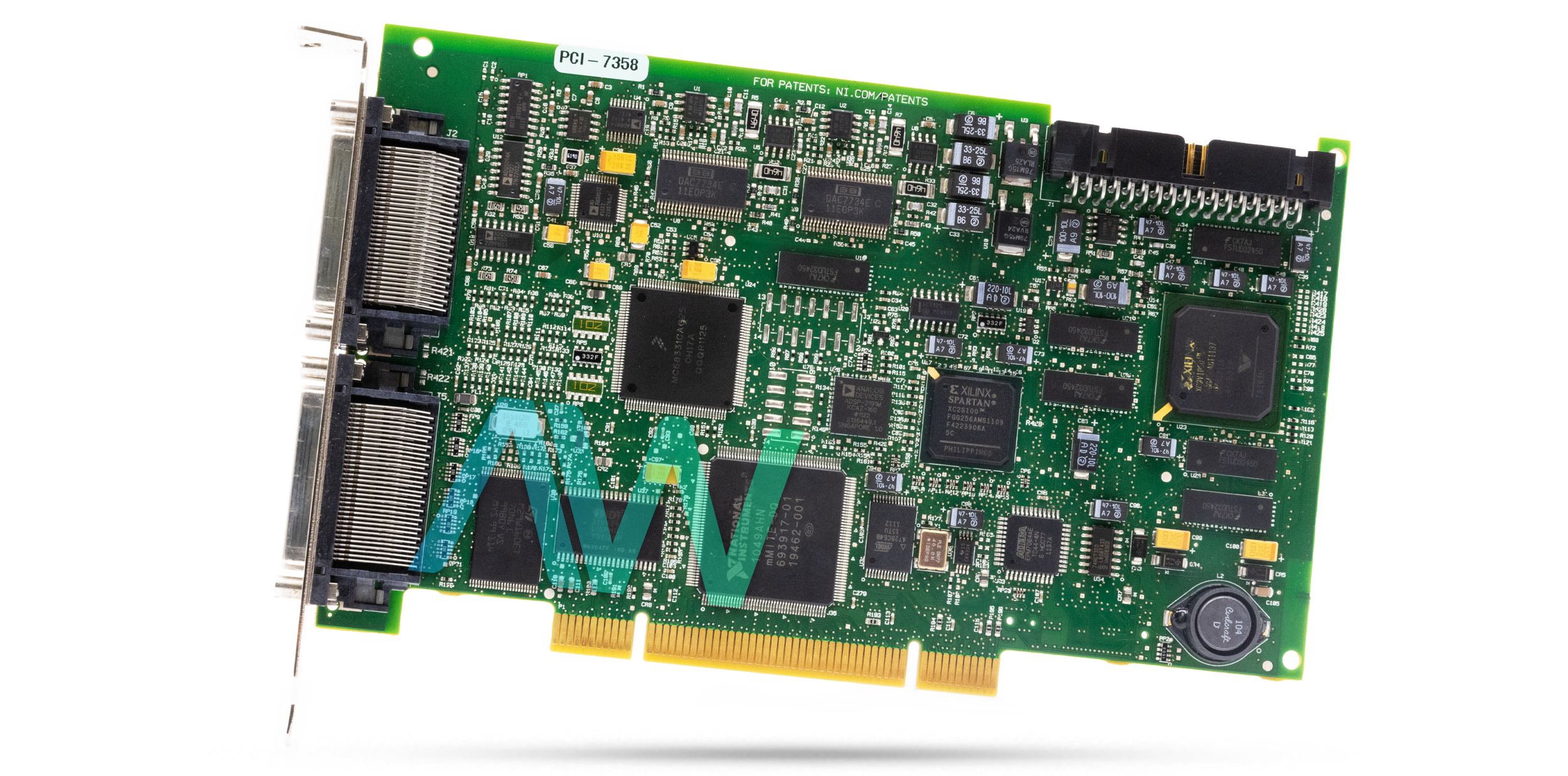

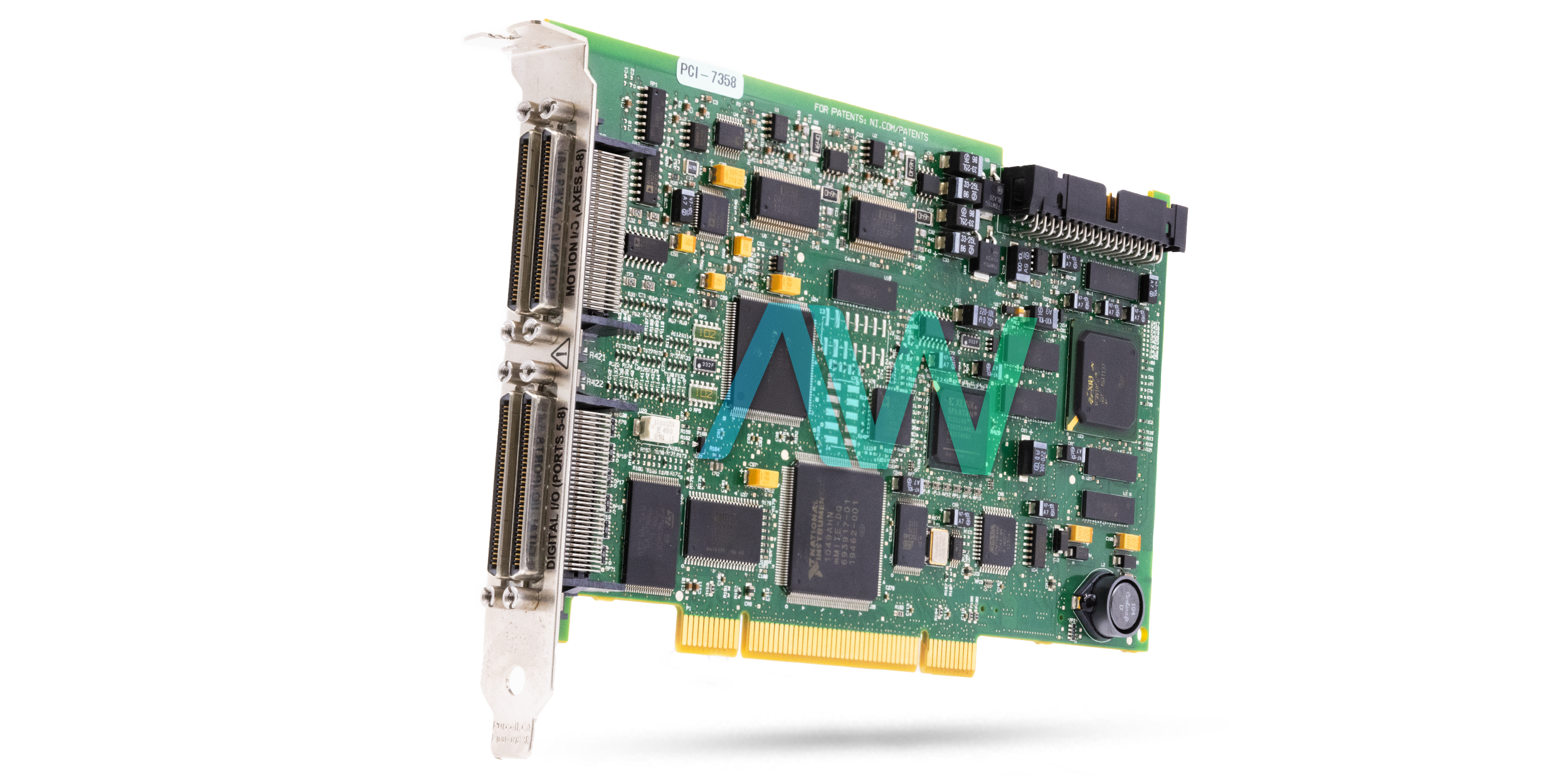

National Instruments PCI-7358 Motion Controller Device
Featured with built-in data acquisition capabilities, 4 MHz high-speed position triggers, and 64 lines of digital I/O, the National Instruments PCI-7358 (Part Number: 778440-08) is a Stepper/Servo Motion Controller designed for PCI bus computers. This Motion Controller Device can handle up to 8 axes and offers a high trajectory update range of 62.5 to 500 µs/sample.
The maximum update rate achievable per 2 axes is 62.5 µs, whereas while operating with all 8 axes, the NI PCI 7358 offers 250 µs total update rate. In addition, the NI PCI-7358 Motion Controller Device offers ±1 quadrature count encoder feedback and ±1 LSB analog feedback. This Motion Controller comes with 1 to 8,000,000 steps/s velocity range, ±1,200,000 revolutions/min RPM range, ±231 steps position range, and ±231 steps relative move size (maximum).
The National Instruments PCI-7358 Motion Controller Device can receive incremental, quadrature, single ended encoder inputs at 20 MHz maximum count rate. The pulse width of the motion I/O can be programmed by users and depends on the setting of the digital filter. The input low voltage and input high voltage ranges for motion I/O are 0.8 V and 2 V respectively. This device can receive up to 3 inputs per axis as forward, home, and reverse inputs. Thus, this Motion Controller can receive up to 24 total inputs within the range of 0 to 5 V. The device is equipped with an 8 port digital I/O channel.
To set up the NI PCI-7358 motion controller, hardware such as: a computer with a PXI/PCI slot, a NI 7358 motion controller, a NI or third-party drive and motor are required. Also, the device operates using the NI-Motion driver software and any one of the LabVIEW, LabWindows, Microsoft Visual Basic, and the Microsoft Visual C++ software packages/documentations. The analog inputs incorporated in this Motion Controller can be used as general-purpose analog inputs or receive analog feedback from individual axes.
Each NI PCI-7358 requires:
2 Connector Blocks, UMI-7774 - 778558-01
2 Cables, Shielded SHC68-C68-S (2 m) - 186380-02
The PCI-7358 is now considered Obsolete by National Instruments, but the motion controller will remain available in perpetuity for either purchase or repair services with Apex Waves. Request a quote today!
| Model | PCI-7358 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778440-08 |
| HTS Code | 8471804000 |
| Type | Motion Controller Device |
| Mode | Stepper, Servo |
| Number of Axes | 8 |
| Trajectory Update Rate Range | 62.5µs/sample to 5 ms/sample (Servo) 62.5 to 500 µs/sample (Stepper) |
| Number of Axes per 62.5 µs PID Rate | 62.5 µs per 2 Axes |
| Maximum Step Frequency | 8 MHz (Full, Half, and Microstep) |
| Encoder Input Rate | 20 MHz |
| Step Output Mode | Step and Direction or CW/CCW |
| Number of Inputs | 24 (3 Per Axis) |
| Number of Outputs | 8 (1 per Axis) |
| Input Voltage Range | 0 to 5 V |
| Output Voltage Range | 0 to 5 V |
| Digital I/O | 8 Ports (8-Bit) |
| PWM Outputs | 2 (50 kHz, 8-Bit) |
| Power Consumption | 18 W |
| Power Requirements | +3.3V, +5, +12 V, –12 V -- 2 A, 2 A, 30 mA, 0 mA |
| Motion I/O Connector | 68-pin Female High-Density VHDCI |
| 32-Bit Digital I/O Connector | 68-pin Female High-Density VHDCI |
| Dimensions | 6.9 in. × 3.9 in |
| Weight | 0.25 lb. |
| Software Driver | NI-Motion |
| Warranty | Three Year Warranty |
| PCI-7358 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for PCI-7358:
National Instruments PCI-7358 Frequently Asked Questions
Question: Is the PCI-7358 a brushless motor controller?
Answer: Yes, the Motion Controller Device provides sinusoidal commutation, which makes it a brushless motor controller.
Question: Does the device work in host-centric programming environments?
Answer: Yes, the PCI-7358 works in host-centric programming or embedded real-time motion operation environments.
Question: Can I split my encoder signals if I’m using the PCI-7358?
Answer: If you need to split your encoder signals while using the Motion Controller Device, you will need to use an external splitter.
Question: What applications are the PCI-7358 best suited for?
Answer: The device is an excellent choice for motion applications that are either simple or complex.
