Q: What driver does the PCI-7344 use?

The Motion Controller Device uses an NI-Motion Driver.

Q: What does the shutdown input safety feature do on the NI PCI-7344?

The shutdown input safety feature on the Motion Controller Device incapacitates every axis and command output.

PCI-7344, 4-Axis, 8 Multiplexed Analog Inputs, Motion Controller

Rated 4.33/5 | 20 ratings

PCI-7344 National Instruments Motion Controller | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

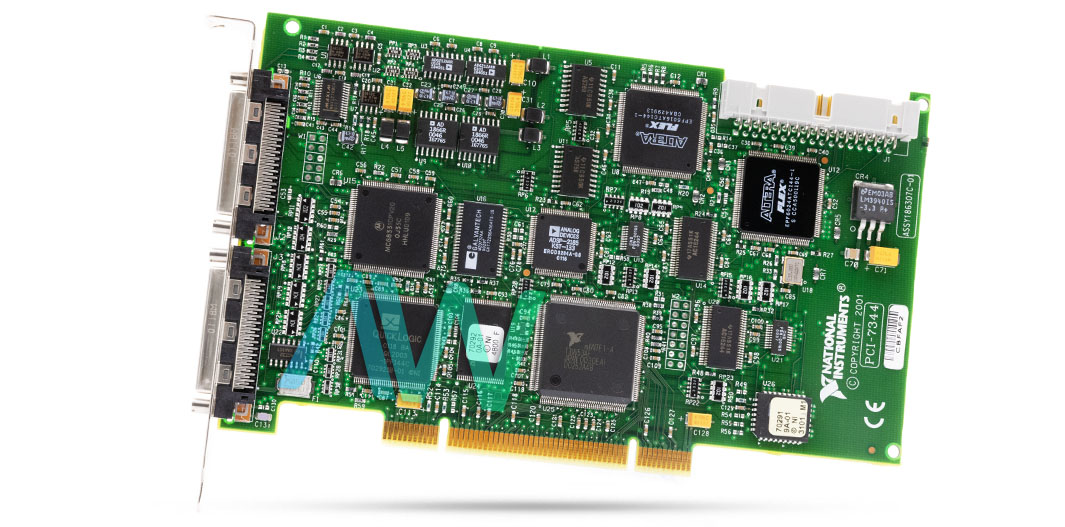

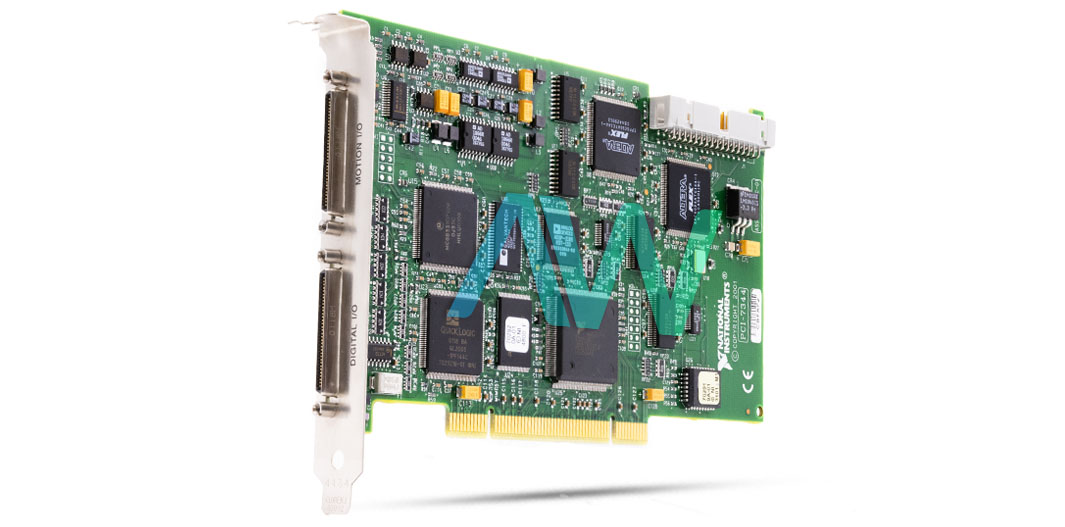

National Instruments PCI-7344 Motion Controller Device

Featured with 3D contouring, 3D linear and circular interpolation, and up to 62 ms PID loop update rate, the National Instruments PCI-7344 (Part number: 778916-04) is a high-quality Motion Controller for stepper/servo control applications. This device is well-suited for machine builders and end users who require the capability of creating powerful applications swiftly and effortlessly. This device has a unique construction in which the DSP and CPU operate together to provide the user with optimized closed-loop controlling, motion command processing, and automated systems controlling. The NI PCI-7344 Motion Control Board comes with integrated system safety mechanisms. For example, the watchdog timer function has 63 ms timeout and resets the board to the startup state.

The NI PCI-7344 has 62.5 to 500 µs/sample trajectory update range and offers 62.5 µs/axis maximum update range. This Motion Controller enables the user to acquire stepper outputs at 4 MHz maximum pulse rate and 120 ns maximum pulse width over a voltage range of 0 to 5 V.

The PCI-7344 National Instruments offers four 8-bit digital I/O ports; each bit can be programmed individually. For motion controlling and digital I/O, two separate 68-pin female high-density VHDCI I/O connectors are provided. The motion I/O connector incorporated in this Motion Controller contains all necessary signals required to control as many as four axes of stepper and servo motion, including: inhibit outputs, breakpoint outputs, motor command outputs, reverse limit inputs, home limit inputs, and more. For high-speed connectivity between the NI Motion Controller PCI-7344 and other National instruments devices, the user can utilize the RTSI connector provided.

This Motion Controller is fully compatible with software such as LabVIEW 8.5 or later, Microsoft Visual C++, Microsoft Visual Basic, LabWindows/CVI 8.5 or later, the AKD WorkBench Software, and the NI-Motion 7.6 or later versions.

The device has the following hardware requirements:

-A computer with a PXI/PCI slot

-MID-7604 Stepper Motor Drive: 777936-01

-MID-7654 Servo Motor Drive: 778005-01 and 778005-05

-SHC68-C68-S 0.5 m Cable: 186380-0R5

-UMI-7774 Universal Motion Interface: 778558-01 or UMI-7772/74

The status of the PCI-7344 is Obsolete, meaning that it is no longer available from National Instruments. However, the Motion Controller will remain available for purchase and repairs with Apex Waves in perpetuity.

Model	PCI-7344
Manufacturer	National Instruments
Part Number	778916-04
HTS Code	8471804000
Type	Motion Controller Device
Axes	4
Analog Inputs	4
Analog Outputs	4
Dimensions	6.9 by 3.9 in.
I/O Connector	68-Pin Female High-Density VHDCI Type
Warranty	Three Year Warranty
PCI-7344 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a Quote Today for Pricing
