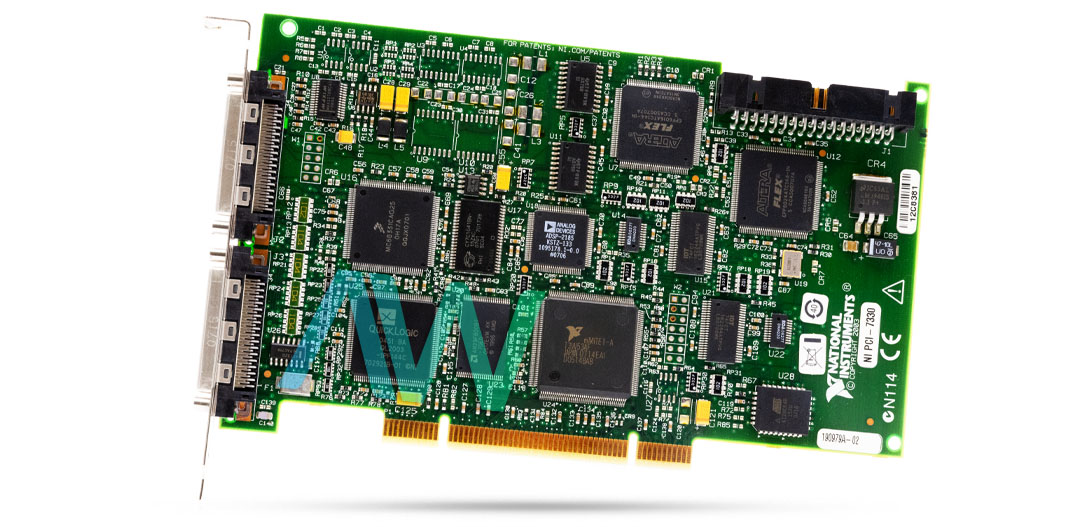

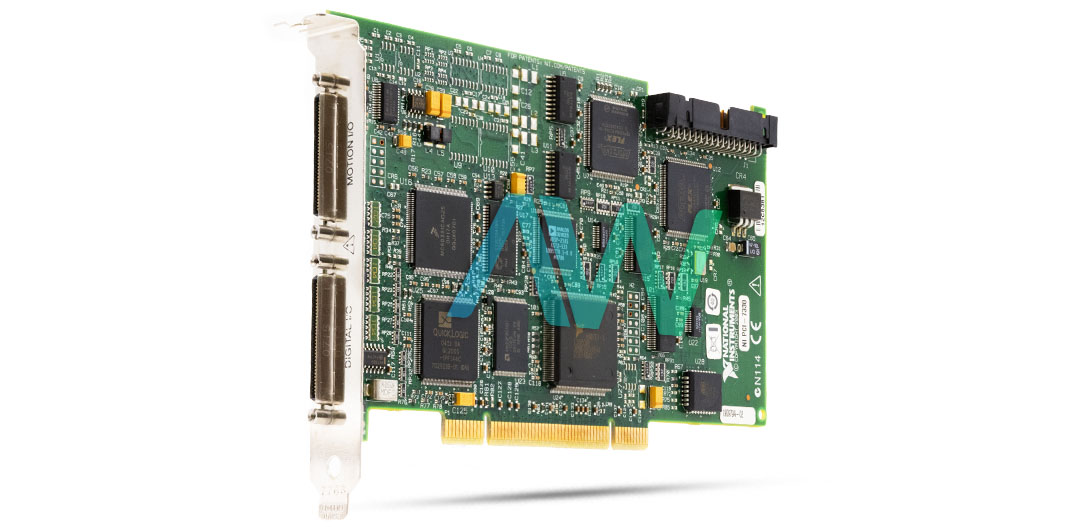

National Instruments PCI-7330 Motion Controller
The National Instruments PCI-7330 (Part Numbers: 778924-02 and 778417-01) is a PCI based Stepper Motion Controller. This model offers fully programmable controlling for up to four coordinated or independent axes of motion. Moreover, it can also provide dedicated motional I/O for home and limit switches and various other general purpose I/O functions. It has 8 single-ended multiplexed inputs with a resolution of 12 bits, 4 outputs, 4 digital I/O ports (8-bit), and 2 PWM outputs (with a frequency of 50 kHz and a resolution of 8 bits). This Motion Controller is a viable solution for straight line vector moves, as well as for applications involving point-to-point moves. With the NI PCI 7330, the user can achieve complex and arbitrary motion trajectories by utilizing stepper motors.
This Stepper Motion Controller comes with an integrated, dual-processor architecture consisting of a 32-bit central processing unit, custom FPGAs (field programmable gate arrays), and DSP. The FIFO (first-in, first-out) bus interface incorporated in this module offers efficient communications, while transmitting complicated motion trajectories to ensure optimum system performance and command throughput.
Stepper axes can be operated in either open-loop or closed-loop mode. In the closed-loop mode of operation, the stepper axes utilize analog inputs or quadrature encoders for velocity and position feedback and provide clockwise/counter-clockwise digital command outputs. Each axis of the National Instruments PCI-7330 has various motion I/O, including: encoder feedback, a home switch input, end-of-travel limit, etc. All signals are contained by the motion I/O connector of the device. Moreover, this Controller also has four analog inputs and one 32 bit digital I/O. The analog inputs provided on this controller can be used for joystick inputs, ±10 V signals, as well as for the monitoring of analog sensors. The device is equipped with 2 68-pin female high-density VHDCI connectors–one for motion I/O connections and the other for the 32-bit digital I/O connection. It has a power consumption value of 5.7 W.
The PCI-7330 can be programmed using a variety of software packages such as NI-Motion, LabVIEW, LabWindows/CVI, or Microsoft Visual Basic. The NI device weighs 0.25 lb, and measures 6.9 x 3.9 in. in physical dimensions.
| Model | PCI-7330 |
|---|---|
| Manufacturer | National Instruments |
| Type | Motion Controller |
| Trajectory Update Rate Range | 62.5 to 500 µs/sample |
| Maximum Step Frequency | 4 MHz (Full, Half, and Microstep) |
| Step Output Mode | Step and Direction or CW/CCW |
| Number of Inputs | 8 Multiplexed, Single Ended (12 bits) |
| Number of Outputs | 4 (1 per axis) |
| Input Voltage Range | 0 to 5 V |
| Output Voltage Range | 0 to 5 V |
| Digital I/O | 4 Ports (8-Bit) |
| PWM Outputs | 2 (50 kHz, 8-Bit) |
| Power Consumption | 5.7 W |
| Power Requirements | +5, +12 V, –12 V -- 1 A, 30 mA, 30 mA |
| Motion I/O Connector | 68-pin Female High-Density VHDCI |
| 32-Bit Digital I/O Connector | 68-pin Female High-Density VHDCI |
| Dimensions | 6.9 in. × 3.9 in |
| Weight | 0.25 lb. |
| Software Driver | NI-Motion |
| Warranty | Three Year Warranty |
| PCI-7330 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a Sales Representative for a Quote. |
Associated part numbers for PCI-7330:
National Instruments PCI-7330 Frequently Asked Questions
Question: Why doesn’t my PC detect PCI-7330? It says PCI-7334 is found, but not PCI-7330.
Answer: PCI-7330 is the name of the board family, which includes models PCI-7332 and PCI-7334. If MAX detects a PCI-7334, your system is working with no problems. Be sure to configure and initialize your hardware before using it.
Question: What does it mean when I have an error that says “This device cannot start (Code 10)” when trying to install NI PCI-7330?
Answer: If you get the error “This device cannot start” when trying to install NI PCI-7330, make sure that you have installed the NI-Motion drivers that came with the PCI card.
Question: How many analog input ports does the Motion Controller have?
Answer: The NI PCI-7330 has 4 analog input ports.
Question: Which version of NI-Motion supports the PCI 7330?
Answer: The compatible version of NI-Motion is 8.1.
