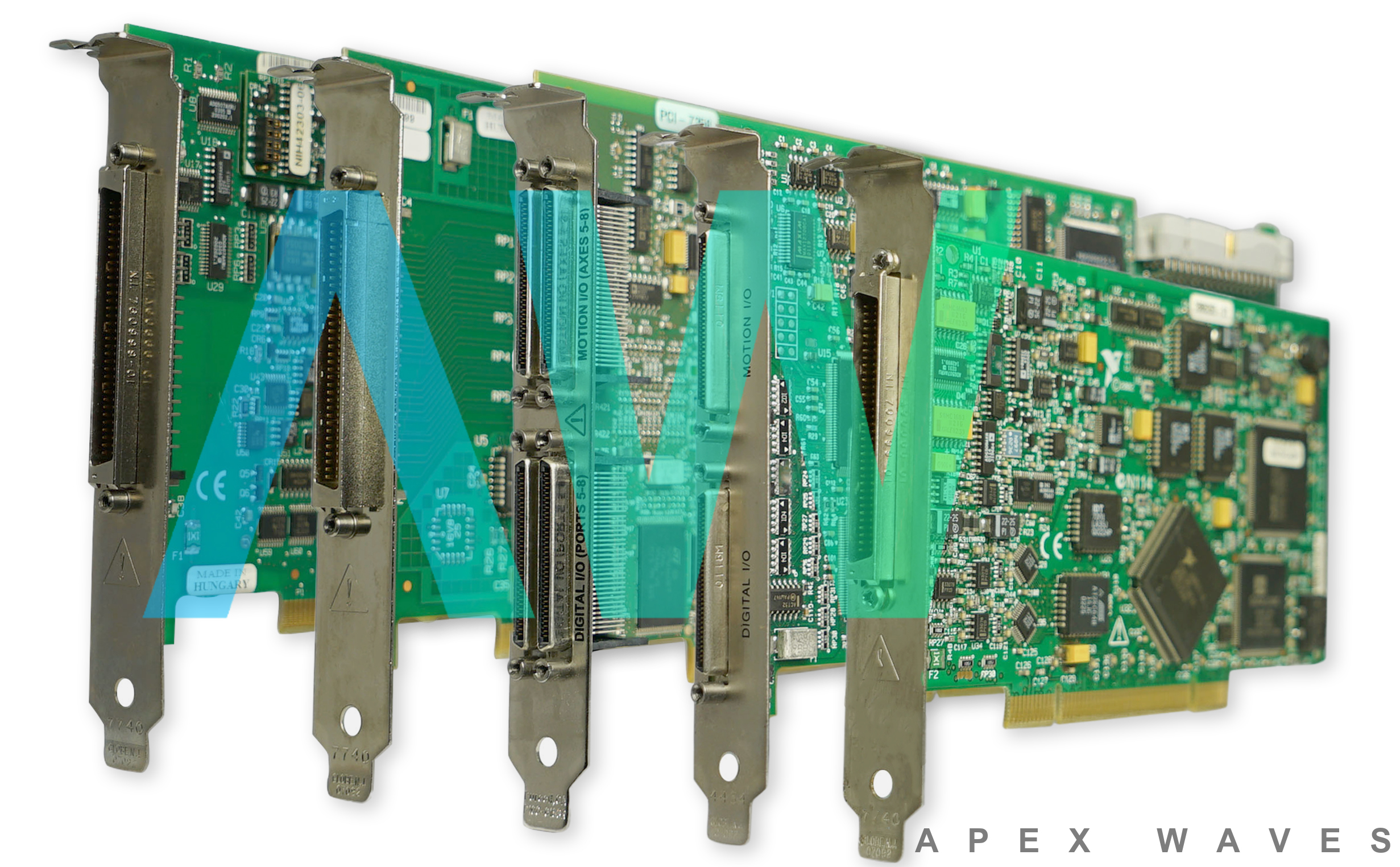

National Instruments PCI-7314 Motion Controller
The National Instruments PCI-7314 is a PCI Step Motion Controller. This Controller offers software programmable and customized controlling for as many as four axes of motion. This model also provides necessary I/O signals and resources for different switches and many other general-purpose and specific functions. The NI PCI-7314 offers support for event-based motion profiling, velocity profiling, and point-to-point position modes in velocity control applications. The velocity control mode of the NI PCI-7314 allows the user to continue with a motion at a fixed velocity (pre-programmed) until a home switch or limit is actuated or until a halt or kill function is called.
This Motion Controller is designed to operate in open-loop mode only. However, it can be utilized for the half, full, and micro-stepping applications. Users have various options to choose from when programming their PCI-7314 Controller, which can be accomplished while using the NI application program, ValueMotion or ValueMotion VIs. Programming this Controller is straightforward with the help of a powerful, yet simple API (application programming interface). Thus, the user will be able to call and execute all motion control functions into a dynamically linked or static library. These libraries are easily callable from Visual Basic, C, and other languages.
The National Instruments PCI-7314 comes equipped with a high-density, 68-pin female connector. The 24-bit digital I/O port incorporated in the Controller can be accessed through an externally located 68-pin female VHDCI connector. This Controller can easily be installed in any +5 V PCI expansion slot in a Windows-based computer.
Each NI PCI-7314 requires:
-UMI-7764 Universal Motion Interface: 777978-02
-SH68-C68-S Cable: 186381-0R5, 186381-01, and 186381-02
PCI-7314 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-7314 |
|---|---|
| Manufacturer | National Instruments |
| Type | Motion Controller |
| Maximum Step Frequency | 750,000 steps/s |
| Maximum Encoder Frequency | 1 MHz |
| Input Voltage Range | 0 to 12 V |
| Output Voltage Range | 0 to 5 V |
| Power Consumption | 6 W |
| Power Requirements | +5, +12 V, –12 V -- 1.2 A, 0 A, 0 A |
| I/O Connector | 68-pin female VHDCI |
| Digital I/O Connector | 68-pin female VHDCI |
| Dimensions | 6.3 in × 3.9 in. |
| Software Driver | NI-Motion |
| Warranty | 2-3 Year Warranty |
| PCI-7314 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-7314:
National Instruments PCI-7314 Frequently Asked Questions
Question: How can I detect the state of the limit switches from a stepper motor when using PCI-7314?
Answer: When using the PCI-7314, you can use the Read per Axis Status.vi to determine if the Limit Switch is active or not.
Question: Is the PCI-7314 compatible with Windows XP using LabView 8.5?
Answer: The PCI-7314 is only supported on older versions of Windows, prior to Windows XP. The latest version of Windows that supports the PCI-7314 is Windows 2000.
Question: Is the NI PCI-7314 an open looped or closed loop stepper?
Answer: The NI PCI-7314 is an Open-Loop Stepper.
