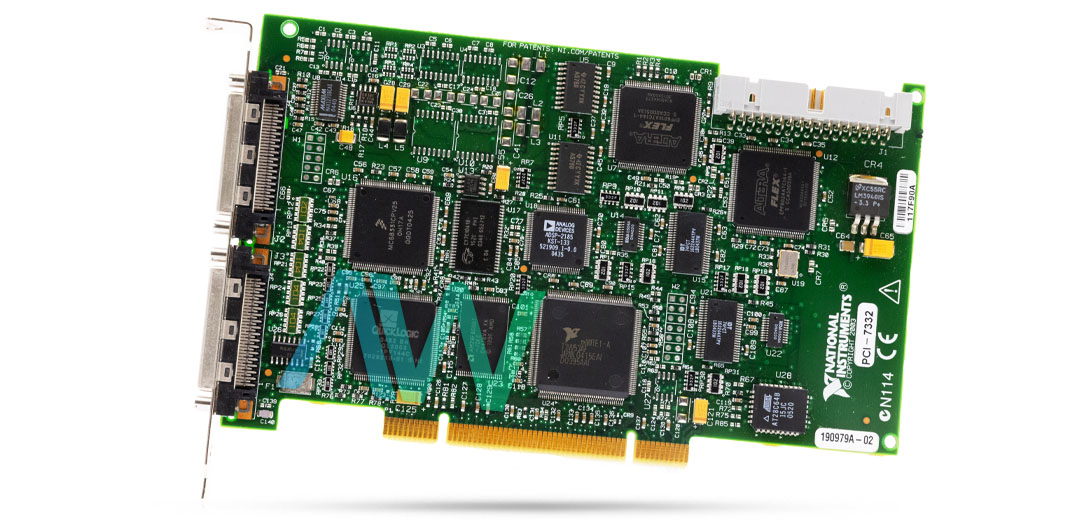

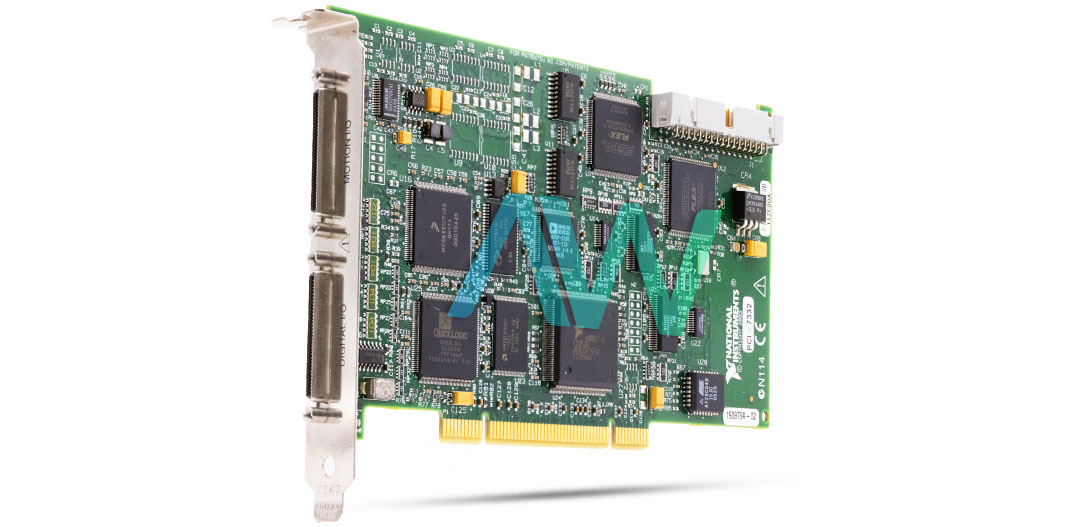

National Instruments 778924-02 Motion Controller Device
The part number 778924-02 from National Instruments is the identifying part number for the PCI-7332 Motion Controller Device. This device is a strong and adaptable solution for precise servo control of stepper and servo motors in various applications such as industrial automation, laboratory instrumentation and more. This motion controller boasts 2 axes to work with, making it ideal for tasks requiring higher accuracy as well as synchronization.
The 778924-02 motion controller device has been built to offer high performance by having a maximum step output rate of 4 MHz which supports full, half and micro-stepping capabilities. With this high step output rate, the motor control becomes smooth hence no hitches will ever take place while aiming at fine movement resolution and rapid response times. This controller operates on NI-motion driver a powerful software interface that allows easy integration as well programming of motion control applications. The extensive functionality of NI-Motion driver in terms of trajectory generation, position/ velocity control and advanced motion profiles makes it easier for its users to develop complex solutions for moving.
The 778924-02 comes with a 68-pin female high-density VHDCI I/O connector that ensures reliable connectivity between this device and all types of peripherals including feedback systems. The device can be connected to various sensors and actuators without any difficulty thus facilitating easy integration.
This motion controller device has physical dimensions of 6.9 inches × 3.9 inches making it compact and weighs 0.25 lb making it lightweight and easy to integrate into digital systems. It has power consumption of 18 Watts with power requirements of +3.3 Volts to -12 Volts and - 2 A to 0 mA. The 778924-02 is designed to operate at an ambient temperature of 0 degrees Celsius to 55 degrees Celsius and storage temperature of –20 degrees Celsius to 70 degrees Celsius with a relative humidity of 10% to 90% RH, noncondensing. It requires to be mounted at an maximum altitude of 2000 meters with a pollution degree of 2 making it applicable to be used in environments such as laboratories and offices.
| Part Number | 778924-02 |
| Model Name | PCI-7332 |
| Part Type | Motion Controller Device |
| Number of Axes | 2 |
| Maximum Step Output Rate | 4 MHz |
| Dimensions | 6.9 by 3.9 in. |
| I/O Connector | 68-pin female high-density VHDCI type |
| Driver Software | NI-Motion |
| Operating Temperature | 0 to 55 degrees Celsius |
| Storage Temperature | –20 to 70 degrees Celsius |
