Modular Systems > National Instruments > PCI CAN Interfaces

PCI-8512 In Stock | Ships Today

Q: What type of transceiver does the PCI 8512 NI have?

The PCI 8512 NI has one TJA1041 transceiver.

Q: What is the PCI-8512 driver?

The PCI-8512 drivers are NI-CAN and NI-XNET.

Q: What is the CAN physical layer for the NI PCI-8512?

The NI PCI-8512 has a flexible data-rate, high-speed CAN physical layer.

PCI-8512, 1-Port, CAN Interface Device

Rated 4.5/5 | 6 ratings

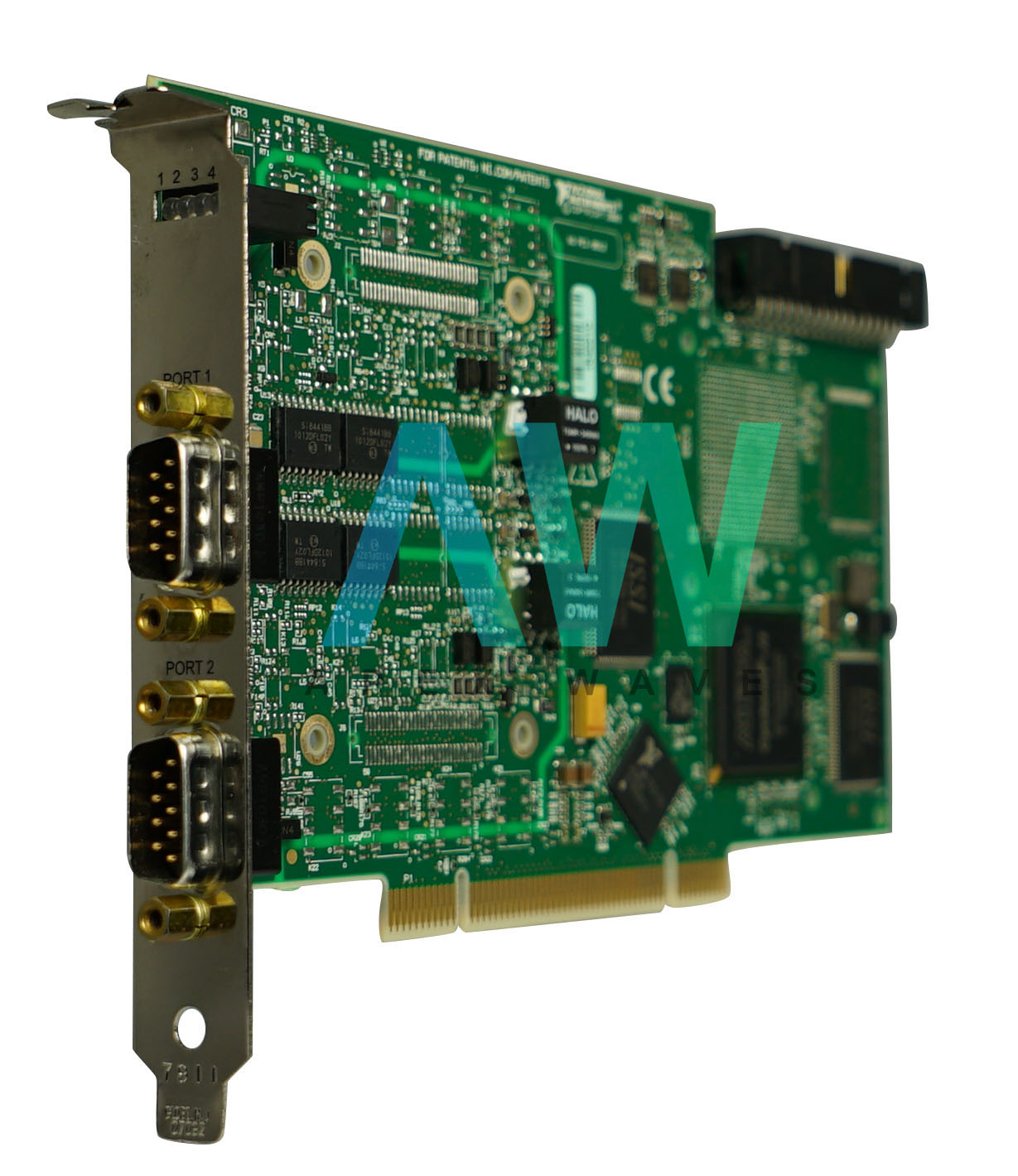

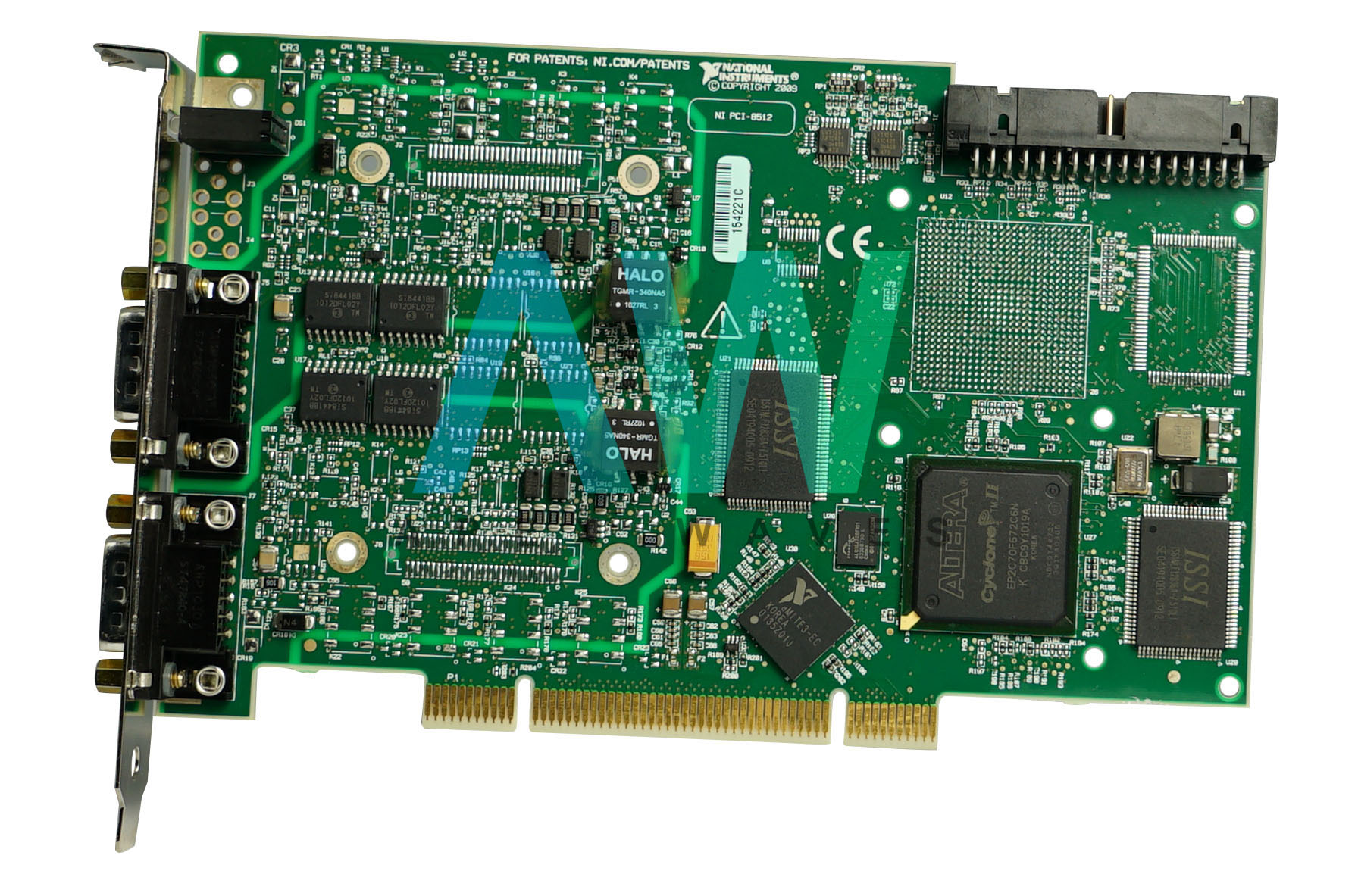

PCI-8512 National Instruments CAN Interface Device | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments PCI-8512 CAN Interface Device

The PCI-8512 (Part number: 780683-01) is a CAN Interface Device created by National Instruments which is meant for developing applications with the NI-XNET driver. This CAN Interface Device works especially well for applications that need real-time, high-speed manipulation of hundreds of CAN frames and signals, including: quick control prototyping, automation control, hardware-in-the-loop simulation, bus monitoring, etc. The CAN physical layer on this model is flexible data-rate and high-speed. The transceiver for this CAN Interface Device is the TJA1041. The PCI-8512 has a minimum baud rate of 40 kbits/s, a maximum baud rate of 8 Mbit/s, one port, and does not have an external sync connector. The PCI 8512 NI requires one cable and one connector block for operation.

The NI PCI-8512 includes the following types of software: the NI-XNET driver and API, the NI-XNET Bus Monitor, and the NI-XNET Database Editor. First, the NI-XNET API delivers function calls in C/C++, LabVIEW, and LabWindows/CVI. This allows the user to effortlessly send and accept LIN, CAN, and FlexRay signals and frames to and from their application. There are 12 data transfer modes to enhance the information transport for a specific application. The NI-XNET Bus Monitor can be utilized to send periodic and single test frames, measure bus load and watch bus load history, and map frames to database names for simpler diagnostics. Lastly, the NI-XNET Database Editor is a standalone tool, which can be used to generate and preserve embedded network databases containing frames, signals, and network parameters.

Model	PCI-8512 (780683-01)
Manufacturer	National Instruments
Type	CAN Interface Device
Ports	1
Minimum Baud Rate	40 kbits/s
Maximum Baud Rate	8 Mbit/s
Dimensions	4.72 x 2.54 in.
Warranty	2-3 Year Warranty
PCI-8512 Manual	User Manual and Maintenance Manual Available for Download
Price	Contact a sales representative for a quote.

Associated part numbers for PCI-8512:

National Instruments PCI-8512 Frequently Asked Questions

Question: What type of transceiver does the PCI 8512 NI have?

Answer: The PCI 8512 NI has one TJA1041 transceiver.

Question: What is the PCI-8512 driver?

Answer: The PCI-8512 drivers are NI-CAN and NI-XNET.

Question: What is the CAN physical layer for the NI PCI-8512?

Answer: The NI PCI-8512 has a flexible data-rate, high-speed CAN physical layer.

Question: Which cable and connector block can be used with the PCI-8512?

Answer: The 2m, 9-pin D-SUB female NI CAN single termination cable (Part number: 192017-02) and the CAN Breakout Box (Part number: 780041-01) can be used with the PCI-8512.
