NI-9862 In Stock | Ships Today
NI-9862, 9-Pin Male DSUB Connector, 1 Port, High Speed NI CAN Interface Module
Rated 4.9/5 | 10 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Expert Insights for the NI-9862
"The NI-9862 is a high-speed CAN interface that uses the NI-XNET driver. It is perfect for real-time, high-speed CAN projects that need rapid bus monitoring and automated controlling. This device can change and take measurements at the same time, making it a great choice for low-level FPGA programming. This device is compatible with either CompactDAQ and CompactRIO systems, but FPGA programming is only available with CompactRIO chassis."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the NI-9862
"The NI-9862 is a high-speed CAN interface that uses the NI-XNET driver. It is perfect for real-time, high-speed CAN projects that need rapid bus monitoring and automated controlling. This device can change and take measurements at the same time, making it a great choice for low-level FPGA programming. This device is compatible with either CompactDAQ and CompactRIO systems, but FPGA programming is only available with CompactRIO chassis."
- Chris B.
LabVIEW Trained
In-House Technician

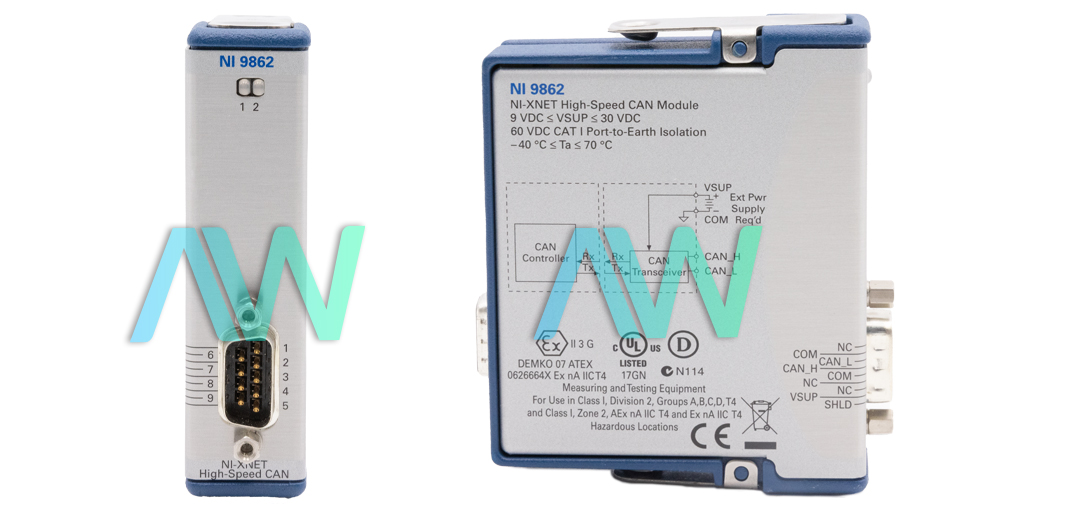

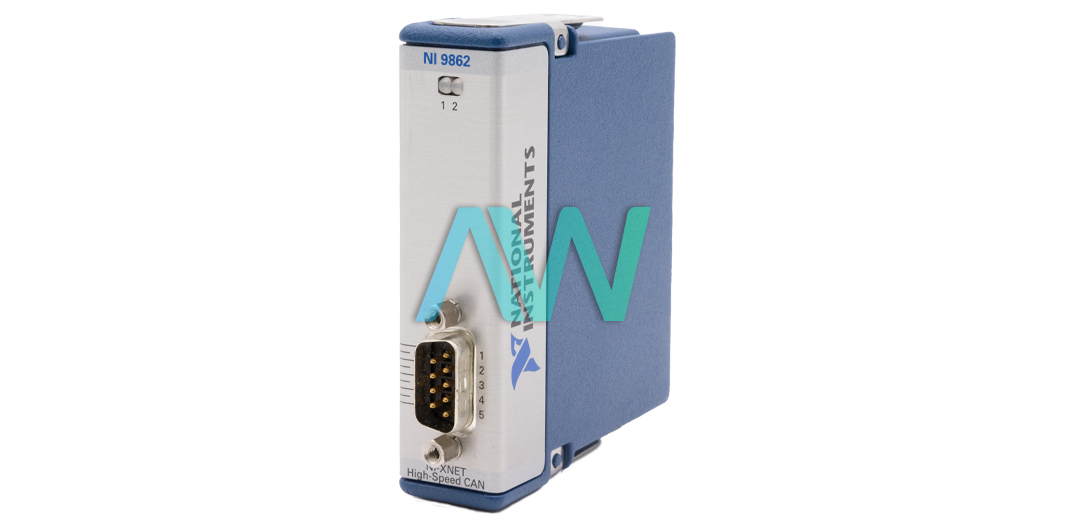

National Instruments NI-9862 C Series CAN Interface Module
The NI-9862 (Part Number: 781639-01) is a high-speed Controller Area Network (CAN) Flexible Data-rate (FD) interface that was created by National Instruments. It is mainly intended for applications that need to manipulate several CAN frames and signals quickly and in real-time. It performs exceptionally well in situations involving automated control, bus monitoring, quick control prototyping, and hardware-in-the-loop simulation. The NI-XNET driver is compatible with this interface, making it easy to integrate into a variety of applications.
The NI-9862 features a fully functional CAN port that is isolated from other system modules. It completely complies with the CAN 2.0B standard and supports both 11-bit and 29-bit identifiers thanks to its Bosch DCAN CAN controller. The ISO 11898 standard is followed by its NXP TJA1041AT High-Speed CAN transceiver, which can handle baud rates of up to 1 Mbps.
The NI-9862's physical attributes include its weight of about 144 g (5.0 oz), which makes it portable and lightweight. With a maximum power usage of 1 W in active mode and a thermal dissipation of 1.25 W at 70 °C, it has very low power requirements.
The voltage range for port-to-COM connections is -27 V DC to +40 V DC, and for the external power supply (Vsup), it is +9 V DC to +30 V DC. Safety voltages are rigorously adhered to. With port-to-earth ground continuous isolation of 60 V DC and withstand isolation of 1,000 V RMS, as confirmed by a 5-second dielectric withstand test, isolation features guarantee safety and dependability.
Because of its versatility, the NI-9862 supports a wide range of applications. With the same NI CompactDAQ hardware platform, users can do additional data acquisition measurements in parallel while manipulating CAN frames and signals at high speed. In the same NI CompactRIO chassis, it also makes embedded monitoring and low-level FPGA control possible.
| Model | NI-9862 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 781639-01 |
| Type | C Series CAN Interface Module |
| Ports | 1 |
| CAN Physical Layer | Flexible Data-Rate, High-Speed |
| Maximum Baud Rate | 1 Mbps |
| Transceiver | NXP TJA1041AT |
| Power Consumption from Chassis | 1 W Maximum |
| Thermal Dissipation | 1.25 W Maximum. |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Weight | 5.0 oz. |
| Warranty | Three Year Warranty |
| NI-9862 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote for Pricing Information |
Associated part numbers for NI-9862:
National Instruments NI-9862 Frequently Asked Questions
Question: Which type of transceiver does the NI-9862 have?
Answer: The CAN Interface Module has a NXP TJA1041AT transceiver.
Question: What is the maximum port-to-COM voltage?
Answer: The maximum port-to-COM voltage for the NI-9862 is -27 to +40 VDC max, Measurement Category I.
Question: What driver software is used with the NI-9862?
Answer: The driver software used with the Interface Module is NI-XNET.
Question: Which type of bus termination does the module have?
Answer: The NI-9862 has software-selectable bus termination.
