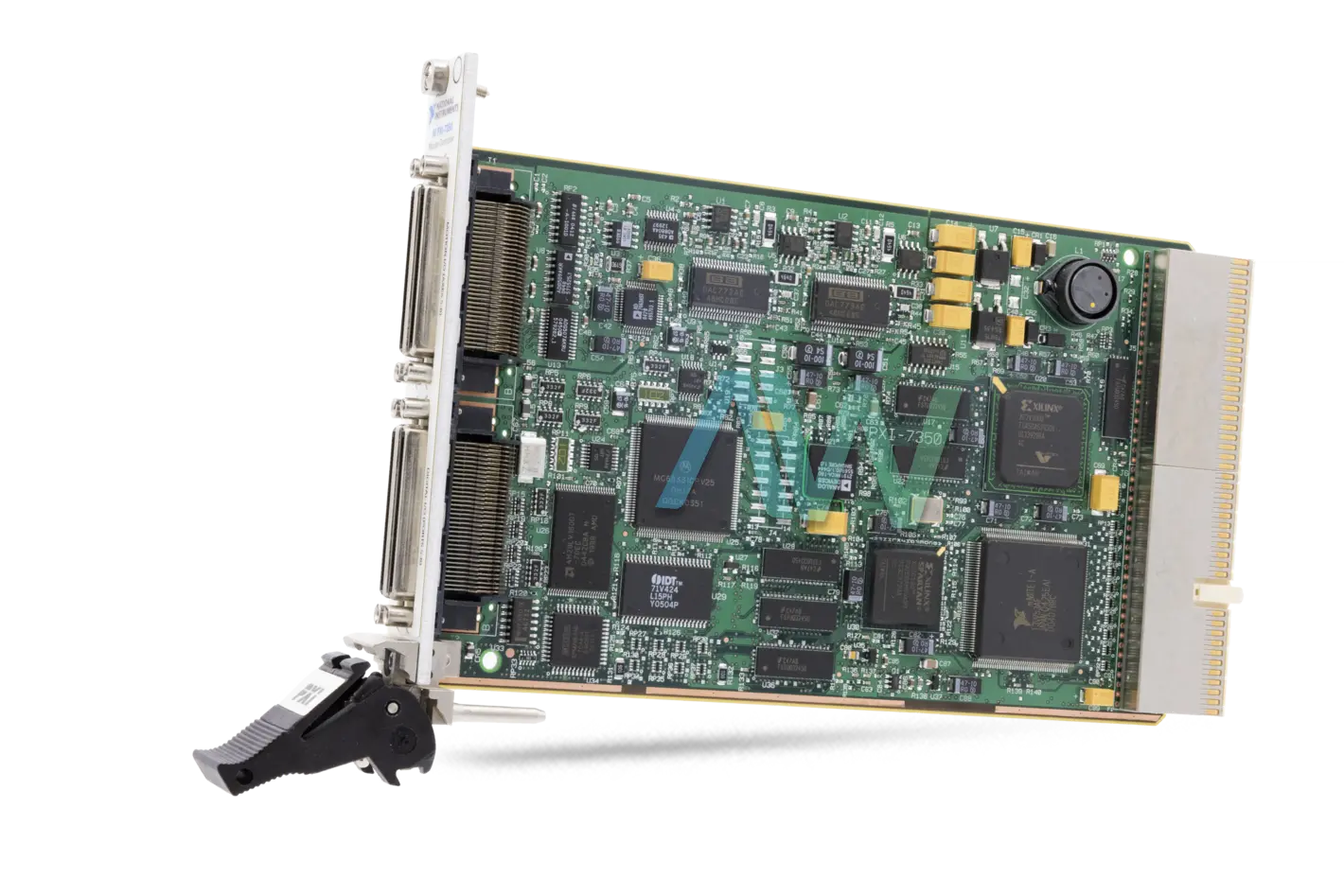

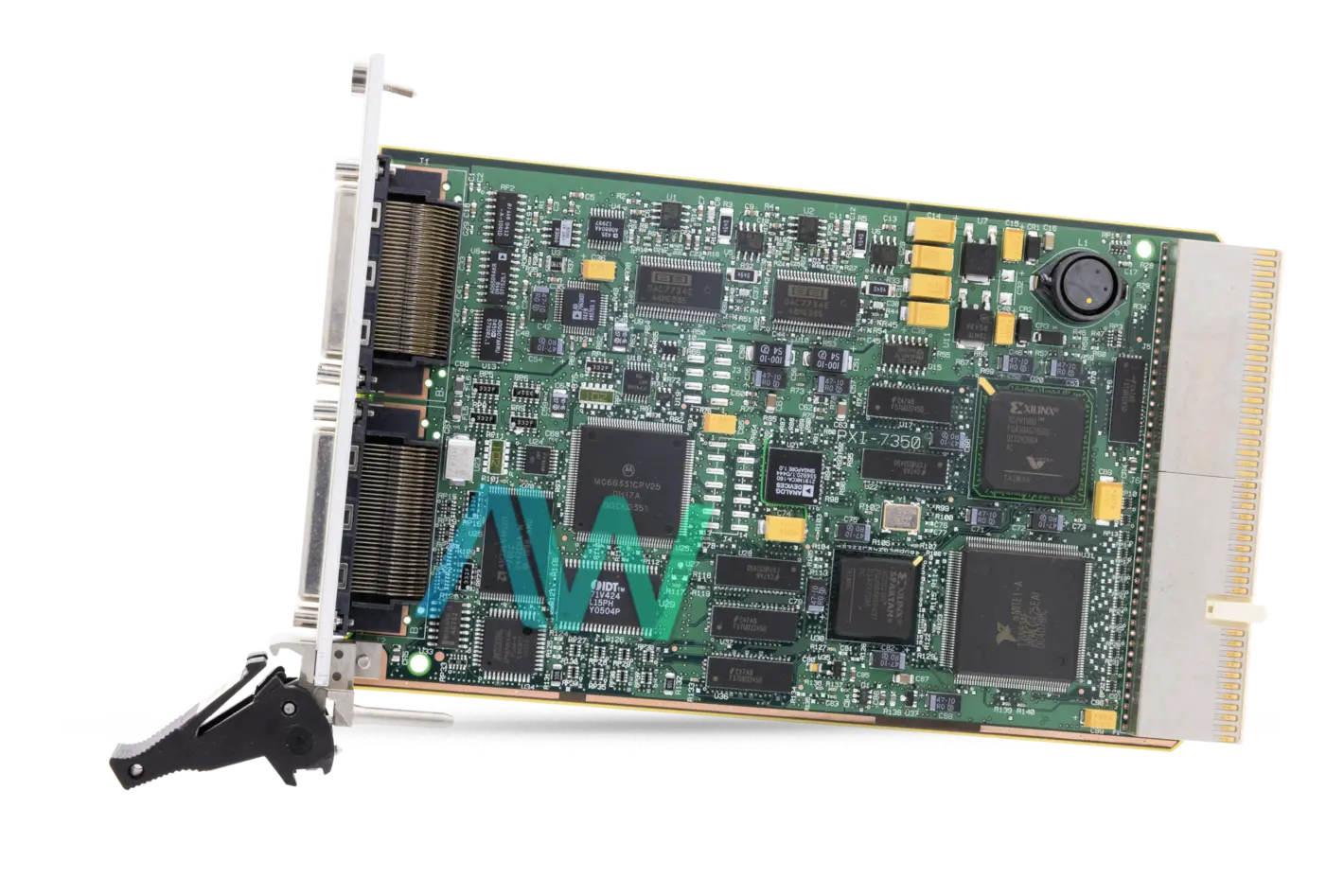

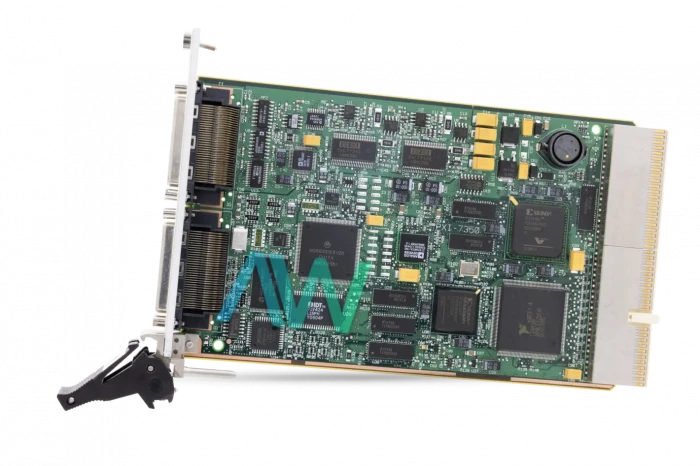

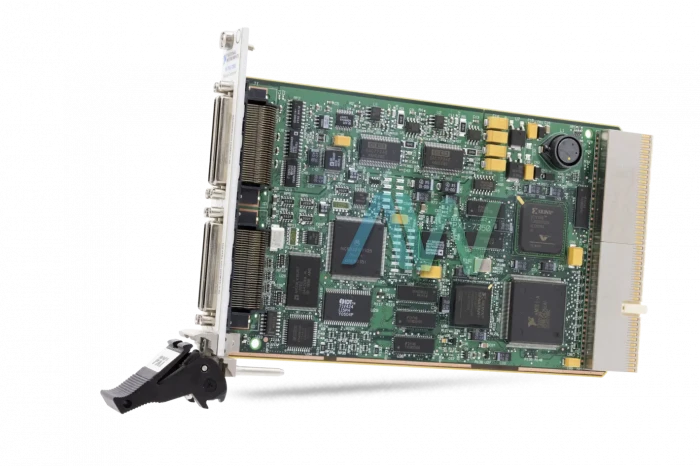

National Instruments PXI-7352 Stepper/Servo Motion Controller Module
Featured with eight 16-bit analog-to-digital converters for data acquisition, the NI PXI-7352 (Part Number: 778540-02) is a 2-Axis, Servo/Stepper PXI Motion Controller Module with Sinusoidal Commutation. This module is recommended for both general and complicated motion applications. The NI PXI-7352 provides the right blend of control for motion trajectory and fully coordinated linear, circular, point-to-point, vector space, and gearing control. This model can work in either host-centric programming environments or an embedded real-time motion arrangement. With the help of NI-Motion Drive software, the user can have all axes started at once. Since it is a sinusoidal commutation supporting module, the NI PXI-7352 can also be used as a controller for brushless motors.
For the NI PXI-7352 controller, the user can proceed with a PID update rate of 62.5 μs for up to two axes. This controller comes with an increased resolution for analog-to-digital conversions. Thus, it provides the user with high resolution for analog position feedback. For precise timing between motion and measurement, the NI PXI-7352 offers buffered breakpoints. With this feature, the user can extend a buffer of position breakpoints to the controller to get a digital signal triggered upon reaching the position in the buffer. Buffered breakpoints can trigger at higher rates, up to 2 kHz.
The NI PXI-7352 is a robust controller with sophisticated performance specifications. The PID update range is 62.5μs/sample to 5 ms/sample and it can operate at a gear ratio of 32,767:1 to ±1:32,767. This model comes with 1 to ±20,000,000 counts/s velocity range for servo operation and 1 to 8,000,000 steps/s velocity range for stepper operation.
The PXI-7352 has been announced as Obsolete by National Instruments (NI), but the Motion Controller Module will still be available for purchase and repairs in perpetuity by Apex Waves.
| Model | PXI-7352 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778540-02 |
| Series | NI-73xx Series |
| Type | Stepper/Servo Motion Controller Module |
| Digital I/O Channels | 64 |
| Input Resolution | 16 Bits |
| Axes | 2 |
| Warranty | 2-3 Year Warranty |
| PXI-7352 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-7352:
National Instruments PXI-7352 Frequently Asked Questions
Question: Is the PXI-7352 recommended for complex motion applications or only for simple applications?
Answer: The device is recommended for both simple and complex motion applications.
Question: How many analog converters does the PXI 7352 have?
Answer: The Controller Module has eight 16-bit analog to digital converters.
Question: Is the NI PXI-7352 considered a brushless motor controller?
Answer: Yes, the Controller provides sinusoidal commutation, which makes it a brushless motor controller.
Question: How many axes of servo motion control are available on the device?
Answer: The NI PXI-7352 has 2 axes of stepper or servo motion control.
