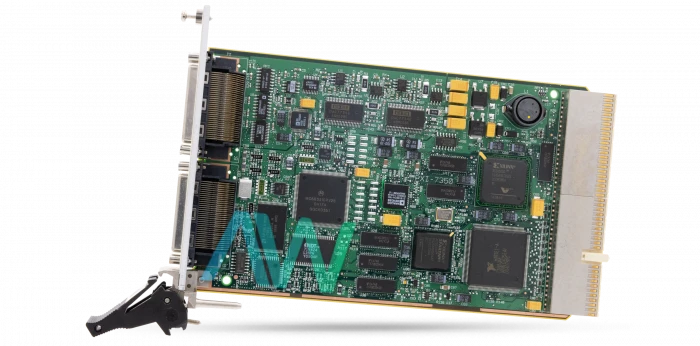

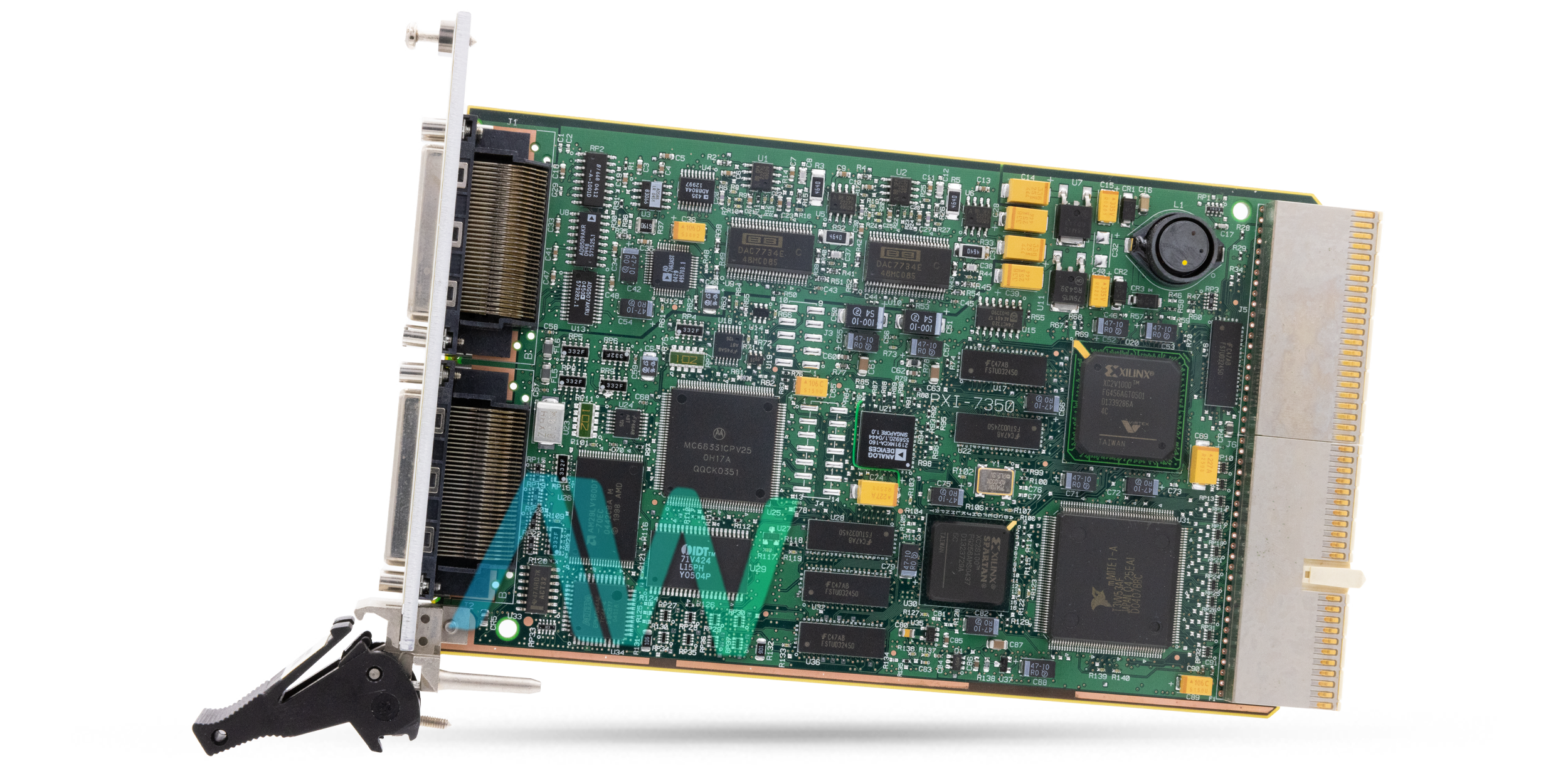

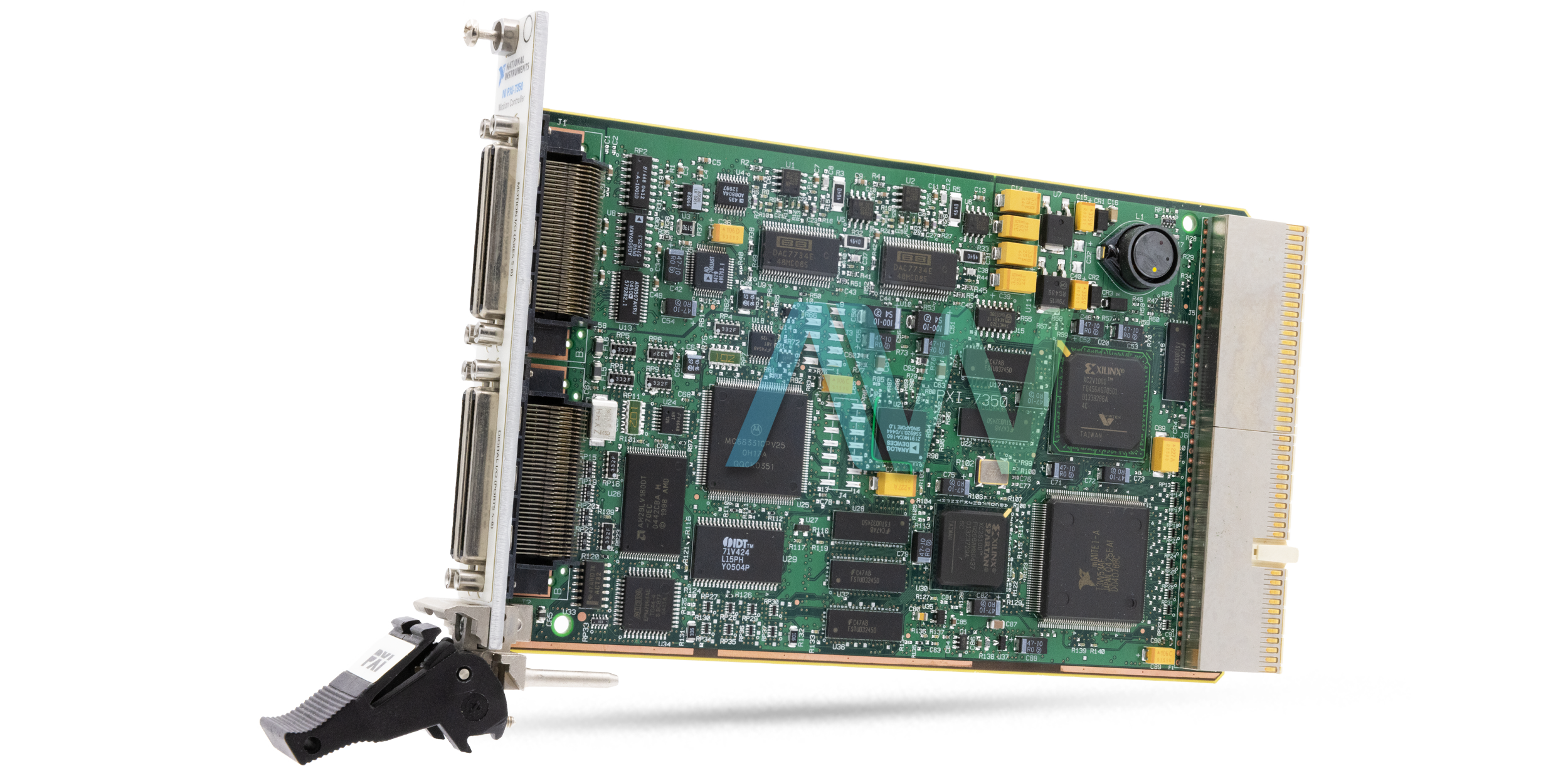

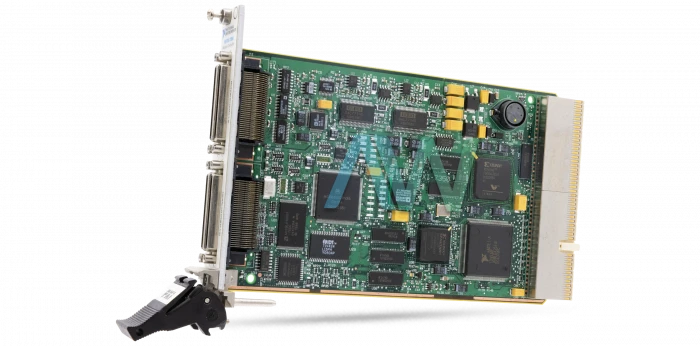

National Instruments PXI-7350 Servo/Stepper Motion Controller Module
The PXI-7350 (Part Numbers: 778540-02, 778540-04, 778540-06, and 778540-08) Servo/Stepper Motion Controller Module is suited for straightforward and complex motion applications and is equipped with 2 to 8 axes. The part numbers correspond with different models in the series, depending on how many axes they have. The PXI-7352 (Part Number: 778540-02 ) is a 2-Axis module, the PXI-7354 (Part Number: 778540-04 ) is a 4-Axis module, the PXI-7356 (Part Number: 778540-06 ) is a 6-Axis module, and the PXI-7358 (Part Number: 778540-08 ) is a 8-Axis module.
This module offers combined motion path control and circular, linear, point-to-point, and completely coordinated vector control in inserted constant task or programming conditions. The NI PXI-7350 incorporates eight 32-bit analog-digital converters (multiplexed and single-ended) for inner data acquisition and a server for advanced motion and trigger path features. It has a PID update rate range of 62.5 us/sample to 5 ms/sample. The module also offers sinusoidal switching, which makes it a brushless motor controller.
The PXI-7350 Motion Controller Module provides buffered breakpoints for exact timing between motion and measurements or vision. With this feature, the user can transmit a buffer of position breakpoints to the controller that trigger a digital signal after reaching the positions in the buffer.
The ANSI C-based LabWindows/CVI is one of the software choices for the NI PXI-7350, which includes intuitive graphics and a state-of-the-art UI. Utilizing LabWindows/CVI, the user can create C code for custom data acquisition, test, estimation, and mechanization arrangements. The NI-Motion programming incorporates a progression of example programs for utilizing LabWindows/CVI with National Instruments motion control hardware.
The NI PXI-7350 can also be used with NI Motion Assistant, which offers a point-and-click interface for making movement control arrangements rapidly and effectively. When the user has made a motion assignment, they can utilize Motion Assistant to output the task in LabVIEW code or code creations. The NI PXI-7350 Controller Module utilizes the DSP for all closed-loop control, including position tracking, PID control closed-loop, and motion trajectory generation. The DSP chip is supported by a custom FPGA that performs the fast encoder interfacing, position catch and breakpoint (position compare) functions, motion I/O processing, and stepper pulse generation for hard real-time functionality.
The installed CPU in this module runs a multitasking real-time working framework and handles host communications, command processing, multi-axis interpolation, onboard program execution, error handling, general-purpose digital I/O, and overall motion framework integration capacities. The NI device weighs 6 oz, and measures 6.3 x 3.9 in. in physical dimensions.
The PXI-7350 is no longer available from National Instruments, but the PXI Motion Control Module remains available in perpetuity from Apex Waves for both purchase or repair services.
| Model | PXI-7350 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 778540-02, 778540-04, 778540-06, 778540-08 |
| Part Type | PXI Motion Control Module |
| PID Update Rate Range | 62.5 us/sample to 5 ms/sample |
| Analog Inputs | Up to 8, Multiplexed, Single-Ended |
| Bandwidth | 234 kHz |
| I/O Connectors | 68-Pin Female High-Density VHDCI |
| Digital I/O Ports | Ports up to 8 Bits |
| Max Power Consumption | 18 W |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 6.3 x 3.9 in. (16 cm × 10 cm) w/o Connectors |
| Weight | 6 oz. (170 g) |
| Warranty | 2-3 Year Warranty |
| PXI-7350 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote Today for More Pricing Information |
Associated part numbers for PXI-7350:
National Instruments PXI-7350 Frequently Asked Questions
Question: What type of I/O connectors does the PXI-7350 have?
Answer: The Motion Control Module has two 68-pin female high-density VHDCI motion I/O connectors and two 68-pin female high-density VHDCI 32-bit digital I/O connectors.
Question: What is the maximum working voltage for the NI PXI-7350?
Answer: The maximum working voltage is 11 V for installation category I (channel-to-earth) and 22 V for installation category I (channel-to-channel).
Question: How many analog outputs does the PXI-7350 have?
Answer: There are a maximum of 8 single-ended analog outputs on the Motion Control Module.
Question: What driver software is used with the NI PXI-7350 module?
Answer: The driver software used is NI-Motion.
