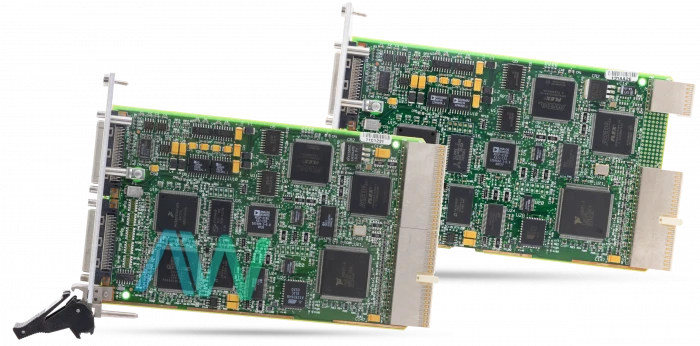

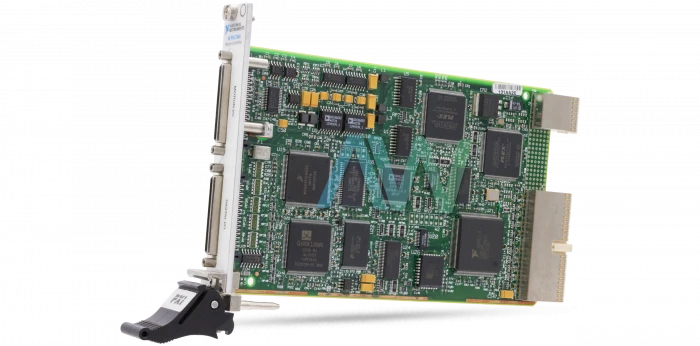

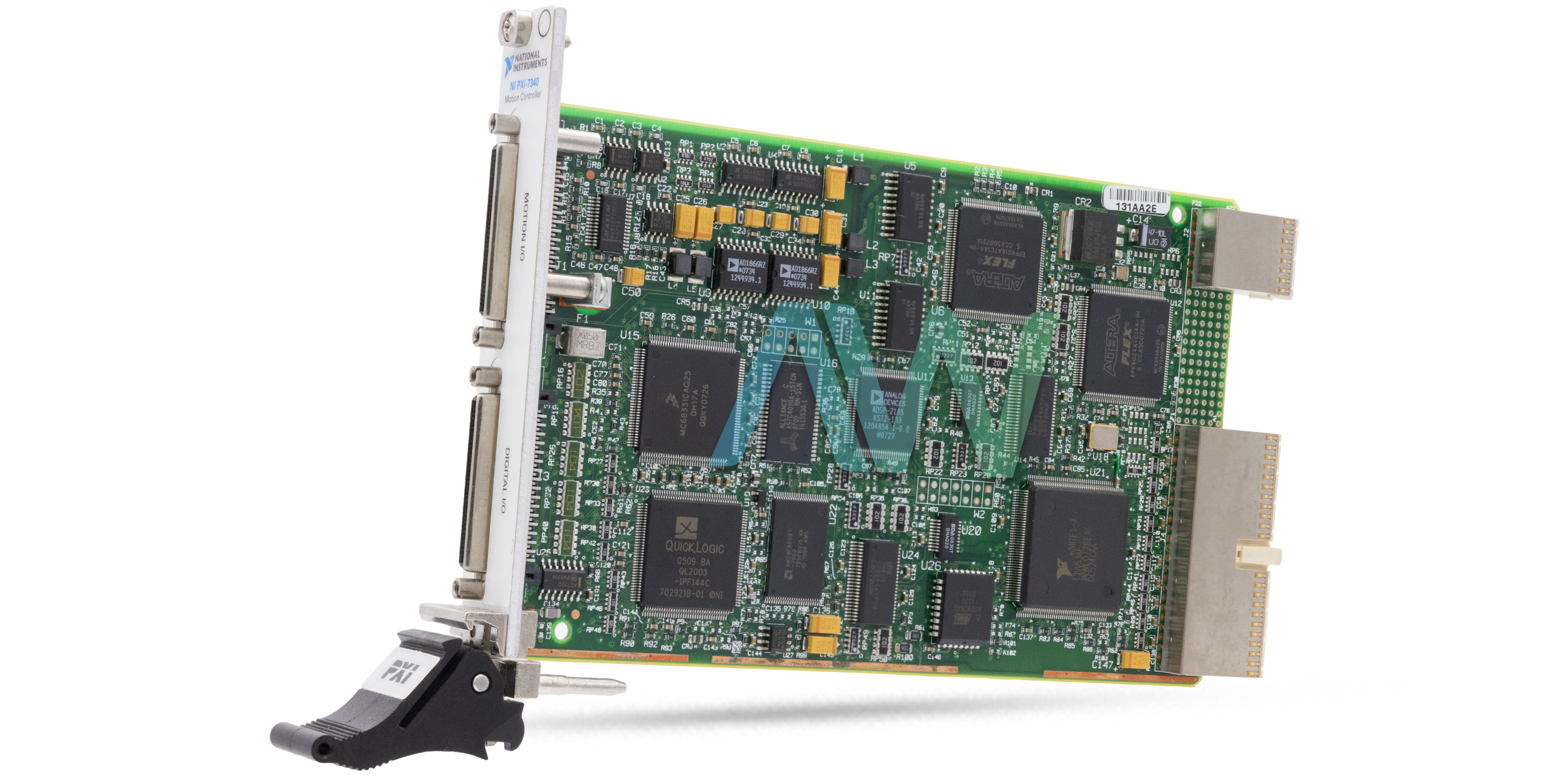

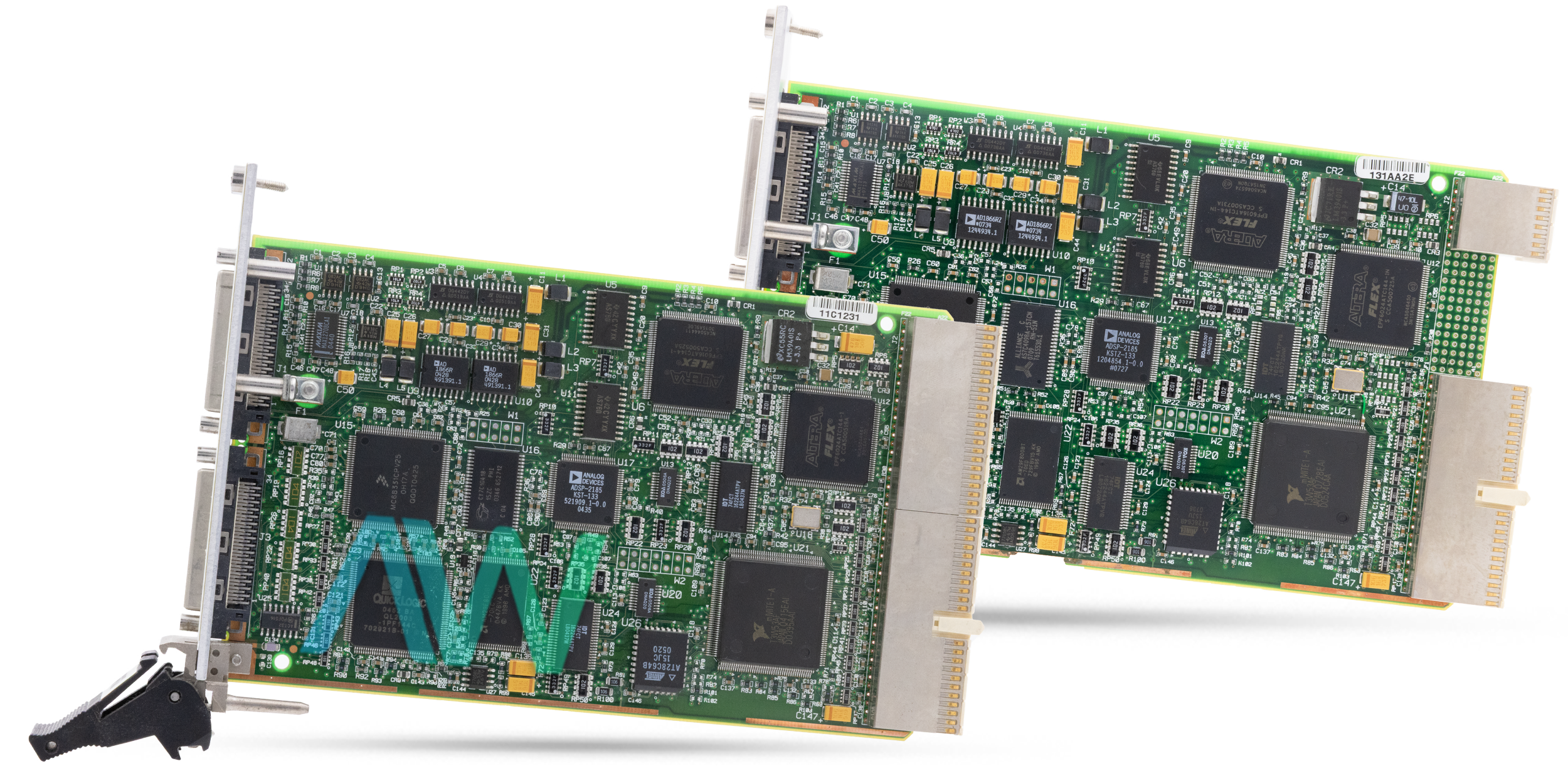

National Instruments PXI-7344 Stepper/Servo Motion Controller Module

Featured with advanced motion control, handy software tools, and motion VI libraries (to be used with LabVIEW), the NI PXI-7344 (Part Number: 777935-01) is a 4-Axis, PXI Stepper/Servo Motion Control Module. This controller is designed for PXI, PCI, and 1394 bus computers. With this model, the user can run as many as 10 motion programs at the same time in a real-time, preemptive, multitasking OS environment. This model comes featured with enhanced, PID/PIVff servo updates at a rate of 62 μs per axis. The NI PXI-7344 has motion Input/Output for home switch inputs, a breakpoint output, end-of-travel limit, trigger input, and up to 20 MHz encoder feedback rates. It is equipped with 32 digital I/O bits, and an analog input resolution of 12 bits. The NI PXI-7344 has 8 multiplexed analog input channels, with 4 user signals; and 4 analog output channels. It has 4 8-bit digital I/O ports.

The NI PXI-7344 is designed to support the National Instruments’ proprietary Real-Time System Integration (RTSI) bus. This bus offers high-speed and efficient connectivity between different products from National Instruments. The RTSI bus is an ideal solution for data acquisition (DAQ) and image acquisition (IMAQ) products. With this bus, the user can synchronize their NI PXI-7344 easily across multiple IMAQ, DAQ, or motion devices to a common timing or trigger event. There is a high density 68-pin female VHDCI connector provided for Motion I/O connections.

This model supports LabVIEW, which is an application software based on a graphical programming language. The model supports other application development software such as–LabWindows/CVI, BridgeVIEW, and the FlexMotion software. This program provides the user with sources required in the creation of 32-bit standalone executable and compiled programs. Thus, the user can consider the NI PXI-7344 as a viable solution for their custom automation requirements. In addition, National Instruments also offers the FlexMotion VI Library - a series of VIs (Virtual Instruments) for using LabView with the NI PXI-7344. The device has an operating temperature of 0 to 55 °C.

National Instruments has announced the Obsolete Status of the PXI-7344, but Apex Waves will keep the Motion Controller available in perpetuity for both purchase and repairs.

ModelPXI-7344
ManufacturerNational Instruments
Part Number777935-01
SeriesNI-73xx Series
TypeStepper/Servo Motion Controller Module
Digital I/O4, 8-Bit Ports
Input Resolution12 Bits
Axes4
Digital I/O Voltage Range0 to 5 V
Digital I/O Clock SourcesInternal or External
Power Consumption5.7 W Maximum
Operating Temp Range0 °C to 55 °C
Storage Temp Range–20 °C to 70 °C
I/O ConnectorsTwo Female 68-Pin High-Density VHDCI
Dimensions6.3 x 3.9 in. (16 x 10 cm) without Connectors
WarrantyThree Year Warranty
PXI-7344 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote Today for Pricing Information

Associated part numbers for PXI-7344:

National Instruments PXI-7344 Frequently Asked Questions



Question: Are you able to operate more than one motion control program at once with the PXI-7344?

Answer: Yes, it has an onboard CPU that uses an embedded real-time operating system, which has event-driven multitasking control, so you can run several programs and processes simultaneously.



Question: What system do I go into to configure my PXI-7344 to control my stepper motor?

Answer: To configure your Motion Controller to control the stepper motor, open MAX and go to the NI Motion Device.



Question: What operating systems does the PXI-7344 work on?

Answer: The module runs on Windows Vista/XP/2000 and LabVIEW Real-Time.



Question: What is the maximum working voltage of the Motion Controller Module?

Answer: The maximum working voltage for channel-to-earth is 12 V, while the maximum channel-to-channel is 22 V.
