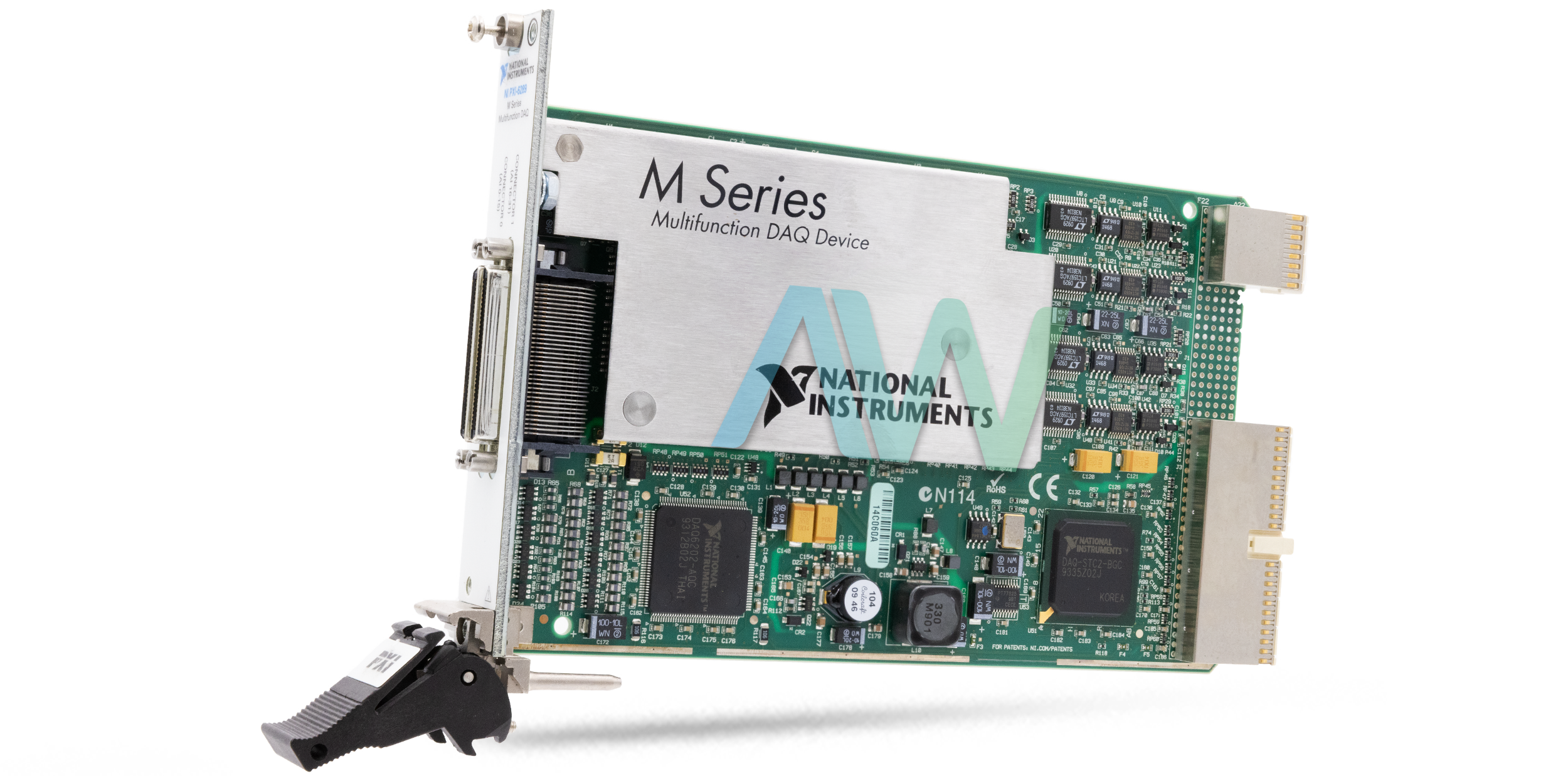

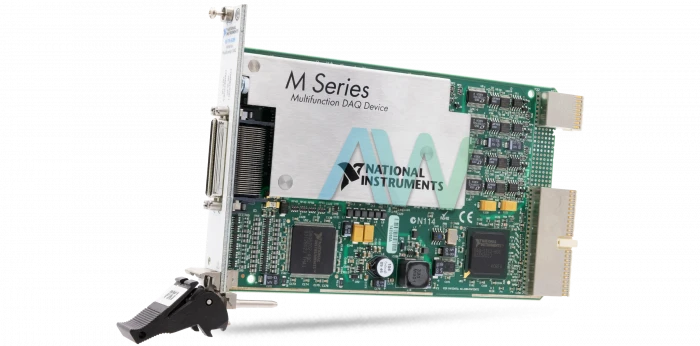

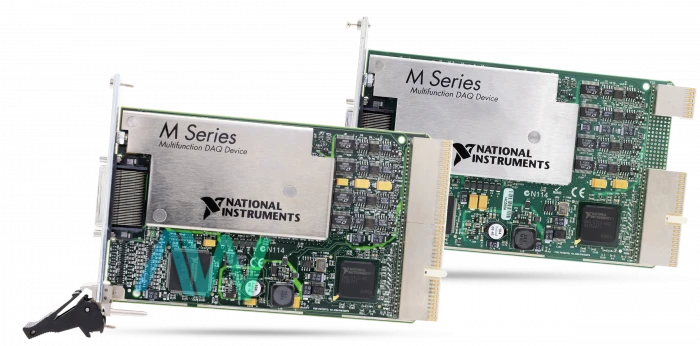

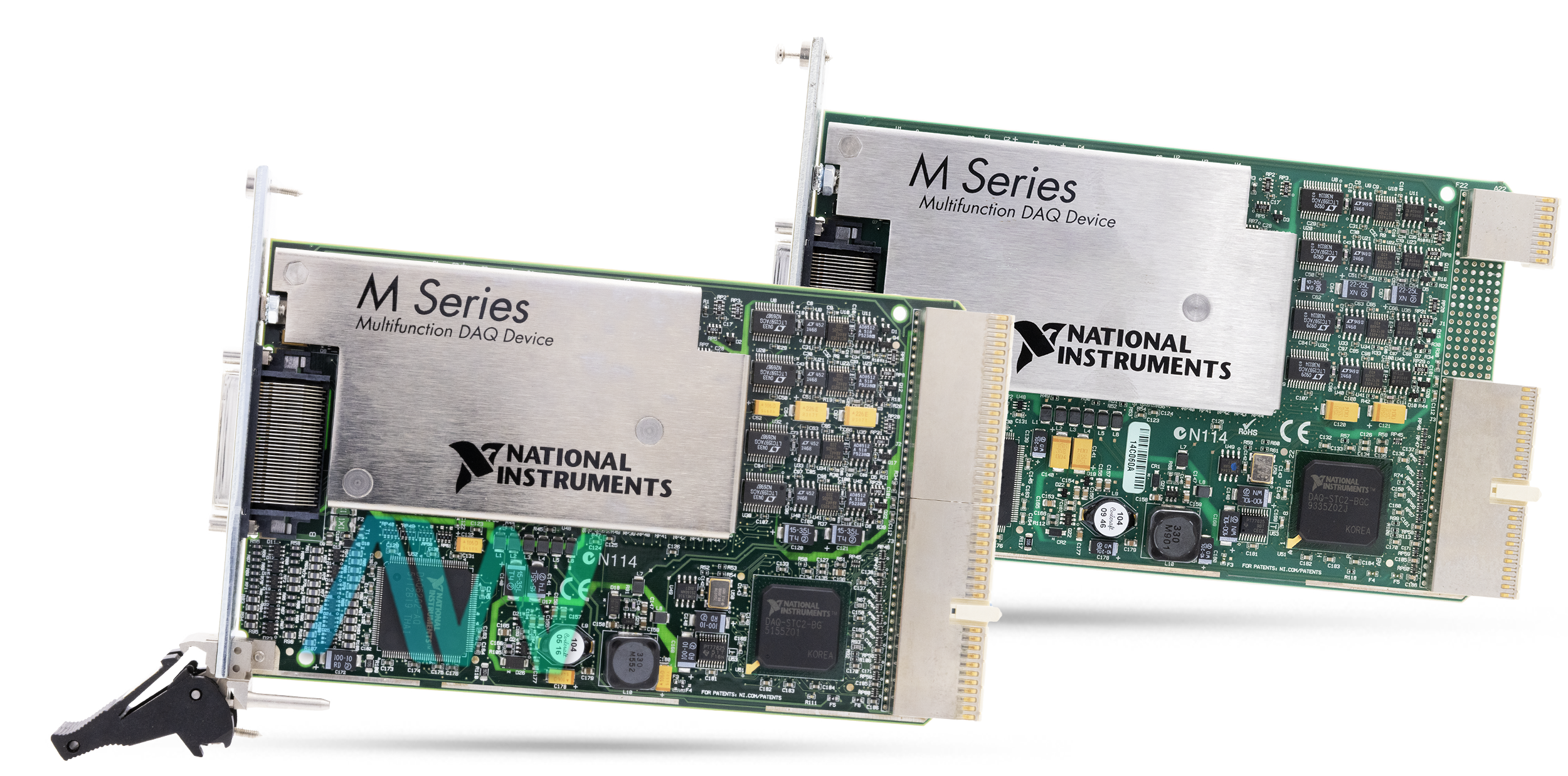

National Instruments PXI-6289 PXI Multifunction I/O Module
The National Instruments PXI-6289 is a PXI Multifunction I/O Module with 4 analog output, 48 digital I/O, and 32 analog input channels. Equipped with 18 bits of resolution and a 625 kS/s maximum sample rate for a single channel, this model offers two 32-bit counter/timers, analog triggering, and digital triggering. The NI PXI-6289 is known for its reliable DAQ capability and can be utilized in a broad range of applications in research, laboratory automation, design validation, etc. With this module, the user can add high-voltage measurement capability and sensors to a device by using SCXI or SCC signal conditioning modules. The PXI-6289 has two part numbers; the 779639-01 has a PXI hybrid bus connector, and the 779123-01 has a PXI bus connector. The device has a recommended warm-up time of 15 minutes and should be externally calibrated at least once in 2 years.
The NI PXI-6289 M Series DAQ is offered with a configuration utility and NI-DAQmx drivers. Thus, the user can easily configure this module. As far as its analog input characteristics are concerned, this module features 16 differential or 32 single-ended channels and a 500 kS/s sample rate (while operating in multichannel mode). In addition, it has 50 ns timing resolution, 50 ppm timing accuracy, and DC input coupling.
The NI PXI-6289 operates with >10 GΩ AI+ to AI GND and >10 GΩ AI- to AI GND input impedance in parallel with 100 pF. For data transfers, this model supports DMA (scatter-gather), programmed I/O, and interrupts. The NI PXI-6289 M Series DAQ comes with integrated overvoltage protection for all sense and analog input channels, set at ±25 V for up to eight AI pins. This Multifunction I/O Module supports various triggering functions, including pause trigger, sample clock, start trigger, reference trigger, etc. It is equipped with 2 68-pin VHDCI I/O connectors.
The standard 3U PXI device weighs 8.4 oz. It has recommended operating and storage temperature ranges of 0 ºC to 55 ºC and -20 ºC to 70 ºC, respectively; a non-condensing relative humidity range of 10% RH to 90% RH; and operating and non-operating random vibrations of 0.3 grms and 2.4 grms, respectively—all at a frequency range of 5 to 500 Hz.
| Model | PXI-6289 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779123-01, 779639-01 |
| Series | M Series |
| Type | PXI Multifunction I/O Module |
| Analog Input Channels | 32 |
| Analog Input Resolution | 18 Bits |
| Max Sample Rate | 625 kS/s |
| Bidirectional Digital Channels | 48 |
| Electrical Signal Measured | Voltage |
| Maximum Update Rate | 2.86 MS/s |
| Counter/Timers | 2 |
| Input FIFO Buffer Size | 2,047 Samples |
| Input Absolute Accuracy | 980 μV |
| Simultaneous Sampling? | No |
| Dimensions | Standard 3U PXI |
| Weight | 8.4 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-6289 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-6289:
National Instruments PXI-6289 Frequently Asked Questions
Question: What is the DAC resolution for the analog output of the PXI-6289?
Answer: The DAC resolution of the analog output is 16 bits.
Question: How many I/O connectors are on the NI PXI-6289?
Answer: The Multifunction I/O Module is equipped with two 68-pin VHDCI I/O connectors.
Question: What is the maximum sample rate?
Answer: The maximum sample rate of the PXI-6289 is 625 kS/s.
Question: How many analog output channels does the NI PXI-6289 have?
Answer: The module has 4 analog output channels.
PXI-6289 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-6289-DEVICE-SPECIFICATIONS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
PCI-PXI-628X-LETTER-OF-VOLATILITY.PDF
