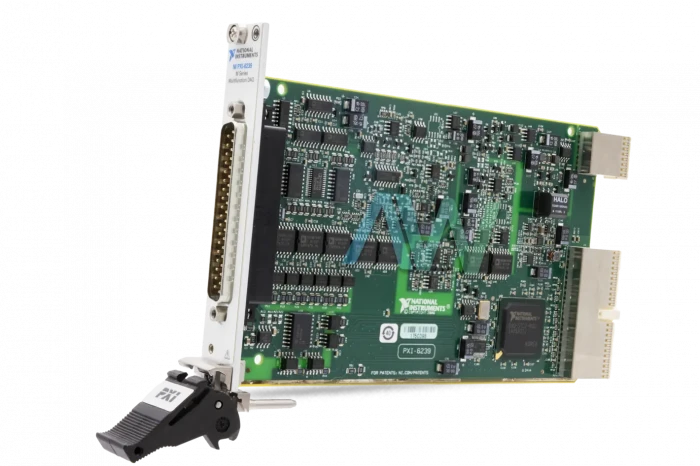

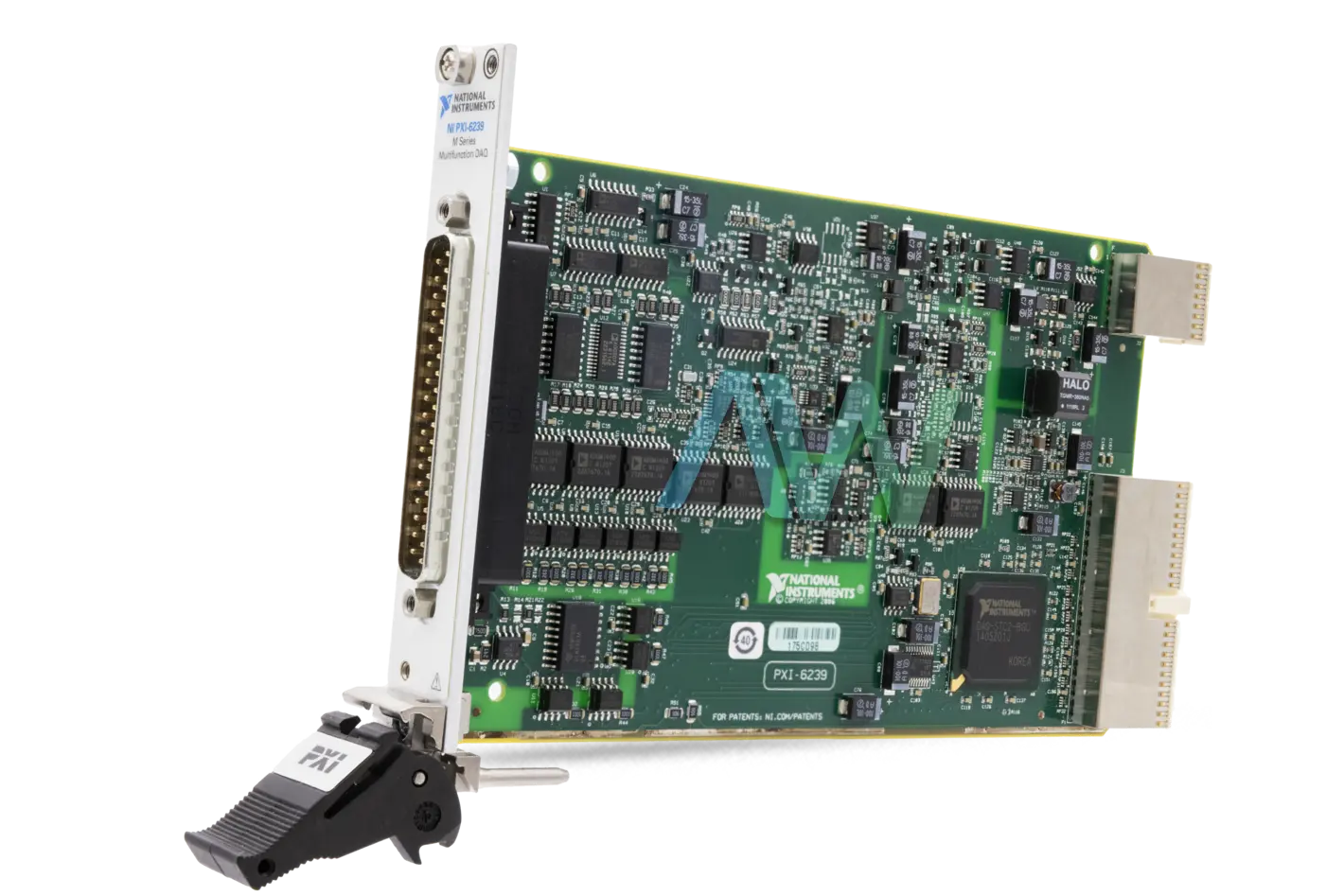

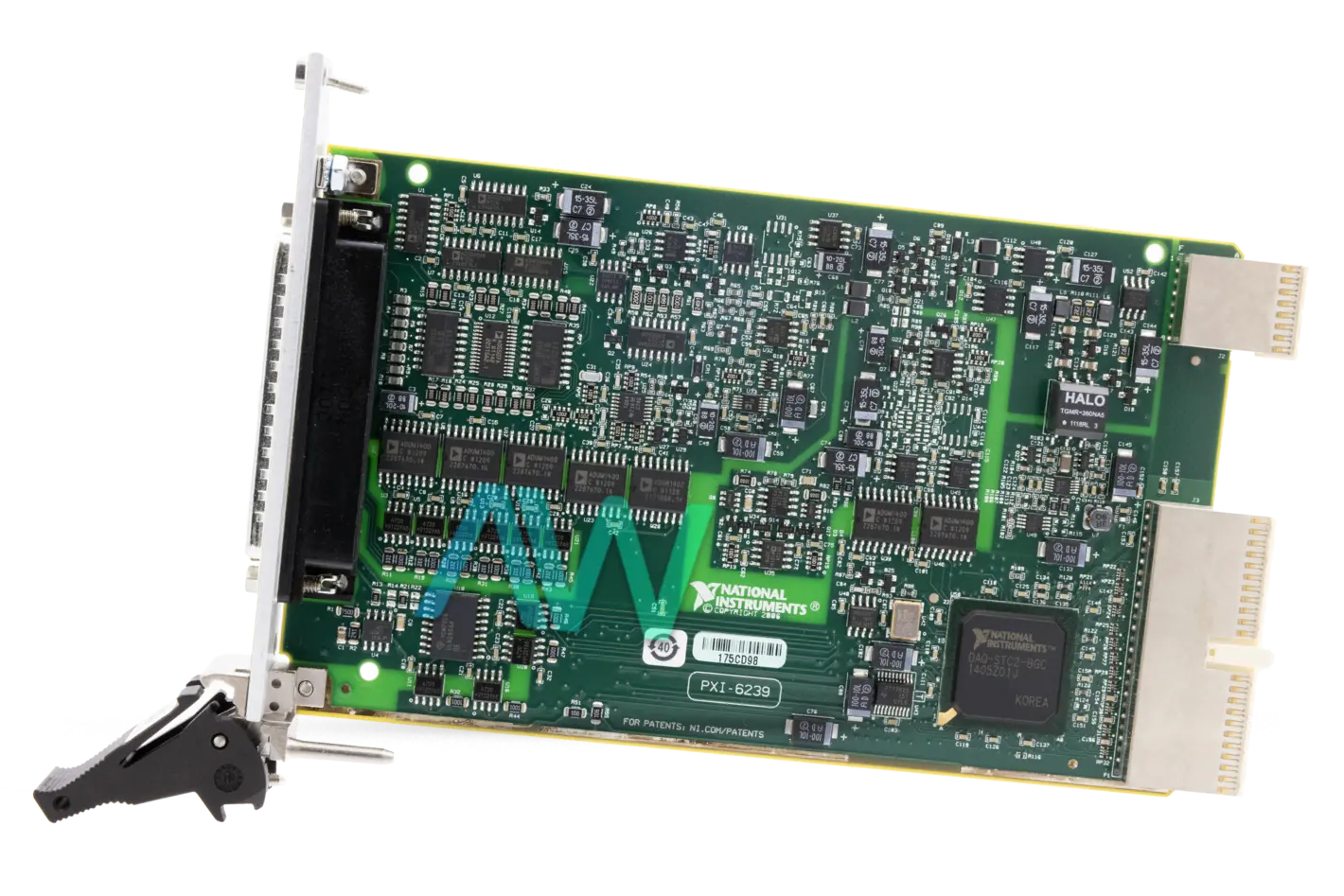

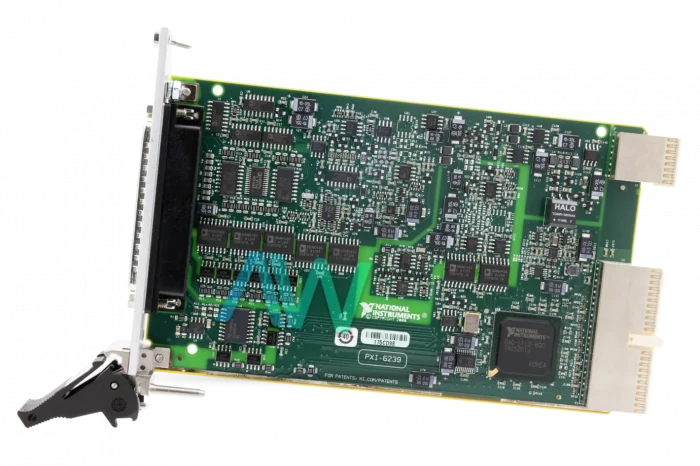

National Instruments PXI-6239 PXI Multifunction I/O Module
The PXI-6239 (Part Number: 779626-01) from National Instruments (NI) is a PXI Multifunction I/O Module that can perform both single and multiple A/D changes of a settled or boundless number of tests. A huge first-in, first-out (FIFO) buffer contains information amid AI acquisitions to guarantee that no information is lost. The gadgets can deal with various A/D conversion tasks with DMA, interrupts, or customized I/O. This model offers an A/D converter (ADC), which digitizes the AI signal by changing over the analog voltage into a digital number. The digital isolators over the isolation barrier give a ground break between the isolated analog front end and the earth/chassis/building ground.
In the PXI-6239, the input range refers to the input voltages or currents that an analog input channel can digitize with the predefined exactness. The NI-PGIA enhances or weakens the AI signal depending on the input range. The user can independently program the input of every AI channel on the M Series module. An expansive input range can suit an extensive signal variation but reduces the estimation resolution. Picking a less substantial data range enhances the measurement resolution, but it may result in the input signal going out of range.
The NI PXI-6239 can examine different channels at high rates and digitize the signals precisely. However, the user should consider a few issues when designing the estimation framework to guarantee the high exactness of estimations. In multichannel scanning applications, precision is influenced by settling time. When the M Series gadget changes, starting with one AI channel and then moving on to the next AI channel, the gadget arranges the NI-PGIA with the data range of the new channel.
Designed for indoor use only, the PXI-6239 has an operating temperature range of 0 ºC to 55 ºC and a storage temperature range of -20 ºC to 70 ºC. The dimensions of the module are the same as a standard 3U PXI board, and it weighs in at 144 g (5.1 oz). This multifunction I/O module is equipped with a 37-pin D-SUB I/O connector.
The PXI-6239 is now obsolete and no longer available from National Instruments, but the Multifunction I/O Module will remain available in perpetuity for purchases or repairs with Apex Waves!
| Model | PXI-6239 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779626-01 |
| Series | M Series |
| Type | PXI Multifunction I/O Module |
| Analog Input Channels | 8, Differential Current |
| Analog Output Channels | 2 Current Outputs |
| Digital I/O Channels | 10 |
| Counters/Timers | 2 |
| DMA Channels | 4 |
| I/O Connector | 37-Pin D-SUB Connector |
| Maximum Sample Rate | 250 kS/s |
| Dimensions | Standard 3U PXI |
| Weight | 5.1 oz. |
| Warranty | 2-3 Year Warranty |
| PXI-6239 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-6239:
National Instruments PXI-6239 Frequently Asked Questions
Question: What type of input coupling does the NI PXI-6239 have?
Answer: The Multifunction I/O Module has DC input coupling.
Question: What is the input FIFO size of the M-series module?
Answer: The PXI-6239 has an input FIFO size of 4,095 samples.
Question: What is the maximum update rate of the analog output channels on the PXI-6239?
Answer: The maximum update rate of the analog output channels is 500 kS/s for one channel and 450 kS/s for two channels.
Question: What is the analog output range of the PXI-6239?
Answer: The analog output range is 0 mA to 20 mA.
