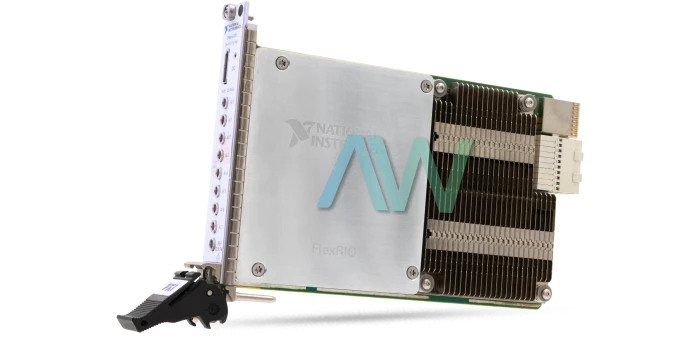

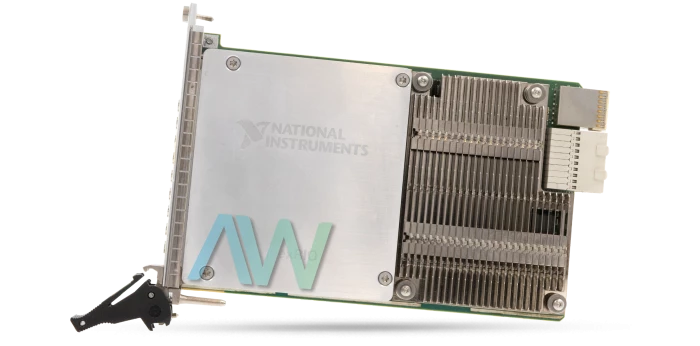

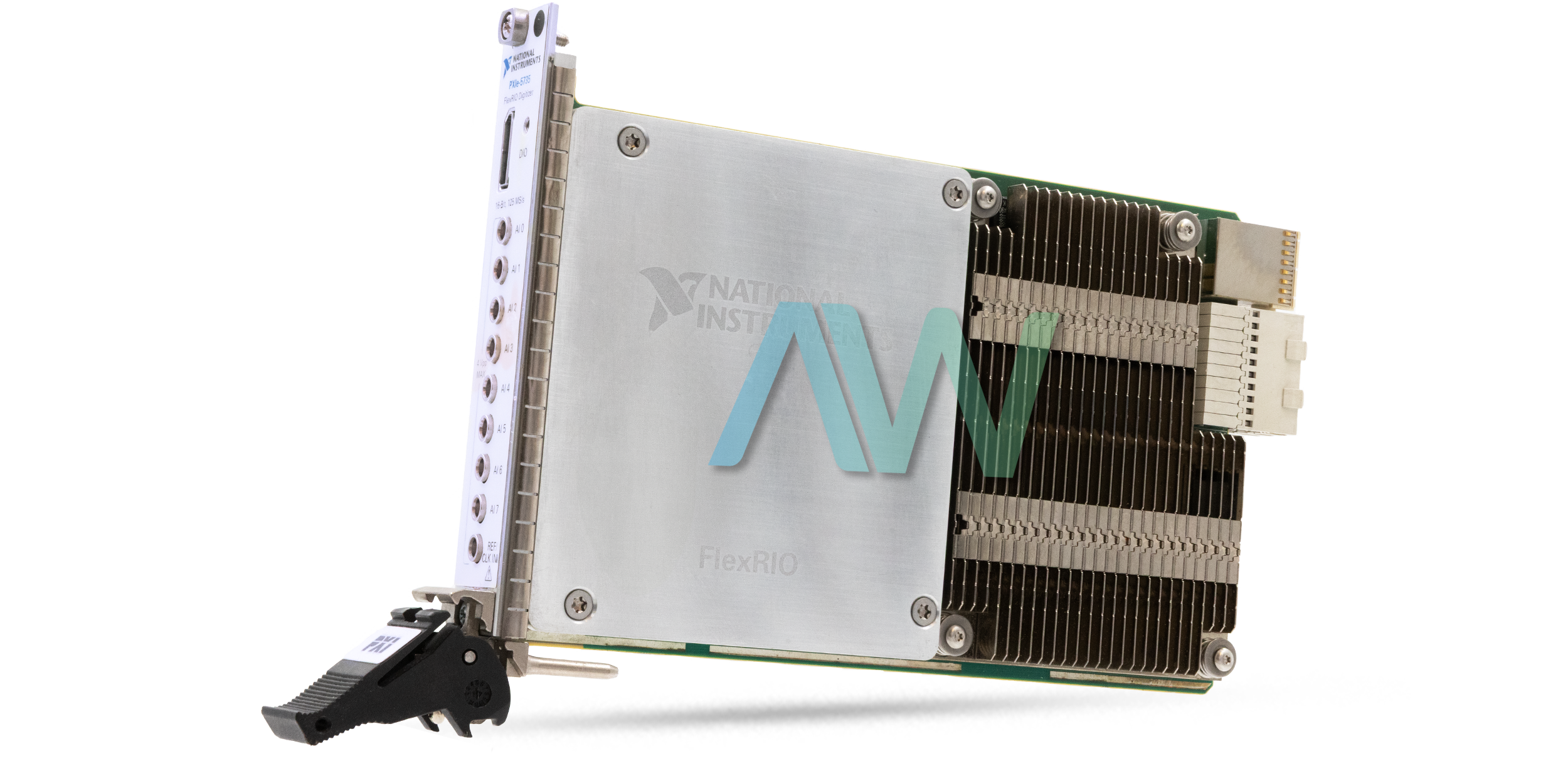

National Instruments PXIe-5735 PXI FlexRIO Digitizer
The NI PXIe-5735 PXI FlexRIO digitizer is a 4-channel high speed module. It delivers simultaneous sampling at 125 MS per second rate reliably. It provides 16-bit resolution for precise amplitude measurement across all acquisition channels with high accuracy. The unit operates at a high 50 MHz bandwidth needed in analog type of input to enable the precise wideband signal recording during tests in laboratory systems, which is a reliable way of operations. The wide dynamic range performance has enabled detailed measurement of the low level and high level signals with fidelity.
The PXIe-5735 digitizer uses DC coupled input architecture for precise low frequency measurement. The DC coupling preserves steady state accuracy without baseline distortion during critical test signal analysis tasks. It supports measurement of slow varying signals and static voltage levels with high stability assurance. The digitizer integrates a Xilinx UltraScale Kintex KU060 FPGA for processing of real time signal tasks efficiently. The LabVIEW programming provides direct control of hardware logic for application development in engineering test systems environments.
The National Instruments PXI digitizer includes 4 GB DRAM memory for data buffering support operations. This memory enables long record lengths during complex waveform acquisition tasks for detailed signal analysis processes reliably. High capacity buffering supports sustained throughput without data loss events in continuous acquisition scenarios consistently stable. The FlexRIO driver supports finite mode for controlled capture sequences in validation testing workflows efficiently executed. Continuous streaming mode enables uninterrupted transfer of data to host systems for real time processing tasks. The architecture eliminates phase skew common in multiplexed digitizer designs for high accuracy measurement requirements in systems. Accurate synchronization supports complex multi-channel signal analysis operations in advanced engineering testing environments reliably performed.
The PXIe-5735 integrates within PXI Express systems for modular instrumentation deployment in scalable platforms. The backplane connectivity provides high speed data transfer and synchronization. Advanced triggering capabilities provide precise control of acquisition start conditions for synchronized measurement operations in test systems. The PXI FlexRIO Digitizer is EMC certified for electromagnetic compatibility agreement in regulated environments. The device is RoHS compliant meeting environmental material safety standards for electronic equipment manufacturing requirements globally. Trigger support enables alignment with external events for deterministic measurements in complex validation setups reliably executed consistently.
| Model Name | PXIe-5735 |
|---|---|
| Manufacturer | National Instruments |
| Part Type | PXI FlexRIO Digitizer |
| Number of Channels | 4 |
| Memory | 4 GB DRAM |
| Input Type | DC |
| Resolution | 16 bits |
| Analog Input Bandwidth | 50 MHz |
| FPGA Type | KU060 |
| Sampling Rate | 125 MS/s |
