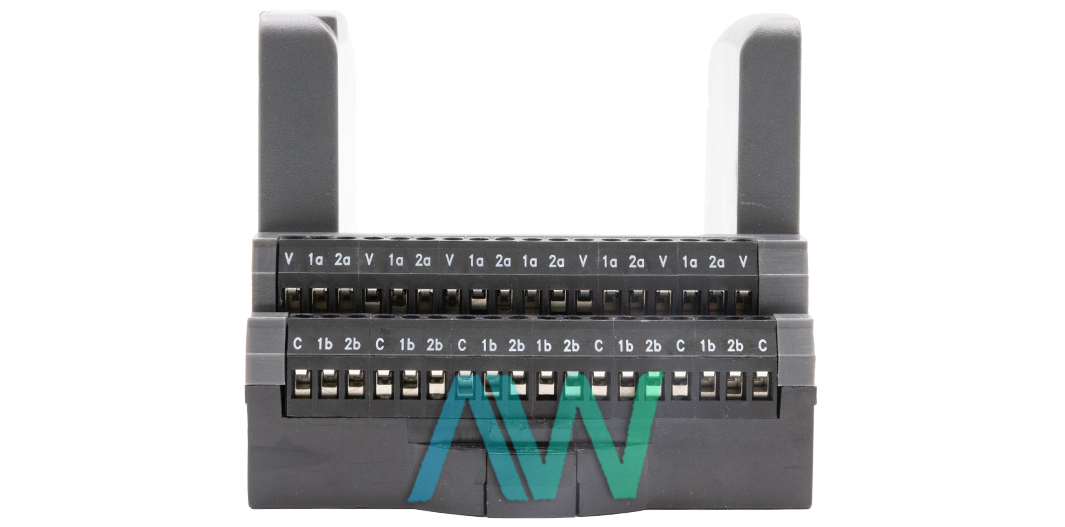

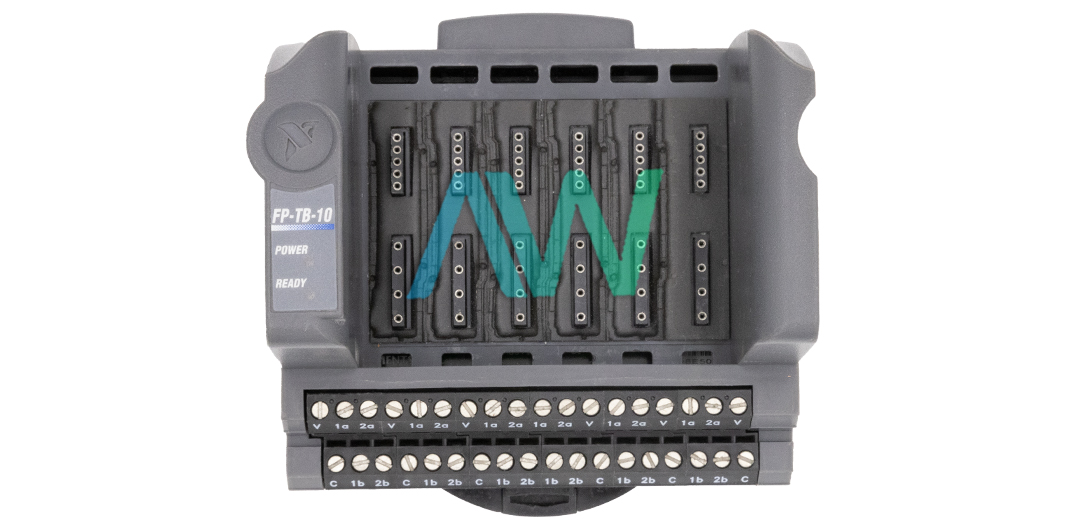

National Instruments FP-TB-10 FieldPoint Terminal Base
The FP-TB-10 (part number: 777519-10) is a FieldPoint Terminal Base manufactured by National Instruments that accommodates up to 6 of the FieldPoint dual-channel I/O modules. Each dual-channel I/O module used with the FP-TB-10 is independently isolated. Dual-channel modules used with the terminal base can function with any of the eight or sixteen standard channel modules in the same FieldPoint bank. The device is equipped with 36 screw terminals.
The FP-TB-10 allows hot plug-and-play live swapping of modules. You can insert or swap any module while the network module is powered and running. Replacing a module with another module of the same type allows for uninterrupted operations, whereas if a module of a different type is installed, the FP-TB-10 will reset itself and all six of its modules, and it will request new configuration settings from the network module. When designing applications for this terminal base, you must carefully monitor your system's power consumption. In some applications, the power drawn by the modules can limit the total number of I/O modules you can connect to a single network module, as the entire setup must not exceed a total power consumption limit of 9 watts.
The FP-TB-10 uses a working operating voltage of up to 250 Vrms. The field wiring is protected from the faulty voltage up to 2500 Vrms. The FieldPoint Terminal Base can be clipped or mounted and locked onto standard 35 mm DIN rails or panels. The terminal base is designed for applications that require channel-to-channel isolation and applications involving hazardous potentials.The device weighs 10.2 oz and has a recommended operating temperature range of -40 to 70°C with a storage temperature range of -40 to 100°C.
| Model | FP-TB-10 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777519-10 |
| Part Type | Terminal Base |
| Terminal Type | Screw Terminals |
| Number of Terminals | 36 |
| Operating Temperature | -40 to 70 °C |
| Storage Temperature | -40 to 100°C |
| Weight | 10.2 oz. |
| Mounting | Standard 35 mm DIN rails or panels |
| Warranty | 2-3 Year Warranty |
| FP-TB-10 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for FP-TB-10:
National Instruments FP-TB-10 Frequently Asked Questions
Question: How is the FP-TB-10 designed for handling applications that are potentially hazardous?
Answer: The FieldPoint terminal base has an optical and galvanic isolation barrier that separates the field wiring connections of the modules from the backplane. This barrier is designed to protect against fault voltages of up to 2500 Vrms.
Question: How is the scan time calculated by the FP-TB-10?
Answer: The FP-TB-10 continuously scans through all six of its module slots, and the total scan time is the sum of the time taken for all six modules. Empty modules and digital modules each add 0.2 ms to the total scan time, while analog modules add 1.5 ms each.
Question: What is the operating temperature range of the FP-TB-10?
Answer: The operating temperature range is -40 to 70°C.
Question: Is there a power limit for the FP-TB-10 and its connected modules?
Answer: Yes. The total power consumption of the FP-TB-10 and all its dual-channel modules, combined with other I/O modules in the system, must be less than 9 Watts.
