NI FP-AI-C420, 12 Bit, Dual-Channel, Analog Input Module

Rated 5/5 | 5 ratings

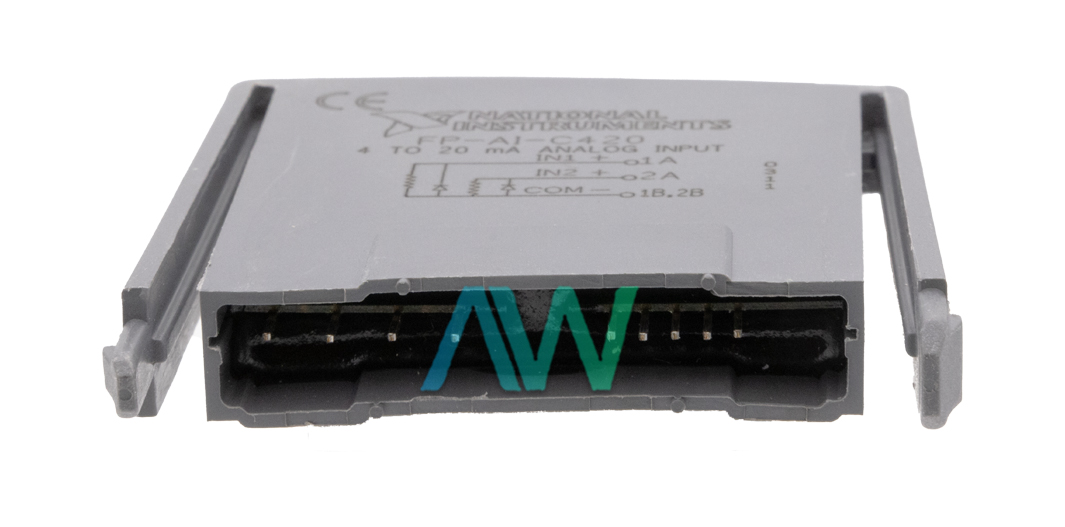

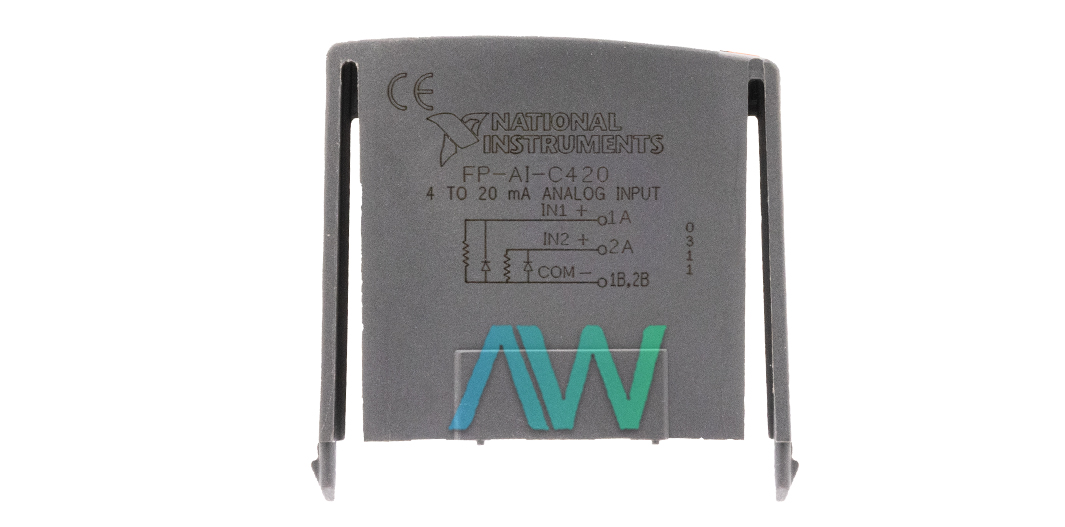

FP-AI-C420 National Instruments Analog Input Module | Apex Waves | Image
FP-AI-C420 National Instruments Analog Input Module | Apex Waves | Image
FP-AI-C420 New
FP-AI-C420 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

FP-AI-C420 National Instruments Analog Input Module | Apex Waves | Image
FP-AI-C420 National Instruments Analog Input Module | Apex Waves | Image
FP-AI-C420 New
FP-AI-C420 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments FP-AI-C420 Analog Input Module

Designed to provide 12-bit resolution measurements, the NI FP-AI-C420 is a dual-channel analog input module. This module is designed for FieldPoint and can be plugged into an FP-TB-10 terminal base. Up to six FP-AI-C420 modules can be mounted on one FP-TB-10 terminal base, and multiple terminal bases may be used within one FieldPoint bank depending on power and network limits.

This module offers hot plug-and-play and DIN rail mounting. Its operating range is -40 to 70°C. Screw terminals are provided on the FP-TB-10 for field wiring connections to the FP-AI-C420. This module has an input range of 4 to 20 mA. This range makes the FP-AI-C420 an ideal choice for a broad range of industrial applications, such as flow meters, level transmitters, and temperature transmitters.

This analog input module requires 300 mW of power from the FieldPoint backplane power bus. Both channels on this module have a dedicated, programmable filter that can be set to operate with 20 Hz or 100 Hz bandwidth. Both channels share a common return reference, so applications requiring full isolation should use only one channel per module. The V and C terminals are provided on the FP-TB-10 terminal base and can be used to connect loop current transmitters and power supplies.

ModelFP-AI-C420
ManufacturerNational Instruments
TypeAnalog Input Module
Channels2
Resolution12-bit
Input Range4 to 20 mA
Power Requirement300 mW
Operating Temperature Range-40 to 70 °C
Warranty2-3 Year Warranty
FP-AI-C420 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote

Associated part numbers for FP-AI-C420:

National Instruments FP-AI-C420 Frequently Asked Questions



Question: What is the operating temperature range of the FP-AI-C420?

Answer: The operating temperature range is −40 °C to +70 °C.



Question: Does the FP-AI-C420 support hot swapping?

Answer: Yes. The Analog Input Module can be inserted or removed while the FieldPoint bank is powered, provided the network module remains operational.



Question: How much power does the FP-AI-C420 consume?

Answer: The module requires 300 mW from the FieldPoint backplane power bus.
