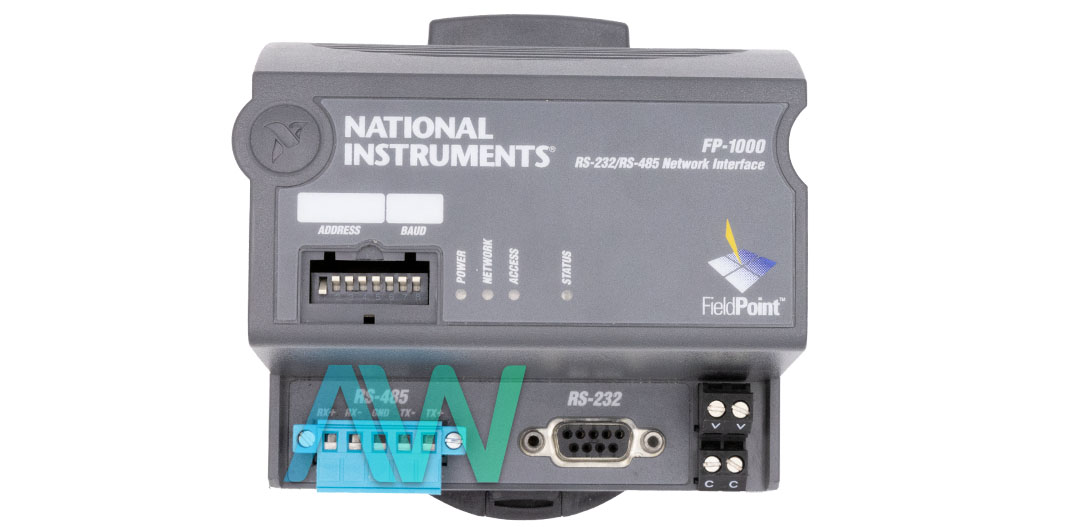

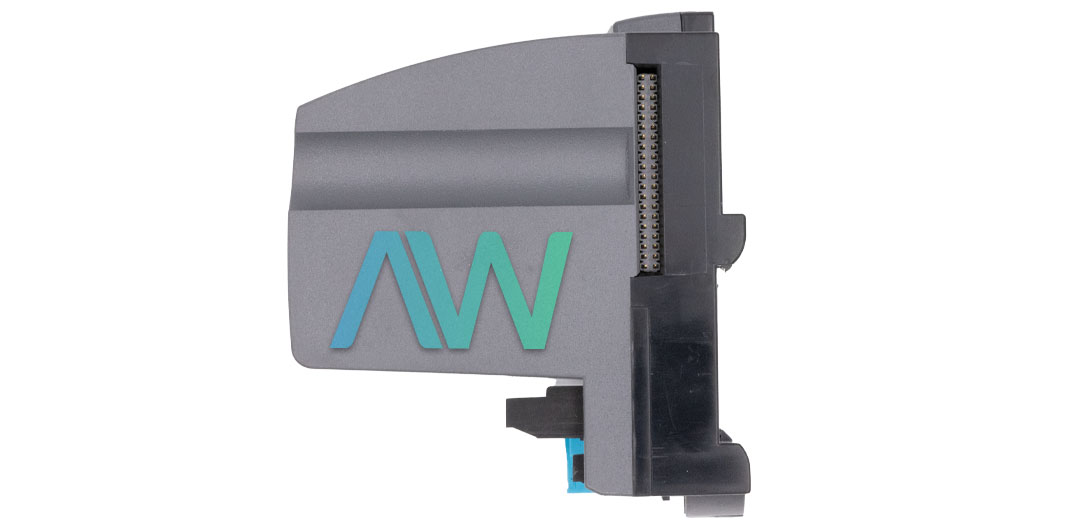

National Instruments FP-1000 Network Interface for FieldPoint
The FP-1000 (Part Number 777517-00) is a high-level system interface module for the FieldPoint I/O framework. The FP-1000 oversees correspondences between the I/O modules and the host PC by means of a nearby bus frame. FieldPoint Explorer and server programming are incorporated for RS232 FieldPoint frameworks.
The user can choose from two strategies for safely mounting a FieldPoint framework: DIN rail mounting or panel mounting. Mounting specifically to a board is the more secure of the two choices, yet DIN rail mounting may be more helpful depending on the user’s application.
The terminal bases can be introduced without utilizing the board mount adornment that is required for mounting the FP-1000 National Instruments Network Interface. The device has the following switch-selectable baud rates: 300, 1200, 2400, 9600, 38400, 57600, 19200, and 115200.
On the FieldPoint FP-1000 Network Interface, RS-232 indicates a maximum cabling separation of 50 ft, yet enhancements in line drivers and cabling innovation regularly enable the user to structure their system past the suggestions of the determination. This model comes with a watchdog clock, Hot-PnP plug-and-play activity, direct association with a PC serial port (RS232), and intelligent diagnostics and upkeep. The device has a power consumption value of 1 watt + 1.15 * ∑(I/O module consumption) and a power supply range of 11 to 30 VDC.
The FP-1000 is run using the FieldPoint software, which includes the FieldPoint Explorer configuration utility, BridgeVIEW server, Lookout driver class, LabVIEW VIs, LabWindows/CVI functions, and the OPC server. It has recommended operating and storage temperature ranges of -40°C to +70°C and -55°C to +90°C, respectively, and a non-condensing relative humidity range of 5% to 90%.
FP-1000 Obsolete Status has been announced by National Instruments, but the module will still be available in perpetuity for purchase and repairs by Apex Waves.
| Model | FP-1000 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777517-00 |
| Type | Network Interface for FieldPoint |
| Serial Port Type | RS-232 |
| Repeater Port Type | RS-485 |
| Baud Rates | 300, 1200, 2400, 9600, 38400, 57600, 115200 (switch selectable) |
| Maximum Distance from host | 50 ft. |
| Operating Temperature | -40°C to +70°C |
| Warranty | 2-3 Year Warranty |
| FP-1000 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for FP-1000:
National Instruments FP-1000 Frequently Asked Questions
Question: What does a FieldPoint system contain?
Answer: A FieldPoint system contains a minimum of one network module, such as the FP-1000, a minimum of one terminal base, and at least one I/O module.
Question: Which type of connector is the RS-232 on the NI FP-1000?
Answer: The RS-232 connector on the network interface is a 9-pin female D-Sub connector.
Question: Can I remove or insert I/O modules while the system is powered on?
Answer: Yes, the system supports this through a feature called HotPnP (Hot Plug and Play)
