cRIO-9036 In Stock | Ships Today
cRIO-9036, 8-Slot, Extended Temperature Range, Embedded CompactRIO Controller
Rated 4.9/5 | 17 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Expert Insights for the cRIO-9036
"The cRIO-9036 is a rugged and fanless embedded controller perfect for advanced control and monitoring applications. Featuring a real-time processor and multiple connectivity options, this controller is a great choice for harsh and demanding environments. It can be used over USB or ethernet, supporting a variety of C-Series modules. Under the hood, it runs NI Real-Time Linux, which is incredibly versatile to meet your measurement needs."
- Chris B.
LabVIEW Trained
In-House Technician
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Expert Insights for the cRIO-9036
"The cRIO-9036 is a rugged and fanless embedded controller perfect for advanced control and monitoring applications. Featuring a real-time processor and multiple connectivity options, this controller is a great choice for harsh and demanding environments. It can be used over USB or ethernet, supporting a variety of C-Series modules. Under the hood, it runs NI Real-Time Linux, which is incredibly versatile to meet your measurement needs."
- Chris B.
LabVIEW Trained
In-House Technician

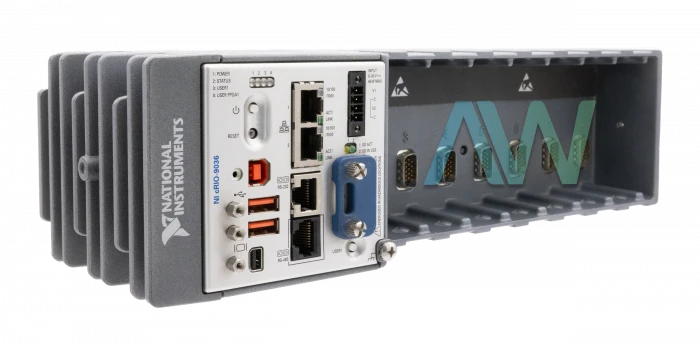

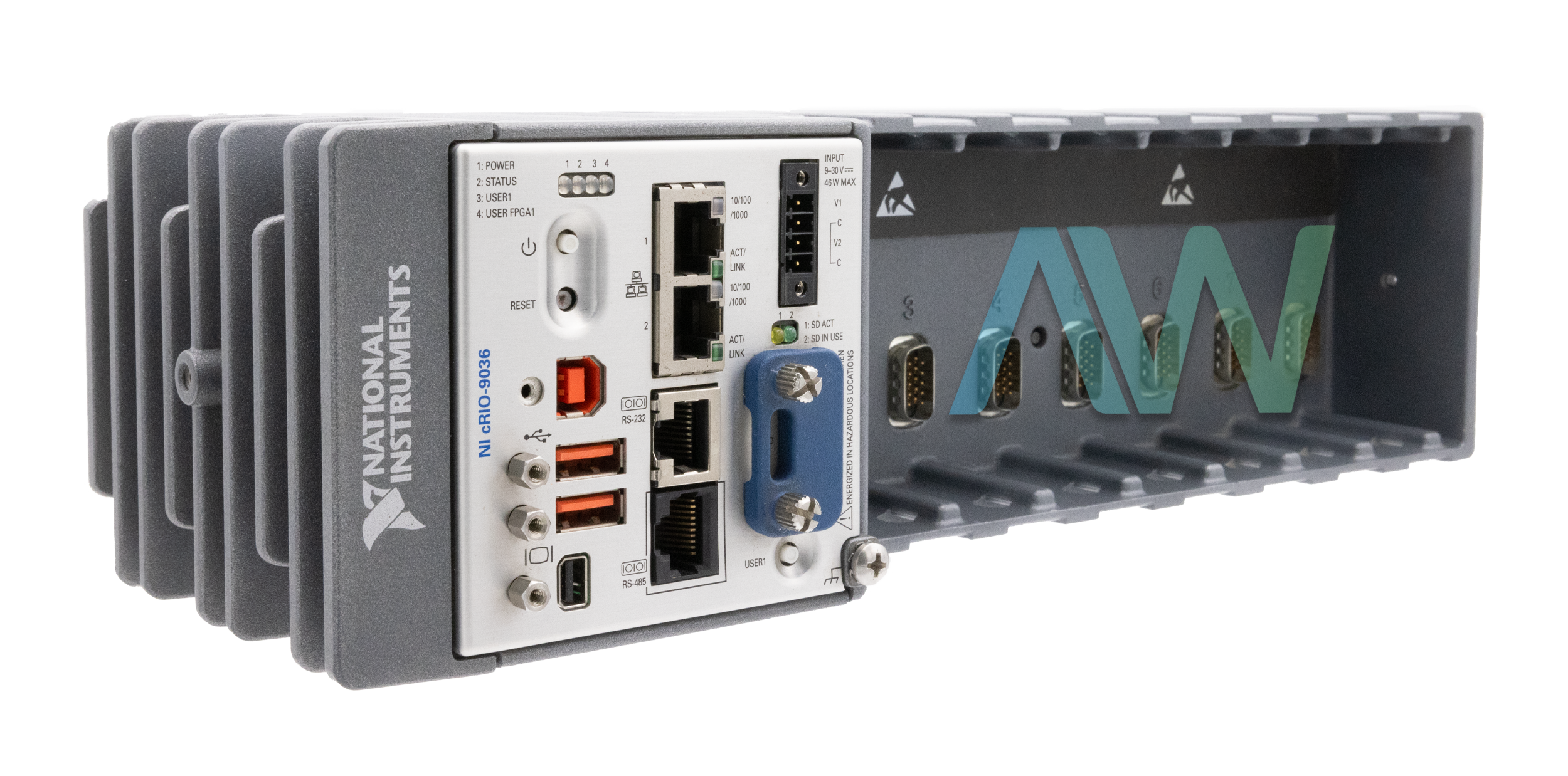

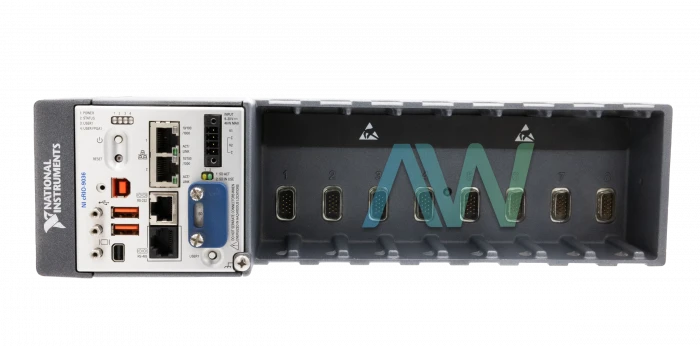

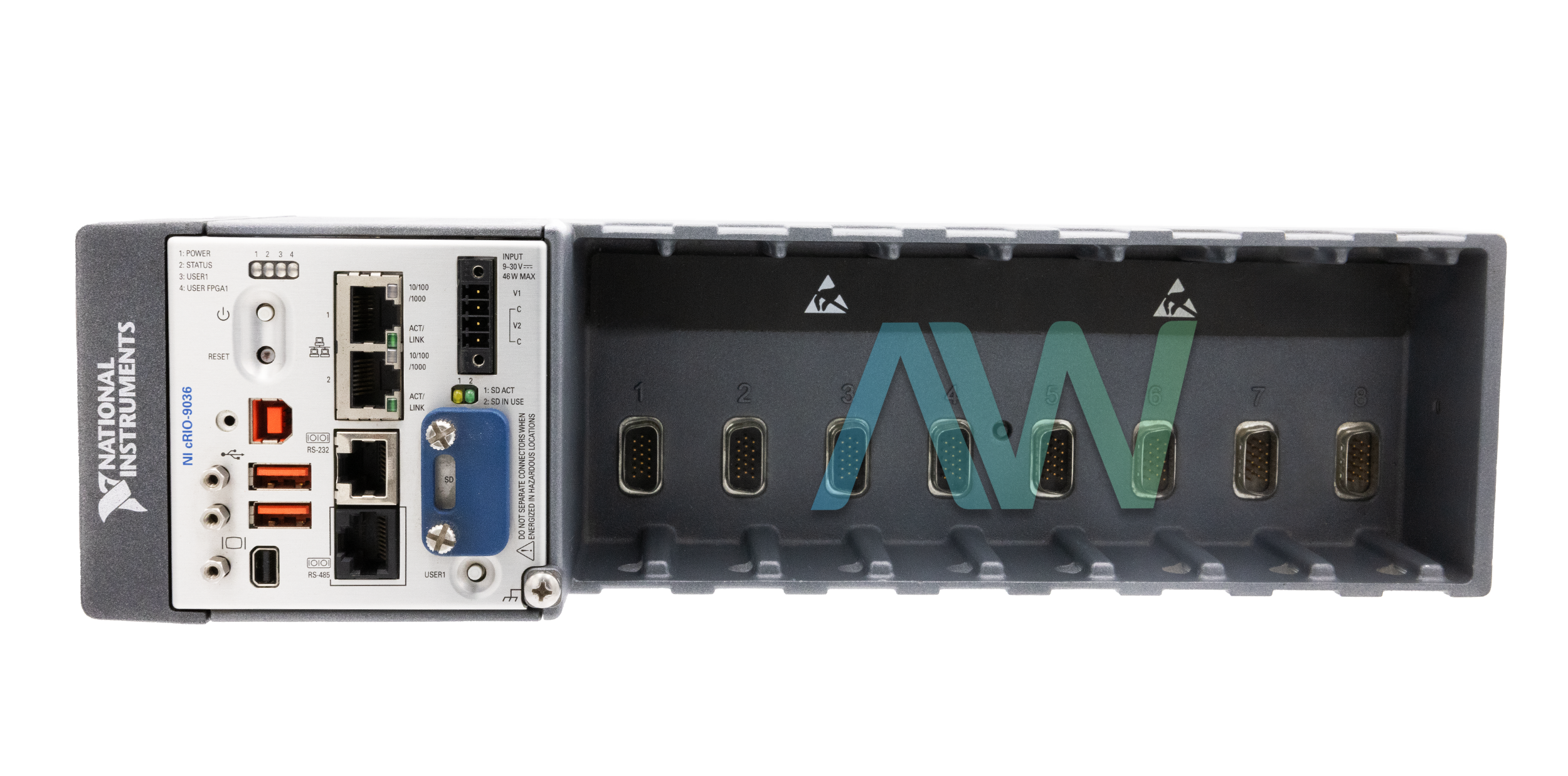

National Instruments cRIO-9036 CompactRIO Controller
The National Instruments cRIO-9036 (Part Number: 783849-01) is an embedded controller designed for advanced control and monitoring applications. It is equipped with a two-core Intel Atom E3825 CPU. With a CPU frequency of 1.33 GHz and 1 MB of shared L2 cache, it provides strong performance for real-time processing applications.
For industrial settings, this software-designed controller offers dependability and flexibility through operation on the NI Linux Real-Time OS. The cRIO-9036 offers programmable hardware acceleration for sophisticated algorithms and signal processing thanks to its FPGA, the Xilinx Kintex-7 7K70T. With 240 DSP slices, 41,000 6-input LUTs, and 82,000 flip-flops, it provides more than enough power to develop control schemes and data processing algorithms.
With two tri-speed RJ-45 Gigabit Ethernet ports, there are plenty of connectivity options to enable high-speed data transfer. The USB 2.0 compliant two USB host ports and one USB device port provide flexible connectivity for peripherals and data storage. With a maximum resolution of 2560 × 1600 at 60 Hz, the Mini DisplayPort enables a local human-machine interface (HMI) for application development. The cRIO-9036 offers one RS-232 port and one RS-485/422 port for serial communication, supporting a range of data formats, flow control techniques, and baud rates.
These ports increase the controller's interoperability by allowing interfaces with industrial and legacy devices. Up to 32 GB of nonvolatile storage can be supported by an SDHC slot that is compatible with both SD and SDHC standards. For dependable and quick data storage, the controller also comes with a 4 GB solid-state drive.
The cRIO-9036 is appropriate for severe industrial environments since it can operate in an extended temperature range of -40°C to 70°C and has an IP20 ingress protection rating. It can operate in humidity ranges of 10% to 90% RH, guaranteeing dependable performance under a variety of circumstances.
When unloaded, the CompactRIO controller measures physical dimensions of 12.94 x 3.47 x 4.30 in. (328.8 mm × 88.1 mm × 109.2 mm) and weighs 4 lbs. 15 oz. (2,250 g).
| Model | cRIO-9036 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783849-01 |
| Type | CompactRIO Controller |
| CPU | Intel Atom E3825 |
| CPU Frequency | 1.33 GHz |
| Network/Ethernet Ports | 2 |
| FPGA | Xilinx Kintex-7 7K70T |
| Available Block RAM | 4,860 kbits |
| DMA Channels | 16 |
| Recommended Power Supply | 100 W, 24 VDC |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Dimensions | 12.94 x 3.47 x 4.30 in. (328.8 mm × 88.1 mm × 109.2 mm), Unloaded |
| Weight | 4 lbs., 15 oz. (2,250 g), Unloaded |
| Warranty | 2-3 Year Warranty |
| cRIO-9036 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9036:
National Instruments cRIO-9036 Frequently Asked Questions
Question: Can I set up the RS485 port to a 2-wire mode?
Answer: Yes, you can set up the RS485 port on the cRIO-9036 to a 2-wire mode by using a property node on your VISA wire and setting the wire mode to two wire.
Question: Why does the NI cRIO-9036 connected to DisplayPort not show up all the time?
Answer: If your controller is not always showing up, make sure that the Embedded User Interface is enabled.
Question: What is the CPU frequency of the cRIO-9036?
Answer: The CPU frequency of the cRIO Controller is 1.91 GHz.
Question: What is the maximum resolution of the Mini DisplayPort?
Answer: The Mini DisplayPort of the cRIO-9036 as a maximum resolution of 2560 × 1600 at 60 Hz.
cRIO-9036 PDF Manuals
CRIO-9036-LETTER-OF-VOLATILITY.PDF
CARRYING-HANDLE-FOR-COMPACTRIO-AND-COMPACTDAQ-USER-GUIDE.PDF
COMPACTRIO-CONTROLLERS-PRODUCT-FLYER.PDF
CRIO-9036-LETTER-OF-VOLATILITY.PDF
INDUSTRIAL-RACK-MOUNT-KIT-FOR-COMPACTRIO-AND-COMPACTDAQ-INSTALLATION-GUIDE.PDF
MODULE-IMMOBILIZATION-ACCESSORY-INSTALLATION-GUIDE.PDF
NI-CMS-9036-MAINTAINING-HARDWARE.PDF
NI-CRIO-9036-GETTING-STARTED-GUIDE.PDF
NI-CRIO-9036-SPECIFICATIONS.PDF
