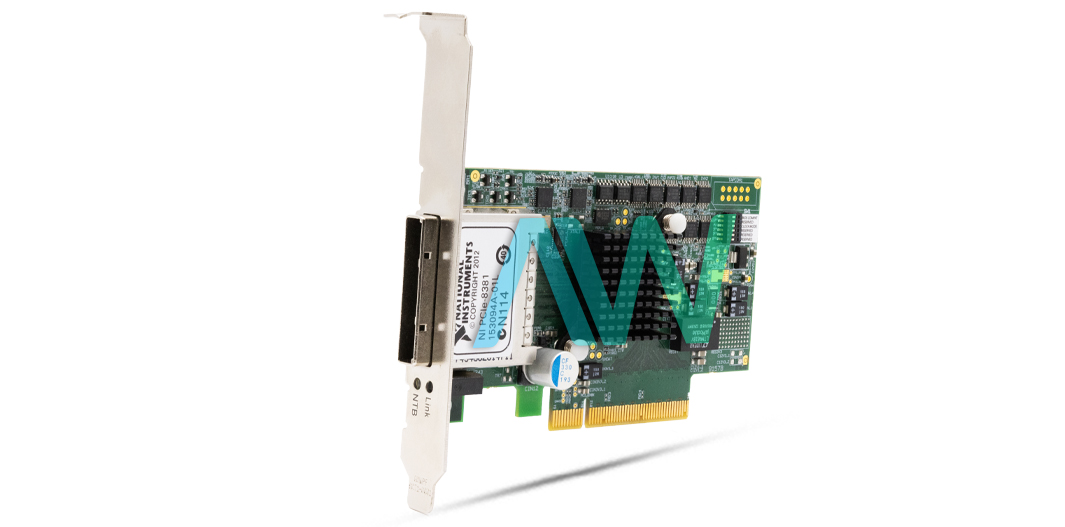

PCIe-8381 National Instruments Device for PXI Remote Control | Apex Waves | Image

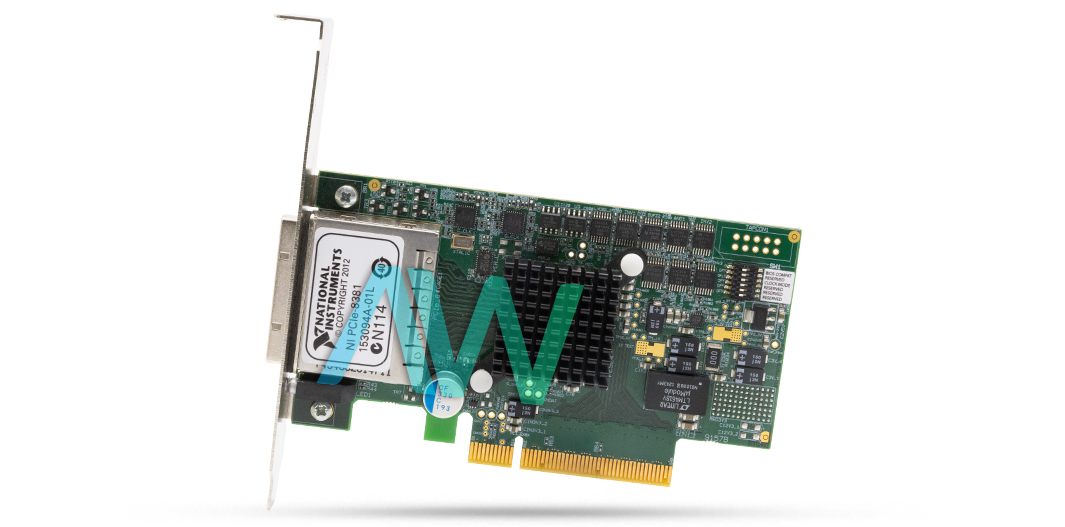

PCIe-8381 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8381 New
PCIe-8381 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCIe-8381 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8381 National Instruments Device for PXI Remote Control | Apex Waves | Image
PCIe-8381 New
PCIe-8381 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCIe-8381 Device for PXI Remote Control

National Instruments developed the PCIe-8381 (Part Number: 782361-01), an MXI-Express remote controller, to enable PCI Express communication across extended distances of up to 5 meters. having its x8 PCI Express interface, PXI systems may be easily controlled from a PC having a PCI Express slot. There are two versions of this remote controller available: one that works with copper wires and the other that works with fiber-optic connections. Applications that call for remote control or the isolation of the automation or measurement system from the host PC will find the PCIe-8381 to be especially helpful. It enables PXI Express or CompactPCI Express backplane control, hence facilitating adaptable system setups. With this controller, a single PCI Express-based PC or PXI Express embedded controller can control numerous PXI Express or CompactPCI Express chassis. The PCIe-8381's transparent operation to software programs and drivers is one of its primary benefits.

This implies that industry-standard desktop PCs and servers may easily control linked devices without the need for further programming. The PCI Express switches in the kit allow the PCI-Express fabric to be extended, which makes it easier for the host PC and the PXI system to communicate. It's important to remember, though, that some host computers' BIOS might not accept this extension, which could lead to problems booting up or with functionality.

National Instruments provides NI MXI-Express BIOS Compatibility Software to help lessen this. The PCIe-8381 weighs 0.06 kg and measures 6.89 x 12.70 cm. It is completely compatible with PCI Express Specification, Revisions 1.0a, 1.1, and 2.0 and only needs one slot (PCI Express, x8 or wider). It is meant only for indoor usage, with a maximum operating height of 2,000 meters. In terms of environmental parameters, the PCIe-8381 functions within a range of 0 to 55 °C for ambient temperature and 10 to 90% for relative humidity. It can be stored in environments with temperatures between -20 and 70 °C and relative humidity levels between 5 and 95%.

ModelPCIe-8381
ManufacturerNational Instruments
Part Number782361-01
SeriesMXI-Express Gen II x8 Series
TypeDevice for PXI Remote Control
Number of Ports1
Slot TypePCI Express Gen II x8 or wider
Slot RequirementsOne slot (PCI Express, x8 or wider)
Cable SupportMXI-Express x8 Copper
Maximum Distance5 m
CompatibilityFully compatible with the PCI Express Specification 1.0a, 1.1, and 2.0
Sustained Throughput3.2 GB/s
LED Indicators1 Tri-color LED
Power Requirements+3.3 V, +3.3 VAux, +12 V - 500 mA, 0 A, 350 mA
Dimensions2.71 in. × 5 in.
Weight0.14 lb.
Warranty2-3 Year Warranty
PCIe-8381 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-8381:

National Instruments PCIe-8381 Frequently Asked Questions



Question: What should I do if my PC says the BIOS is corrupted when I have the PCIe-8381 installed?

Answer: If you have a message saying the BIOS is corrupted when you’re using the Remote Controller, you need to upgrade the BIOS to the latest version available.



Question: Do I need to configure the controller to read it in Visual C++?

Answer: No, the NI PCIe-8381 is transparent, which means that you do not need to complete any configurations in order to read it.



Question: What does it mean if the LEDs are not lighting up when installing the PCIe-8381?

Answer: If the LEDs are not lighting up when you’re installing the MXI-Express Remote Controller, it means that it is not connected and therefore not getting power. You can try a different slot. If it still doesn’t light up, your device may be defective.
