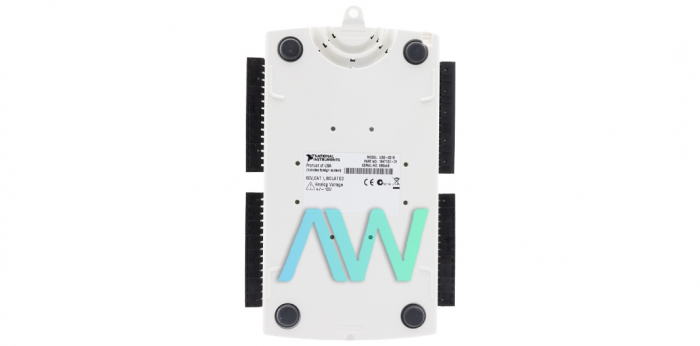

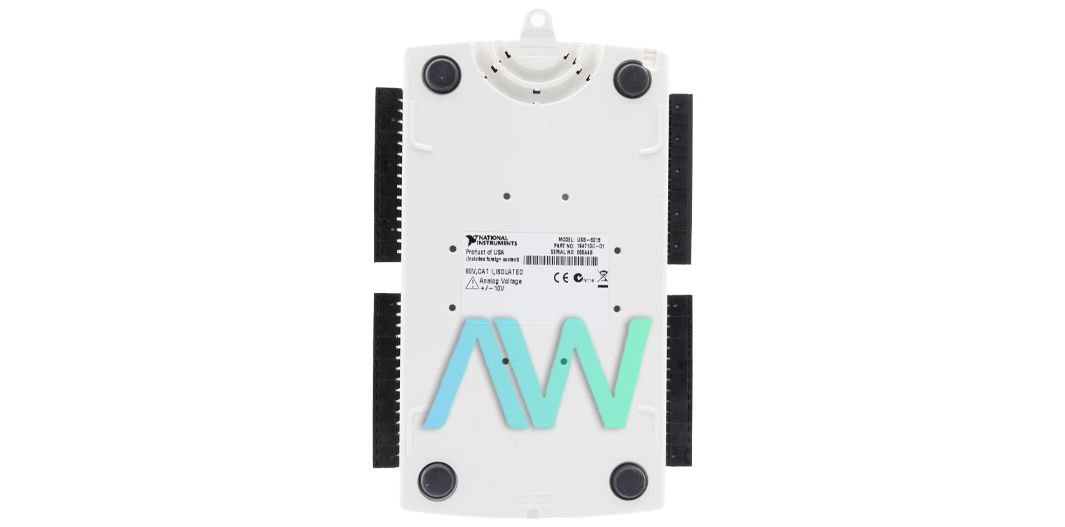

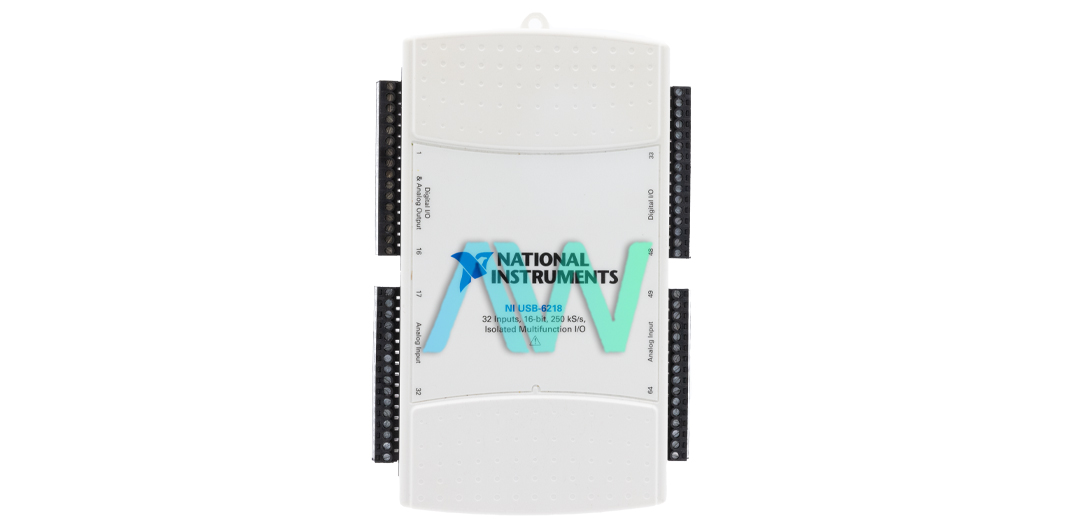

USB-6218 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6218 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6218 New
USB-6218 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

USB-6218 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6218 National Instruments Multifunction I/O Device | Apex Waves | Image
USB-6218 New
USB-6218 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments USB-6218 Multifunction DAQ Device

The National Instruments USB-6218 (Part Numbers: 781005-01, 196203-01, 779678-01, 780106-01, 196203-01, 194710C-01) is a flexible, isolated, multifunctional DAQ device intended for a range of industrial uses. Due to its many features, which include digital input/output, analog input/output, and counters, it can be used for a variety of applications, including portable data logging, field monitoring, embedded OEM, in-vehicle data acquisition, and academic purposes.

The difference between the part numbers for this device is that part number 779678-01 is an isolated driver, part number 196203-01 is an OEM board-only kit, and part number 780106-01 is designed for Linux and Mac. The 16-bit analog input resolution of the USB-6218, which supports up to 16 differential or 32 single-ended channels, is one of its standout features. It guarantees fast data capture with a maximum sample rate of 250 kS/s per channel.

With a timing resolution of 50 ns and timing accuracy within 50 ppm of the sample rate, the device stays accurate. With overvoltage protection up to ±30 V when the device is powered on, the USB-6218 supports numerous input ranges from ±0.2 V to ±10 V to suit a variety of input signals. Its input impedance is also greater than 10 GΩ, which guarantees minimal signal distortion. The device has two 16-bit channels with a maximum update rate of 250 kS/s each for analogue output. With a low output impedance of 0.2 Ω and overdrive protection up to ±30 V, the output ranges encompass ±10 V. As a result, output signals are reliable and accurate.

The USB-6218's adaptability also extends to the digital I/O and counter functionalities. It makes a variety of control and monitoring tasks easier with its two 32-bit counters and digital input and output capabilities. The USB-6218's isolation capabilities are a key feature; it provides 60 V CAT I isolation for increased precision and security. This guarantees dependable functioning in difficult settings as well. The NI-DAQmx driver and configuration tool are included with the device to simplify setup and operation and to speed up measurements and configuration.

A standout feature of the USB-6218 is its signal streaming technology, which allows for fast, bidirectional data streaming over USB that is comparable to DMA. For real-time applications, this guarantees effective data transfer.

ModelUSB-6218
ManufacturerNational Instruments
Part Numbers779678-01, 781005-01, 780106-01, 196203-01, 194710C-01
TypeMultifunction I/O Device
Analog Input Channels32 single-ended, 16 differential
Maximum Sample Rate250 kS/s
Analog Input Resolution16 bits
Connector TypeScrew Terminal or BNC
DimensionsBNC: 9.25 in. × 4.40 in. × 2.50 in.
Screw Terminal: 6.65 in. × 3.70 in. × 1.20 in.
WeightBNC: 33.5 oz.
Screw Terminal: 7.2 oz.
WarrantyThree Year Warranty
USB-6218 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for USB-6218:

National Instruments USB-6218 Multifunction I/O Device Frequently Asked Questions



Question: How do I measure the different sources with the USB-6218?

Answer: To use the USB-6218 to measure a floating signal source, simply move the switch into the "FS" position. Ground-referenced signal sources can be measured by moving the switch into the "GS" position.



Question: What is the AI Sample Clock Timebase signal of the USB-6218?

Answer: The timebase signal of the USB-6218 is PFI <0..3>, PFI <8..11>



Question: What is the timing resolution and accuracy of the USB-6218?

Answer: The timing resolution is 50 ns, and the timing accuracy is 50 ppm of the sample rate
