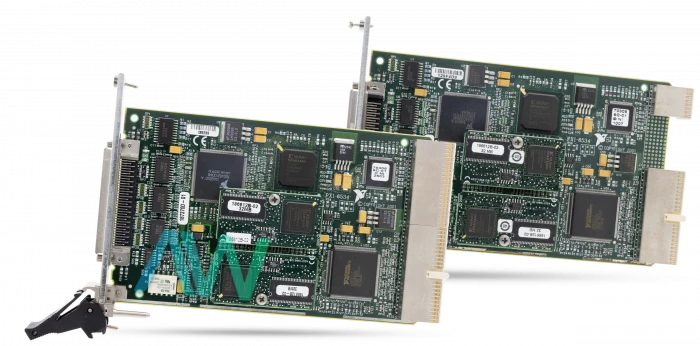

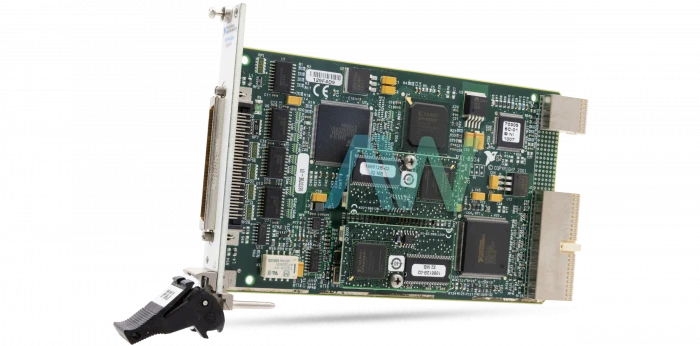

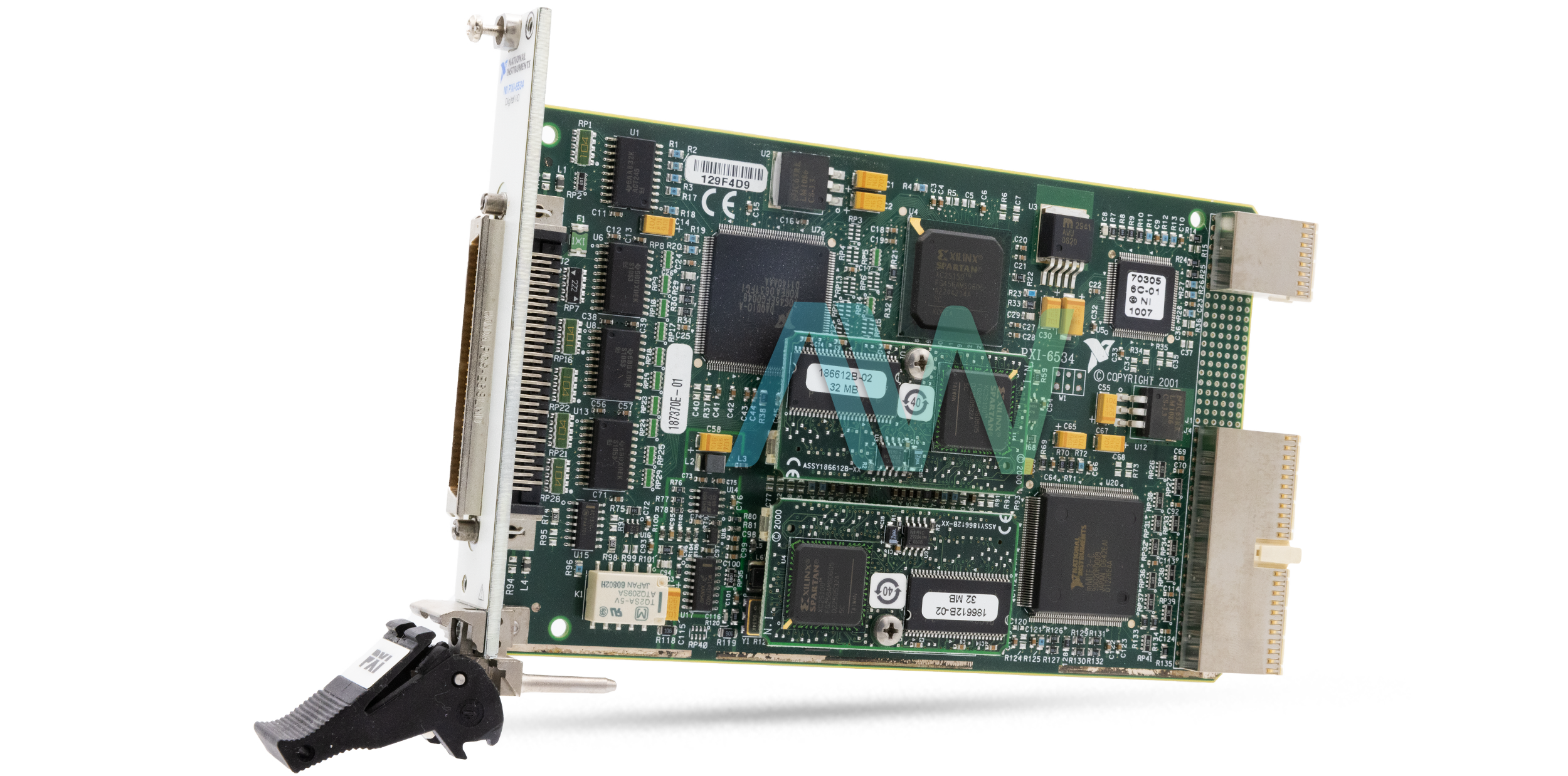

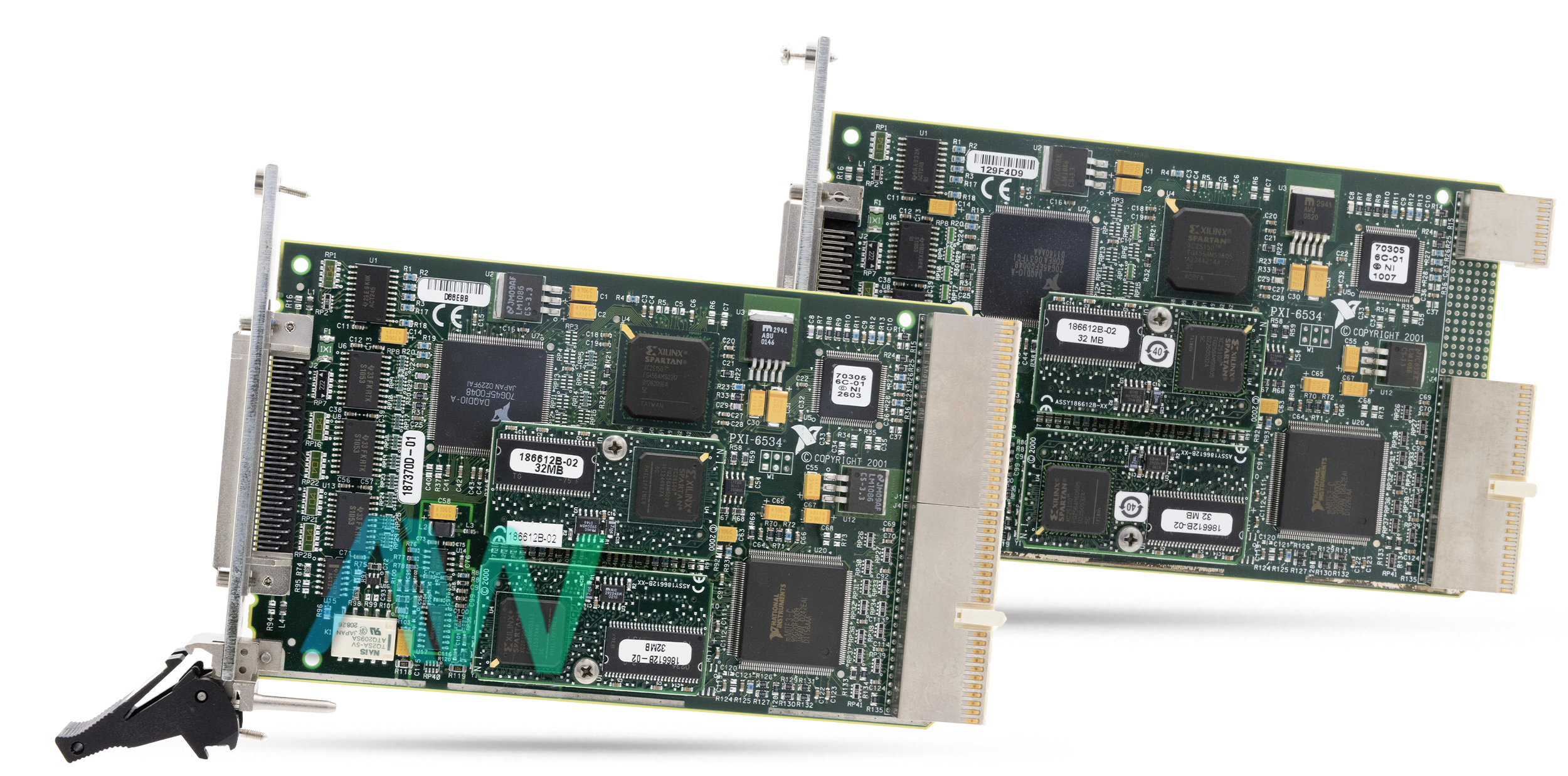

National Instruments PXI-6534 PXI Digital I/O Module
The National Instruments PXI-6534 (Part number: 778288-01) is a fast, 32-bit, parallel computerized I/O interface, perfect for interfacing to 5V TTL/CMOS devices. It performs pattern I/O and fast data transfer utilizing an extensive variety of handshaking conventions at speeds up to 80 MB per second. The NI PXI-6534 Digital I/O Module conveys computerized I/O combined with huge locally available memory. It highlights client characterized power-up states, start and stop triggering, pattern matching, and change detection. The user can operate the 32 lines as exclusively configurable single-line I/O or as 8, 16, or 32-bit ports for pattern I/O and handshaking. The device is equipped with 32 channels with a maximum rate of 20 MHz. The PXI-6534 has the dimensions 6.4 x 3.9 in.
The device operates using the NI-DAQ driver software, which is made available with the product and which is compatible with any NI application software or application development environment (ADE) of your choice. ADEs such as LabVIEW, LabWindows/CVI, and Measurement Studio—any of the three are highly recommended as they reduce the time required to acquire data or develop the application. The device can be automatically configured using the Measurement & Automation Explorer (MAX) tool.
On the PXI-6534, the 32 digital I/O lines are separated into four 8-bit ports. For pattern I/O or handshaking, the ports can be gathered into two 8-bit or 16-bit groups or a single 32-bit group. When they are conï¬gured for output, every data line can sink or source up to 24 mA when set as logic low or high, respectively. When they are conï¬gured as inputs, the PXI-6534 data lines are diode-terminated to dampen the input signals at TTL levels. When performing static or unstrobed I/O, the user can exclusively conï¬gure each of the 32 I/O lines as input or output. With pattern I/O, the user can input or output patterns under the timing control of a clock signal. When utilizing handshaking I/O to interface the NI PXI-6534 digital I/O module to a peripheral gadget, data is transferred when both the NI PXI-6534 and the peripheral are prepared. The device has a 68-pin male SCSI-II I/O connector type.
The PXI-6534 is no longer available directly from the manufacturer National Instruments, but the PXI Digital I/O module will remain available in perpetuity with Apex Waves!
| Model | PXI-6534 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778288-01 |
| Type | PXI Digital I/O Module |
| Channels | 32 |
| Maximum Rate | 20 MHz |
| Voltage Levels | 5 V TTL/CMOS |
| Change-Detection Resolution | 150 ns |
| RTSI Trigger Lines | 7 |
| Operating Temp | 0 to 55 °C |
| Storage Temp | –20 to 70 °C |
| Dimensions | 6.4 x 3.9 in. (16.3 by 9.9 cm) |
| I/O Connector | 68-Pin Male SCSI-II Type |
| Warranty | 2-3 Year Warranty |
| PXI-6534 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-6534:
National Instruments PXI-6534 Frequently Asked Questions
Question: What is the change-detection resolution of the NI PXI-6534?
Answer: The Digital I/O Module has a change-detection resolution of 150 ns.
Question: What is the power requirement at +5 VDC?
Answer: The PXI-6534 has a power requirement of 2.0 A at +5 VDC.
Question: What is the power-on state for the output channels on the PXI-6534?
Answer: The power-on state for the output channels is high-impedance, with the capability to be pulled up or down.
Question: What is the absolute maximum input voltage range for the NI PXI-6534?
Answer: The absolute maximum input voltage range is -0.3 to 5 V.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SH68-68-D1 (Shielded Recommended) | 183432-01 (1 m) |
| 183432-02 (2 m) | ||
| 183432-05 (5 m) | ||
| 183432-0R4 (0.4 m) | ||
| Screw Terminal Block (Shielded) | SCB-68A | 782536-01 |
| Screw Terminal Block (Unshielded, DIN Rail Mount) | CB-68LP | 777145-01 |
| CB-68LPR | 777145-02 | |
| Screw Terminal Block (Unshielded) | TBX-68 | 777141-01 |
* Direct Feedthrough Mode must be used to configure the SCB-68 / SCB-68A.
PXI-6534 PDF Manuals
PXI-6534-LETTER-OF-VOLATILITY.PDF
ARCHIVED--NI-6533-6534-SPECIFICATIONS.PDF
ARCHIVED--NI-653X-USER-MANUAL-FOR-TRADITIONAL-NI-DAQ.PDF
ARCHIVED--NI-DAQ-USER-MANUAL-FOR-PC-COMPATIBLES.PDF
ARCHIVED--TRADITIONAL-NI-DAQ-USER-MANUAL.PDF
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST--NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
GUIDE-D_INITIATION-DAQ-POUR-PXI-PXI-EXPRESS.PDF
NI-PXI-6534-LETTER-OF-VOLATILITY.PDF
C3A0-LIRE-EN-PREMIER---GUIDE-DE28099INSTALLATION-DE-NI-DAQMX-ET-DES-PC3A9RIPHC3A9RIQUES-DAQ.PDF
