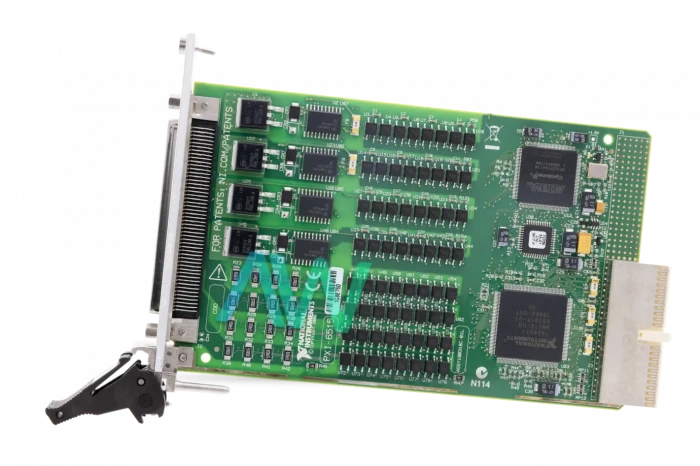

PXI-6515 National Instruments Digital I/O Module | Apex Waves | Image

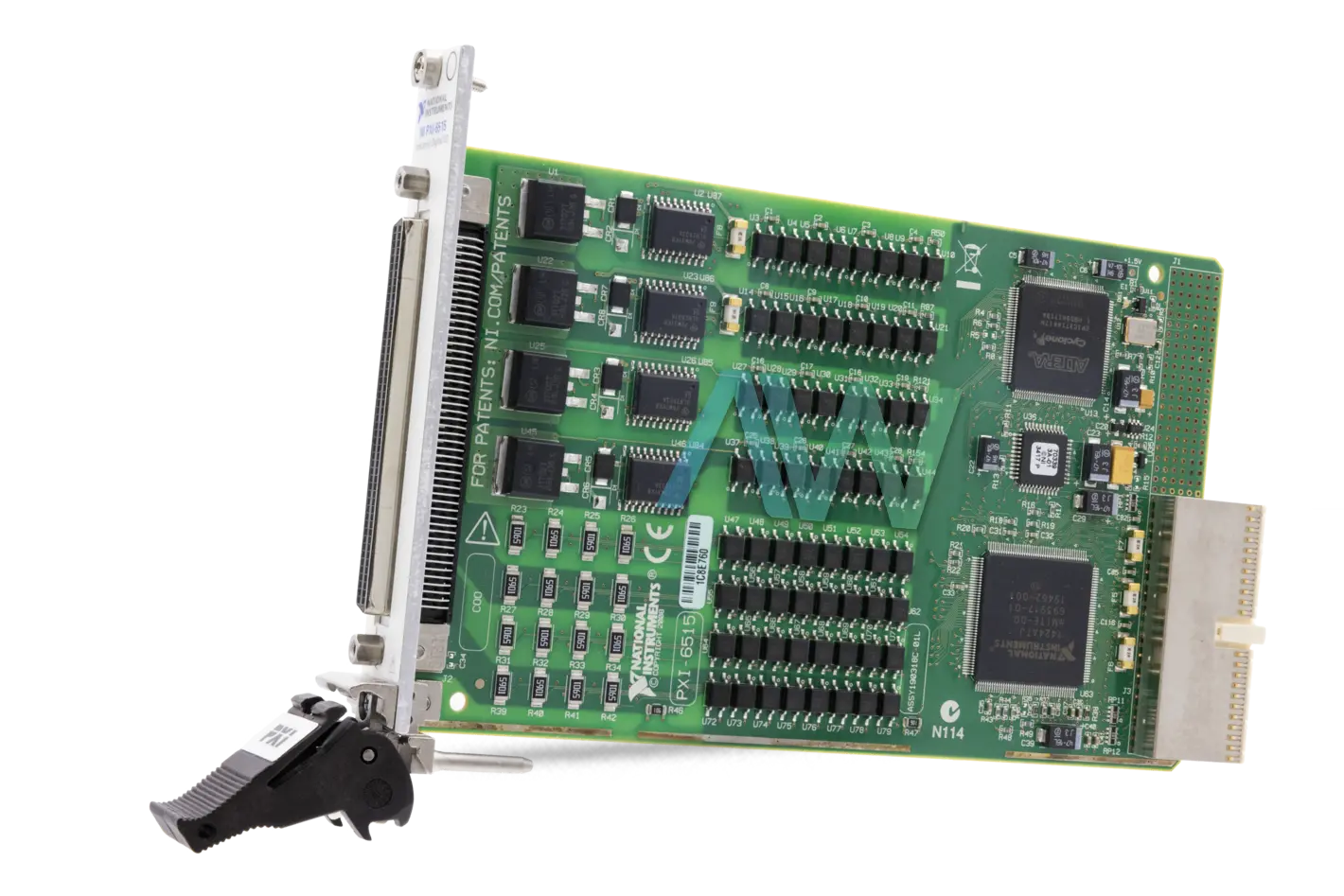

PXI-6515 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6515 New
PXI-6515 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

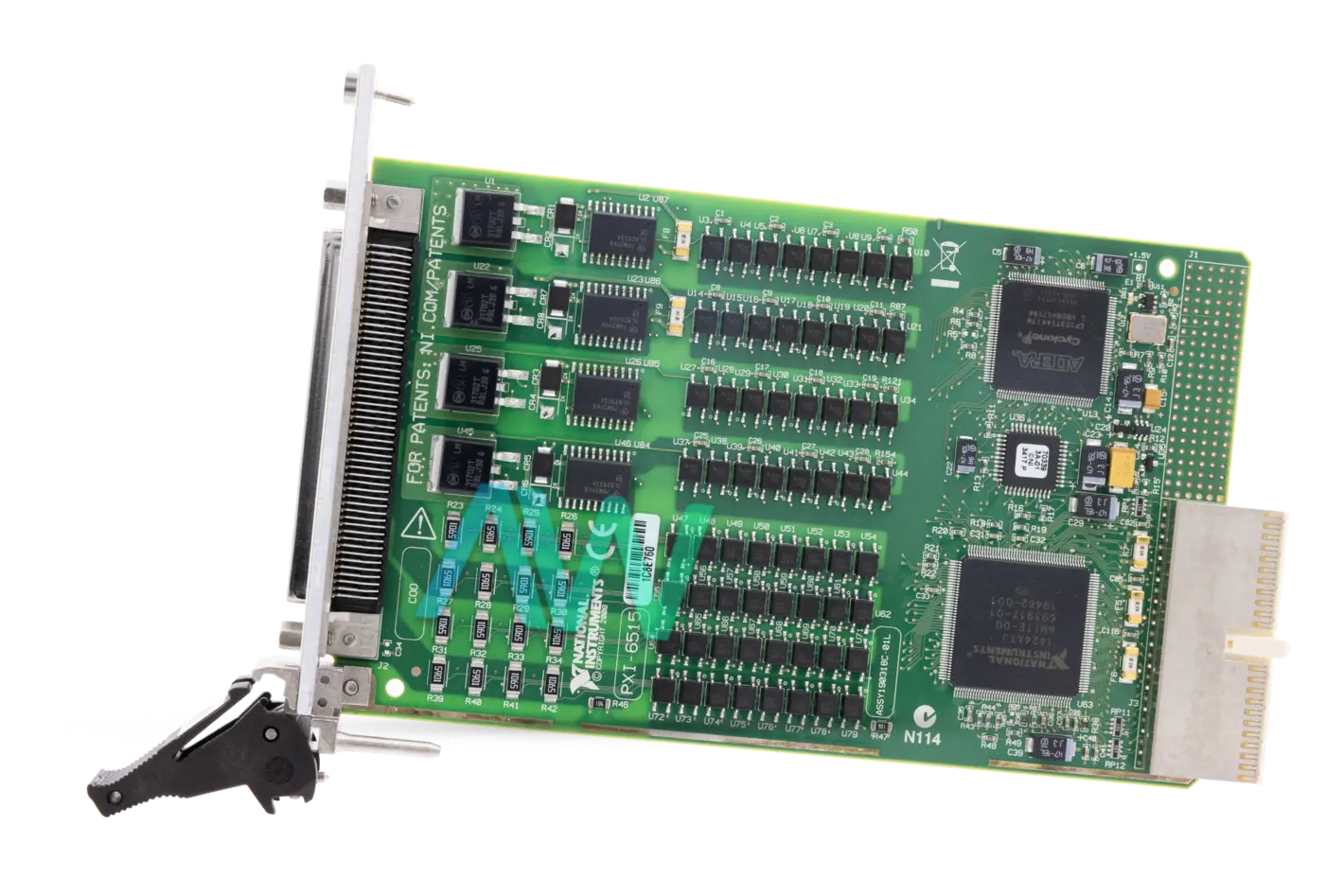

PXI-6515 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6515 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6515 New
PXI-6515 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6515 PXI Digital I/O Module

The PXI-6515 (Part Numbers: 778964-01, 190318C-01L) is a 64-channel, ±30 VDC, PXI digital I/O module with eight isolated channels (eight banks). The user can wire each input bank in a sink or source configuration. This module is an industrial digital I/O interface featuring programmable power-up states, enabling the user to set up the initial output states to guarantee safe operation when coupled to industrial actuators. To ensure reliable recovery from fault conditions, the digital I/O watchdogs of the PXI 6515 can automatically switch to a secure output state.

The NI PXI-6515 features 32 source/sink inputs and 32 sink outputs. This model comes with a 100-pin keyed female SCSI D-Type connector, which connects to shielded cables or 100-pin ribbon cables. This module offers 125 mA for all channels per port, 500 mA for one channel per port, and 24 V logic thresholds. Programmable input filters, high-current drive, programmable power-up states, and input filters are a few of its features worthy of being mentioned. The programmable input filters on this model can be used for removing noise and eliminating spikes/glitches. The integrated NI-DAQmx measurement services software can be used to program the NI digital I/O device in different software environments.

This low-cost yet efficient industrial digital I/O module is fully compatible with a broad range of software programs such as LabVIEW, VISUAL C#, Visual Studio.NET, Measurement Studio, LabWindows/CVI, ANSI C/C++, etc. This model is compatible with Microsoft Windows XP and Windows Vista x64/x86. The PXI-6515 provides ample protection against fault conditions like PCI bus failure, application crash, driver crash, and computer crash (total OS crash).

ModelPXI-6515
ManufacturerNational Instruments
Part Numbers778964-01, 190318C-01L
TypePXI Digital I/O Module
Inputs32 source/sink
Outputs32 sink
Connector Type100-pin keyed female SCSI
Maximum Input Voltage30 VDC
Warranty2-3 Years
PXI-6515 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a quote

Associated part numbers for PXI-6515:

National Instruments PXI-6515 Frequently Asked Questions



Question: Is there a way to pick up on computer programming or application errors with the PXI 6515?

Answer: The PXI 6515 has a digital I/O watchdog to detect computer or application errors and ensure safe recovery.



Question: Does the NI PXI-6515 work with industrial sensors or actuators?

Answer: Yes, the NI PXI-6515 has a direction connection to industrial sensors and actuators.



Question: How can I use the NI PXI 6515 to eliminate glitches?

Answer: The NI PXI 6515 has programmable input filters to eliminate glitches and spikes.
