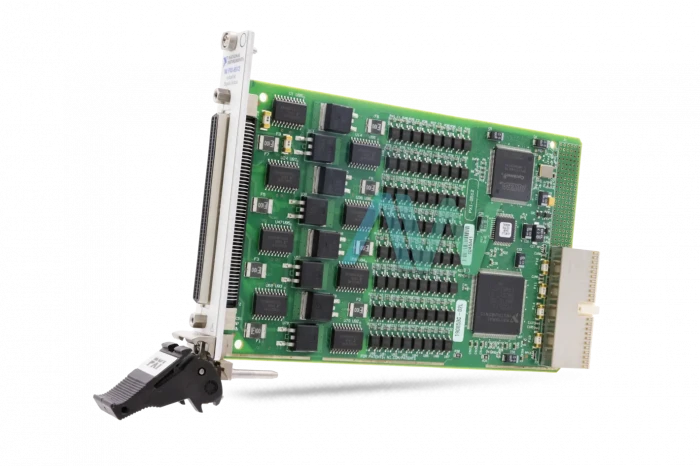

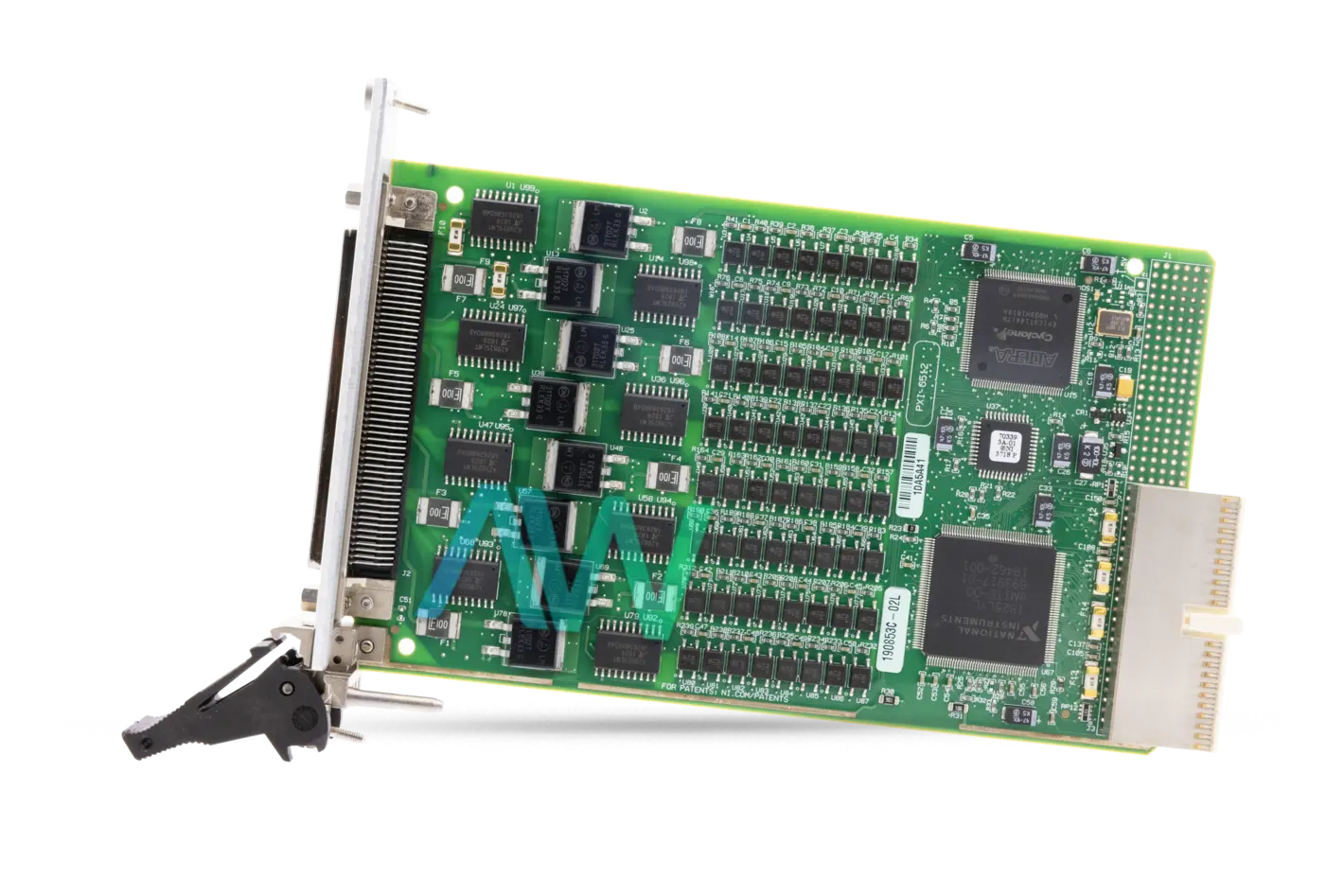

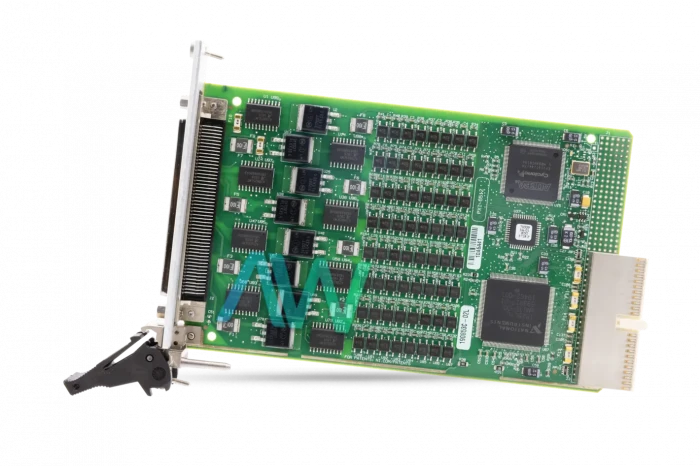

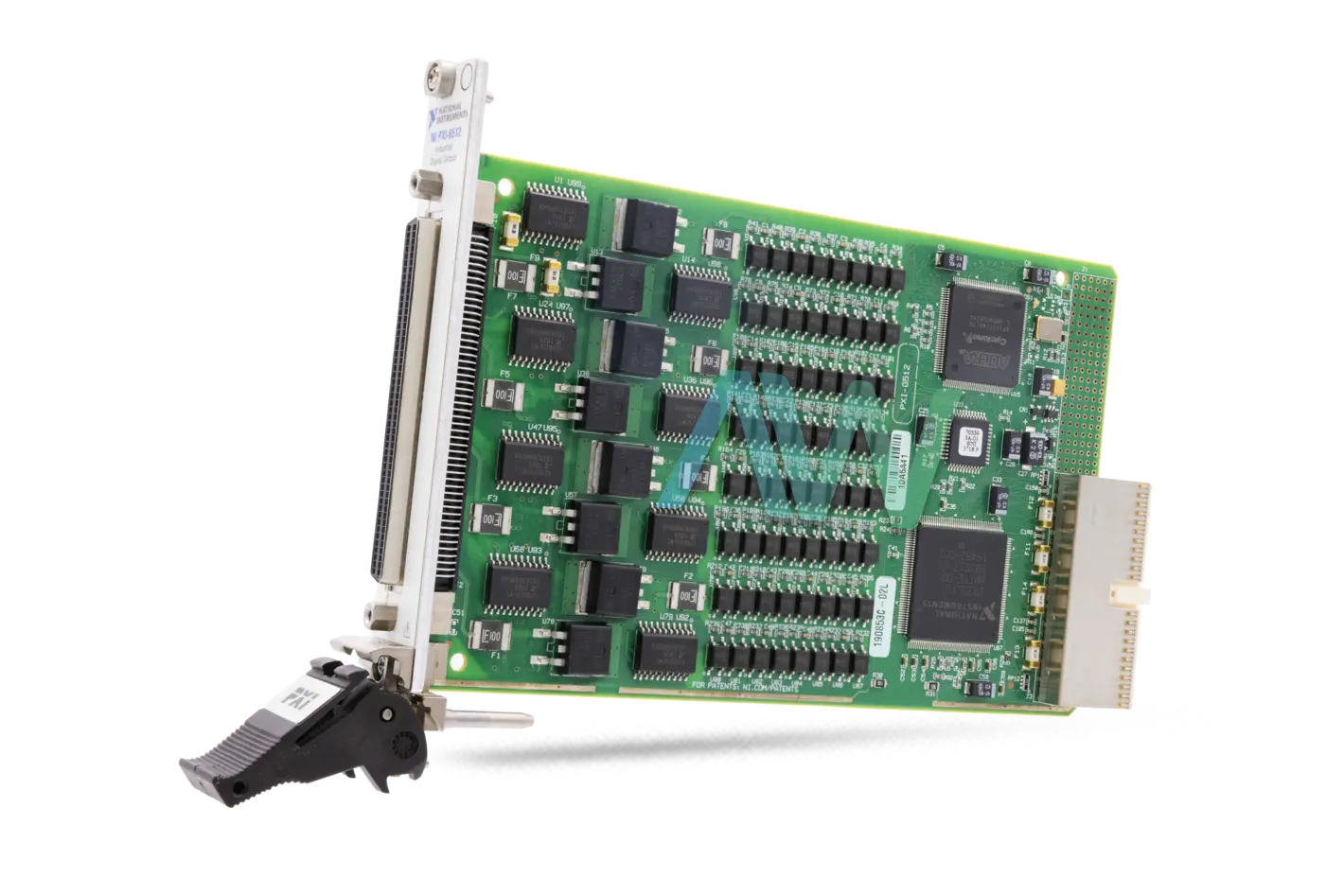

National Instruments PXI-6512 PXI Digital I/O Module
The National Instruments PXI-6512 (Part Number: 778969-01) is a ±30 VDC, 64-channel, bank-isolated, and source-output PXI digital input/output module. This model offers programmable power-up states, enabling the user to configure a safe startup output state when connected to industrial process actuators. Moreover, the NI PXI 6512 can switch to a predefined safe output state by using its digital watchdogs if an application or computer fault occurs. At power-up, this module operates with all of its output drives disabled. To ensure its power-up in a known state, the user can have all output lines configured for an on or off state. The device has an output voltage range of 0 V to 30 V and digital I/O logic levels of 24 V.
This digital I/O module can detect changes and trigger a change detection when any change occurs. The National Instruments PXI-6512 comes featured with a software-configurable watchdog timer as well. This time can be used to define critical outputs to fail-safe states in the event of a system crash, a software failure, or another case of communication failure between the module and the application. With the watchdog timer enabled, the PXI-6512 will deny receiving any watchdog reset software commands within the specified period until it gets unarmed by the applications.
The outputs in the individual bank of the NI PXI-6512 are isolated from all other bank outputs from the computer power supply and the PX. GND pins and +5 V pins in other banks. However, all lines from the same output bank utilize the same ground and common power, while the isolated photocouplers ensure isolation.
The PXI-6512 is run using the NIDAQmx driver software, which can be programmed using software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVI. It has a power requirement of +5 VDC at 250 mA and +3.3 VDC at 300 mA.
The NI device weighs 4.8 oz and measures 8.38 x 5.12 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and –20 °C to 70 °C, respectively, and operating and storage humidity ranges of 10% to 90% and 5% to 95%, respectively.
| Model | PXI-6512 (778969-01) |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Digital I/O Module |
| Digital Output Channels | 64 |
| Output Voltage Range | 0 V to 30 V |
| Digital I/O Logic Levels | 24V |
| Dimensions | 8.38 x 5.12 in. |
| Weight | 4.8 oz. |
| Warranty | 2-3 Years |
| PXI-6512 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a quote |
Associated part numbers for PXI-6512:
National Instruments PXI-6512 Frequently Asked Questions
Question: What is the single-ended digital I/O channel current drive of the NI PXI-6512?
Answer: The single-ended digital I/O channel current drive is 350 mA for the NI PXI-6512.
Question: What is the propagation delay for the NI PXI 6512?
Answer: The propagation delay for the NI PXI 6512 is 75 μs, typical.
Question: What type of I/O connector is on the PXI-6512?
Answer: The PXI-6512 has a 100-pin keyed female SCSI I/O connector.
Question: What is the programmable power-up state’s response time on the PXI-6512?
Answer: The programmable power-up state’s response time on the PXI-6512 is 400 ms.
