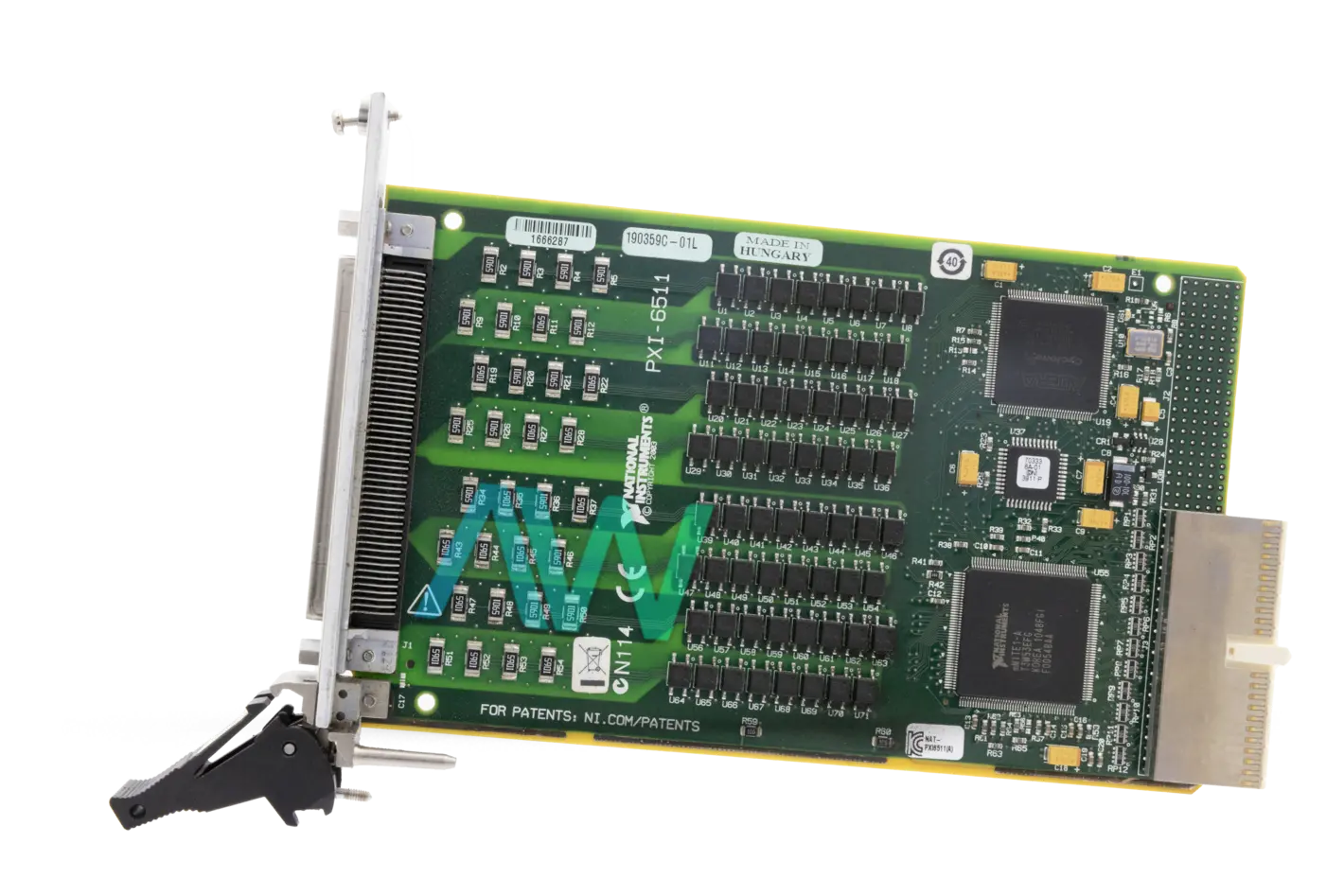

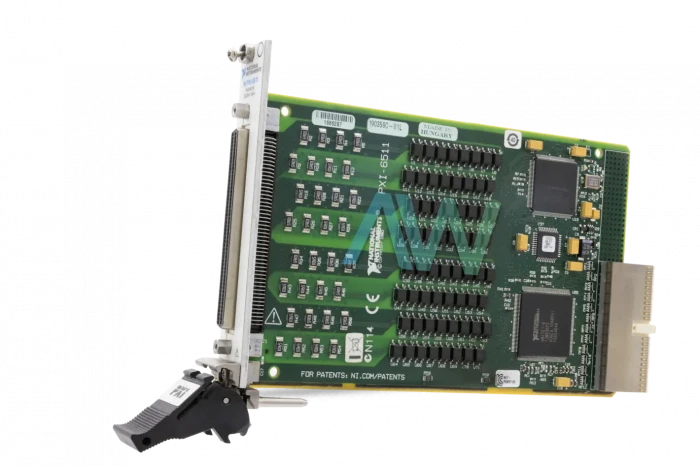

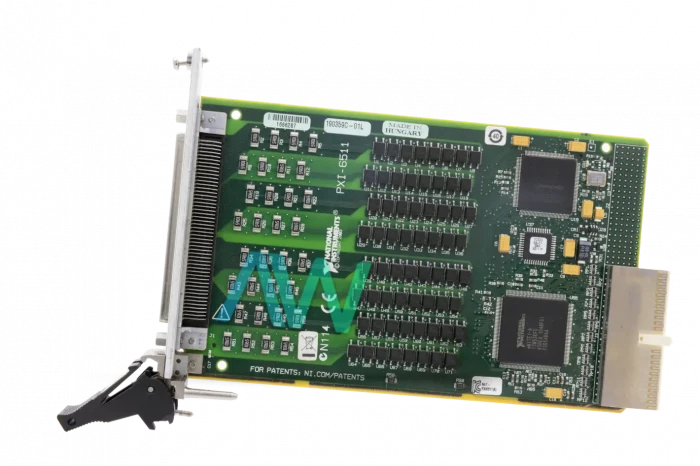

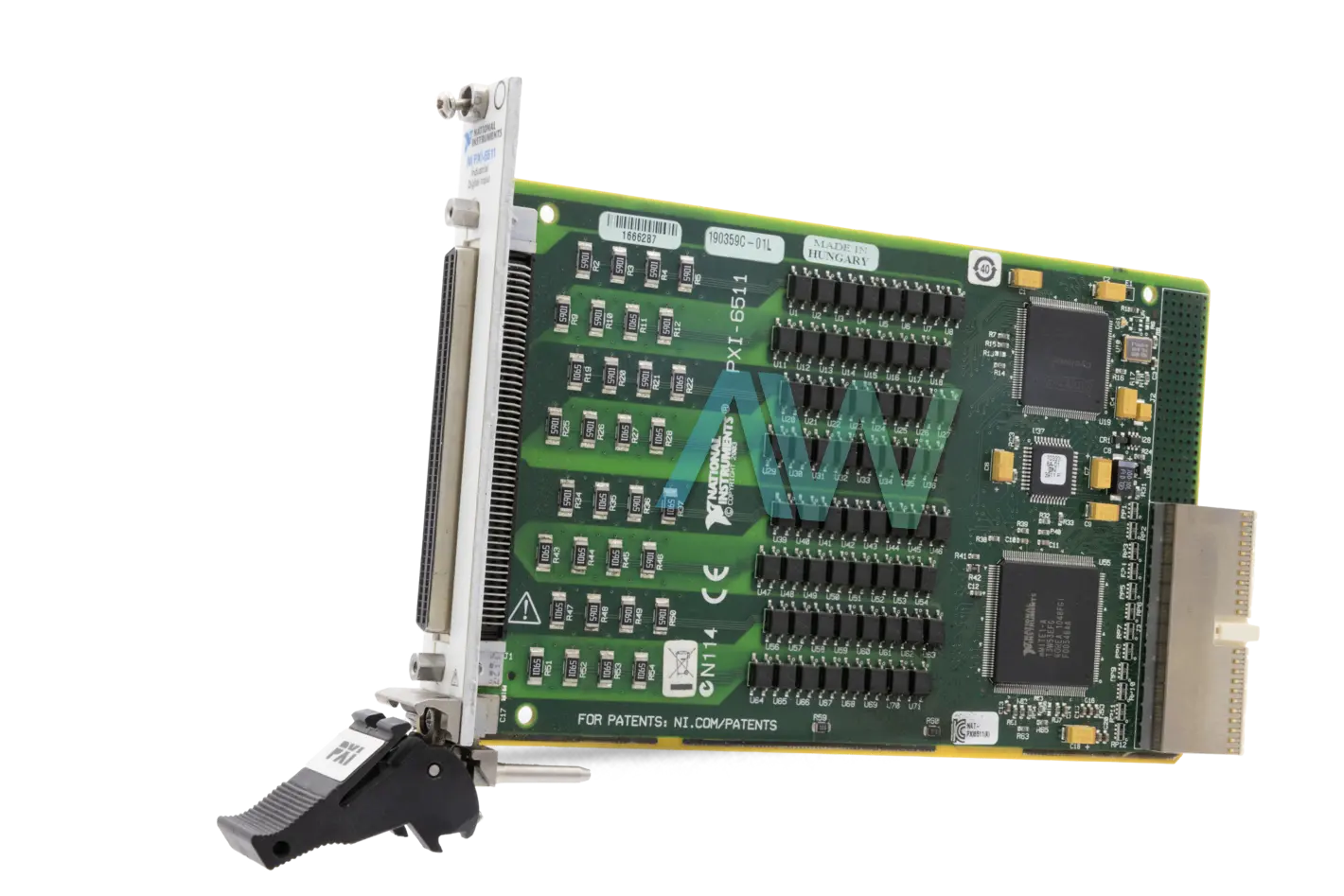

PXI-6511 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6511 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6511 New
PXI-6511 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-6511 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6511 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6511 New
PXI-6511 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6511 Digital I/O Module

The National Instruments PXI-6511 (Part Number: 778967-01) is a 64-channel, bank-isolated, sink/source inputs, ±30 VDC PXI-based digital I/O module. It has a digital input voltage range of -30 V to 30 V and digital I/O logic levels of 24 V. This model is designed to be utilized as an industrial-grade digital I/O interface with eight banks of completely isolated channels. If a software application- or hardware (computer)-related fault occurs, the PXI-6511 can use the integrated, digital I/O watchdogs to trigger switchover to a user-configured safe output state to ensure detection and recovery from fault conditions safely. In addition, the programmable input filters eliminate spikes and provide sufficient damping for digital relays/switches by means of a software-selectable digital filter.

This module comes equipped with a high-density 100-pin keyed female SCSI connector that provides access to the digital inputs. The input lines on the National Instruments PXI-6511 consist of input photocouplers. These photocouplers react to both the voltage differential and voltage increase. With this module, the user can configure power-up states as required, ensuring device power-up in a predefined, known state. The user can have the power-up states defined simply by using the Measurement & Automation Explorer (MAX) tool. To eliminate glitches/spikes on the input lines, this model offers a digital filtering option. Filtering can also minimize the number of changes when it is used with the change detection feature.

The PXI-6511 is run using the NIDAQmx driver software, which can be programmed with software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVI.

The NI PXI-6511 also allows the user to configure the digital I/O channels to pass across a digital filter stationed after the photocouplers. In addition, the user can define and control the timing interval the digital filter uses.

The NI device weighs 4.8 oz and measures 8.38 x 5.12 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55°C and -20 to 70°C, respectively; operating and storage humidity ranges of 10 to 90% and 5 to 95%; and operating and non-operating random vibrations of 0.3 grms and 2.4 grms, respectively—all at a frequency range of 5 to 500 Hz.

ModelPXI-6511 (778967-01)
ManufacturerNational Instruments
TypePXI Digital I/O Module
Digital Input Channels64
Digital Input Voltage Range-30 V to 30 V
Digital I/O Logic Levels24V
Dimensions8.38 x 5.12 in.
Weight4.8 oz.
Warranty2-3 Year Warranty
PXI-6511 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a quote

Associated part numbers for PXI-6511:

National Instruments PXI-6511 Frequently Asked Questions



Question: What type of signaling does the PXI-6511 have?

 Answer: The PXI-6511 has single-ended signaling.



Question: What is the common-mode isolation on the NI PXI-6511?

Answer: The common-mode isolation on the NI PXI-6511 is 30 VDC (bank-to-bank and bank-to-bus).



Question: How many isolated outputs does the PXI-6511 have?

Answer: The PXI-6511 does not have any isolated outputs.



Question: What is the programmable power-up state’s response time on the NI PXI-6511?

Answer: On the NI PXI-6511, the programmable power-up state’s response time is 400 ms.
