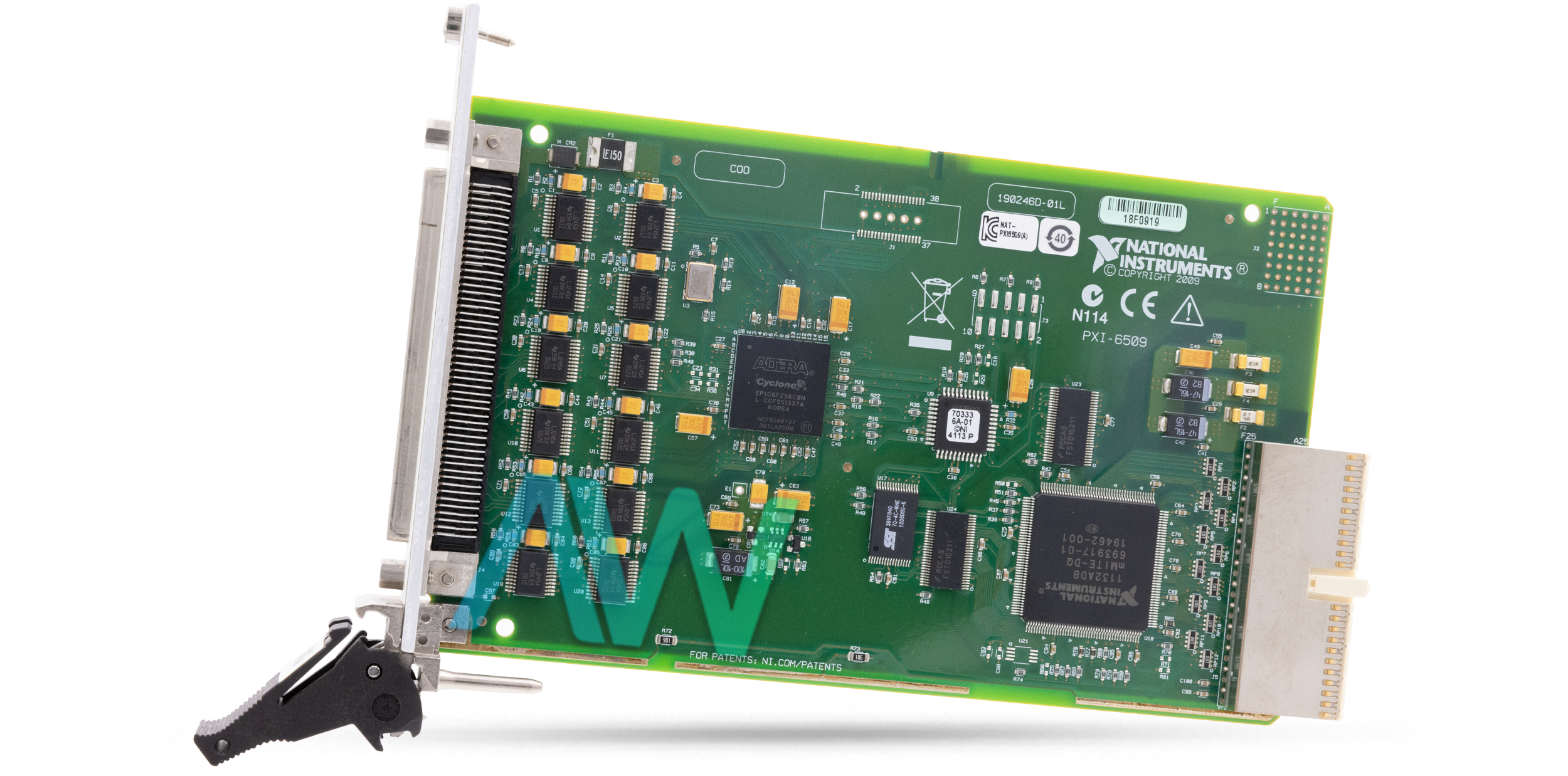

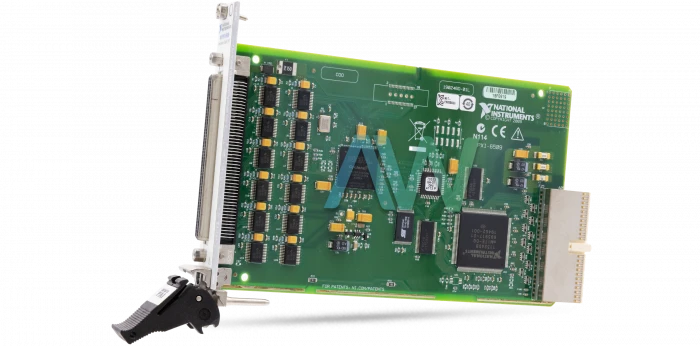

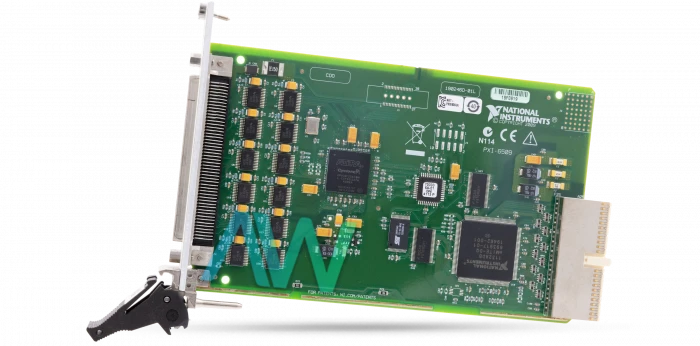

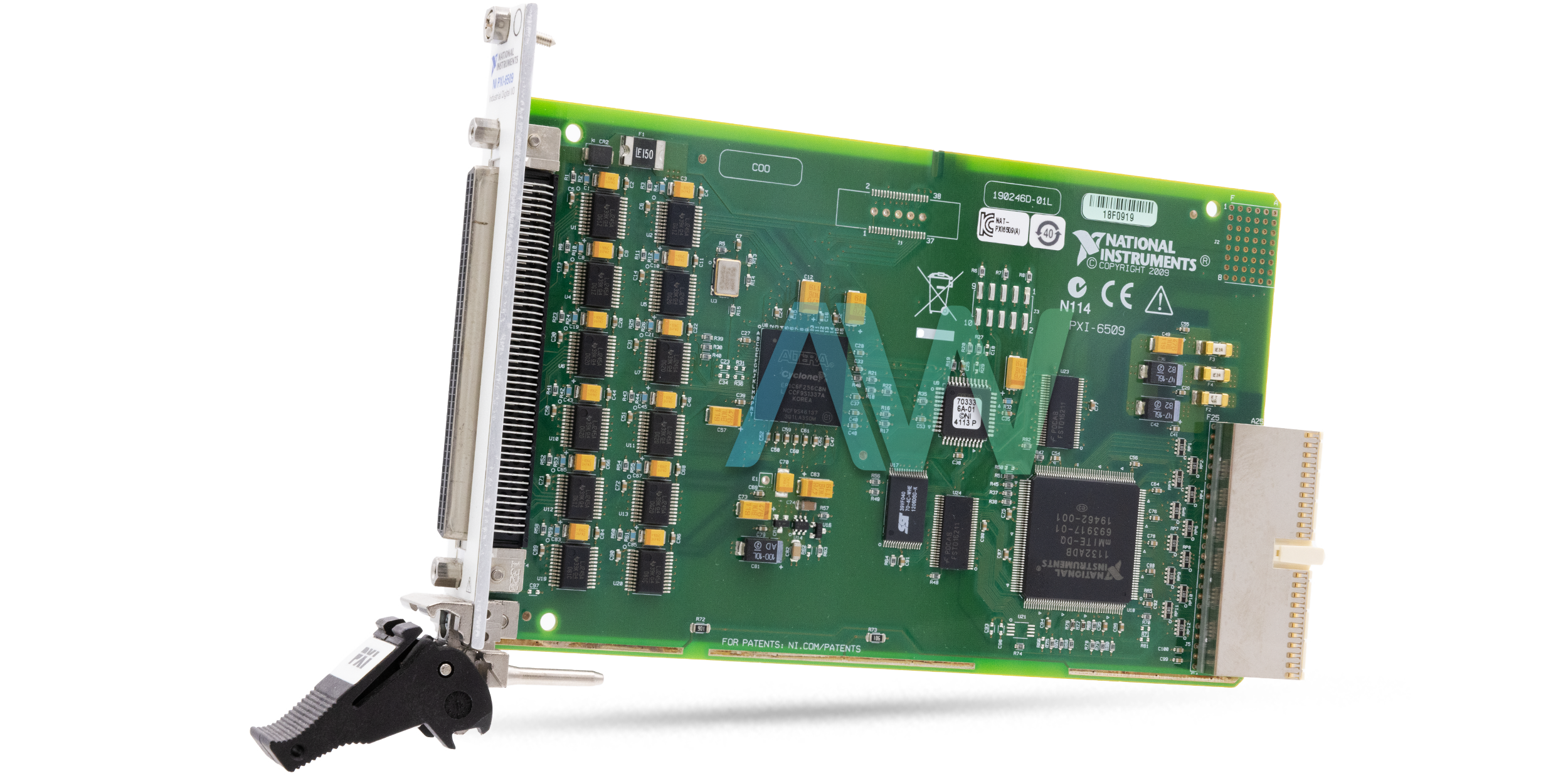

PXI-6509 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6509 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6509 New
PXI-6509 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PXI-6509 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6509 National Instruments Digital I/O Module | Apex Waves | Image
PXI-6509 New
PXI-6509 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PXI-6509 PXI Digital I/O Module

The PXI-6509 (Part Number: 778858-01) The Digital I/O Module by National Instruments has 96 digital I/O lines, single-ended signaling, a 0 V to 5 V output voltage range, a digital input voltage range of -0.5 V to 5.5 V, and 5 V digital I/O logic levels. Each of the 96 DIO lines can be utilized as a static digital input (DI) or digital output (DO) line. A few of the digital output applications for the PXI-6509 include driving external models and transporting TTL signals. Several of the digital input applications for the NI PXI-6509 are sensing external models and receiving TTL signals.

The PXI-6509 Digital I/O Module comes equipped with a watchdog timer, digital filtering, change detection, and various other features. Digital filtering can be implemented to eradicate errors in input information. If this feature is used with change detection, then digital filtering can additionally decrease the amount of modifications to assess and process. Digital filtering is permitted on however many input lines are required for the user’s application. The timing interval range for these lines is from 400 ns to 200 ms. When utilizing the change detection feature, it is important to recognize that a high number of change detections can decrease the system’s performance levels. Therefore, digital filtering can be utilized to reduce the noisy input lines. The NI device is equipped with a 100-pin female 0.050 series SCSI I/O connector.

The PXI 6509 is run using the NI-DAQmx driver software, which is compatible with software packages like LabVIEW, LabWindows/CVI, or Measurement Studio. The device hardware is configured using MAX.

The NI PXI-6509 Digital I/O Module can only be operated with shielded cables and accessories. These include an SCB-100 connector block, CB-50 connector block, and CB-50LP connector block. These cables and accessories guarantee the PXI-6509 will comply with the EMC standards specified in the PXI-6509 user manual. The device has a power consumption value of 375 mA typical at +3.3 VDC and 250 mA typical at +5 VDC. A disk drive power connection can be installed in order to boost the power supply on the +5 V terminal if desired.

The NI device weighs 6.1 oz and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C and a storage temperature range of –20 °C to 70 °C. Additional specification information for the PXI-6509 can be found in the user manuals and datasheets under the "Manuals & PDFs" tab.

Apex Waves will continue to buy, sell, and repair EOL NI hardware in perpetuity. While the PXI-6509 is no longer available from National Instruments, it will remain available with Apex Waves. Request your quote today!

ModelPXI-6509
ManufacturerNational Instruments
Part Number778858-01
SeriesDIO Series
TypePXI Digital I/O Module
Digital Channels96
Digital Input Voltage Range-0.5 V to 5.5 V
Power Requirements375 mA on +3.3 VDC
250 mA on +5 VDC (Typical)
I/O Connector100-Pin Female 0.050 Series SCSI
Data TransfersInterrupts, Programmed I/O
Power-On StateInput High-Z (Default), Output 1 or 0
Noncondensing Relative Humidity Range10% to 90% (Operating)
5% to 95% (Storage)
Operational Shock30 g Peak, Half-Sine, 11 ms Pulse
Operating Temp Range0 °C to 55 °C
Storage Temp Range–20 °C to 70 °C
Dimensions6.3 in. × 3.9 in. (16.0 cm × 10.0 cm) without Connectors
Weight6.1 oz. (172.9 g)
Warranty2-3 Years
PXI-6509 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote

Associated part numbers for PXI-6509:

National Instruments PXI-6509 Frequently Asked Questions



Question: Can the PXI-6509 output LVTTL logic?

Answer: No, the Digital I/O Module is not created for LVTTL.



Question: Which driver software should I use for the NI PXI-6509?

Answer: The driver software is NI-DAQmx 7.1 or later.



Question: Can the PXI-6509 be cleaned if needed?

Answer: The best way to clean the module is with a soft, nonmetallic brush. Ensure the DIO device is completely dry and free from contaminants prior to operating it again.



Question: What type of signals does the digital I/O module have?

Answer: The PXI-6509 has single-ended signals.



Question: Where can I find the PXI-6509 pinout?

Answer: Official NI documentation and manuals can be found under the "Manuals & PDFs" tab.



Question: What type of I/O connector does the PXI-6509 use?

Answer: The Digital I/O Module has a 100-pin SCSI female I/O connector from the 0.050 series



Question: What is the operational shock of the module?

Answer: The PXI-6509 has an operational shock of 30 g peak at half-sine with 11 ms pulse
