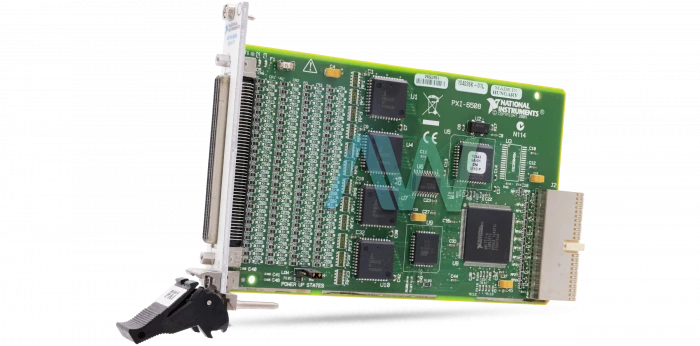

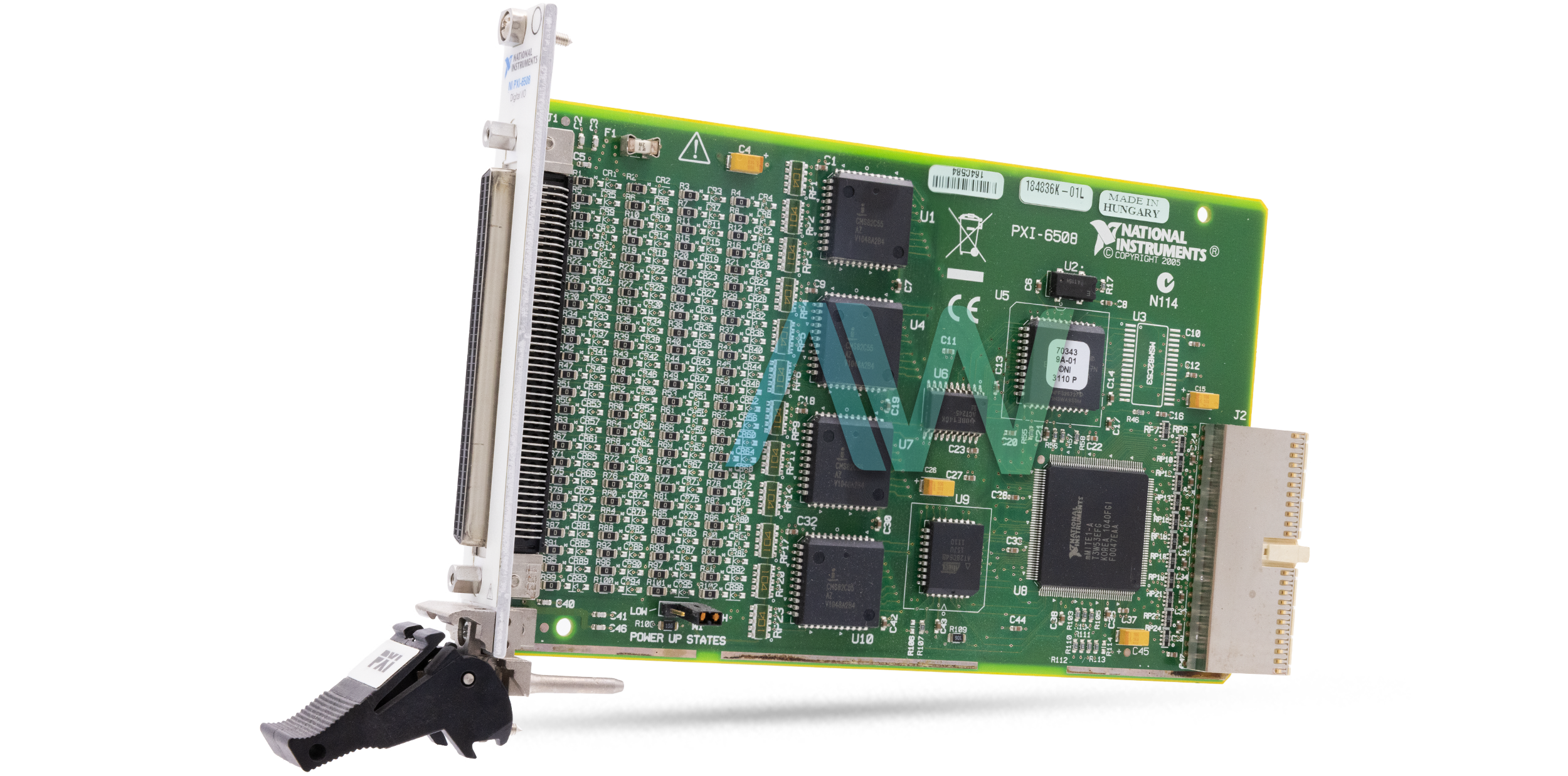

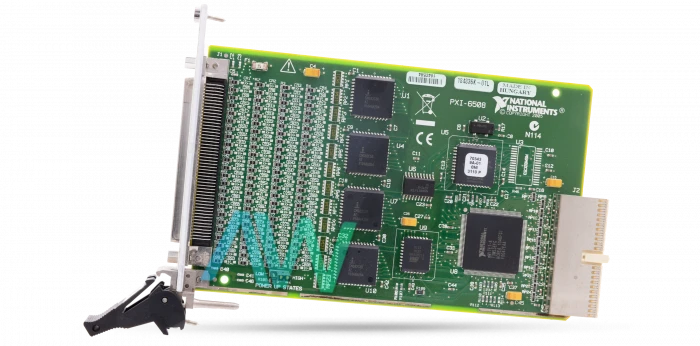

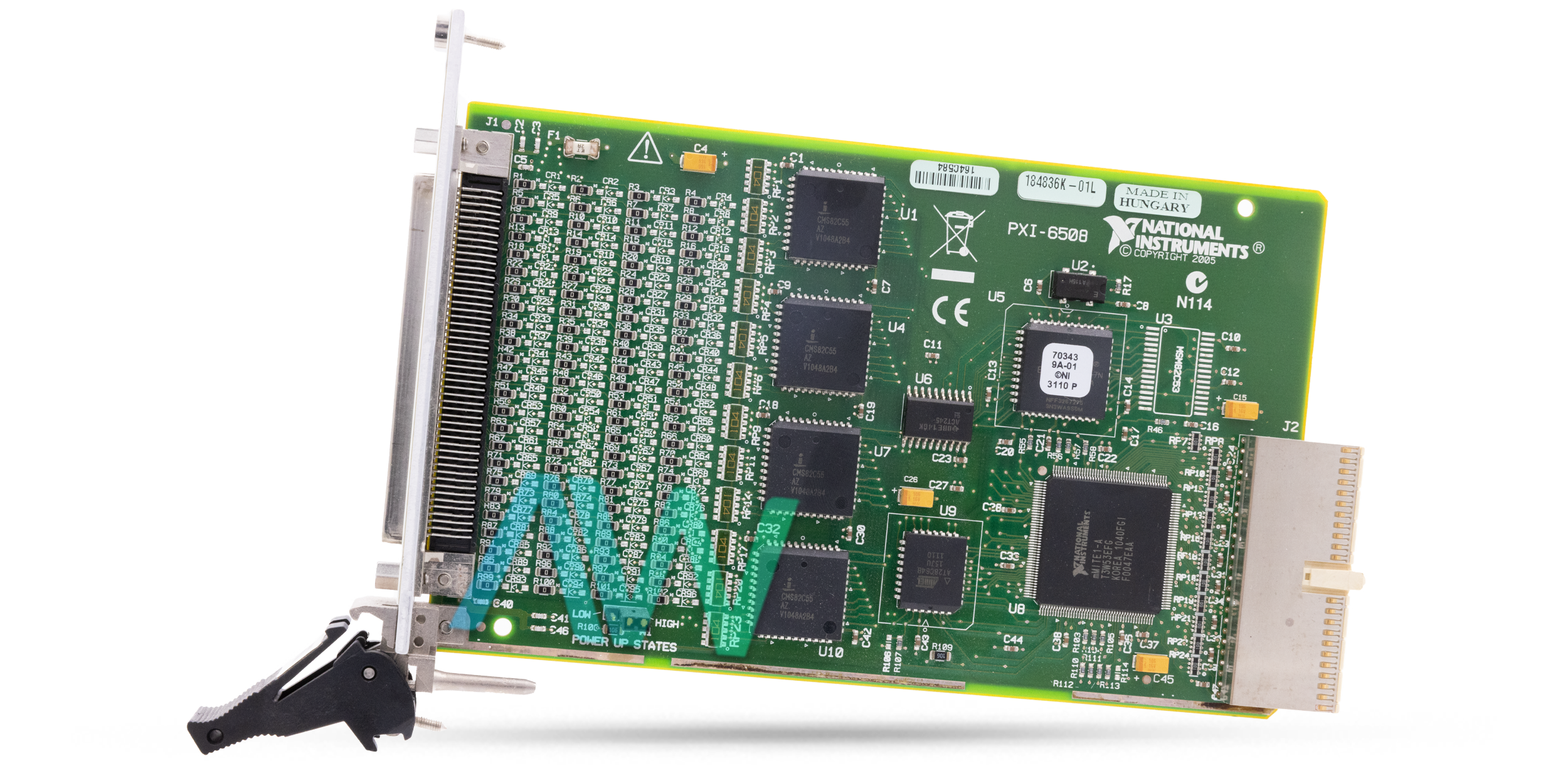

National Instruments PXI-6508 Digital I/O Module
The National Instruments PXI-6508 (Part Number: 777598-01) is a 2.5 mA, 5 V TTL/CMOS, 96-Channel PXI Digital I/O Module. By type, the PXI-6508 is a member of the NI PXI family of expansion boards for CompactPCI and PXI chassis. This module is created for high-performance, reliable data acquisition and utilizes four 24-bit PPIs. Each of these four programmable peripheral interfaces (PPIs) can further be divided into three 8-bit ports. The PXI-6508 comes equipped with a 0.050 series D-type, 100-pin female I/O connector. With this digital I/O module, the user can achieve 2-wire handshaking, interrupts, programmed I/O data transfers, and transfer rates up to 50 Kbytes/s with NI-DAQ software. This module is entirely software configurable and compliant with the PXI specification, Rev 1.0.
The NI PXI-6508 can interface to other computers and peripherals and can also operate in a bidirectional or unidirectional mode. This digital I/O module is considered a viable choice for applications that need onboard pull-up resistors. The National Instruments PXI-6508 Digital I/O Device contains one 82C55 Parallel Port Interface (PPI). The user can power up their PXI-6508 in a self-defined state—either low or high—as each line on this device is connected to a 100 kΩ resistor. The user can utilize a jumper to choose whether the device lines power up in the low or high state. This module is designed for 5 V TTL/CMOS I/O signals and offers 96-bit parallel DIO interfaces for PXI, PCI, and ISA. Each of the PPI controls 24 bits of DIO. It has a digital input voltage range of -0.3 V to 5.3 V and an output voltage range of 0 V to 5 V.
The PXI-6508 is run using the NIDAQmx driver software, which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. The NI device weighs 5.2 oz and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C and a storage temperature range of –20 to 70 °C.
Apex Waves will continue to buy, sell, and repair EOL NI hardware in perpetuity. While the PXI-6508 is now obsolete and no longer available from National Instruments (NI), the PXI Digital I/O Module will remain available with Apex Waves. Request your quote today!
| Model | PXI-6508 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777598-01 |
| Part Type | PXI Digital I/O Module |
| Digital Input Voltage Range | -0.3 V to 5.3 V |
| Output Voltage Range | 0 V to 5 V |
| Bidirectional Digital I/O Channels | 96 |
| Bus Interface | Slave Type |
| Power Consumption | 400 mA at +5 VDC |
| Handshaking | Input, Output, or Bidirectional |
| Operating Temp Range | 0 to 55 °C |
| Storage Temp Range | –20 to 70 °C |
| Dimensions | 6.9 x 4.2 in. (17.5 × 10.7 cm) |
| Weight | 5.2 oz. (148 g) |
| Warranty | 2-3 Years |
| PXI-6508 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for PXI-6508:
National Instruments PXI-6508 Frequently Asked Questions
Question: What type of I/O connector does the PXI-6508 have?
Answer: The Digital I/O Module has a 100-pin female 0.050 series D-type I/O connector.
Question: What is the module's digital I/O logic level?
Answer: The NI PXI-6508 has a digital I/O logic level of 5V.
Question: What is the single-ended digital I/O channel current drive?
Answer: The PXI-6508 has a single-ended digital I/O channel current drive of 2.5 mA.
Question: What type of signaling does the NI PXI-6508 have?
Answer: The module has single-ended signaling.
PXI-6508 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-65XX-PINOUT-LABEL-FOR-THE-SCB-100A-NOTE-TO-USERS.PDF
NI-65XX-PINOUT-LABELS-FOR-THE-SCB-100-NOTE-TO-USERS.PDF
NI-PXI-6508-LETTER-OF-VOLATILITY.PDF
PCI-DIO-96-PXI-6508-PCI-6503-USER-MANUAL.PDF
PXI-6508-LETTER-OF-VOLATILITY.PDF
PXI-6508 Diagrams
