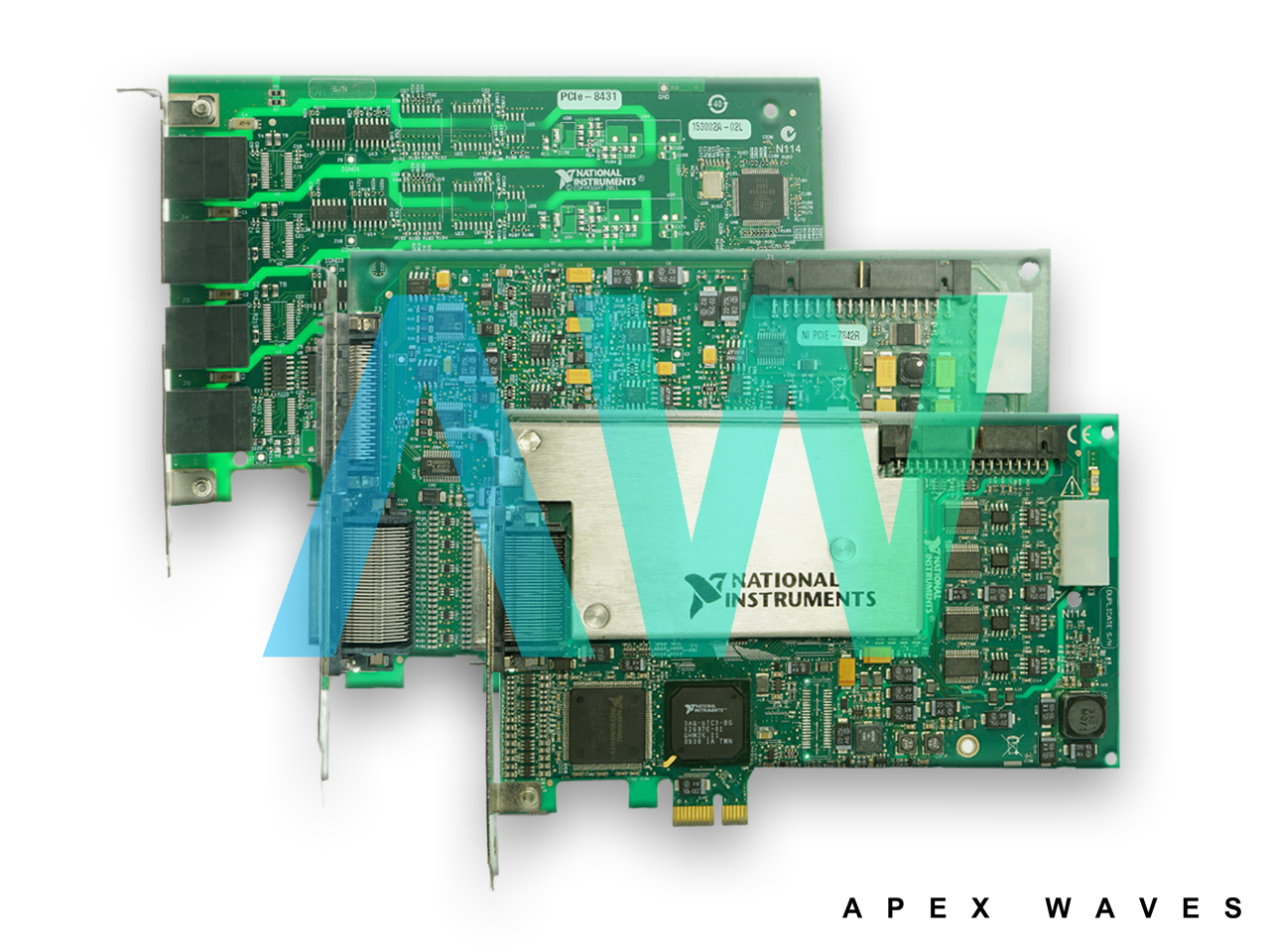

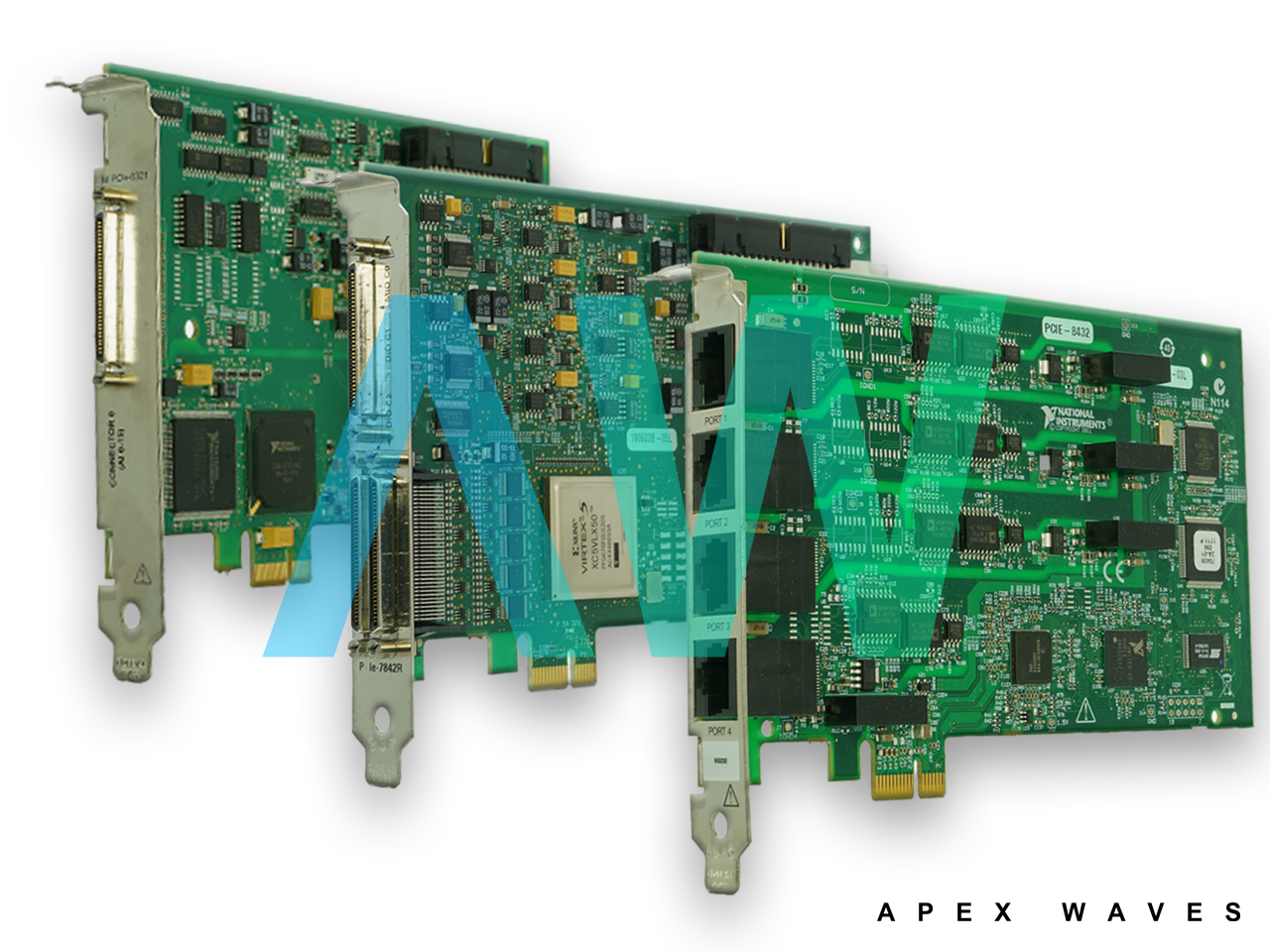

PCIe-6537B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6537B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6537B New
PCIe-6537B Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCIe-6537B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6537B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6537B New
PCIe-6537B Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCIe-6537B Digital I/O Device

The PCIe-6537B (Part Numbers: 782631-01, 153500A-03L) is an efficient Digital I/O Device designed by National Instruments. Equipped with 32 data channels, the PCIe-6537B features various options for digital inputs and outputs for PC-based systems. These channels can stream continuous data and boast per channel direction control. While the module does not have dedicated input or output channels, it does has six PFI channels. The total power of the PCIe-6537B is 6 W, and it draws in 1 A for +3.3 VDC and 225 mA for +12 VDC.

The sample timing types of the Digital I/O Device include Sample Clock, Change Detection, Handshake, Burst Handshake, and Pipelined Sample Clock. The triggering features of the PCIe-6537B include eight trigger channels that support both RTSI and PXI bus types. This device has a clock rate up to 50 MHz, and it generates signals of 2.5 and 3.3 volts. The maximum drive strength is +16 mA and +32 mA respectively. This device also has an onboard clock, with a frequency from 48 Hz to 50 MHz. The maximum toggling rate for the data channels is 25 MHz.

The PCIe-6537B Digital I/O Device supports NI-DAQmx driver software. The older versions of this software before version 9.6.1 are not supported. The NI-DAQ features a programming interface with various ADEs. Supported application software types are NI LabVIEW, NI LabWindows, and Microsoft Visual Studio.

Physically, the device measures dimensions of 7.13 in. × 0.85 in. × 4.93 in. (18.1 cm × 2.2 cm × 12.6 cm) and it weighs 3.8 oz (107.7 g). When being used, the operational temperature range spans from 0 ºC to +45 ºC. When not in use, the storage temperature range of the device is -20 ºC to +70 ºC. The relative humidity is noncondensing, and it ranges from 10% to 90% when operational and 5% to 95% when in storage. The environmental specifications of the PCIe-6537B meets IEC 60068-2-56 standards.

ModelPCIe-6537B
ManufacturerNational Instruments
Part Number782631-01, 153500A-03L
TypeDigital I/O Device
Number of Data Channels32
On Board Clock Frequency Range48 Hz to 50 MHz
Onboard Memory Size2,048 samples (S)
Power Requirements+3.3 VDC, +12 VDC - 1A, 225 mA
Power Consumption6 W
Dimensions7.13 in. × 0.85 in. × 4.93 in.
Weight0.24 lb.
Driver SoftwareNI-DAQmx Version 9.6.1 or later
WarrantyThree Year Warranty
PCIe-6537B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-6537B:

National Instruments PCIe-6537B Frequently Asked Questions



Question: Does the PCIe-6537B have selectable voltage levels?

Answer: Yes, the PCIe-6537B features selectable voltage levels.



Question: When using the NI PCIe-6537B in MATLAB, I get a blue screen. I do not have this problem when using LabVIEW or MAX. What could the problem be?

Answer: If you’re getting a blue screen when using NI PCIe-6537B in MATLAB, but not in other software programs, it sounds like there is a problem with that software. You would need to contact their manufacturer.



Question: How many channels does the PCIe-6537B have?

Answer: The PCIe-6537B is a 32-channel digital input/output device.

Accessory TypeModel NamePart Number
CableSHC68-C68-D4
(Shielded Recommended)		781013-01 (0.55 m)
196275-01 (1 m)
781293-01 (2 m)
132625-03 (3 m)
C68-C68-D4 Cable 
(Unshielded)		195949-01
SHC68-H1X38 
(Shielded, Flying Lead)		192681-1R5
Cable Adapter653x Cable Adapter195846-01
Screw Terminal Block
(Shielded)		SCB-68 HSDIO782914-01
SCB-68A782536-01
Screw Terminal Block
(Unshielded, DIN Rail Mount)		CB-2162778592-01
CB-68LP777145-01
CB-68LPR777145-02
Screw Terminal Block
(Unshielded)		TBX-68777141-01
Breakout BoxSMB-2163778747-01
---

*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.

*The SCB-68 / SCB-68A must use Direct Feedthrough Mode for configuration.
