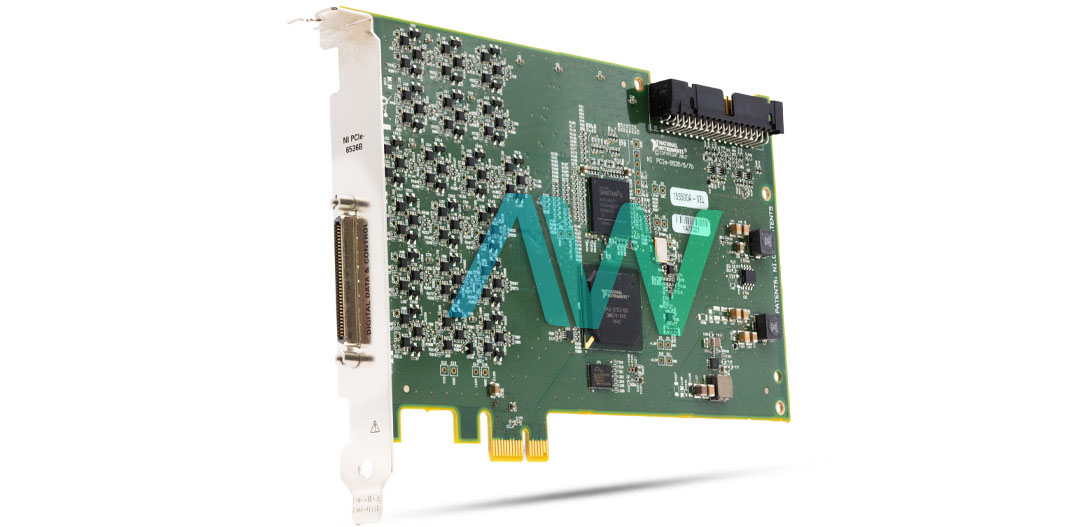

PCIe-6536B National Instruments Digital I/O Device | Apex Waves | Image

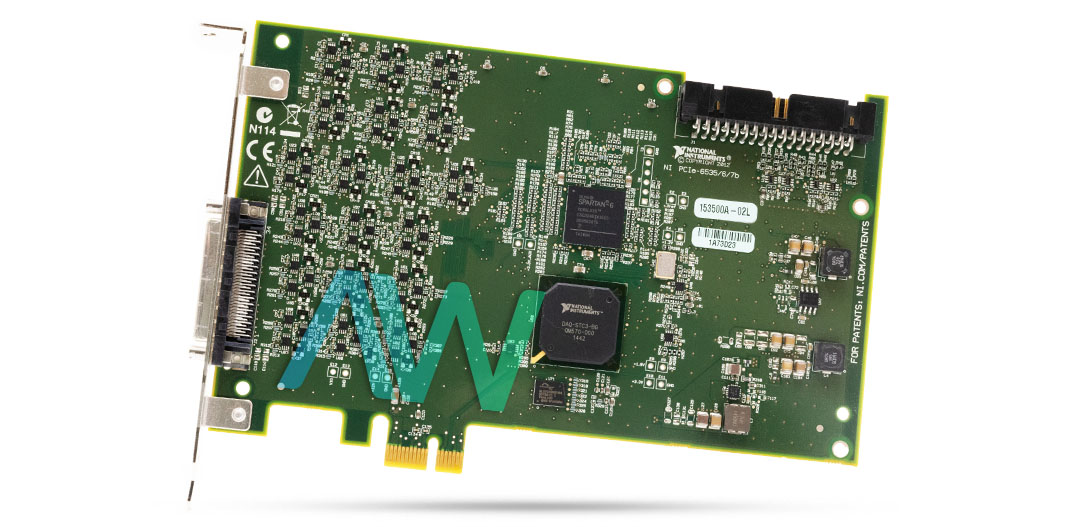

PCIe-6536B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6536B New
PCIe-6536B Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

PCIe-6536B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6536B National Instruments Digital I/O Device | Apex Waves | Image
PCIe-6536B New
PCIe-6536B Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments PCIe-6536B Digital I/O Device

The PCIe-6536B is a Digital I/O Device by National Instruments. The part number of the device is 782630-01. The PCIe-6536B is used to transfer digital signals. This device supports continuous data streaming. The PCIe-6536B uses a PCI express bus for data transfer. The PCIe-6536B is compatible with the NI Digital Waveform Editor. This feature is very useful for creating, editing, and importing digital waveforms. The PCIe-6536B can be interfaced with the NI-6533 and the NI-6534 applications. The PCIe-6536B also supports handshaking, which enables the device to support bidirectional communication. This device gives high signal integrity and impedance matching, along with immunity to noise, jitter, and glitches due to built-in filters.

The PCIe-6536B Digital I/O Device is equipped with 38 channels. 32 channels are data channels and the other six channels are PFI channels. Each channel is independently programmable. The PCIe-6536B does not feature any dedicated input only or output only channels. The current drive of the I/O channels is 32 mA.  The generation voltage levels of this device are 2.5 V and 3.3 V. The output impedance of the PCIe-6536B is 50Ω. The input impedance has a value of 50 kΩ.

The PCIe-6536B Digital I/O Device comes with a NI-DAQmx driver and LabVIEW ExpresVls software. This device is used in a variety of applications. It is ideal for high-speed and fast-streaming applications. The PCIe-6536B is used in LCD testing, digital pattern capture, and wireless protocols. This device also supports synchronization with several devices. This feature allows the device to create complex synchronized systems.

ModelPCIe-6536B
ManufacturerNational Instruments
Part Number782630-01
TypeDigital I/O Device
Number of Data Channels32
On Board Clock Frequency Range48 Hz to 25 MHz
Onboard Memory Size2,048 samples (S)
Power Requirements+3.3 VDC, +12 VDC - 1A, 225 mA
Power Consumption6 W
Dimensions7.13 in. × 0.85 in. × 4.93 in.
Weight0.24 lb.
Driver SoftwareNI-DAQmx Version 9.6.1 or later
Warranty2-3 Year Warranty
PCIe-6536B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-6536B:

National Instruments PCIe-6536B Frequently Asked Questions



Question: How many channels does the PCIe-6536B provide?

Answer: There are 32 data channels on the Digital I/O Device.



Question: How do I use the PCIe-6536B to read high-speed A Quad B signals from an encoder?

Answer: In order to use the device to read A Quad B signals, you must use a differential-to-TTL signal converter. You can build your own with the Am26LS32 ics or buy a ready-made unit.



Question: Why isn’t my NI PCIe-6536B card showing up in Windows 7 or Windows 10 in the Device Manager?

Answer: Try removing your card, cleaning it off, and resetting it to see if that fixes the problem. If it still does not show up after that, try removing and reinstalling the latest drivers for DAQmx. If you're still having issues, send us an email at support@apexwaves.com.

Accessory TypeModel NamePart Number
CableSHC68-C68-D4
(Shielded Recommended)		781013-01 (0.55 m)
196275-01 (1 m)
781293-01 (2 m)
132625-03 (3 m)
C68-C68-D4 Cable 
(Unshielded)		195949-01
SHC68-H1X38 
(Shielded, Flying Lead)		192681-1R5
Cable Adapter653x Cable Adapter195846-01
Screw Terminal Block
(Shielded)		SCB-68 HSDIO782914-01
SCB-68A782536-01
Screw Terminal Block
(Unshielded, DIN Rail Mount)		CB-2162778592-01
CB-68LP777145-01
CB-68LPR777145-02
Screw Terminal Block
(Unshielded)		TBX-68777141-01
Breakout BoxSMB-2163778747-01

*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.

*The SCB-68 / SCB-68A must use Direct Feedthrough Mode for configuration.
