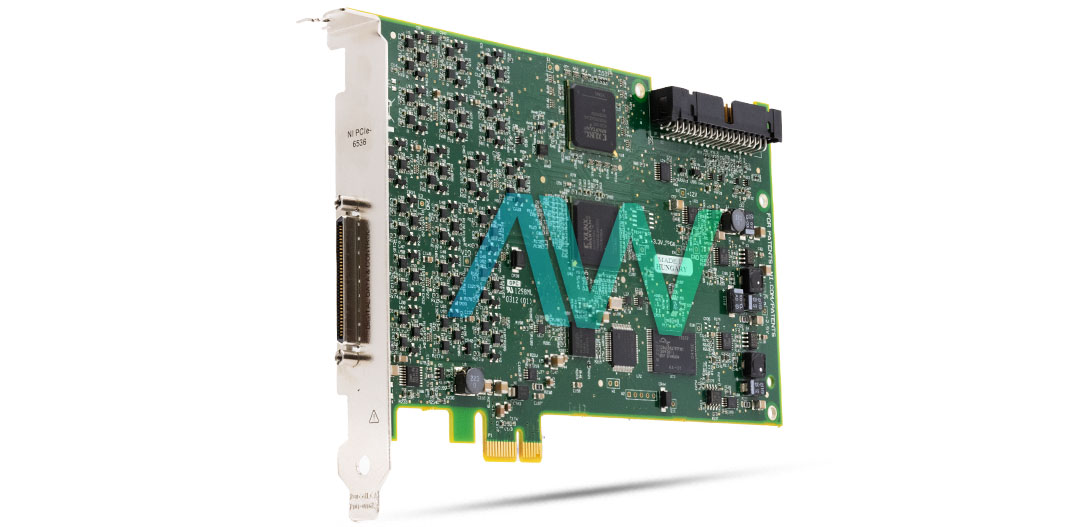

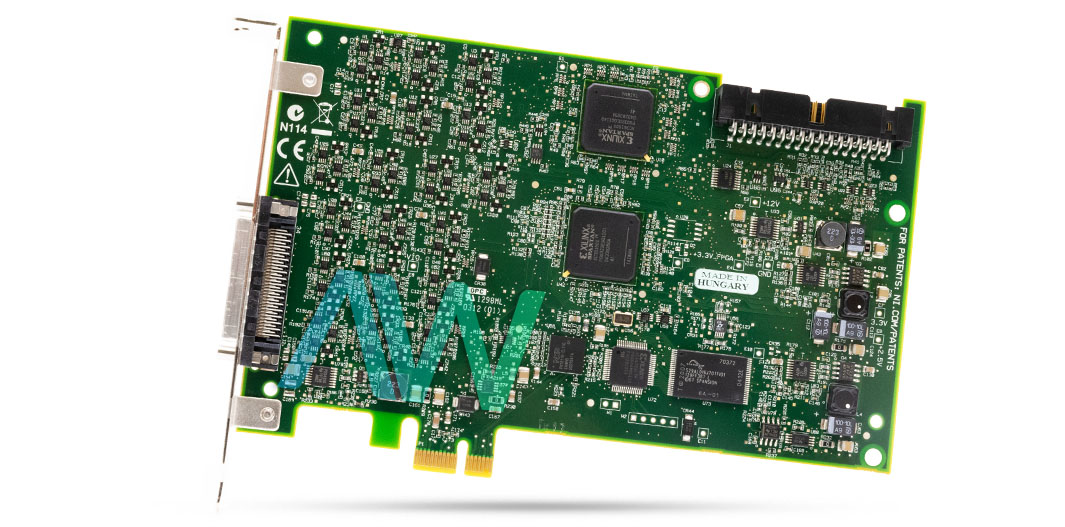

National Instruments PCIe-6536 Digital I/O Device
The National Instruments PCIe-6536 Digital I/O Device is a high-speed, 32-bit interface. This cost-effective device is built on a PCI Express bus technology. This model offers an easy way to interface with a broad range of digital applications, such as handshaking, chip testing, memory testing, pattern generation, logic vector capture, etc. With this model, the user can transfer data in four timing modes: Pattern I/O (synchronous), Handshaking I/O (asynchronous), on-demand (static I/O or unstrobed), and Burst handshaking (synchronous).
The National Instruments PCIe-6536 Digital I/O Device can be used with a variety of accessories to meet modern high-speed digital applications’ connectivity requirements. Connector block CB-2162 or the VHDCI high-density connector are a couple of such accessories. This Digital I/O Device comes equipped with an onboard sample clock (48 Hz to 25 MHz), which is configurable to 200 MHz. Since it is a PCI Express oriented high-speed device, the PCIe-6536 can be used for the generation and acquisition of larger digital waveforms because it can stream continuously at or less than 200 MB/s data. The NI PCIe-6536 can easily replace NI-6533/34 devices currently in operation.
To interface this device with already existing NI-6533/34 terminal blocks and fixtures, the user can utilize the 653x cable adapter. This Digital I/O Device is fully compatible with the NI-DAQmx driver and supports almost all the major programming software applications, including LabVIEW and Visual Studio .NET. With this model, users can interface digital devices and systems with PC-based applications directly. Moreover, this device can be used for communications control or transferring data to a digital network or devices.
The total power of the Digital I/O Device is 6.1 W. It draws 750 mA of power for a power rail of 3.3 VDC, and 300 mA for a power rail of 12 VDC. Physically, the module measures dimensions of 7.13 in. × 0.85 in. × 4.93 in. (18.1 cm × 2.2 cm × 12.6 cm) and weighs in at 3.8 oz (107.7 g).
| Model | PCIe-6536 |
|---|---|
| Manufacturer | National Instruments |
| Type | Digital I/O Device |
| Maximum Clock Rate | 25 MHz |
| Maximum Throughput | 100 MB/s |
| Data Channels | 32 |
| Total Power | 6.1 W |
| Onboard Clock Frequency | 48 Hz to 25 MHz |
| Max Data Channel Toggle Rate | 12.5 MHz |
| Sample Clock Pulse Width | 15 ns Minimum |
| Operating Temp Range | 0 ºC to +45 ºC |
| Storage Temp Range | -20 ºC to +70 ºC |
| Dimensions | 7.13 in. × 0.85 in. × 4.93 in. |
| Weight | 3.8 oz. |
| Warranty | 2-3 Year Warranty |
| PCIe-6536 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-6536:
National Instruments PCIe-6536 Frequently Asked Questions
Question: What are the selectable voltage levels for the PCIe-6536?
Answer: The selectable voltage levels for the PCIe-6536 are 2.5 V and 3.3 V (5V compatible).
Question: Which timing modes does the NI PCIe-6536 have?
Answer: The NI PCIe-6536 has synchronous and asynchronous timing modes.
Question: How many Programmable Function Interface (PFI) channels does the PCIe-6536 have?
Answer: The PCIe-6536 has 6 PFI channels.
Question: What is the output impedance of the NI PCIe-6536?
Answer: The output impedance of the NI PCIe-6536 is 50 Ω, nominal.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-C68-D4 (Shielded Recommended) | 781013-01 (0.55 m) |
| 196275-01 (1 m) | ||
| 781293-01 (2 m) | ||
| 132625-03 (3 m) | ||
| C68-C68-D4 Cable  (Unshielded) | 195949-01 | |
| SHC68-H1X38  (Shielded, Flying Lead) | 192681-1R5 | |
| Cable Adapter | 653x Cable Adapter | 195846-01 |
| Screw Terminal Block (Shielded) | SCB-68 HSDIO | 782914-01 |
| SCB-68A | 782536-01 | |
| Screw Terminal Block (Unshielded, DIN Rail Mount) | CB-2162 | 778592-01 |
| CB-68LP | 777145-01 | |
| CB-68LPR | 777145-02 | |
| Screw Terminal Block (Unshielded) | TBX-68 | 777141-01 |
| Breakout Box | SMB-2163 | 778747-01 |
| - | - | - |
*The device is compatible with SCSI accessories when using the 653x Cable Adapter. Without this adapter, VHDCI accessories must be used.
*The SCB-68 / SCB-68A must use Direct Feedthrough Mode for configuration.
