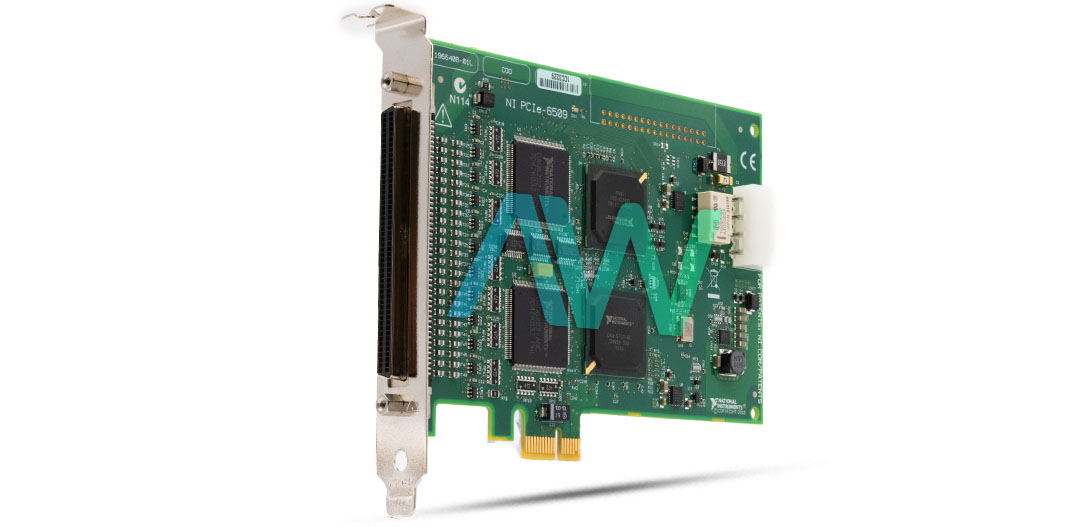

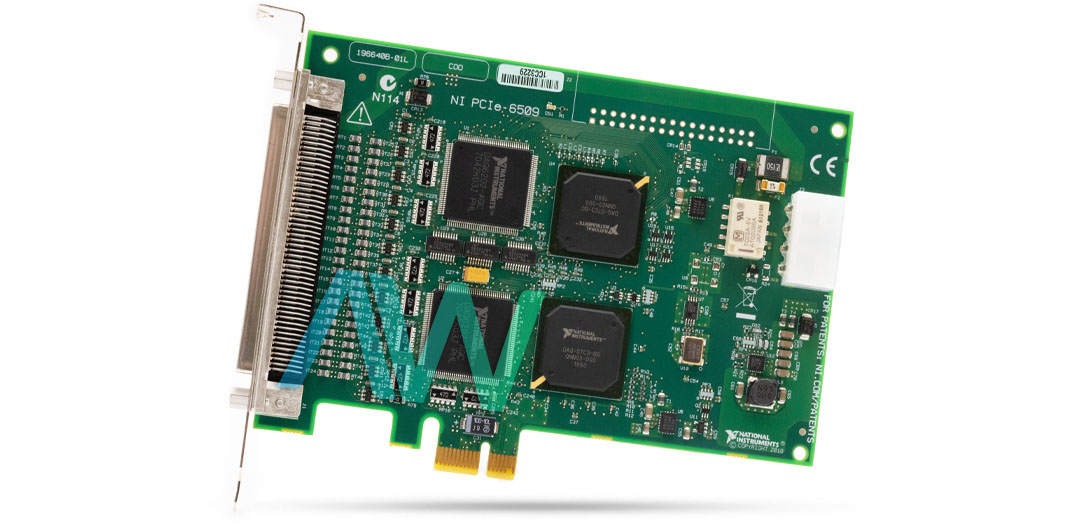

National Instruments PCIe-6509 Digital I/O Device
The PCIe-6509 (Part number: 779976-01, 196640C-01L) is an advanced Digital I/O Device from National Instruments. The device comes with 96 digital I/O channels. These channels are bidirectional in nature. The value of the current drive for each channel is 24 mili-amperes. This device comes with the capability to drive external devices directly; this mainly includes the relays that are solid state. It also offers the flexibility to configure any port as an input or output port for the data. The NI PCIe-6509 Digital I/O Device also features programming capabilities, which allows the user to configure output parameters for different operational requirements.
The NI PCIe-6509 Digital I/O Device has multiple accessories available, including cables and connectors of different types. It enables the user to quickly set up the device. The instrument is also compatible with single-ended GND referenced TTL Schmitt Triggers/CMOS. The user can also control the output power of the device with the help of software. The NI PCIe-6509 device also has a protection mechanism against the input voltage. It has the maximum value of ± 20 volts. This value is up to two pins of the NI PCIe-6509 Digital I/O Device.
The NI PCIe-6509 Digital I/O Device has the voltage range of 0 to 5 volts for the digital inputs only. The range for output voltages is from -0.5 to 5.5 volts. This model has a PCI Express bus connector. It also incorporates the in-house watchdogs. It helps enable the mechanism to recover the instrument from fault state. The device is equipped with a 100-pin female 0.050 series SCSI I/O connector.
The PCIe-6509 is run using the NI-DAQmx driver software which is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Measurement Studio, or Visual Basic.
The NI device weighs 0.21 lb, and measures 5.6 x 4.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of –20 °C to 70 °C, and an operating and nonoperating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 Hz to 500 Hz.
| Model | PCIe-6509 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779976-01, 196640C-01L |
| Type | Digital I/O Device |
| Digital I/O | 96 |
| Compatibility | TTL Schmitt Trigger/CMOS, single-ended GND referenced |
| I/O Connector | 100-pin female 0.050 series SCSI |
| Power Requirements | +12 VDC , +3.3 VDC - 20 mA, 550 mA |
| Dimensions | 5.6 in. × 4.1 in. |
| Weight | 0.21 lb. |
| Driver Software | NI-DAQmx |
| Warranty | Three Year Warranty |
| PCIe-6509 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCIe-6509:
National Instruments PCIe-6509 Frequently Asked Questions
Question: Is the PCIe 6509 compatible with the Measurement Hardware Driver Development Kit?
Answer: Yes, the PCIe 6509 is compatible with the Measurement Hardware Driver Development Kit.
Question: What is the maximum input sampling rate of the NI PCIe-6509 96 ch. device?
Answer: The NI PCIe-6509 96 ch. device is software timed. Rates will vary based on the computer, the operating system, and your code.
Question: What do I need to set channels for the NI PCIe-6509?
Answer: To program set channels for the NI PCIe-6509, install the DAQmx driver and select the corresponding .NET framework support to begin programming.
