National Instruments PCI-6527 Digital I/O Device

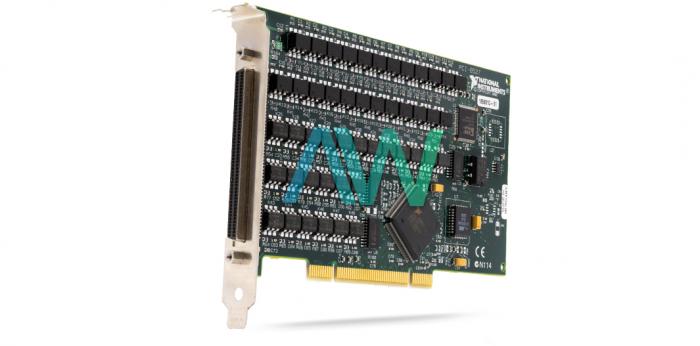

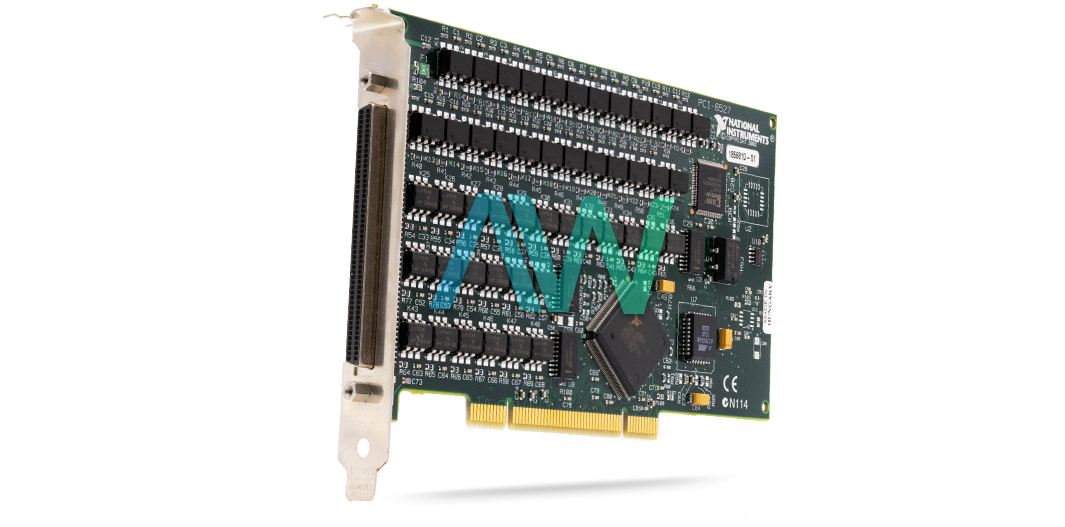

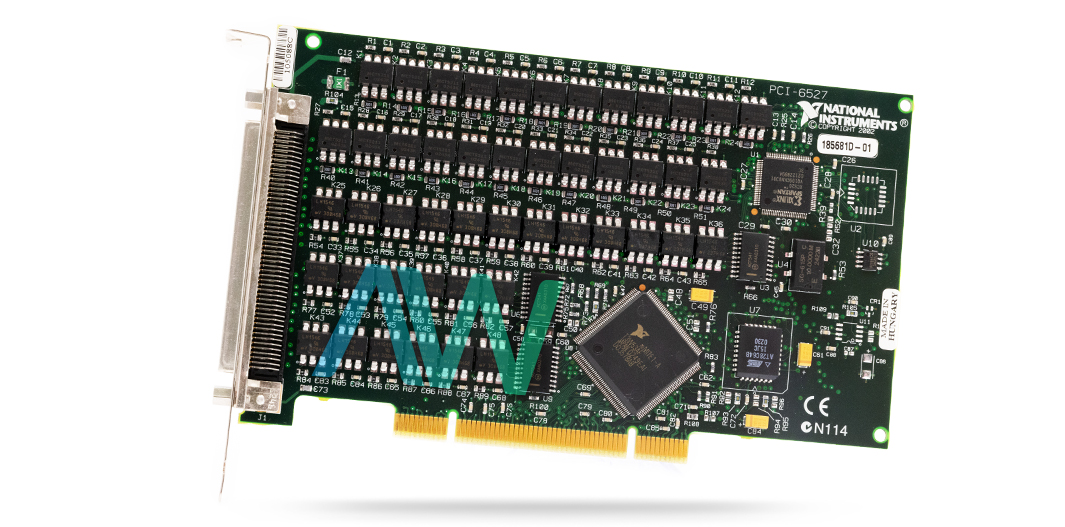

The National Instruments PCI-6527 (Part Number: 777810-01) is a parallel Isolated Digital I/O Device for compact PCI Chassis, PXI, or PCI bus computers. This 48-bit device comes featured with 48 channels, which can acquire isolated digital data. Twenty-four of the channels are solid-state relay outputs, whereas the remaining 24 channels are optocoupled inputs. Every input channel has two differential isolated terminals: one for the signal and one for the reference. The device has 24 digital I/O input channels, and 24 digital I/O output channels. A difference of 2 to 28 VDC is possible between the two terminals registers as a logic high. However, the logic low is between 0 and 1 V. With this model, the user can sense up to 28 VDC digital levels and switch currents to 120 mA maximum.

The NI PCI-6527 features digital filtering to eliminate glitches or spikes on the input lines. In addition, all the input lines can generate interrupts on rising/falling edges to notify the user about changing data. This Digital I/O Interface is a jumperless DAQ device, which comes equipped with the National Instruments proprietary PCI MITE interface. The NI PCI-6527 is considered an ideal solution for low voltage switching and isolation in both laboratory and industrial environments. The device is equipped with a 100-pin female I/O connector. It has the dimensions: 6.9 x 4.2 in

To read the status of external digital logic at non-TTL and TTL levels, users can utilize optically-isolated digital lines. The solid-state relay outputs on this device can be used in the switching of external devices and to control logic levels at either TTL or non-TTL levels. With this device, the user can decouple the harsh ground and noise of the computer from any external signal because of its isolated nature. The device operates using the NI-DAQ driver software. There are also a variety of software packages/application development environments required to program the device in conjunction with the NI-DAQ software–you could choose any of LabVIEW, Measurement Studio, Visual C++, Visual C++, LabWindows/CVI, or Visual Basic. LabVIEW and Measurement studio especially, will substantially reduce your development time.

The PCI-6527 is no longer available from the manufacturer National Instruments, but the Digital I/O Device will remain available in perpetuity with Apex Waves.

ModelPCI-6527
ManufacturerNational Instruments
Part Number777810-01
TypeDigital I/O Device
Digital I/O Inputs24
Digital I/O Outputs24
I/O Connector100-Pin Female Connector
Dimensions6.9 × 4.2 in.
DriverNI-DAQ 7
WarrantyThree Year Warranty
PCI-6527 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Information

Associated part numbers for PCI-6527:

National Instruments PCI-6527 Frequently Asked Questions



Question: Where can I find the manual for the PCI-6527?

Answer: The user manual and additional documentation for the device are available under the "Manuals & PDFs" tab.



Question: What type of driver does the NI PCI-6527 have?

Answer: The driver utilized by the Digital I/O Device is the NI-DAQ 7.



Question: Which connector block and shielded cable are recommended for shielded screw-terminal connections to the NI PCI-6527?

Answer: The SCB-100 connector block and the shielded SH100-100-F cable should be used for shielded screw-terminal connections.



Question: How much power is available at the I/O connector?

Answer: The power available at the PCI-6527's I/O connector is +4.5 to +5.25 VDC, fused at 1 A
