PCI-6518 In Stock | Ships Today
PCI-6518, 32-Channel, 16 Sink/Source Inputs, 16 Source Outputs, Digital I/O Device
Rated 4.7/5 | 18 ratings
Actual item may vary if no part number is provided on quote request.
✔ 2 Year Warranty Included
✔ Free Ground Shipping
✔ NIST Calibration Available
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025
Carol Zimme**** Verified Buyer
" Very responsive and helpful, competitive pricing. Good source! "
July 2025
Andrew Gar**** Verified Buyer
" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "
March 2025
Said Sai**** Verified Buyer
" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "
January 2025
Bob C**** Verified Buyer
" Jason was able to get our emergency situation taken care of quickly and professionally. "
May 2025
Gregg Flecki**** Verified Buyer
" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "
January 2025

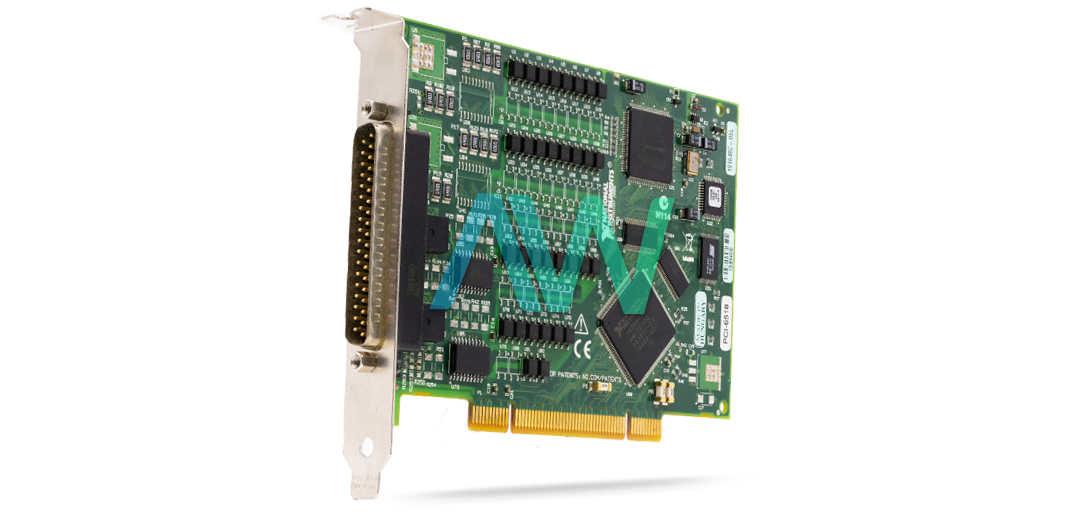

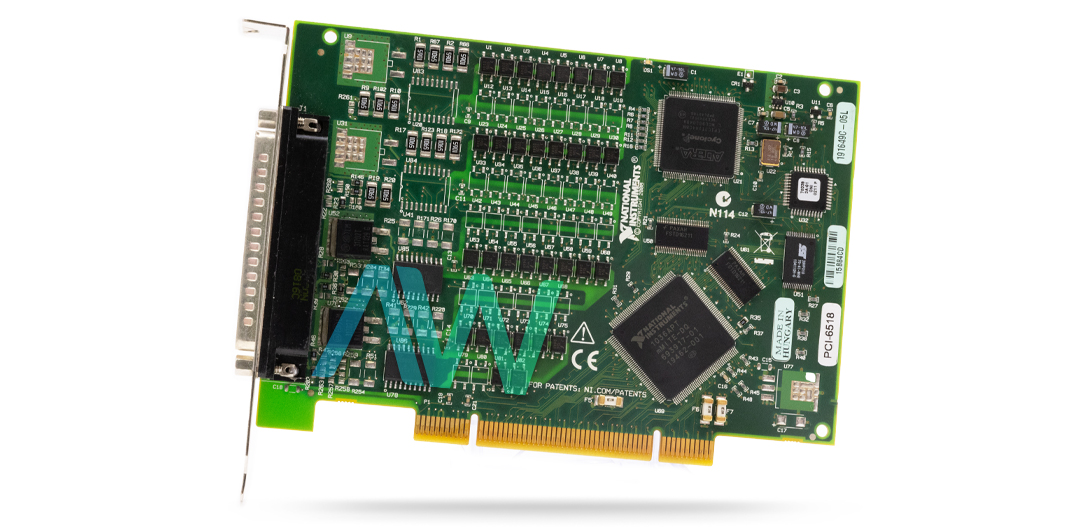

National Instruments PCI-6518 Digital I/O Device
The PCI-6518 (Part Number: 779084-01) comes with an option for synchronous I/O (or blocking I/O) that would leave the procedure/undertaking in a holding up state until the I/O ends. All things considered, it will let framework assets sit without moving. When a procedure makes numerous I/O tasks, this implies the processor can invest most of its energy for I/O activities to finish. Numerous mechanical applications offer more important normal mode noise dismissal in electrically uproarious events and seclusion to cover the gadgets from transient voltage spikes containing hardware and inductive loads. In bank-to-bank segregated models, like the case of an NI PCI-6518, every bank or gathering that comes with a couple channels has a similar ground but is isolated from other banks. The NI device has 16 source/sink input lines and 16 source output lines, a maximum input voltage of ±30 VDC, a maximum input current of 12.5 mA/line, and a propagation delay of 75 μs.
The PCI 6518 NI Digital I/O Device has simple signal ways that have been carefully composed, tried, and adjusted to guarantee the most astounding conceivable precision is accomplished over all information channels. Considering this careful plan and-test theory, NI can give recorded precision details to permit an entire comprehension of gadget execution under a scope of conceivable working conditions. The determination documentation for every gadget gives an area dedicated to understanding the calculation of AI supreme precision, nearby an abundance of other execution subtle elements.
The NI device is run using the NI-DAQmx driver software which is compatible with software packages such as LabVIEW, LabWindows/CVI, or Measurement Studio. It can be configured using the Measurement & Automation Explorer (MAX) tool.
The PCI 6518 requires installed timing hardware to control simple, advanced, and counter I/O lines. This Digital I/O Device includes the NI-STC3 chipset to give up to four improved counters, a 100 MHz timebase, and extra choices for I/O timing and activating. It is equipped with a 37-pin male DSUB I/O connector.
The NI device weighs 2.5 oz, and measures 5.54 x 4.47 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of –20 °C to 70 °C.
| Model | PCI-6518 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 779084-01 |
| Type | Digital I/O Device |
| Input Lines | 16 Source/Sink |
| Output Lines | 16 Source |
| Isolation | Bank |
| Maximum Input Voltage | ±30 VDC |
| Maximum Input Current | 12.5 mA/line |
| Propagation Delay | 75 μs |
| I/O Connector | 37-pin male D-SUB |
| Power Requirements | +5 , +3.3 VDC - 250, 300 mA |
| Dimensions | 5.54 in × 4.47 in. |
| Weight | 2.5 oz. |
| Driver Software | NI-DAQmx |
| Warranty | ThreYear Warranty |
| PCI-6518 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6518:
National Instruments PCI-6518 Frequently Asked Questions
Question: What is the power consumption of the PCI 6518?
Answer: The power consumption of the PCI 6518 is 250 mA, typical at +5 VDC (±5%) and 300 mA, typical at +3.3 VDC (±5%).
Question: What is the digital input voltage range of the PCI-6518?
Answer: The digital input voltage range of the PCI-6518 is -30 V to 30 V.
Question: What is the power-on state of the NI PCI 6518?
Answer: The power-on state of the NI PCI 6518 is 0 (open), default; user-programmable to 0 or 1.
Question: What is the output current of the NI PCI-6518?
Answer: The output current of the NI PCI-6518 is 350 (75) mA.
