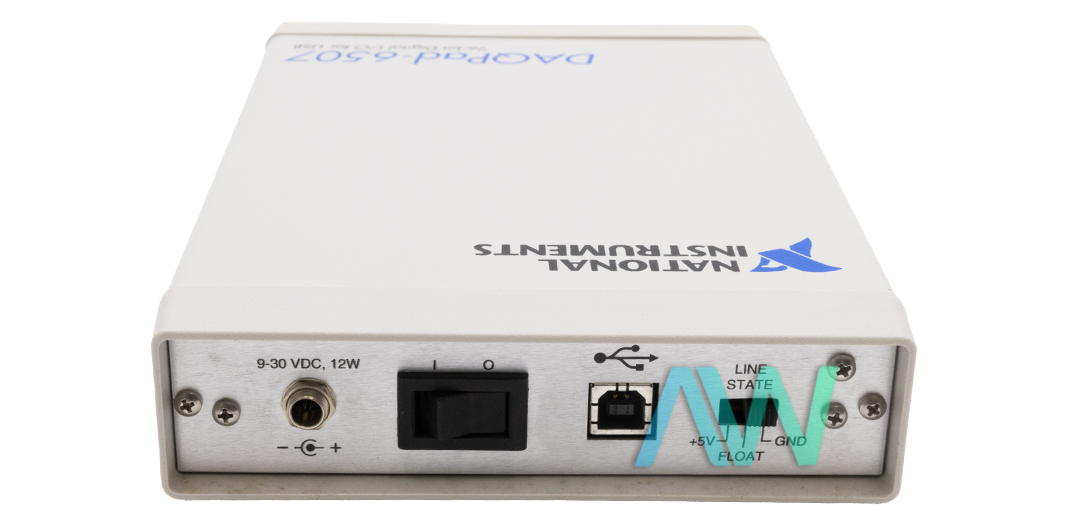

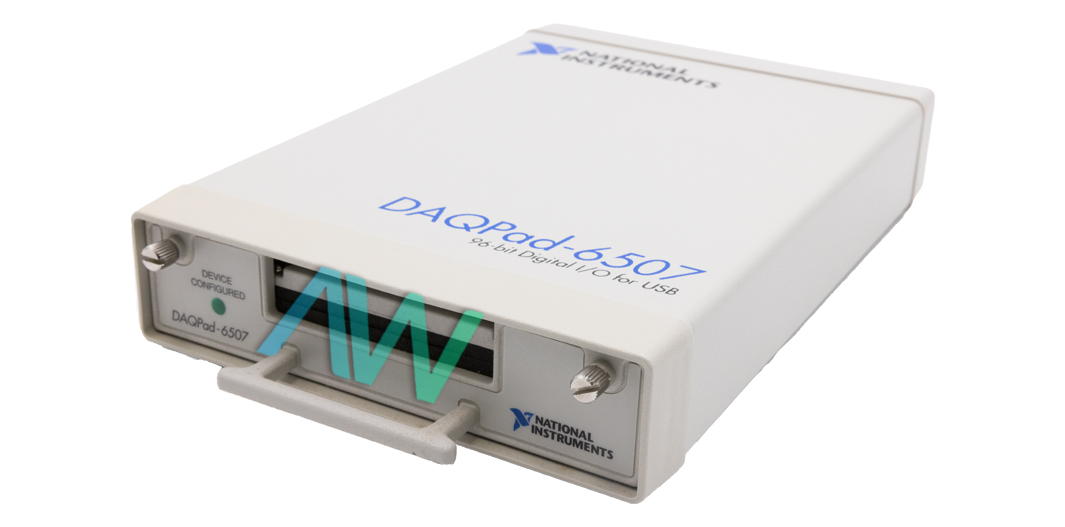

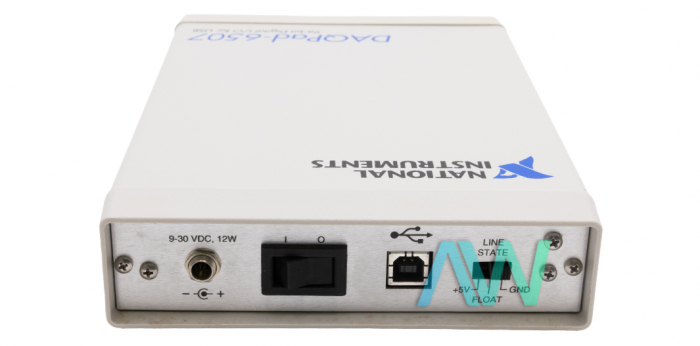

DAQPad-6507, 96 DIO, USB, Digital I/O Device

Rated 4.6/5 | 17 ratings

DAQPad-6507 National Instruments Digital I/O Device | Apex Waves | Image
DAQPad-6507 National Instruments Digital I/O Device | Apex Waves | Image
DAQPad-6507 New
DAQPad-6507 Refurbished
❮ ❯

Actual item may vary if no part number is provided on quote request.

DAQPad-6507 National Instruments Digital I/O Device | Apex Waves | Image
DAQPad-6507 National Instruments Digital I/O Device | Apex Waves | Image
DAQPad-6507 New
DAQPad-6507 Refurbished

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments DAQPad-6507 Digital I/O Device

The DAQPad-6507 (Part Number: 777405-01 is a legacy, 96-channel Digital Input/Output Device for computers with the universal serial bus (USB). The 96 channels of the device are managed through four 82C55A programmable peripheral interface (PPI’s). The device contains a high performance 24 or 96 digital input/output lines. The original equipment manufacturer for this state-of-the-art device DAQPad-6507 is National Instruments. The maximum transfer rate of the NI DAQPad-6507 is 60 S/s. The DAQPad-6507 device is equipped with 5V TTL/CMOS. This device is ideal for industrial process monitoring and control, lab testing, and production testing.

This device has the capability of hand shaking on 2 wire protocol. Handshaking requires 1 port. The user has the convenience of knowing the power up states of this device. If this device is connected to an external power supply, the power requirement is 9 to 30 VDC; 12 W maximum. For USB, the power requirement is 4.40 to 5.25 VDC; 220 mA typical, 500 mA maximum.

This Digital I/O Device comes with 100-screw terminals with a strain-relief clamp. In order to program the NI DAQPad-6507, the users must have NI-DAQ for PC Compatibles, LabVIEW for Windows, LabWindows/CVI, ComponentWorks, or VirtualBench. This device is a totally software configurable, hot plug and play device. The plug and play features query the device and distribute the necessary resources. The user can enjoy the real time performance of this device with LabVIEW. The DAQPad-6507 can be used with NI-DAQ 6.0 or 6.1 driver software for Windows 95 or NI-DAQ 6.5 or later for Windows 98.

ModelDAQPad-6507
ManufacturerNational Instruments
Part Number777405-01
TypeDigital I/O Device
BusUSB
Channels96 DIO
Current Drive2.5 mA
Maximum Input Range0..5 V
Maximum Output Range0..5 V
OS SupportWindows
Analog Input Channels0
Analog Output Channels0
Counter/Timers0
I/O ConnectorScrew terminals
Dimensions9.0 x 5.7 in.
Warranty2-3 Year Warranty
DAQPad-6507 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
