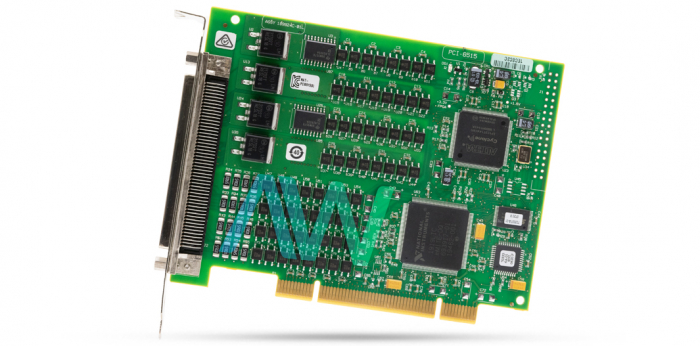

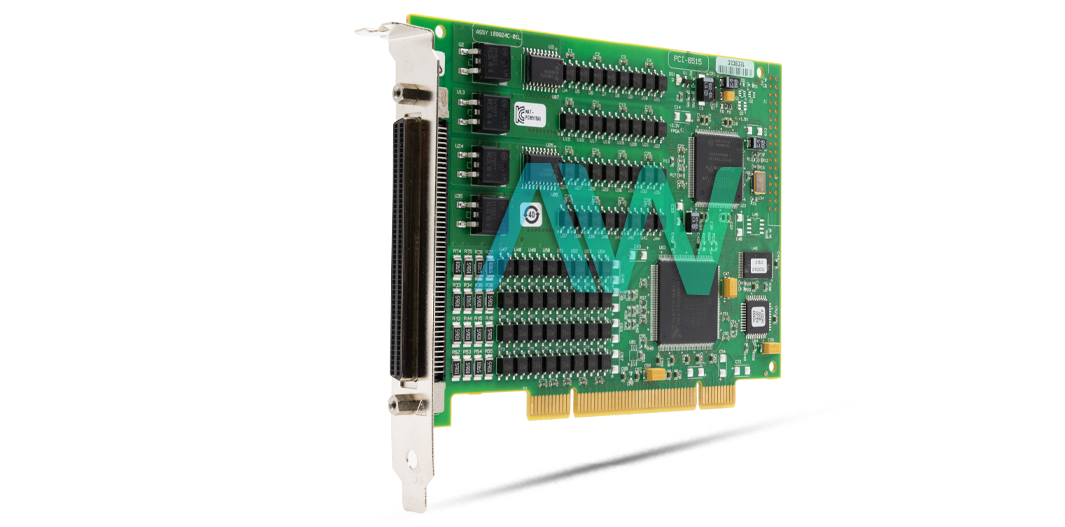

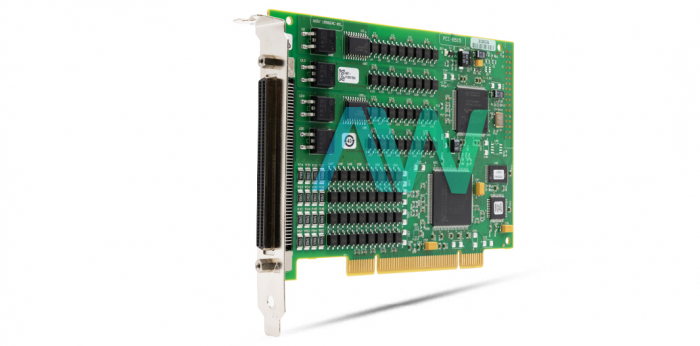

National Instruments 778939-01 Bank-Isolated Digital I/O Module
National Instruments part number 778939-01 is an identifying part number for the PCI-6514, a bank-isolated PXI Digital I/O Module. The 778939-01 is a 64-channel bank-isolated digital I/O Device, of which 32 Sink/Source Input Channels and 32 Source Output Channels with an Input Voltage range of 60 Volts. Equipped with 8 banks of isolated channels, this digital I/O interface is perfect for industrial applications. Users can configure the initial output states in software using programmable power-up states, ensuring safe operation when connected to industrial actuators. In the event of a computer or application fault, the 778939-01 can utilize digital I/O watchdogs to switch to a configurable safe output state, ensuring fault detection and safe recovery.
Additionally, programmable input filters eliminate glitches/spikes and offer debouncing for digital switches/relays through a software-selectable digital filter. The NI 778939-01 device includes programmable filters. These filters limit spikes/glitches and provide debouncing for digital relays/switches via a software-selectable digital filter. The 778939-01 operates with the NI-DAQmx driver software and can be configured using the Measurement & Automation Explorer (MAX) tool. Starting up, the output drives of this device remain disabled. Users can set each output line to either the on or off state. Additionally, as this DIO device can monitor changes on all input lines or specific input lines, the user may design the module to trigger an interrupt if a deviation occurs on any input line.
It features common-mode isolation of 30 VDC for both bank-to-bank and bank-to-bus connections. Data transfers are facilitated through interrupts and programmed I/O. This NI device weighs 2.5 ounces and has physical dimensions of 5.54 inches by 4.47 inches. It's recommended for operation within a temperature range of 0°C to 55°C, with a storage range of -20°C to 70°C.
| Part Number | 778939-01 |
|---|---|
| Model Name | PXI-6514 |
| Part Type | PXI Digital I/O Module |
| No. of Output Channels | 32 |
| Connector Type | 100-pin keyed female SCSI |
| Out Range | 0 V to 30 V |
| Digital I/O Logic Levels | 24 |
| Programmable Power-Up States Response Time | 400 ms |
| Common-Mode Isolation | 30 VDS |
| Weight | 2.5 oz |
