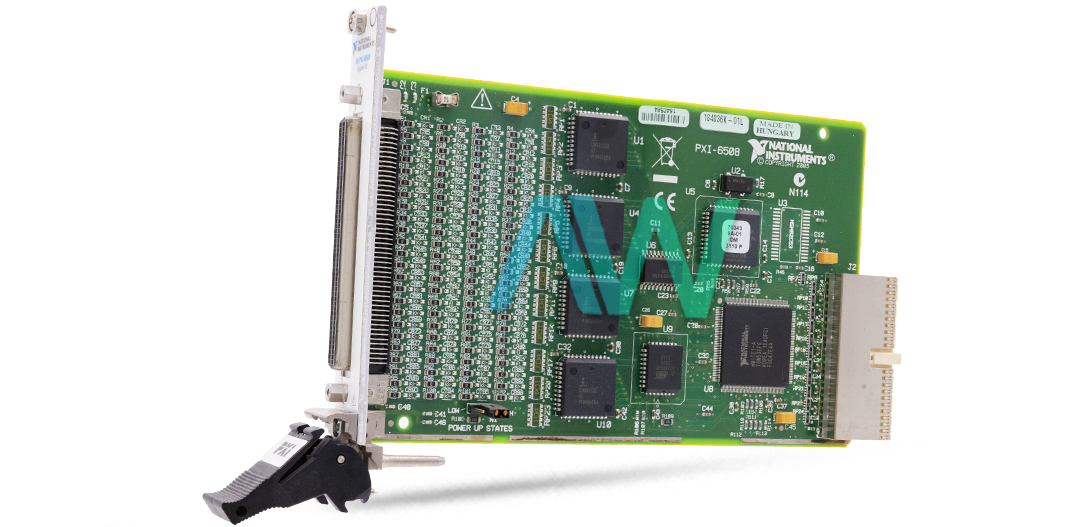

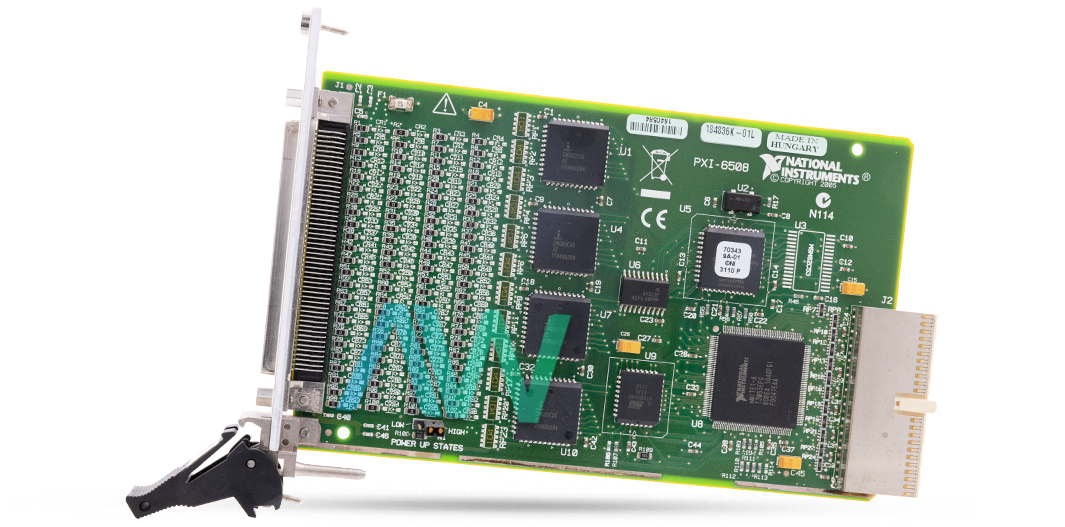

National Instruments 777598-01 Digital I/O Module
National Instruments manufactures the 777598-01, also known as the PXI-6508, a 96-channel, 5 V TTL/CMOS PXI Digital I/O Module. This module functions in both unidirectional and bidirectional modes, allowing for smooth communication with peripheral devices. It is intended to communicate with other computers or peripherals. Four 82C55A programmable peripheral interface (PPI) chips are included in the 777598-01, which offers a reliable option for digital I/O applications that call for onboard pull-up resistors.
The 777598-01's four 82C55A PPIs can be split up into three 8-bit ports apiece, which increases its adaptability to a range of industrial automation applications. These PPI chips improve the responsiveness of the module in intricate applications by supporting unidirectional, bidirectional, and handshaking modes and by producing interrupt requests to the host computer. A 100-pin female connector provides access to all 96 bits of TTL-compatible digital I/O, making it simple to integrate into current systems.
Using the NI-DAQ instrument driver, the 777598-01 provides compatibility with several programming environments, such as LabVIEW, LabWindows/CVI, and ComponentWorks. Specifically, ComponentWorks streamlines the development process by offering a higher-level programming interface for creating virtual instruments using DLLs and regular OLE controls. Because of its adaptability, the 777598-01 is a very versatile solution for a wide range of applications. Users may take advantage of all the configuration tools, resource management utilities, and interactive control utilities that come with NI-DAQ.
The 777598-01 has 96 channels of TTL-compatible digital I/O. When the inputs are pulled up or down by a 100 kΩ jumper-selectable resistor, the module powers on in a high-impedance condition. Interrupts or scheduled I/O can be used to manage data transfers, and the system performance, programming environment, and application requirements all affect the transfer speeds. When used with NI-DAQ software, the module may transfer data at a maximum rate of 50 kbytes/s. Depending on the execution mode, code efficiency, and computer speed, the module can sustain a constant rate of 1 to 10 kbytes/s.
| Part Number | 777598-01 |
|---|---|
| Model Name | PXI-6508 |
| Part Type | PXI Digital I/O Module |
| Number of Channels | 96 I/O |
| Compatibility | TTL |
| Input State on Power On | High-impedance (jumper selectable pull-up/down through 100 kΩ) |
| Handshaking | Input, output, or bidirectional |
| Data Transfer Methods | Interrupts, programmed I/O |
| Maximum Transfer Rate | 50 kbytes/s with NI-DAQ software |
| Sustainable Transfer Rate | 1 to 10 kbytes/s (typical) |
