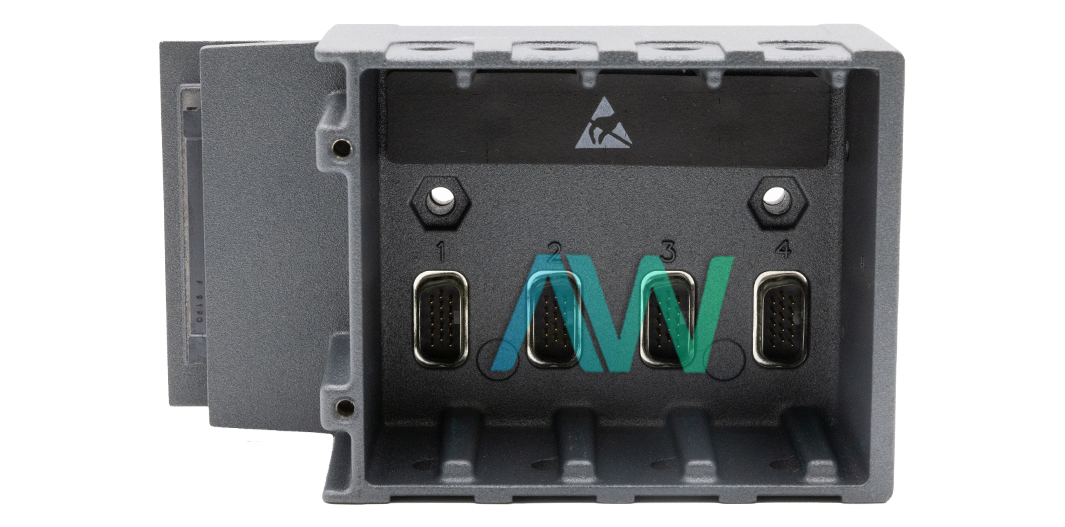

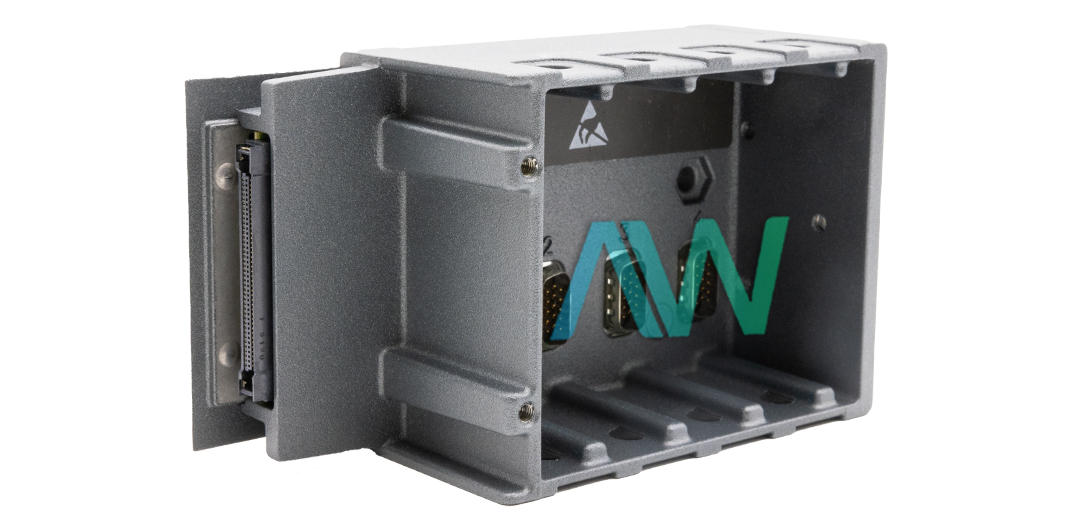

National Instruments cRIO-9113 CompactRIO Chassis
The cRIO‑9113 (Part Numbers: 780917-01 and 780917-02) comes with a Virtex-5 FPGA model. The Virtex-5 LX50 FPGA contains 28,800 flip-flops, 28,000 6-input LUTs, 48 DSP48 slices, and 1,728 kb of embedded block RAM. You can control how the FPGA initializes using the Chassis Reset Options, which allow you to configure the system to autoload the FPGA bitstream on device power-up, autoload it on device reboot (whether you cycle the power or not), or choose not to autoload the file at all.
The cRIO-9113 supports timebases of 40, 80, 120, 160, and 200 MHz. The timebase accuracy is ±100 ppm maximum, and the frequency-dependent peak-to-peak jitter ranges from 250 ps at 40 MHz up to 402 ps at 160 MHz and 200 MHz.
The maximum total chassis power consumption for the cRIO-9113 is 3,300 mW, which is distributed between the +5 VDC (500 mW max) and +3.3 VDC (2,800 mW max) lines. Additionally, the chassis supports a low-power sleep mode. The chassis reset options allow a user to configure the controller to autoload the FPGA bitstream from flash memory on device power-up, autoload it on device reboot, or choose not to autoload the VI.
The cRIO-9113 has an operating temperature range of -40°C to 70°C. If the ambient temperature reaches between 56 °C and 70 °C, the chassis must be mounted on a thermally conductive material to maintain proper function.
| Model | cRIO-9113 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780917-01, 780917-02 |
| Type | CompactRIO Chassis |
| Slots | 4 |
| FPGA | Virtex-5 LX50 |
| Number of Flip-flops: | 28,800 |
| Embedded RAM | 1,728 kbits |
| Operating Temperature | -40°C to 70°C |
| Warranty | 2-3 Year Warranty |
| cRIO-9113 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cRIO-9113:
National Instruments cRIO-9113 Frequently Asked Questions
Question: Is the cRIO-9113 a good module to use in a high-movement environment?
Answer: The rugged chassis is designed to be used in environments with high vibration or movement. To meet the shock and vibration specifications (which cover up to 50 g operating shock and 5 g operating vibration), you must use the panel mount method and affix ferrules to the ends of the terminal lines.
Question: What is the FPGA block RAM on the cRIO-9113?
Answer: The embedded block RAM for the cRIO-9113's Virtex-5 LX50 FPGA is 1,728 kbits.
Question: Does Apex Waves offer a warranty for the chassis?
Answer: Yes, Apex Waves offers a 2-3 year warranty on the cRIO-9113.
