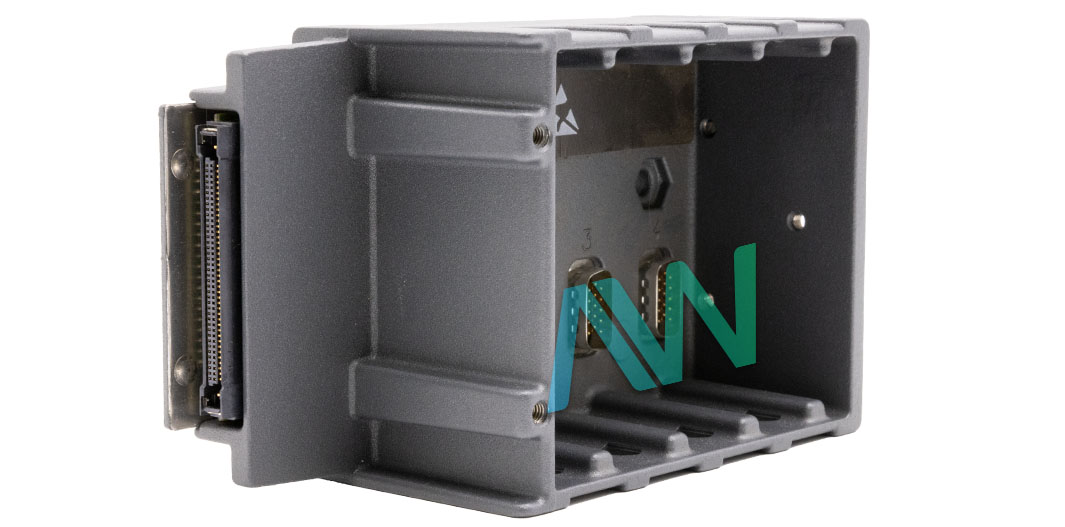

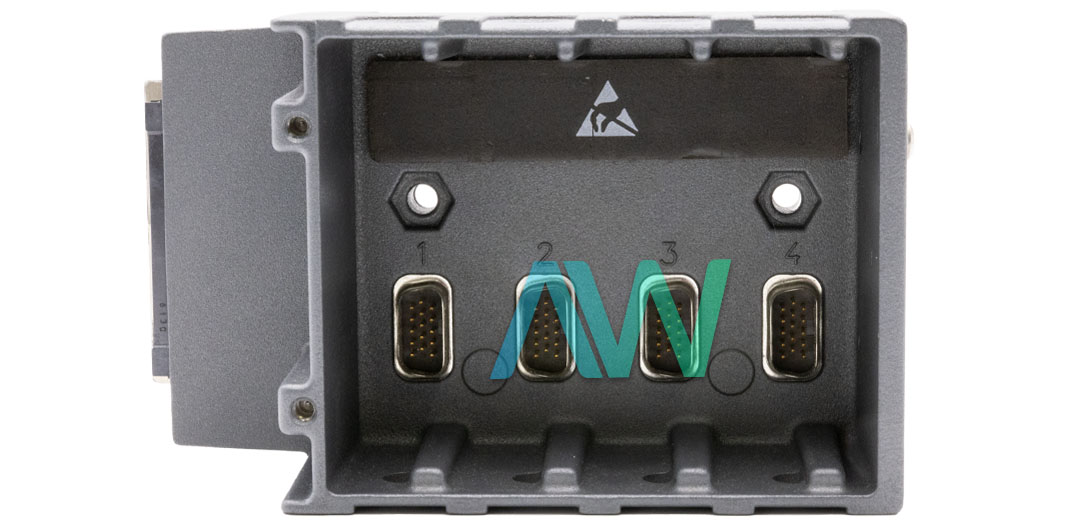

cRIO-9101 National Instruments CompactRIO Chassis | Apex Waves | Image

❮ ❯

Actual item may vary if no part number is provided on quote request.

✔ 2 Year Warranty Included

✔ Free Ground Shipping

✔ NIST Calibration Available

Anonymous Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

Name*

Email Address*

Model Name

Part Number

Qty

+Add more parts

Additional Info - Calibration, Expedited Shipping or Other Notes

Avg. Response Time: 15 min

Prefer to send a text message?

Text your name, e-mail, and parts to quote to: 1-919-809-5227

Carol Zimme**** Verified Buyer

" Very responsive and helpful, competitive pricing. Good source! "

July 2025

Andrew Gar**** Verified Buyer

" Amazing to work with and had my order within 1 week after purchasing with all NI certs and data that were needed. "

March 2025

Said Sai**** Verified Buyer

" Competent contact for highly specialized components. The support team is very knowledgeable. Many thanks for the help and the fast shipping! "

January 2025

Bob C**** Verified Buyer

" Jason was able to get our emergency situation taken care of quickly and professionally. "

May 2025

Gregg Flecki**** Verified Buyer

" Great service and great products. This is my 2nd time using Apex Waves, truly impressed. "

January 2025

National Instruments cRIO-9101 CompactRIO Chassis

The National Instruments cRIO-9101 (Part Number: 779052-01) is a 4-slot CompactRIO chassis. This rugged chassis can be used to add multiple C Series I/O modules to an existing monitoring or control application.

The reconfigurable FPGA incorporated in this chassis has 5120 logic slices and 81,920 bytes of embedded RAM. The addition of this FPGA enables the cRIO 9101 to offer high-speed control and I/O. To communicate with the C Series modules installed in any of the four slots, a CompactRIO controller is necessary. If the user wants to mount this chassis on a DIN rail, then they can acquire the National Instruments 9912 DIN rail kit separately.

The NI cRIO-9101 weighs approximately 490 g and draws 500 mW of power from the +5 VDC and 1,800 mW of power from the +3.3 VDC rail. Thus, the total power required (maximum) for operating this chassis is 2,300 mW. To start using the CompactRIO system, a Windows computer with NI-RIO drivers and LabVIEW software is required. This chassis comes with an I/O core. The NI cRIO 9101 allows the user to remove I/O modules with the power supply in the ON position without affecting the entire control system. Hot-swapping is only permitted if the system is located in a non-hazardous location.

Model	cRIO-9101
Manufacturer	National Instruments
Part Number	779052-01
Type	CompactRIO Chassis
Slots	4
FPGA	1M Gate
Logic Slices	5,120
Embedded RAM	81,920 bytes
Weight	17.3 oz.
Warranty	2-3 Year Warranty
cRIO-9101 Manual	User Manual and Maintenance Manual Available for Download
Price	Request a quote

Associated part numbers for cRIO-9101:

National Instruments cRIO-9101 Frequently Asked Questions

Question: Does the NI cRIO-9101 have industrial certifications?

Answer: The chassis has extreme industrial certifications and ratings.

Question: How do you program the cRIO-9101?

Answer: The chassis requires a Windows computer with LabVIEW and NI-RIO software.

Question: What mounting hardware is required for high vibration?

Answer: For high shock and vibration applications, you must use the panel mount method rather than mounting the chassis on a DIN rail.

Question: How do I connect the chassis to earth ground?

Answer: To connect the chassis to earth ground, you must connect the panhead grounding screw located at the end of the chassis to ground using shielded cables. Ensuring the device is connected to earth ground with shielded cabling is required to maintain electromagnetic compatibility (EMC) compliance.
